Redel-Male Connector to 4-Channel Redel-Female Connector
HV adaption - 4 X 1-Channel Redel-Male Connector to 4-Channel Redel-Female Connector
Application

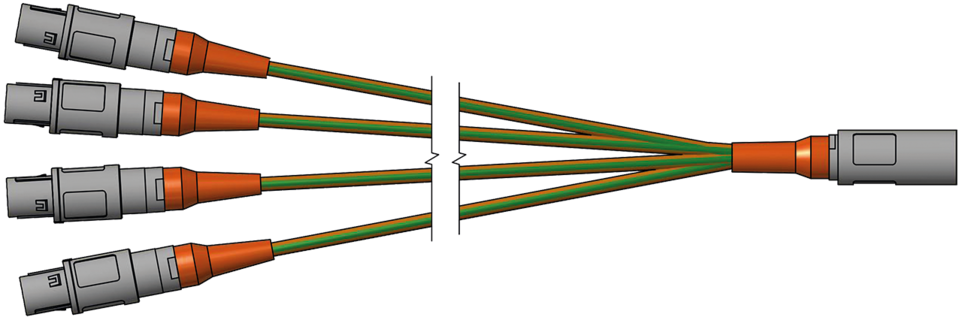

The wide range of different high-voltage systems requires a high degree of flexibility in the connection of the sensors to the measurement technology. With the adapter shown above, you can easily adapt the 4 channel HV thermosensors to different modules. For example, the imc CANSASflex-HISO8-T-8L or M-THERMO2 HV from Ipetronik.
Technical data
| connection cable length | according to customer requirements |
|---|---|
| connection end 1 | Redel-male connector 4 x type K - 2-poles |
| connection end 2 | Redel-female connector type K – 8-poles |
| marking | standard: channel 1 - 4 special: according to customer requirements |
connection cable length
according to customer requirements
connection end 1
Redel-male connector 4 x type K - 2-poles
connection end 2
Redel-female connector type K – 8-poles
marking
standard: channel 1 - 4
special: according to customer requirements
