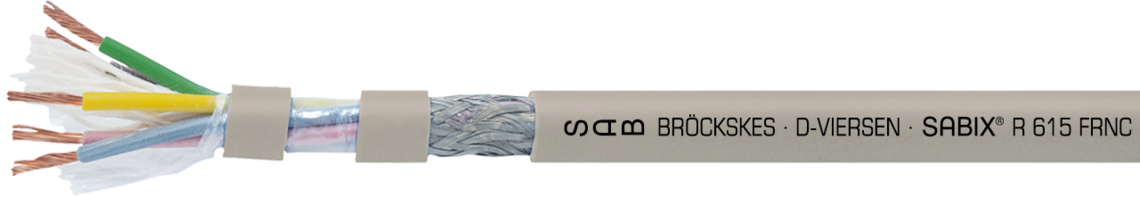

SABIX® R 615 FRNC

SABIX® Rail Data with overall copper screen tested acc. to EN 45545-2

Marking for SABIX® R 615 FRNC 66150550: SAB BRÖCKSKES • D-VIERSEN • SABIX® R 615 FRNC 5 x 0,5 mm² CE

Marking for SABIX® R 615 FRNC 66150550: SAB BRÖCKSKES • D-VIERSEN • SABIX® R 615 FRNC 5 x 0,5 mm² CE

Download data sheet for SABIX® R 615 FRNC
Questions about our products?

Application

Data cable with overall copper screen that is tested acc. to American ASTM standard and fulfils fire protection requirements R 15 (EL1A) acc. to EN 45545-2 for hazard levels HL1-3. This cable is recommended for the internal wiring of rail vehicles acc. to EN 45545-2.

Outstanding features

    • halogen-free
    • screened, good EMC characteristics
    • no flame propagation
    • flame retardant and self-extinguishing
    • fulfils fire protection requirements R15 (EL1A) acc. to EN 45545-2 for hazard levels HL1-3
    • fulfils fire protection requirements acc. to NFPA 130 section 8.6.7.1.1.1 and section 12.2.1 (1)
    • flame retardant acc. to UN/ECE R118
    • tested acc. to American ASTM standard

    Additional information

    Especially for use in rail vehicles

    Construction

    Conductor

    bare copper strands with reference to IEC 60228, VDE 0295, class 5

    Insulation

    Special SABIX®

    Colour code

    with reference to DIN 47100

    Stranding

    in layers

    Wrapping

    Foil

    Screen

    tinned copper braiding

    Sheath material

    Special SABIX®

    Sheath colour

    grey (RAL 7032)

    Conductor

    bare copper strands with reference to IEC 60228, VDE 0295, class 5

    Insulation

    Special SABIX®

    Colour code

    with reference to DIN 47100

    Stranding

    in layers

    Wrapping

    Foil

    Screen

    tinned copper braiding

    Sheath material

    Special SABIX®

    Sheath colour

    grey (RAL 7032)

    Technical data

    Peak operating voltage

    < 0,25 mm² = max. 350 V

    ≥ 0,25 mm² = max. 500 V

    Testing voltage

    core/core 1500 V

    core/screen 1200 V

    Min. bending radius

    fixed laying: 5 x d

    flexible application: 10 x d

    Temperature range

    fixed laying: -40/+90 °C

    flexible application: -30/+90 °C

    Halogen-free

    acc. to EN 50306-1 + EN 50264-1 are fulfilled.

    Development of HCl is < 0,5% acc. to IEC 60754-1.

    pH-value is > 4,3 acc. to IEC 60754-2.

    Conductivity is < 10,0 µS/mm acc. to IEC 60754-2.

    Fluoric content < 0,1% acc. to IEC 60684-2

    Flame propagation

    no flame propagation
    acc. to IEC 60332-3-24 + VDE 0482-332-3-24
    resp. IEC 60332-3-25 + VDE 0482-332-3-25 and EN 50305 + VDE 0260-305 section 9.1.2.

    Flame retardant

    acc. to UL 1685 section 12, FT4/IEEE 1202

    acc. to ISO 6722 (UN/ECE R118)

    Burning tests

    acc. to ASTM E 162-09

    Fire performance

    flame retardant and self-extinguishing acc. to IEC 60332-1-2 + VDE 0482-332-1-2

    Toxicity

    acc. to EN 50305 + VDE 0260-305

    Smoke density

    acc. to IEC 61034 + VDE 0482-1034 + ASTM E 662-09

    Flexibility

    good

    Absence of harmful substances

    acc. to RoHS directive of the European Union

    Peak operating voltage

    < 0,25 mm² = max. 350 V

    ≥ 0,25 mm² = max. 500 V

    Testing voltage

    core/core 1500 V

    core/screen 1200 V

    Min. bending radius

    fixed laying: 5 x d

    flexible application: 10 x d

    Temperature range

    fixed laying: -40/+90 °C

    flexible application: -30/+90 °C

    Halogen-free

    acc. to EN 50306-1 + EN 50264-1 are fulfilled.

    Development of HCl is < 0,5% acc. to IEC 60754-1.

    pH-value is > 4,3 acc. to IEC 60754-2.

    Conductivity is < 10,0 µS/mm acc. to IEC 60754-2.

    Fluoric content < 0,1% acc. to IEC 60684-2

    Flame propagation

    no flame propagation
    acc. to IEC 60332-3-24 + VDE 0482-332-3-24
    resp. IEC 60332-3-25 + VDE 0482-332-3-25 and EN 50305 + VDE 0260-305 section 9.1.2.

    Flame retardant

    acc. to UL 1685 section 12, FT4/IEEE 1202

    acc. to ISO 6722 (UN/ECE R118)

    Burning tests

    acc. to ASTM E 162-09

    Fire performance

    flame retardant and self-extinguishing acc. to IEC 60332-1-2 + VDE 0482-332-1-2

    Toxicity

    acc. to EN 50305 + VDE 0260-305

    Smoke density

    acc. to IEC 61034 + VDE 0482-1034 + ASTM E 662-09

    Flexibility

    good

    Absence of harmful substances

    acc. to RoHS directive of the European Union

    Dimensions

    item no. No. of cores x
    cross section     		Outer-ø ± 5% Copper figure Cable weight ≈
    L661502142 x 0,14 mm²3,6 mm12,6 kg/km21 kg/km Send inquiry
    L661504144 x 0,14 mm²4 mm15,9 kg/km24 kg/km Send inquiry
    L661503143 x 0,14 mm²3,8 mm14,1 kg/km22 kg/km Send inquiry
    L661505145 x 0,14 mm²4,3 mm19,5 kg/km29 kg/km Send inquiry
    L661507147 x 0,14 mm²4,6 mm24 kg/km33 kg/km Send inquiry
    L6615211421 x 0,14 mm²7,6 mm60 kg/km84 kg/km Send inquiry
    L661508148 x 0,14 mm²5,4 mm26 kg/km43 kg/km Send inquiry
    L6615241424 x 0,14 mm²8 mm74 kg/km89 kg/km Send inquiry
    L6615271427 x 0,14 mm²8,6 mm85 kg/km104 kg/km Send inquiry
    L6615101410 x 0,14 mm²5,8 mm29 kg/km47 kg/km Send inquiry
    L6615121412 x 0,14 mm²6,2 mm32 kg/km54 kg/km Send inquiry
    L6615361436 x 0,14 mm²9,4 mm117 kg/km128 kg/km Send inquiry
    L6615401440 x 0,14 mm²10 mm126 kg/km141 kg/km Send inquiry
    L6615141414 x 0,14 mm²6,4 mm35 kg/km60 kg/km Send inquiry
    L6615161416 x 0,14 mm²6,7 mm49 kg/km67 kg/km Send inquiry
    L6615611461 x 0,14 mm²11,6 mm176 kg/km203 kg/km Send inquiry
    L6615181418 x 0,14 mm²7 mm54 kg/km72 kg/km Send inquiry
    L661502252 x 0,25 mm²3,9 mm15 kg/km24 kg/km Send inquiry
    L661507257 x 0,25 mm²5,3 mm32 kg/km46 kg/km Send inquiry
    L661508258 x 0,25 mm²6,1 mm35 kg/km58 kg/km Send inquiry
    L6615122512 x 0,25 mm²6,8 mm50 kg/km72 kg/km Send inquiry
    L6615301430 x 0,14 mm²8,8 mm98 kg/km112 kg/km Send inquiry
    L6615321432 x 0,14 mm²9,1 mm108 kg/km118 kg/km Send inquiry
    L6615162516 x 0,25 mm²7,4 mm71 kg/km89 kg/km Send inquiry
    L6615182518 x 0,25 mm²7,8 mm80 kg/km98 kg/km Send inquiry
    L6615272527 x 0,25 mm²9,5 mm120 kg/km142 kg/km Send inquiry
    L6615322532 x 0,25 mm²10,1 mm138 kg/km161 kg/km Send inquiry
    L6615441444 x 0,14 mm²10,6 mm138 kg/km162 kg/km Send inquiry
    L6615501450 x 0,14 mm²11 mm150 kg/km175 kg/km Send inquiry
    L6615402540 x 0,25 mm²11,3 mm164 kg/km209 kg/km Send inquiry
    L6615442544 x 0,25 mm²11,8 mm180 kg/km221 kg/km Send inquiry
    L6615502550 x 0,25 mm²12,7 mm222 kg/km254 kg/km Send inquiry
    L6615521452 x 0,14 mm²11 mm155 kg/km179 kg/km Send inquiry
    L6615522552 x 0,25 mm²12,7 mm234 kg/km260 kg/km Send inquiry
    L661503343 x 0,34 mm²4,9 mm21 kg/km36 kg/km Send inquiry
    L661504344 x 0,34 mm²5,3 mm25 kg/km43 kg/km Send inquiry
    L661505345 x 0,34 mm²5,7 mm30 kg/km51 kg/km Send inquiry
    L661503253 x 0,25 mm²4,1 mm18 kg/km26 kg/km Send inquiry
    L661507347 x 0,34 mm²6,4 mm42 kg/km63 kg/km Send inquiry
    L661508348 x 0,34 mm²7,2 mm45 kg/km78 kg/km Send inquiry
    L661504254 x 0,25 mm²4,4 mm22 kg/km31 kg/km Send inquiry
    L661505255 x 0,25 mm²4,9 mm25 kg/km38 kg/km Send inquiry
    L6615213421 x 0,34 mm²10,7 mm127 kg/km177 kg/km Send inquiry
    L6615243424 x 0,34 mm²11,3 mm140 kg/km193 kg/km Send inquiry
    L6615102510 x 0,25 mm²6,6 mm42 kg/km64 kg/km Send inquiry
    L6615323432 x 0,34 mm²12,7 mm171 kg/km247 kg/km Send inquiry
    L6615363436 x 0,34 mm²13,2 mm188 kg/km272 kg/km Send inquiry
    L6615142514 x 0,25 mm²7,1 mm64 kg/km80 kg/km Send inquiry
    L661505505 x 0,50 mm²6,3 mm41,6 kg/km63 kg/km Send inquiry
    L6615403440 x 0,34 mm²14 mm208 kg/km301 kg/km Send inquiry
    L6615443444 x 0,34 mm²14,6 mm223 kg/km319 kg/km Send inquiry
    L6615503450 x 0,34 mm²15,8 mm248 kg/km386 kg/km Send inquiry
    L6615212521 x 0,25 mm²8,8 mm105 kg/km122 kg/km Send inquiry
    L661508508 x 0,50 mm²7,8 mm62 kg/km94 kg/km Send inquiry
    L6615523452 x 0,34 mm²15,8 mm273 kg/km395 kg/km Send inquiry
    L6615242524 x 0,25 mm²9,3 mm115 kg/km130 kg/km Send inquiry
    L6615125012 x 0,50 mm²9 mm84,2 kg/km126 kg/km Send inquiry
    L6615613461 x 0,34 mm²16,7 mm316 kg/km366 kg/km Send inquiry
    L6615145014 x 0,50 mm²9,4 mm93,5 kg/km139 kg/km Send inquiry
    L661502502 x 0,50 mm²5 mm23,5 kg/km39 kg/km Send inquiry
    L6615302530 x 0,25 mm²9,8 mm132 kg/km152 kg/km Send inquiry
    L6615165016 x 0,50 mm²9,9 mm105,9 kg/km156 kg/km Send inquiry
    L661503503 x 0,50 mm²5,2 mm28,4 kg/km42 kg/km Send inquiry
    L6615362536 x 0,25 mm²10,7 mm152 kg/km189 kg/km Send inquiry
    L6615305030 x 0,50 mm²13,2 mm203,6 kg/km283 kg/km Send inquiry
    L6615325032 x 0,50 mm²13,7 mm213,5 kg/km299 kg/km Send inquiry
    L6615365036 x 0,50 mm²14,2 mm239 kg/km330 kg/km Send inquiry
    L6615445044 x 0,50 mm²16,4 mm309,2 kg/km422 kg/km Send inquiry
    L6615505050 x 0,50 mm²17 mm349,7 kg/km469 kg/km Send inquiry
    L6615612561 x 0,25 mm²13,4 mm287 kg/km295 kg/km Send inquiry
    L661503753 x 0,75 mm²6,1 mm37,6 kg/km56 kg/km Send inquiry
    L661504754 x 0,75 mm²6,6 mm46,5 kg/km73 kg/km Send inquiry
    L661505755 x 0,75 mm²7,1 mm55,7 kg/km81 kg/km Send inquiry
    L661502342 x 0,34 mm²4,5 mm17 kg/km31 kg/km Send inquiry
    L661507757 x 0,75 mm²7,7 mm74 kg/km101 kg/km Send inquiry
    L661508758 x 0,75 mm²9,2 mm83,8 kg/km132 kg/km Send inquiry
    L6615147514 x 0,75 mm²11 mm148,5 kg/km198 kg/km Send inquiry
    L6615187518 x 0,75 mm²12,4 mm184 kg/km257 kg/km Send inquiry
    L6615217521 x 0,75 mm²13,6 mm211 kg/km297 kg/km Send inquiry
    L6615247524 x 0,75 mm²14,4 mm239,1 kg/km324 kg/km Send inquiry
    L6615307530 x 0,75 mm²15,8 mm313,4 kg/km417 kg/km Send inquiry
    L6615327532 x 0,75 mm²16,3 mm328,3 kg/km440 kg/km Send inquiry
    L6615367536 x 0,75 mm²16,9 mm357,8 kg/km479 kg/km Send inquiry
    L6615103410 x 0,34 mm²7,8 mm63 kg/km87 kg/km Send inquiry
    L6615123412 x 0,34 mm²8 mm70 kg/km97 kg/km Send inquiry
    L661504804 x 1,00 mm²6,8 mm57,9 kg/km78 kg/km Send inquiry
    L6615143414 x 0,34 mm²8,8 mm78 kg/km118 kg/km Send inquiry
    L6615163416 x 0,34 mm²9,2 mm87 kg/km129 kg/km Send inquiry
    L6615183418 x 0,34 mm²9,7 mm108 kg/km144 kg/km Send inquiry
    L6615273427 x 0,34 mm²11,5 mm151 kg/km207 kg/km Send inquiry
    L6615303430 x 0,34 mm²11,9 mm162 kg/km222 kg/km Send inquiry
    L661504504 x 0,50 mm²5,6 mm35,1 kg/km50 kg/km Send inquiry
    L661507507 x 0,50 mm²6,8 mm53,1 kg/km76 kg/km Send inquiry
    L6615105010 x 0,50 mm²8,8 mm74,5 kg/km113 kg/km Send inquiry
    L6615185018 x 0,50 mm²10,6 mm133,9 kg/km185 kg/km Send inquiry
    L6615215021 x 0,50 mm²11,6 mm154,9 kg/km220 kg/km Send inquiry
    L6615245024 x 0,50 mm²12,6 mm169,7 kg/km240 kg/km Send inquiry
    L6615275027 x 0,50 mm²12,8 mm184,2 kg/km260 kg/km Send inquiry
    L6615615061 x 0,50 mm²18 mm403,7 kg/km540 kg/km Send inquiry
    L661502752 x 0,75 mm²5,6 mm30,3 kg/km48 kg/km Send inquiry
    L6615127512 x 0,75 mm²10,5 mm133,9 kg/km179 kg/km Send inquiry
    L6615167516 x 0,75 mm²11,5 mm169,2 kg/km224 kg/km Send inquiry
    L6615277527 x 0,75 mm²14,7 mm260,9 kg/km352 kg/km Send inquiry
    L661502802 x 1,00 mm²5,8 mm35,2 kg/km53 kg/km Send inquiry
    L661503803 x 1,00 mm²6,3 mm46,4 kg/km65 kg/km Send inquiry
    L661505805 x 1,00 mm²7,4 mm69,6 kg/km95 kg/km Send inquiry
    L661506806 x 1,00 mm²8 mm81,3 kg/km111 kg/km Send inquiry
    L661507807 x 1,00 mm²8 mm90,9 kg/km117 kg/km Send inquiry
    L661502852 x 1,50 mm²6,6 mm46,5 kg/km71 kg/km Send inquiry
    L661503853 x 1,50 mm²6,8 mm62,7 kg/km90 kg/km Send inquiry
    L661504854 x 1,50 mm²7,4 mm79,2 kg/km98 kg/km Send inquiry
    L661505855 x 1,50 mm²8,6 mm95,8 kg/km130 kg/km Send inquiry
    L661506856 x 1,50 mm²9,3 mm112,7 kg/km152 kg/km Send inquiry
    L661507857 x 1,50 mm²9,3 mm127,1 kg/km162 kg/km Send inquiry
    item no.
    No. of cores x
    cross section
    Outer-ø ± 5%
    Copper figure
    Cable weight ≈
    L66150214
    2 x 0,14 mm²
    3,6 mm
    12,6 kg/km
    21 kg/km
    L66150414
    4 x 0,14 mm²
    4 mm
    15,9 kg/km
    24 kg/km
    L66150314
    3 x 0,14 mm²
    3,8 mm
    14,1 kg/km
    22 kg/km
    L66150514
    5 x 0,14 mm²
    4,3 mm
    19,5 kg/km
    29 kg/km
    L66150714
    7 x 0,14 mm²
    4,6 mm
    24 kg/km
    33 kg/km
    L66152114
    21 x 0,14 mm²
    7,6 mm
    60 kg/km
    84 kg/km
    L66150814
    8 x 0,14 mm²
    5,4 mm
    26 kg/km
    43 kg/km
    L66152414
    24 x 0,14 mm²
    8 mm
    74 kg/km
    89 kg/km
    L66152714
    27 x 0,14 mm²
    8,6 mm
    85 kg/km
    104 kg/km
    L66151014
    10 x 0,14 mm²
    5,8 mm
    29 kg/km
    47 kg/km
    L66151214
    12 x 0,14 mm²
    6,2 mm
    32 kg/km
    54 kg/km
    L66153614
    36 x 0,14 mm²
    9,4 mm
    117 kg/km
    128 kg/km
    L66154014
    40 x 0,14 mm²
    10 mm
    126 kg/km
    141 kg/km
    L66151414
    14 x 0,14 mm²
    6,4 mm
    35 kg/km
    60 kg/km
    L66151614
    16 x 0,14 mm²
    6,7 mm
    49 kg/km
    67 kg/km
    L66156114
    61 x 0,14 mm²
    11,6 mm
    176 kg/km
    203 kg/km
    L66151814
    18 x 0,14 mm²
    7 mm
    54 kg/km
    72 kg/km
    L66150225
    2 x 0,25 mm²
    3,9 mm
    15 kg/km
    24 kg/km
    L66150725
    7 x 0,25 mm²
    5,3 mm
    32 kg/km
    46 kg/km
    L66150825
    8 x 0,25 mm²
    6,1 mm
    35 kg/km
    58 kg/km
    L66151225
    12 x 0,25 mm²
    6,8 mm
    50 kg/km
    72 kg/km
    L66153014
    30 x 0,14 mm²
    8,8 mm
    98 kg/km
    112 kg/km
    L66153214
    32 x 0,14 mm²
    9,1 mm
    108 kg/km
    118 kg/km
    L66151625
    16 x 0,25 mm²
    7,4 mm
    71 kg/km
    89 kg/km
    L66151825
    18 x 0,25 mm²
    7,8 mm
    80 kg/km
    98 kg/km
    L66152725
    27 x 0,25 mm²
    9,5 mm
    120 kg/km
    142 kg/km
    L66153225
    32 x 0,25 mm²
    10,1 mm
    138 kg/km
    161 kg/km
    L66154414
    44 x 0,14 mm²
    10,6 mm
    138 kg/km
    162 kg/km
    L66155014
    50 x 0,14 mm²
    11 mm
    150 kg/km
    175 kg/km
    L66154025
    40 x 0,25 mm²
    11,3 mm
    164 kg/km
    209 kg/km
    L66154425
    44 x 0,25 mm²
    11,8 mm
    180 kg/km
    221 kg/km
    L66155025
    50 x 0,25 mm²
    12,7 mm
    222 kg/km
    254 kg/km
    L66155214
    52 x 0,14 mm²
    11 mm
    155 kg/km
    179 kg/km
    L66155225
    52 x 0,25 mm²
    12,7 mm
    234 kg/km
    260 kg/km
    L66150334
    3 x 0,34 mm²
    4,9 mm
    21 kg/km
    36 kg/km
    L66150434
    4 x 0,34 mm²
    5,3 mm
    25 kg/km
    43 kg/km
    L66150534
    5 x 0,34 mm²
    5,7 mm
    30 kg/km
    51 kg/km
    L66150325
    3 x 0,25 mm²
    4,1 mm
    18 kg/km
    26 kg/km
    L66150734
    7 x 0,34 mm²
    6,4 mm
    42 kg/km
    63 kg/km
    L66150834
    8 x 0,34 mm²
    7,2 mm
    45 kg/km
    78 kg/km
    L66150425
    4 x 0,25 mm²
    4,4 mm
    22 kg/km
    31 kg/km
    L66150525
    5 x 0,25 mm²
    4,9 mm
    25 kg/km
    38 kg/km
    L66152134
    21 x 0,34 mm²
    10,7 mm
    127 kg/km
    177 kg/km
    L66152434
    24 x 0,34 mm²
    11,3 mm
    140 kg/km
    193 kg/km
    L66151025
    10 x 0,25 mm²
    6,6 mm
    42 kg/km
    64 kg/km
    L66153234
    32 x 0,34 mm²
    12,7 mm
    171 kg/km
    247 kg/km
    L66153634
    36 x 0,34 mm²
    13,2 mm
    188 kg/km
    272 kg/km
    L66151425
    14 x 0,25 mm²
    7,1 mm
    64 kg/km
    80 kg/km
    L66150550
    5 x 0,50 mm²
    6,3 mm
    41,6 kg/km
    63 kg/km
    L66154034
    40 x 0,34 mm²
    14 mm
    208 kg/km
    301 kg/km
    L66154434
    44 x 0,34 mm²
    14,6 mm
    223 kg/km
    319 kg/km
    L66155034
    50 x 0,34 mm²
    15,8 mm
    248 kg/km
    386 kg/km
    L66152125
    21 x 0,25 mm²
    8,8 mm
    105 kg/km
    122 kg/km
    L66150850
    8 x 0,50 mm²
    7,8 mm
    62 kg/km
    94 kg/km
    L66155234
    52 x 0,34 mm²
    15,8 mm
    273 kg/km
    395 kg/km
    L66152425
    24 x 0,25 mm²
    9,3 mm
    115 kg/km
    130 kg/km
    L66151250
    12 x 0,50 mm²
    9 mm
    84,2 kg/km
    126 kg/km
    L66156134
    61 x 0,34 mm²
    16,7 mm
    316 kg/km
    366 kg/km
    L66151450
    14 x 0,50 mm²
    9,4 mm
    93,5 kg/km
    139 kg/km
    L66150250
    2 x 0,50 mm²
    5 mm
    23,5 kg/km
    39 kg/km
    L66153025
    30 x 0,25 mm²
    9,8 mm
    132 kg/km
    152 kg/km
    L66151650
    16 x 0,50 mm²
    9,9 mm
    105,9 kg/km
    156 kg/km
    L66150350
    3 x 0,50 mm²
    5,2 mm
    28,4 kg/km
    42 kg/km
    L66153625
    36 x 0,25 mm²
    10,7 mm
    152 kg/km
    189 kg/km
    L66153050
    30 x 0,50 mm²
    13,2 mm
    203,6 kg/km
    283 kg/km
    L66153250
    32 x 0,50 mm²
    13,7 mm
    213,5 kg/km
    299 kg/km
    L66153650
    36 x 0,50 mm²
    14,2 mm
    239 kg/km
    330 kg/km
    L66154450
    44 x 0,50 mm²
    16,4 mm
    309,2 kg/km
    422 kg/km
    L66155050
    50 x 0,50 mm²
    17 mm
    349,7 kg/km
    469 kg/km
    L66156125
    61 x 0,25 mm²
    13,4 mm
    287 kg/km
    295 kg/km
    L66150375
    3 x 0,75 mm²
    6,1 mm
    37,6 kg/km
    56 kg/km
    L66150475
    4 x 0,75 mm²
    6,6 mm
    46,5 kg/km
    73 kg/km
    L66150575
    5 x 0,75 mm²
    7,1 mm
    55,7 kg/km
    81 kg/km
    L66150234
    2 x 0,34 mm²
    4,5 mm
    17 kg/km
    31 kg/km
    L66150775
    7 x 0,75 mm²
    7,7 mm
    74 kg/km
    101 kg/km
    L66150875
    8 x 0,75 mm²
    9,2 mm
    83,8 kg/km
    132 kg/km
    L66151475
    14 x 0,75 mm²
    11 mm
    148,5 kg/km
    198 kg/km
    L66151875
    18 x 0,75 mm²
    12,4 mm
    184 kg/km
    257 kg/km
    L66152175
    21 x 0,75 mm²
    13,6 mm
    211 kg/km
    297 kg/km
    L66152475
    24 x 0,75 mm²
    14,4 mm
    239,1 kg/km
    324 kg/km
    L66153075
    30 x 0,75 mm²
    15,8 mm
    313,4 kg/km
    417 kg/km
    L66153275
    32 x 0,75 mm²
    16,3 mm
    328,3 kg/km
    440 kg/km
    L66153675
    36 x 0,75 mm²
    16,9 mm
    357,8 kg/km
    479 kg/km
    L66151034
    10 x 0,34 mm²
    7,8 mm
    63 kg/km
    87 kg/km
    L66151234
    12 x 0,34 mm²
    8 mm
    70 kg/km
    97 kg/km
    L66150480
    4 x 1,00 mm²
    6,8 mm
    57,9 kg/km
    78 kg/km
    L66151434
    14 x 0,34 mm²
    8,8 mm
    78 kg/km
    118 kg/km
    L66151634
    16 x 0,34 mm²
    9,2 mm
    87 kg/km
    129 kg/km
    L66151834
    18 x 0,34 mm²
    9,7 mm
    108 kg/km
    144 kg/km
    L66152734
    27 x 0,34 mm²
    11,5 mm
    151 kg/km
    207 kg/km
    L66153034
    30 x 0,34 mm²
    11,9 mm
    162 kg/km
    222 kg/km
    L66150450
    4 x 0,50 mm²
    5,6 mm
    35,1 kg/km
    50 kg/km
    L66150750
    7 x 0,50 mm²
    6,8 mm
    53,1 kg/km
    76 kg/km
    L66151050
    10 x 0,50 mm²
    8,8 mm
    74,5 kg/km
    113 kg/km
    L66151850
    18 x 0,50 mm²
    10,6 mm
    133,9 kg/km
    185 kg/km
    L66152150
    21 x 0,50 mm²
    11,6 mm
    154,9 kg/km
    220 kg/km
    L66152450
    24 x 0,50 mm²
    12,6 mm
    169,7 kg/km
    240 kg/km
    L66152750
    27 x 0,50 mm²
    12,8 mm
    184,2 kg/km
    260 kg/km
    L66156150
    61 x 0,50 mm²
    18 mm
    403,7 kg/km
    540 kg/km
    L66150275
    2 x 0,75 mm²
    5,6 mm
    30,3 kg/km
    48 kg/km
    L66151275
    12 x 0,75 mm²
    10,5 mm
    133,9 kg/km
    179 kg/km
    L66151675
    16 x 0,75 mm²
    11,5 mm
    169,2 kg/km
    224 kg/km
    L66152775
    27 x 0,75 mm²
    14,7 mm
    260,9 kg/km
    352 kg/km
    L66150280
    2 x 1,00 mm²
    5,8 mm
    35,2 kg/km
    53 kg/km
    L66150380
    3 x 1,00 mm²
    6,3 mm
    46,4 kg/km
    65 kg/km
    L66150580
    5 x 1,00 mm²
    7,4 mm
    69,6 kg/km
    95 kg/km
    L66150680
    6 x 1,00 mm²
    8 mm
    81,3 kg/km
    111 kg/km
    L66150780
    7 x 1,00 mm²
    8 mm
    90,9 kg/km
    117 kg/km
    L66150285
    2 x 1,50 mm²
    6,6 mm
    46,5 kg/km
    71 kg/km
    L66150385
    3 x 1,50 mm²
    6,8 mm
    62,7 kg/km
    90 kg/km
    L66150485
    4 x 1,50 mm²
    7,4 mm
    79,2 kg/km
    98 kg/km
    L66150585
    5 x 1,50 mm²
    8,6 mm
    95,8 kg/km
    130 kg/km
    L66150685
    6 x 1,50 mm²
    9,3 mm
    112,7 kg/km
    152 kg/km
    L66150785
    7 x 1,50 mm²
    9,3 mm
    127,1 kg/km
    162 kg/km

    Other dimensions and colours are possible on request.

    More products in Halogen-free Cables for use in Rail Vehicles acc. to DIN EN 45545-2

    Highly flexible cables according to your special requirements

    Family business for construction and production since 1947

    Please send us your inquiry
    +49 (0)2162 898-0
    Monday to Thursday, 7.30–16.30
    Friday, 07.30–15.00
