SABIX® R 605 FRNC

SABIX® Rail Data tested acc. to EN 45545-2

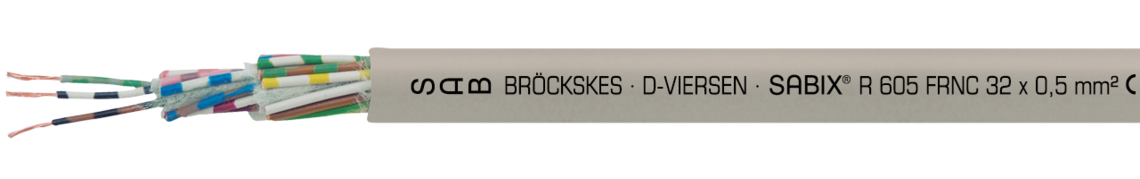

Marking for SABIX® R 605 FRNC 66053250: SAB BRÖCKSKES · D-VIERSEN · SABIX® R 605 FRNC 32 x 0,5 mm² CE

Marking for SABIX® R 605 FRNC 66053250: SAB BRÖCKSKES · D-VIERSEN · SABIX® R 605 FRNC 32 x 0,5 mm² CE

Download data sheet for SABIX® R 605 FRNC
Questions about our products?

Application

SABIX® R 605 FRNC is a data cable which is flame retardant acc. to UN/ECE R118, self-extinguishing and fulfils fire protection requirements R 15 (EL1A) acc. to EN 45545-2 for hazard levels HL1-3 and NFPA 130 section 8.6.7.1.1.1 and section 12.2.1 (1). This cable is recommended for the internal wiring of rail vehicles acc. to EN 45545-2.

Outstanding features

  • halogen-free
  • no flame propagation
  • flame retardant and self-extinguishing
  • fulfils fire protection requirements R15 (EL1A) acc. to EN 45545-2 for hazard levels HL1-3
  • fulfils fire protection requirements acc. to NFPA 130 section 8.6.7.1.1.1 and section 12.2.1 (1)
  • flame retardant acc. to UN/ECE R118

Additional information

Especially for use in rail vehicles

Construction

Conductor

bare copper strands with reference to IEC 60228, VDE 0295, class 5

Insulation

Special SABIX®

Colour code

with reference to DIN 47100

Stranding

in layers

Sheath material

Special SABIX®

Sheath colour

grey (RAL 7032)

Conductor

bare copper strands with reference to IEC 60228, VDE 0295, class 5

Insulation

Special SABIX®

Colour code

with reference to DIN 47100

Stranding

in layers

Sheath material

Special SABIX®

Sheath colour

grey (RAL 7032)

Technical data

Peak operating voltage

< 0,25 mm² = max. 350 V

≥ 0,25 mm² = max. 500 V

Testing voltage

core/core 1500 V

Min. bending radius

fixed laying: 5 x d

flexible use: 10 x d

Temperature range

fixed laying: -40/+90 °C

flexible use: -30/+90 °C

Halogen-free

acc. to EN 50306-1 + EN 50264-1 are fulfilled.

Development of HCl is < 0,5% acc. to IEC 60754-1.

pH-value is > 4,3 acc. to IEC 60754-2.

Conductivity is < 10,0 µS/mm acc. to IEC 60754-2.

Fluoric content < 0,1% acc. to IEC 60684-2

Flame propagation

no flame propagation
acc. to IEC 60332-3-24 + VDE 0482-332-3-24
resp. IEC 60332-3-25 + VDE 0482-332-3-25 and EN 50305 + VDE 0260-305 section 9.1.2.

Flame retardant

acc. to UL 1685 section 12, FT4/IEEE 1202

acc. to ISO 6722 (UN/ECE R118)

Fire performance

flame retardant and self-extinguishing acc. to IEC 60332-1-2 + VDE 0482-332-1-2

Toxicity

acc. to EN 50305 + VDE 0260-305

Smoke density

acc. to IEC 61034 + VDE 0482-1034

Flexibility

good

Absence of harmful substances

acc. to RoHS directive of the European Union

Peak operating voltage

< 0,25 mm² = max. 350 V

≥ 0,25 mm² = max. 500 V

Testing voltage

core/core 1500 V

Min. bending radius

fixed laying: 5 x d

flexible use: 10 x d

Temperature range

fixed laying: -40/+90 °C

flexible use: -30/+90 °C

Halogen-free

acc. to EN 50306-1 + EN 50264-1 are fulfilled.

Development of HCl is < 0,5% acc. to IEC 60754-1.

pH-value is > 4,3 acc. to IEC 60754-2.

Conductivity is < 10,0 µS/mm acc. to IEC 60754-2.

Fluoric content < 0,1% acc. to IEC 60684-2

Flame propagation

no flame propagation
acc. to IEC 60332-3-24 + VDE 0482-332-3-24
resp. IEC 60332-3-25 + VDE 0482-332-3-25 and EN 50305 + VDE 0260-305 section 9.1.2.

Flame retardant

acc. to UL 1685 section 12, FT4/IEEE 1202

acc. to ISO 6722 (UN/ECE R118)

Fire performance

flame retardant and self-extinguishing acc. to IEC 60332-1-2 + VDE 0482-332-1-2

Toxicity

acc. to EN 50305 + VDE 0260-305

Smoke density

acc. to IEC 61034 + VDE 0482-1034

Flexibility

good

Absence of harmful substances

acc. to RoHS directive of the European Union

Dimensions

item no. No. of cores x
cross section 		Outer-ø ± 5% Copper figure Cable weight ≈
L660502142 x 0,14 mm²3,1 mm2,7 kg/km13 kg/km Send inquiry
L660503143 x 0,14 mm²3,3 mm4 kg/km15 kg/km Send inquiry
L660504144 x 0,14 mm²3,5 mm5,4 kg/km18 kg/km Send inquiry
L660505145 x 0,14 mm²3,8 mm6,7 kg/km21 kg/km Send inquiry
L660507147 x 0,14 mm²4,1 mm9,4 kg/km25 kg/km Send inquiry
L660508148 x 0,14 mm²5 mm10,8 kg/km32 kg/km Send inquiry
L6605121412 x 0,14 mm²5,3 mm16,1 kg/km38 kg/km Send inquiry
L6605141414 x 0,14 mm²5,5 mm18,8 kg/km42 kg/km Send inquiry
L6605161416 x 0,14 mm²6 mm21,5 kg/km51 kg/km Send inquiry
L6605181418 x 0,14 mm²6,3 mm24,2 kg/km56 kg/km Send inquiry
L6605211421 x 0,14 mm²6,9 mm28,2 kg/km65 kg/km Send inquiry
L6605241424 x 0,14 mm²7,3 mm32,3 kg/km70 kg/km Send inquiry
L6605271427 x 0,14 mm²7,7 mm36,3 kg/km80 kg/km Send inquiry
L6605301430 x 0,14 mm²7,9 mm40,3 kg/km86 kg/km Send inquiry
L6605321432 x 0,14 mm²8,2 mm43 kg/km92 kg/km Send inquiry
L6605361436 x 0,14 mm²8,5 mm48,4 kg/km101 kg/km Send inquiry
L6605401440 x 0,14 mm²9,1 mm53,8 kg/km112 kg/km Send inquiry
L6605441444 x 0,14 mm²9,5 mm59,1 kg/km119 kg/km Send inquiry
L6605501450 x 0,14 mm²10,3 mm67,2 kg/km142 kg/km Send inquiry
L6605611461 x 0,14 mm²10,9 mm82 kg/km165 kg/km Send inquiry
L660502252 x 0,25 mm²3,4 mm4,8 kg/km17 kg/km Send inquiry
L660503253 x 0,25 mm²3,6 mm7,2 kg/km20 kg/km Send inquiry
L660504254 x 0,25 mm²3,9 mm9,6 kg/km24 kg/km Send inquiry
L660505255 x 0,25 mm²4,2 mm12 kg/km29 kg/km Send inquiry
L660507257 x 0,25 mm²4,6 mm16,8 kg/km35 kg/km Send inquiry
L660508258 x 0,25 mm²5,2 mm19,2 kg/km43 kg/km Send inquiry
L6605122512 x 0,25 mm²6,1 mm28,8 kg/km57 kg/km Send inquiry
L6605142514 x 0,25 mm²6,4 mm33,6 kg/km64 kg/km Send inquiry
L6605162516 x 0,25 mm²6,7 mm38,4 kg/km72 kg/km Send inquiry
L6605182518 x 0,25 mm²7,1 mm43,2 kg/km80 kg/km Send inquiry
L6605212521 x 0,25 mm²7,9 mm50,4 kg/km96 kg/km Send inquiry
L6605242524 x 0,25 mm²8,4 mm57,6 kg/km104 kg/km Send inquiry
L6605272527 x 0,25 mm²8,6 mm64,8 kg/km114 kg/km Send inquiry
L6605302530 x 0,25 mm²8,9 mm72 kg/km125 kg/km Send inquiry
L6605322532 x 0,25 mm²9,2 mm76,8 kg/km132 kg/km Send inquiry
L6605362536 x 0,25 mm²10 mm86,4 kg/km156 kg/km Send inquiry
L6605402540 x 0,25 mm²10,6 mm96 kg/km173 kg/km Send inquiry
L6605442544 x 0,25 mm²11,1 mm105,6 kg/km184 kg/km Send inquiry
L6605502550 x 0,25 mm²11,6 mm120 kg/km204 kg/km Send inquiry
L6605612561 x 0,25 mm²12,3 mm146,4 kg/km241 kg/km Send inquiry
L660502342 x 0,34 mm²4 mm6,5 kg/km24 kg/km Send inquiry
L660503343 x 0,34 mm²4,2 mm9,8 kg/km27 kg/km Send inquiry
L660504344 x 0,34 mm²4,6 mm13,1 kg/km33 kg/km Send inquiry
L660505345 x 0,34 mm²5 mm16,3 kg/km40 kg/km Send inquiry
L660507347 x 0,34 mm²5,5 mm22,8 kg/km49 kg/km Send inquiry
L660508348 x 0,34 mm²6,5 mm26,1 kg/km63 kg/km Send inquiry
L6605123412 x 0,34 mm²7,3 mm39,2 kg/km80 kg/km Send inquiry
L6605143414 x 0,34 mm²7,9 mm45,7 kg/km94 kg/km Send inquiry
L6605163416 x 0,34 mm²8,3 mm52,2 kg/km106 kg/km Send inquiry
L6605183418 x 0,34 mm²8,8 mm58,8 kg/km117 kg/km Send inquiry
L6605213421 x 0,34 mm²10 mm68,5 kg/km146 kg/km Send inquiry
L6605243424 x 0,34 mm²10,6 mm78,3 kg/km157 kg/km Send inquiry
L6605273427 x 0,34 mm²10,8 mm88,1 kg/km172 kg/km Send inquiry
L6605303430 x 0,34 mm²11,2 mm97,9 kg/km187 kg/km Send inquiry
L6605323432 x 0,34 mm²11,6 mm104,4 kg/km199 kg/km Send inquiry
L6605363436 x 0,34 mm²12,1 mm117,5 kg/km220 kg/km Send inquiry
L6605403440 x 0,34 mm²12,9 mm130,6 kg/km244 kg/km Send inquiry
L6605443444 x 0,34 mm²13,5 mm143,6 kg/km261 kg/km Send inquiry
L6605503450 x 0,34 mm²14,5 mm163,2 kg/km304 kg/km Send inquiry
L6605613461 x 0,34 mm²15,4 mm199,1 kg/km358 kg/km Send inquiry
L660502502 x 0,50 mm²4,3 mm9,6 kg/km28 kg/km Send inquiry
L660503503 x 0,50 mm²4,5 mm14,4 kg/km33 kg/km Send inquiry
L660504504 x 0,50 mm²4,9 mm19,2 kg/km40 kg/km Send inquiry
L660505505 x 0,50 mm²5,4 mm24 kg/km49 kg/km Send inquiry
L660507507 x 0,50 mm²6,1 mm33,6 kg/km63 kg/km Send inquiry
L660508508 x 0,50 mm²7,1 mm38,4 kg/km79 kg/km Send inquiry
L6605125012 x 0,50 mm²8,1 mm57,6 kg/km102 kg/km Send inquiry
L6605145014 x 0,50 mm²8,5 mm67,2 kg/km115 kg/km Send inquiry
L6605165016 x 0,50 mm²9 mm76,8 kg/km131 kg/km Send inquiry
L6605185018 x 0,50 mm²9,5 mm86,4 kg/km145 kg/km Send inquiry
L6605215021 x 0,50 mm²10,9 mm100,8 kg/km180 kg/km Send inquiry
L6605245024 x 0,50 mm²11,5 mm115,2 kg/km195 kg/km Send inquiry
L6605275027 x 0,50 mm²11,7 mm129,6 kg/km213 kg/km Send inquiry
L6605305030 x 0,50 mm²12,1 mm144 kg/km232 kg/km Send inquiry
L6605325032 x 0,50 mm²12,6 mm153,6 kg/km248 kg/km Send inquiry
L6605365036 x 0,50 mm²13,1 mm172,8 kg/km274 kg/km Send inquiry
L6605445044 x 0,50 mm²15,1 mm211,2 kg/km341 kg/km Send inquiry
L6605505050 x 0,50 mm²15,7 mm240 kg/km411 kg/km Send inquiry
L6605615061 x 0,50 mm²16,7 mm292,8 kg/km448 kg/km Send inquiry
L660502752 x 0,75 mm²4,9 mm14,4 kg/km38 kg/km Send inquiry
L660503753 x 0,75 mm²5,2 mm21,6 kg/km45 kg/km Send inquiry
L660504754 x 0,75 mm²5,9 mm28,8 kg/km58 kg/km Send inquiry
L660505755 x 0,75 mm²6,4 mm36 kg/km70 kg/km Send inquiry
L660507757 x 0,75 mm²7 mm50,4 kg/km87 kg/km Send inquiry
L660508758 x 0,75 mm²8,3 mm57,6 kg/km111 kg/km Send inquiry
L6605127512 x 0,75 mm²9,4 mm86,4 kg/km142 kg/km Send inquiry
L6605147514 x 0,75 mm²10,3 mm100,8 kg/km170 kg/km Send inquiry
L6605167516 x 0,75 mm²10,8 mm115,2 kg/km192 kg/km Send inquiry
L6605187518 x 0,75 mm²11,4 mm129,6 kg/km213 kg/km Send inquiry
L6605217521 x 0,75 mm²12,5 mm151,2 kg/km248 kg/km Send inquiry
L6605247524 x 0,75 mm²13,3 mm172,8 kg/km270 kg/km Send inquiry
L6605277527 x 0,75 mm²13,6 mm194,4 kg/km297 kg/km Send inquiry
L6605307530 x 0,75 mm²14,5 mm216 kg/km339 kg/km Send inquiry
L6605327532 x 0,75 mm²15 mm230,4 kg/km360 kg/km Send inquiry
L6605367536 x 0,75 mm²15,6 mm259,2 kg/km399 kg/km Send inquiry
L6605407540 x 0,75 mm²16,7 mm288 kg/km443 kg/km Send inquiry
L6605447544 x 0,75 mm²17,5 mm316,8 kg/km475 kg/km Send inquiry
L6605507550 x 0,75 mm²18,3 mm360 kg/km530 kg/km Send inquiry
L6605617561 x 0,75 mm²19,8 mm439,2 kg/km648 kg/km Send inquiry
L660502802 x 1,00 mm²5,1 mm19,2 kg/km43 kg/km Send inquiry
L660503803 x 1,00 mm²5,4 mm28,8 kg/km53 kg/km Send inquiry
L660504804 x 1,00 mm²6,1 mm38,4 kg/km68 kg/km Send inquiry
L660505805 x 1,00 mm²6,7 mm48 kg/km82 kg/km Send inquiry
L660506806 x 1,00 mm²7,3 mm57,6 kg/km97 kg/km Send inquiry
L660507807 x 1,00 mm²7,3 mm67,2 kg/km104 kg/km Send inquiry
L660502852 x 1,50 mm²5,6 mm28,8 kg/km55 kg/km Send inquiry
L660503853 x 1,50 mm²6,1 mm43,2 kg/km71 kg/km Send inquiry
L660504854 x 1,50 mm²6,7 mm57,6 kg/km87 kg/km Send inquiry
L660505855 x 1,50 mm²7,7 mm72 kg/km113 kg/km Send inquiry
L660506856 x 1,50 mm²8,4 mm86,4 kg/km134 kg/km Send inquiry
L660507857 x 1,50 mm²8,4 mm100,8 kg/km144 kg/km Send inquiry
item no.
No. of cores x
cross section
Outer-ø ± 5%
Copper figure
Cable weight ≈
L66050214
2 x 0,14 mm²
3,1 mm
2,7 kg/km
13 kg/km
L66050314
3 x 0,14 mm²
3,3 mm
4 kg/km
15 kg/km
L66050414
4 x 0,14 mm²
3,5 mm
5,4 kg/km
18 kg/km
L66050514
5 x 0,14 mm²
3,8 mm
6,7 kg/km
21 kg/km
L66050714
7 x 0,14 mm²
4,1 mm
9,4 kg/km
25 kg/km
L66050814
8 x 0,14 mm²
5 mm
10,8 kg/km
32 kg/km
L66051214
12 x 0,14 mm²
5,3 mm
16,1 kg/km
38 kg/km
L66051414
14 x 0,14 mm²
5,5 mm
18,8 kg/km
42 kg/km
L66051614
16 x 0,14 mm²
6 mm
21,5 kg/km
51 kg/km
L66051814
18 x 0,14 mm²
6,3 mm
24,2 kg/km
56 kg/km
L66052114
21 x 0,14 mm²
6,9 mm
28,2 kg/km
65 kg/km
L66052414
24 x 0,14 mm²
7,3 mm
32,3 kg/km
70 kg/km
L66052714
27 x 0,14 mm²
7,7 mm
36,3 kg/km
80 kg/km
L66053014
30 x 0,14 mm²
7,9 mm
40,3 kg/km
86 kg/km
L66053214
32 x 0,14 mm²
8,2 mm
43 kg/km
92 kg/km
L66053614
36 x 0,14 mm²
8,5 mm
48,4 kg/km
101 kg/km
L66054014
40 x 0,14 mm²
9,1 mm
53,8 kg/km
112 kg/km
L66054414
44 x 0,14 mm²
9,5 mm
59,1 kg/km
119 kg/km
L66055014
50 x 0,14 mm²
10,3 mm
67,2 kg/km
142 kg/km
L66056114
61 x 0,14 mm²
10,9 mm
82 kg/km
165 kg/km
L66050225
2 x 0,25 mm²
3,4 mm
4,8 kg/km
17 kg/km
L66050325
3 x 0,25 mm²
3,6 mm
7,2 kg/km
20 kg/km
L66050425
4 x 0,25 mm²
3,9 mm
9,6 kg/km
24 kg/km
L66050525
5 x 0,25 mm²
4,2 mm
12 kg/km
29 kg/km
L66050725
7 x 0,25 mm²
4,6 mm
16,8 kg/km
35 kg/km
L66050825
8 x 0,25 mm²
5,2 mm
19,2 kg/km
43 kg/km
L66051225
12 x 0,25 mm²
6,1 mm
28,8 kg/km
57 kg/km
L66051425
14 x 0,25 mm²
6,4 mm
33,6 kg/km
64 kg/km
L66051625
16 x 0,25 mm²
6,7 mm
38,4 kg/km
72 kg/km
L66051825
18 x 0,25 mm²
7,1 mm
43,2 kg/km
80 kg/km
L66052125
21 x 0,25 mm²
7,9 mm
50,4 kg/km
96 kg/km
L66052425
24 x 0,25 mm²
8,4 mm
57,6 kg/km
104 kg/km
L66052725
27 x 0,25 mm²
8,6 mm
64,8 kg/km
114 kg/km
L66053025
30 x 0,25 mm²
8,9 mm
72 kg/km
125 kg/km
L66053225
32 x 0,25 mm²
9,2 mm
76,8 kg/km
132 kg/km
L66053625
36 x 0,25 mm²
10 mm
86,4 kg/km
156 kg/km
L66054025
40 x 0,25 mm²
10,6 mm
96 kg/km
173 kg/km
L66054425
44 x 0,25 mm²
11,1 mm
105,6 kg/km
184 kg/km
L66055025
50 x 0,25 mm²
11,6 mm
120 kg/km
204 kg/km
L66056125
61 x 0,25 mm²
12,3 mm
146,4 kg/km
241 kg/km
L66050234
2 x 0,34 mm²
4 mm
6,5 kg/km
24 kg/km
L66050334
3 x 0,34 mm²
4,2 mm
9,8 kg/km
27 kg/km
L66050434
4 x 0,34 mm²
4,6 mm
13,1 kg/km
33 kg/km
L66050534
5 x 0,34 mm²
5 mm
16,3 kg/km
40 kg/km
L66050734
7 x 0,34 mm²
5,5 mm
22,8 kg/km
49 kg/km
L66050834
8 x 0,34 mm²
6,5 mm
26,1 kg/km
63 kg/km
L66051234
12 x 0,34 mm²
7,3 mm
39,2 kg/km
80 kg/km
L66051434
14 x 0,34 mm²
7,9 mm
45,7 kg/km
94 kg/km
L66051634
16 x 0,34 mm²
8,3 mm
52,2 kg/km
106 kg/km
L66051834
18 x 0,34 mm²
8,8 mm
58,8 kg/km
117 kg/km
L66052134
21 x 0,34 mm²
10 mm
68,5 kg/km
146 kg/km
L66052434
24 x 0,34 mm²
10,6 mm
78,3 kg/km
157 kg/km
L66052734
27 x 0,34 mm²
10,8 mm
88,1 kg/km
172 kg/km
L66053034
30 x 0,34 mm²
11,2 mm
97,9 kg/km
187 kg/km
L66053234
32 x 0,34 mm²
11,6 mm
104,4 kg/km
199 kg/km
L66053634
36 x 0,34 mm²
12,1 mm
117,5 kg/km
220 kg/km
L66054034
40 x 0,34 mm²
12,9 mm
130,6 kg/km
244 kg/km
L66054434
44 x 0,34 mm²
13,5 mm
143,6 kg/km
261 kg/km
L66055034
50 x 0,34 mm²
14,5 mm
163,2 kg/km
304 kg/km
L66056134
61 x 0,34 mm²
15,4 mm
199,1 kg/km
358 kg/km
L66050250
2 x 0,50 mm²
4,3 mm
9,6 kg/km
28 kg/km
L66050350
3 x 0,50 mm²
4,5 mm
14,4 kg/km
33 kg/km
L66050450
4 x 0,50 mm²
4,9 mm
19,2 kg/km
40 kg/km
L66050550
5 x 0,50 mm²
5,4 mm
24 kg/km
49 kg/km
L66050750
7 x 0,50 mm²
6,1 mm
33,6 kg/km
63 kg/km
L66050850
8 x 0,50 mm²
7,1 mm
38,4 kg/km
79 kg/km
L66051250
12 x 0,50 mm²
8,1 mm
57,6 kg/km
102 kg/km
L66051450
14 x 0,50 mm²
8,5 mm
67,2 kg/km
115 kg/km
L66051650
16 x 0,50 mm²
9 mm
76,8 kg/km
131 kg/km
L66051850
18 x 0,50 mm²
9,5 mm
86,4 kg/km
145 kg/km
L66052150
21 x 0,50 mm²
10,9 mm
100,8 kg/km
180 kg/km
L66052450
24 x 0,50 mm²
11,5 mm
115,2 kg/km
195 kg/km
L66052750
27 x 0,50 mm²
11,7 mm
129,6 kg/km
213 kg/km
L66053050
30 x 0,50 mm²
12,1 mm
144 kg/km
232 kg/km
L66053250
32 x 0,50 mm²
12,6 mm
153,6 kg/km
248 kg/km
L66053650
36 x 0,50 mm²
13,1 mm
172,8 kg/km
274 kg/km
L66054450
44 x 0,50 mm²
15,1 mm
211,2 kg/km
341 kg/km
L66055050
50 x 0,50 mm²
15,7 mm
240 kg/km
411 kg/km
L66056150
61 x 0,50 mm²
16,7 mm
292,8 kg/km
448 kg/km
L66050275
2 x 0,75 mm²
4,9 mm
14,4 kg/km
38 kg/km
L66050375
3 x 0,75 mm²
5,2 mm
21,6 kg/km
45 kg/km
L66050475
4 x 0,75 mm²
5,9 mm
28,8 kg/km
58 kg/km
L66050575
5 x 0,75 mm²
6,4 mm
36 kg/km
70 kg/km
L66050775
7 x 0,75 mm²
7 mm
50,4 kg/km
87 kg/km
L66050875
8 x 0,75 mm²
8,3 mm
57,6 kg/km
111 kg/km
L66051275
12 x 0,75 mm²
9,4 mm
86,4 kg/km
142 kg/km
L66051475
14 x 0,75 mm²
10,3 mm
100,8 kg/km
170 kg/km
L66051675
16 x 0,75 mm²
10,8 mm
115,2 kg/km
192 kg/km
L66051875
18 x 0,75 mm²
11,4 mm
129,6 kg/km
213 kg/km
L66052175
21 x 0,75 mm²
12,5 mm
151,2 kg/km
248 kg/km
L66052475
24 x 0,75 mm²
13,3 mm
172,8 kg/km
270 kg/km
L66052775
27 x 0,75 mm²
13,6 mm
194,4 kg/km
297 kg/km
L66053075
30 x 0,75 mm²
14,5 mm
216 kg/km
339 kg/km
L66053275
32 x 0,75 mm²
15 mm
230,4 kg/km
360 kg/km
L66053675
36 x 0,75 mm²
15,6 mm
259,2 kg/km
399 kg/km
L66054075
40 x 0,75 mm²
16,7 mm
288 kg/km
443 kg/km
L66054475
44 x 0,75 mm²
17,5 mm
316,8 kg/km
475 kg/km
L66055075
50 x 0,75 mm²
18,3 mm
360 kg/km
530 kg/km
L66056175
61 x 0,75 mm²
19,8 mm
439,2 kg/km
648 kg/km
L66050280
2 x 1,00 mm²
5,1 mm
19,2 kg/km
43 kg/km
L66050380
3 x 1,00 mm²
5,4 mm
28,8 kg/km
53 kg/km
L66050480
4 x 1,00 mm²
6,1 mm
38,4 kg/km
68 kg/km
L66050580
5 x 1,00 mm²
6,7 mm
48 kg/km
82 kg/km
L66050680
6 x 1,00 mm²
7,3 mm
57,6 kg/km
97 kg/km
L66050780
7 x 1,00 mm²
7,3 mm
67,2 kg/km
104 kg/km
L66050285
2 x 1,50 mm²
5,6 mm
28,8 kg/km
55 kg/km
L66050385
3 x 1,50 mm²
6,1 mm
43,2 kg/km
71 kg/km
L66050485
4 x 1,50 mm²
6,7 mm
57,6 kg/km
87 kg/km
L66050585
5 x 1,50 mm²
7,7 mm
72 kg/km
113 kg/km
L66050685
6 x 1,50 mm²
8,4 mm
86,4 kg/km
134 kg/km
L66050785
7 x 1,50 mm²
8,4 mm
100,8 kg/km
144 kg/km

Other dimensions and colours are possible on request.

More products in Halogen-free Cables for use in Rail Vehicles acc. to DIN EN 45545-2

Highly flexible cables according to your special requirements

Family business for construction and production since 1947

Please send us your inquiry
+49 (0)2162 898-0
Monday to Thursday, 7.30–16.30
Friday, 07.30–15.00
