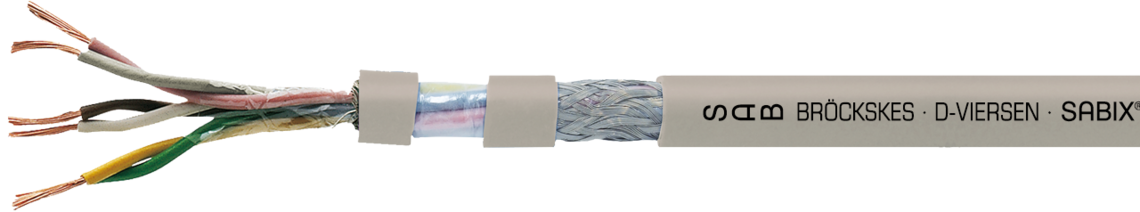

SABIX® D 345 FRNC TP

Paired data cable with improved fire performance and overall copper screen

Marking for SABIX® D 345 FRNC TP 63450325: SAB BRÖCKSKES · D-VIERSEN · SABIX® D 345 FRNC TP 3 x 2 x 0,25 mm² CE

Marking for SABIX® D 345 FRNC TP 63450325: SAB BRÖCKSKES · D-VIERSEN · SABIX® D 345 FRNC TP 3 x 2 x 0,25 mm² CE

Download data sheet for SABIX® D 345 FRNC TP
Questions about our products?

Application

SABIX® D 345 FRNC TP is a paired data cable with improved fire performance and overall copper screen. Moreover, it has good EMC characteristics and is flame retardant and self-extinguishing. It is recommended for use in electronic data processing systems, weighing installations, office appliances, for increased requirements on transmission characteristics and near-end cross talk attenuation.

Outstanding features

    • halogen-free
    • no flame propagation
    • screened, good EMC characteristics
    • flame retardant and self-extinguishing
    • good transmission rates and crosstalk attenuation

    Construction

    Conductor

    bare copper strands with reference to VDE 0812

    Insulation

    SABIX®

    Colour code

    with reference to DIN 47100

    Stranding

    pairwise, pairs in layers

    Wrapping

    foil

    Screen

    tinned copper braiding

    Sheath material

    SABIX®

    Sheath colour

    grey (RAL 7032)

    Conductor

    bare copper strands with reference to VDE 0812

    Insulation

    SABIX®

    Colour code

    with reference to DIN 47100

    Stranding

    pairwise, pairs in layers

    Wrapping

    foil

    Screen

    tinned copper braiding

    Sheath material

    SABIX®

    Sheath colour

    grey (RAL 7032)

    Technical data

    Peak operating voltage

    < 0,25 mm² = max. 350 V

    > 0,25 mm² = max. 500 V

    Testing voltage

    core/core 1500 V

    core/screen 1200 V

    Min. bending radius

    fixed laying: 5 x d

    flexible use: 10 x d

    Temperature range

    fixed laying: -40/+85 °C

    flexible use: -30/+85 °C

    Halogen-free

    acc. to IEC 60754-1 + VDE 0482-754-1

    Flame propagation

    no flame propagation
    acc. to IEC 60332-3-24 + VDE 0482-332-3-24
    resp. IEC 60332-3-25 + VDE 0482-332-3-25 category C resp. D

    Fire performance

    flame retardant and self-extinguishing acc. to IEC 60332-1-2 + VDE 0482-332-1-2

    Corrosiveness of conflagration gases

    in compliance with IEC 60754-2 + VDE 0482-754-2 - no development of corrosive conflagration gases

    Smoke density

    acc. to IEC 61034 + VDE 0482-1034

    Flexibility

    good

    Absence of harmful substances

    acc. to RoHS directive of the European Union

    Peak operating voltage

    < 0,25 mm² = max. 350 V

    > 0,25 mm² = max. 500 V

    Testing voltage

    core/core 1500 V

    core/screen 1200 V

    Min. bending radius

    fixed laying: 5 x d

    flexible use: 10 x d

    Temperature range

    fixed laying: -40/+85 °C

    flexible use: -30/+85 °C

    Halogen-free

    acc. to IEC 60754-1 + VDE 0482-754-1

    Flame propagation

    no flame propagation
    acc. to IEC 60332-3-24 + VDE 0482-332-3-24
    resp. IEC 60332-3-25 + VDE 0482-332-3-25 category C resp. D

    Fire performance

    flame retardant and self-extinguishing acc. to IEC 60332-1-2 + VDE 0482-332-1-2

    Corrosiveness of conflagration gases

    in compliance with IEC 60754-2 + VDE 0482-754-2 - no development of corrosive conflagration gases

    Smoke density

    acc. to IEC 61034 + VDE 0482-1034

    Flexibility

    good

    Absence of harmful substances

    acc. to RoHS directive of the European Union

    Dimensions

    item no. No. of cores x
    cross section     		Outer-ø ± 10% Copper figure Cable weight ≈ Outer-ø ± 5%
    L634502142 x 2 x 0,14 mm²5,4 mm20,8 kg/km40 kg/km Send inquiry
    L634503143 x 2 x 0,14 mm²5,9 mm23,7 kg/km47 kg/km Send inquiry
    L634504144 x 2 x 0,14 mm²6,9 mm28,1 kg/km62 kg/km Send inquiry
    L634505145 x 2 x 0,14 mm²7,4 mm33,8 kg/km70 kg/km Send inquiry
    L634506146 x 2 x 0,14 mm²7,6 mm36,6 kg/km75 kg/km Send inquiry
    L634508148 x 2 x 0,14 mm²8,2 mm43,5 kg/km82 kg/km Send inquiry
    L6345101410 x 2 x 0,14 mm²8,9 mm50,9 kg/km103 kg/km Send inquiry
    L6345121412 x 2 x 0,14 mm²9,7 mm58,4 kg/km111 kg/km Send inquiry
    L6345161416 x 2 x 0,14 mm²10,5 mm71,4 kg/km133 kg/km Send inquiry
    L6345181418 x 2 x 0,14 mm²11,1 mm93,2 kg/km157 kg/km Send inquiry
    L6345241424 x 2 x 0,14 mm²12,8 mm115,3 kg/km204 kg/km Send inquiry
    L634502252 x 2 x 0,25 mm²5,9 mm25,2 kg/km45 kg/km Send inquiry
    L634503253 x 2 x 0,25 mm²6,8 mm31,7 kg/km62 kg/km Send inquiry
    L634504254 x 2 x 0,25 mm²7,7 mm39,6 kg/km72 kg/km Send inquiry
    L634505255 x 2 x 0,25 mm²8,1 mm45,9 kg/km84 kg/km Send inquiry
    L634506256 x 2 x 0,25 mm²8,3 mm50,8 kg/km94 kg/km Send inquiry
    L634508258 x 2 x 0,25 mm²9,0 mm62,4 kg/km104 kg/km Send inquiry
    L6345102510 x 2 x 0,25 mm²9,8 mm76,5 kg/km135 kg/km Send inquiry
    L6345122512 x 2 x 0,25 mm²10,9 mm102,3 kg/km155 kg/km Send inquiry
    L6345162516 x 2 x 0,25 mm²11,9 mm127,3 kg/km193 kg/km Send inquiry
    L6345182518 x 2 x 0,25 mm²12,7 mm137,1 kg/km220 kg/km Send inquiry
    L6345242524 x 2 x 0,25 mm²14,4 mm193,0 kg/km286 kg/km Send inquiry
    L634502342 x 2 x 0,34 mm²7,2 mm31,8 kg/km65 kg/km Send inquiry
    L634503343 x 2 x 0,34 mm²7,8 mm40,1 kg/km82 kg/km Send inquiry
    L634504344 x 2 x 0,34 mm²8,8 mm50,1 kg/km98 kg/km Send inquiry
    L634505345 x 2 x 0,34 mm²9,5 mm58,8 kg/km113 kg/km Send inquiry
    L634506346 x 2 x 0,34 mm²9,7 mm65,3 kg/km125 kg/km Send inquiry
    L634508348 x 2 x 0,34 mm²10,6 mm96,9 kg/km155 kg/km Send inquiry
    L6345123412 x 2 x 0,34 mm²13,4 mm133,5 kg/km225 kg/km Send inquiry
    L6345163416 x 2 x 0,34 mm²14,8 mm182,6 kg/km287 kg/km Send inquiry
    L6345183418 x 2 x 0,34 mm²15,3 mm205,5 kg/km317 kg/km Send inquiry
    L6345243424 x 2 x 0,34 mm²17,6 mm256,1 kg/km404 kg/km Send inquiry
    L634502502 x 2 x 0,50 mm²7,6 mm39,6 kg/km74 kg/km Send inquiry
    L634503503 x 2 x 0,50 mm²8,3 mm50,8 kg/km94 kg/km Send inquiry
    L634504504 x 2 x 0,50 mm²9,4 mm64,6 kg/km116 kg/km Send inquiry
    L634505505 x 2 x 0,50 mm²10,2 mm76,6 kg/km130 kg/km Send inquiry
    L634506506 x 2 x 0,50 mm²10,4 mm86,3 kg/km152 kg/km Send inquiry
    L634508508 x 2 x 0,50 mm²11,6 mm127,1 kg/km185 kg/km Send inquiry
    L6345105010 x 2 x 0,50 mm²13,2 mm151,1 kg/km232 kg/km Send inquiry
    L6345125012 x 2 x 0,50 mm²14,6 mm193,2 kg/km272 kg/km Send inquiry
    L6345165016 x 2 x 0,50 mm²16,3 mm242,1 kg/km363 kg/km Send inquiry
    L6345185018 x 2 x 0,50 mm²16,9 mm261,9 kg/km392 kg/km Send inquiry
    L6345245024 x 2 x 0,50 mm²19,0 mm341,3 kg/km488 kg/km Send inquiry
    L634502752 x 2 x 0,75 mm²8,5 mm52,7 kg/km98 kg/km Send inquiry
    L634503753 x 2 x 0,75 mm²9,4 mm69,4 kg/km118 kg/km Send inquiry
    L634504754 x 2 x 0,75 mm²10,9 mm102,3 kg/km159 kg/km Send inquiry
    L634505755 x 2 x 0,75 mm²11,7 mm122,4 kg/km181 kg/km Send inquiry
    L634506756 x 2 x 0,75 mm²12,5 mm137,0 kg/km215 kg/km Send inquiry
    L634508758 x 2 x 0,75 mm²15,1 mm203,0 kg/km300 kg/km Send inquiry
    L6345127512 x 2 x 0,75 mm²17,1 mm271,7 kg/km390 kg/km Send inquiry
    L6345167516 x 2 x 0,75 mm²18,6 mm331,0 kg/km473 kg/km Send inquiry
    L6345187518 x 2 x 0,75 mm²19,3 mm370,5 kg/km520 kg/km Send inquiry
    L6345247524 x 2 x 0,75 mm²21,8 mm470,6 kg/km644 kg/km Send inquiry
    item no.
    No. of cores x
    cross section
    Outer-ø ± 10%
    Copper figure
    Cable weight ≈
    Outer-ø ± 5%
    L63450214
    2 x 2 x 0,14 mm²
    5,4 mm
    20,8 kg/km
    40 kg/km
    L63450314
    3 x 2 x 0,14 mm²
    5,9 mm
    23,7 kg/km
    47 kg/km
    L63450414
    4 x 2 x 0,14 mm²
    6,9 mm
    28,1 kg/km
    62 kg/km
    L63450514
    5 x 2 x 0,14 mm²
    7,4 mm
    33,8 kg/km
    70 kg/km
    L63450614
    6 x 2 x 0,14 mm²
    7,6 mm
    36,6 kg/km
    75 kg/km
    L63450814
    8 x 2 x 0,14 mm²
    8,2 mm
    43,5 kg/km
    82 kg/km
    L63451014
    10 x 2 x 0,14 mm²
    8,9 mm
    50,9 kg/km
    103 kg/km
    L63451214
    12 x 2 x 0,14 mm²
    9,7 mm
    58,4 kg/km
    111 kg/km
    L63451614
    16 x 2 x 0,14 mm²
    10,5 mm
    71,4 kg/km
    133 kg/km
    L63451814
    18 x 2 x 0,14 mm²
    11,1 mm
    93,2 kg/km
    157 kg/km
    L63452414
    24 x 2 x 0,14 mm²
    12,8 mm
    115,3 kg/km
    204 kg/km
    L63450225
    2 x 2 x 0,25 mm²
    5,9 mm
    25,2 kg/km
    45 kg/km
    L63450325
    3 x 2 x 0,25 mm²
    6,8 mm
    31,7 kg/km
    62 kg/km
    L63450425
    4 x 2 x 0,25 mm²
    7,7 mm
    39,6 kg/km
    72 kg/km
    L63450525
    5 x 2 x 0,25 mm²
    8,1 mm
    45,9 kg/km
    84 kg/km
    L63450625
    6 x 2 x 0,25 mm²
    8,3 mm
    50,8 kg/km
    94 kg/km
    L63450825
    8 x 2 x 0,25 mm²
    9,0 mm
    62,4 kg/km
    104 kg/km
    L63451025
    10 x 2 x 0,25 mm²
    9,8 mm
    76,5 kg/km
    135 kg/km
    L63451225
    12 x 2 x 0,25 mm²
    10,9 mm
    102,3 kg/km
    155 kg/km
    L63451625
    16 x 2 x 0,25 mm²
    11,9 mm
    127,3 kg/km
    193 kg/km
    L63451825
    18 x 2 x 0,25 mm²
    12,7 mm
    137,1 kg/km
    220 kg/km
    L63452425
    24 x 2 x 0,25 mm²
    14,4 mm
    193,0 kg/km
    286 kg/km
    L63450234
    2 x 2 x 0,34 mm²
    7,2 mm
    31,8 kg/km
    65 kg/km
    L63450334
    3 x 2 x 0,34 mm²
    7,8 mm
    40,1 kg/km
    82 kg/km
    L63450434
    4 x 2 x 0,34 mm²
    8,8 mm
    50,1 kg/km
    98 kg/km
    L63450534
    5 x 2 x 0,34 mm²
    9,5 mm
    58,8 kg/km
    113 kg/km
    L63450634
    6 x 2 x 0,34 mm²
    9,7 mm
    65,3 kg/km
    125 kg/km
    L63450834
    8 x 2 x 0,34 mm²
    10,6 mm
    96,9 kg/km
    155 kg/km
    L63451234
    12 x 2 x 0,34 mm²
    13,4 mm
    133,5 kg/km
    225 kg/km
    L63451634
    16 x 2 x 0,34 mm²
    14,8 mm
    182,6 kg/km
    287 kg/km
    L63451834
    18 x 2 x 0,34 mm²
    15,3 mm
    205,5 kg/km
    317 kg/km
    L63452434
    24 x 2 x 0,34 mm²
    17,6 mm
    256,1 kg/km
    404 kg/km
    L63450250
    2 x 2 x 0,50 mm²
    7,6 mm
    39,6 kg/km
    74 kg/km
    L63450350
    3 x 2 x 0,50 mm²
    8,3 mm
    50,8 kg/km
    94 kg/km
    L63450450
    4 x 2 x 0,50 mm²
    9,4 mm
    64,6 kg/km
    116 kg/km
    L63450550
    5 x 2 x 0,50 mm²
    10,2 mm
    76,6 kg/km
    130 kg/km
    L63450650
    6 x 2 x 0,50 mm²
    10,4 mm
    86,3 kg/km
    152 kg/km
    L63450850
    8 x 2 x 0,50 mm²
    11,6 mm
    127,1 kg/km
    185 kg/km
    L63451050
    10 x 2 x 0,50 mm²
    13,2 mm
    151,1 kg/km
    232 kg/km
    L63451250
    12 x 2 x 0,50 mm²
    14,6 mm
    193,2 kg/km
    272 kg/km
    L63451650
    16 x 2 x 0,50 mm²
    16,3 mm
    242,1 kg/km
    363 kg/km
    L63451850
    18 x 2 x 0,50 mm²
    16,9 mm
    261,9 kg/km
    392 kg/km
    L63452450
    24 x 2 x 0,50 mm²
    19,0 mm
    341,3 kg/km
    488 kg/km
    L63450275
    2 x 2 x 0,75 mm²
    8,5 mm
    52,7 kg/km
    98 kg/km
    L63450375
    3 x 2 x 0,75 mm²
    9,4 mm
    69,4 kg/km
    118 kg/km
    L63450475
    4 x 2 x 0,75 mm²
    10,9 mm
    102,3 kg/km
    159 kg/km
    L63450575
    5 x 2 x 0,75 mm²
    11,7 mm
    122,4 kg/km
    181 kg/km
    L63450675
    6 x 2 x 0,75 mm²
    12,5 mm
    137,0 kg/km
    215 kg/km
    L63450875
    8 x 2 x 0,75 mm²
    15,1 mm
    203,0 kg/km
    300 kg/km
    L63451275
    12 x 2 x 0,75 mm²
    17,1 mm
    271,7 kg/km
    390 kg/km
    L63451675
    16 x 2 x 0,75 mm²
    18,6 mm
    331,0 kg/km
    473 kg/km
    L63451875
    18 x 2 x 0,75 mm²
    19,3 mm
    370,5 kg/km
    520 kg/km
    L63452475
    24 x 2 x 0,75 mm²
    21,8 mm
    470,6 kg/km
    644 kg/km

    Other dimensions and colours are possible on request.
