SABIX® BL 405 FRNC
Halogen-free flexible data cable

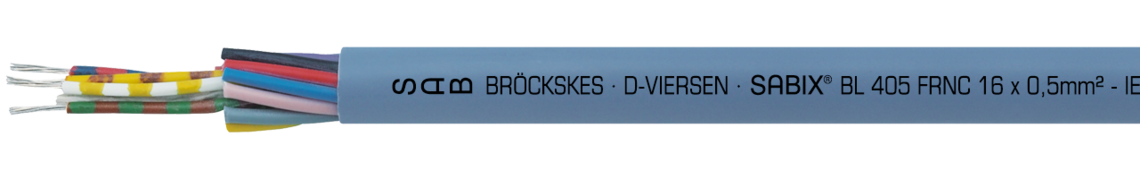

Marking for SABIX® BL 405 FRNC 64051650: SABIX® BL 405 FRNC 16 x 0,5 mm² - IEC 60228-3-22 · 350V DNV CE and current meter marking
Application
SABIX® BL 405 FRNC is a halogen-free flexible data cable. Furthermore, it is asbestos-free and it is made for apptoved acc. to DNV. This cable is appropriate for flexible use below deck as well as on deck of ships with protected laying without being in permanent contact with oils and fuels. The flexible construction and small diameter enables a comfortable laying even in narrow spaces.
Outstanding features
- halogen-free
- asbestos-free
- no flame propagation
- flame retardant and self-extinguishing
- flexible
- for applications acc. to Hong Kong Convention ingredients tested acc. to the requirements of the Hong Kong Convention (2009) of the IMO
- approvals: DNV
Additional information
Especially for use in shipbuilding industry
Possible on request:
- bare copper strands
- alternative colour code and sheath colour
Construction
| Conductor | tinned copper strands with reference to VDE 0812 resp. IEC 60228, VDE 0295, class 5 |
|---|---|
| Insulation | special SABIX® |
| Colour code | with reference to DIN 47100 |
| Stranding | in layers |
| Sheath material | special SABIX® SHF 1 compound acc. to IEC 60092-360 |
| Sheath colour | pigeon blue (RAL 5014) |
tinned copper strands with reference to VDE 0812 resp. IEC 60228, VDE 0295, class 5
special SABIX®
with reference to DIN 47100
in layers
special SABIX®
SHF 1 compound acc. to IEC 60092-360
pigeon blue (RAL 5014)
Technical data
| Peak operating voltage | max. 350 V |
|---|---|
| Testing voltage | core/core 1500 V |
| Min. bending radius | fixed laying: 5 x d flexible application: 10 x d |
| Temperature range | fixed laying: -40/+90 °C flexible application: -30/+90 °C |
| Halogen-free | acc. to IEC 60754-1 + VDE 0482-754-1 |
| Flame propagation | no flame propagation acc. to IEC 60332-3-22 + VDE 0482-332-3-22 category A |
| Fire performance | flame retardant and self-extinguishing acc. to IEC 60332-1-2 + VDE 0482-332-1-2 |
| Corrosiveness of conflagration gases | in compliance with IEC 60754-2 + VDE 0482-754-2 - no development of corrosive conflagration gases |
| Smoke density | acc. to IEC 61034 + VDE 0482-1034 |
| Flexibility | very good |
| Absence of acc. to RoHS harmful substances | acc. to RoHS directive of the European Union see page N/17 |
max. 350 V
core/core 1500 V
fixed laying: 5 x d
flexible application: 10 x d
fixed laying: -40/+90 °C
flexible application: -30/+90 °C
acc. to IEC 60754-1 + VDE 0482-754-1
no flame propagation acc. to IEC 60332-3-22 + VDE 0482-332-3-22 category A
flame retardant and self-extinguishing acc. to IEC 60332-1-2 + VDE 0482-332-1-2
in compliance with IEC 60754-2 + VDE 0482-754-2 - no development of corrosive conflagration gases
acc. to IEC 61034 + VDE 0482-1034
very good
acc. to RoHS directive of the European Union see page N/17
Dimensions
| item no. |
No. of cores x cross section | Outer-ø ± 5% | Copper figure | Cable weight ≈ | |
|---|---|---|---|---|---|
| L64050214 | 2 x 0,14 mm² | 3,6 mm | 2,7 kg/km | 18 kg/km | Send inquiry |
| L64050314 | 3 x 0,14 mm² | 3,8 mm | 4 kg/km | 21 kg/km | Send inquiry |
| L64050414 | 4 x 0,14 mm² | 4,1 mm | 5,4 kg/km | 24 kg/km | Send inquiry |
| L64050514 | 5 x 0,14 mm² | 4,5 mm | 6,7 kg/km | 29 kg/km | Send inquiry |
| L64050614 | 6 x 0,14 mm² | 4,8 mm | 8,1 kg/km | 33 kg/km | Send inquiry |
| L64050714 | 7 x 0,14 mm² | 4,8 mm | 9,4 kg/km | 35 kg/km | Send inquiry |
| L64050814 | 8 x 0,14 mm² | 5,5 mm | 10,8 kg/km | 42 kg/km | Send inquiry |
| L64051214 | 12 x 0,14 mm² | 6,3 mm | 16,1 kg/km | 56 kg/km | Send inquiry |
| L64051614 | 16 x 0,14 mm² | 7 mm | 21,5 kg/km | 70 kg/km | Send inquiry |
| L64050225 | 2 x 0,25 mm² | 3,9 mm | 4,8 kg/km | 22 kg/km | Send inquiry |
| L64050325 | 3 x 0,25 mm² | 4,1 mm | 7,2 kg/km | 26 kg/km | Send inquiry |
| L64050425 | 4 x 0,25 mm² | 4,5 mm | 9,6 kg/km | 31 kg/km | Send inquiry |
| L64050525 | 5 x 0,25 mm² | 4,9 mm | 12 kg/km | 37 kg/km | Send inquiry |
| L64050625 | 6 x 0,25 mm² | 5,3 mm | 14,4 kg/km | 43 kg/km | Send inquiry |
| L64050725 | 7 x 0,25 mm² | 5,3 mm | 16,8 kg/km | 46 kg/km | Send inquiry |
| L64050825 | 8 x 0,25 mm² | 6,2 mm | 19,2 kg/km | 57 kg/km | Send inquiry |
| L64051225 | 12 x 0,25 mm² | 7 mm | 28,8 kg/km | 74 kg/km | Send inquiry |
| L64051625 | 16 x 0,25 mm² | 7,7 mm | 38,4 kg/km | 93 kg/km | Send inquiry |
| L64050234 | 2 x 0,34 mm² | 4,3 mm | 6,5 kg/km | 28 kg/km | Send inquiry |
| L64050334 | 3 x 0,34 mm² | 4,6 mm | 9,8 kg/km | 33 kg/km | Send inquiry |
| L64050434 | 4 x 0,34 mm² | 5 mm | 13,1 kg/km | 39 kg/km | Send inquiry |
| L64050534 | 5 x 0,34 mm² | 5,4 mm | 16,3 kg/km | 47 kg/km | Send inquiry |
| L64050634 | 6 x 0,34 mm² | 6,1 mm | 19,6 kg/km | 58 kg/km | Send inquiry |
| L64050734 | 7 x 0,34 mm² | 6,1 mm | 22,8 kg/km | 61 kg/km | Send inquiry |
| L64050834 | 8 x 0,34 mm² | 7 mm | 26,1 kg/km | 73 kg/km | Send inquiry |
| L64051234 | 12 x 0,34 mm² | 7,8 mm | 39,2 kg/km | 95 kg/km | Send inquiry |
| L64051634 | 16 x 0,34 mm² | 9 mm | 52,5 kg/km | 129 kg/km | Send inquiry |
| L64050250 | 2 x 0,50 mm² | 4,7 mm | 9,6 kg/km | 35 kg/km | Send inquiry |
| L64050350 | 3 x 0,50 mm² | 5 mm | 14,4 kg/km | 42 kg/km | Send inquiry |
| L64050450 | 4 x 0,50 mm² | 5,4 mm | 19,2 kg/km | 50 kg/km | Send inquiry |
| L64050550 | 5 x 0,50 mm² | 6,1 mm | 24 kg/km | 64 kg/km | Send inquiry |
| L64050650 | 6 x 0,50 mm² | 6,7 mm | 28,8 kg/km | 74 kg/km | Send inquiry |
| L64050750 | 7 x 0,50 mm² | 6,7 mm | 33,6 kg/km | 79 kg/km | Send inquiry |
| L64050850 | 8 x 0,50 mm² | 7,7 mm | 38,4 kg/km | 95 kg/km | Send inquiry |
| L64051250 | 12 x 0,50 mm² | 9 mm | 57,6 kg/km | 133 kg/km | Send inquiry |
| L64051650 | 16 x 0,50 mm² | 10 mm | 76,8 kg/km | 169 kg/km | Send inquiry |
| L64050275 | 2 x 0,75 mm² | 5,2 mm | 14,4 kg/km | 43 kg/km | Send inquiry |
| L64050375 | 3 x 0,75 mm² | 5,5 mm | 21,6 kg/km | 52 kg/km | Send inquiry |
| L64050475 | 4 x 0,75 mm² | 6,2 mm | 28,8 kg/km | 66 kg/km | Send inquiry |
| L64050575 | 5 x 0,75 mm² | 6,8 mm | 36 kg/km | 79 kg/km | Send inquiry |
| L64050675 | 6 x 0,75 mm² | 7,4 mm | 43,2 kg/km | 92 kg/km | Send inquiry |
| L64050775 | 7 x 0,75 mm² | 7,4 mm | 50,4 kg/km | 99 kg/km | Send inquiry |
| L64050875 | 8 x 0,75 mm² | 8,8 mm | 57,6 kg/km | 126 kg/km | Send inquiry |
| L64051275 | 12 x 0,75 mm² | 10,1 mm | 86,4 kg/km | 166 kg/km | Send inquiry |
| L64051675 | 16 x 0,75 mm² | 11,1 mm | 115,2 kg/km | 212 kg/km | Send inquiry |
cross section
Other dimensions and colours are possible on request.
