TR 249
Type TC and STOOW, UV and oil resistant, flexible Tray Cable with flexible Cord

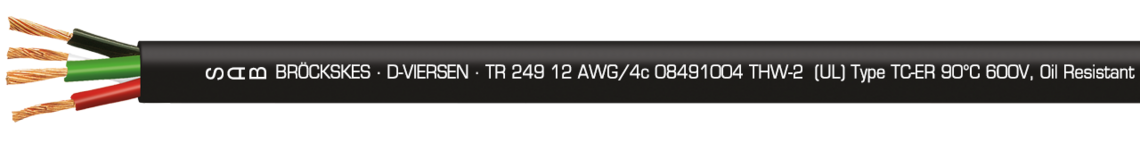

Marking example: SAB BRÖCKSKES · D-VIERSEN · TR 249 12 AWG/4c 08491004 THW-2 (UL) Type TC-ER 90°C 600V, Oil Resistant I, Sunlight Resistant, Direct Burial, FT4 (UL) STOOW 90°C 600V Oil Resistant I AWM Style 21179 600V c(UL) Type CIC 90°C dry 600V FT1 FT2 FT4 CE
Application
The UV and oil resistant, flexible Tray cable - flexible Cord TR 249 Type TC and STOOW is a flexible cable for tray use with NFPA 79 certification for industrial machinery. Recommended applications are machine tools, control systems assembly lines, CNC machining, grinding machines, bottling equipment, data processing equipment and connections between control panels and machines.
Outstanding features
- Flexible cable for cable tray use
- NFPA 79 for industrial machinery
- UL recognized, (UL)/c(UL) listed
Construction
| Conductor | bare copper strands with reference to IEC 60228, VDE 0295 class 5 + UL standard 758 table 5.1 + UL 1581 table 20.1 |
|---|---|
| Insulation | special formulated PVC |
| Colour code | |
| Stranding | in layers |
| Sheath material | special sunlight and oil resistant PVC |
| Sheath colour | black (RAL 9005) |
bare copper strands with reference to IEC 60228, VDE 0295 class 5 + UL standard 758 table 5.1 + UL 1581 table 20.1
special formulated PVC
in layers
special sunlight and oil resistant PVC
black (RAL 9005)
Technical data
| Voltage (UL)/c(UL) | 600 V |
|---|---|
| Testing voltage | AWG 12-10 = 3000 V AWG 8-2 = 3500 V |
| Min. bending radius | fixed laying: < 12 mm = 3 x d > 12 mm = 4 x d
flexible application: < 12 mm = 5 x d > 12 mm = 6 x d |
| Temperature | UL-AWM: up to +105°C c(UL): up to +90°C |
| Burning characteristics | (UL) FT4 and c(UL) FT1, FT2, FT4 |
| Oil resistance I | yes |
| Sunlight resistance | yes |
| Exposed Runs | yes |
| Direct Burial | yes |
| Machinery Area | yes |
| Absence of harmful substances | acc. to RoHS directive of the European Union |
600 V
AWG 12-10 = 3000 V
AWG 8-2 = 3500 V
fixed laying:
< 12 mm = 3 x d
> 12 mm = 4 x d
flexible application:
< 12 mm = 5 x d
> 12 mm = 6 x d
UL-AWM: up to +105°C
c(UL): up to +90°C
(UL) FT4 and c(UL) FT1, FT2, FT4
yes
yes
yes
yes
yes
acc. to RoHS directive of the European Union
Dimensions
| item no. |
No. of cores x cross section |
Largest single wire-ø | Outer-ø ± 5% | Copper figure | Cable weight ≈ | |
|---|---|---|---|---|---|---|
| L08491806 | 6 x 18 AWG | 0,21 mm | 13 mm | 57,6 kg/km | 230 kg/km | Send inquiry |
| L08491807 | 7 x 18 AWG | 0,21 mm | 13 mm | 67,2 kg/km | 260 kg/km | Send inquiry |
| L08491808 | 8 x 18 AWG | 0,21 mm | 14,6 mm | 76,8 kg/km | 300 kg/km | Send inquiry |
| L08491603 | 3 x 16 AWG | 0,26 mm | 10 mm | 43,2 kg/km | 145 kg/km | Send inquiry |
| L08491203 | 3 x 12 AWG | 0,26 mm | 15,8 mm | 115,2 kg/km | 339 kg/km | Send inquiry |
| L08491204 | 4 x 12 AWG | 0,26 mm | 17 mm | 153,6 kg/km | 405 kg/km | Send inquiry |
cross section
wire-ø
Other dimensions and colours are possible on request.
