Sensor plus 250
high temperature resistant PFA insulated sensor cable up to +250°C

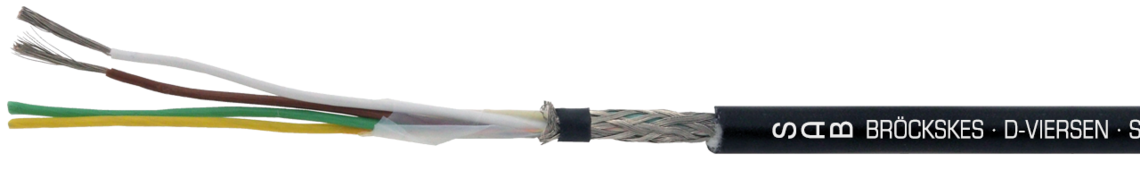

Marking for Sensor plus 250 38390432: SAB BRÖCKSKES · D-VIERSEN · Sensor plus 250 4 x AWG 32/7 3839-0432
Application
High temperature resistant sensor cable up to max. +250°C for measuring and testing technology. Supply cable for miniature sensors. Strain gauge supply cable for smallest bending radii. Connecting cable for modular technology
Outstanding features
- Temperature resistance up to +250 °C
- low capacity
- absolutely weather resistant
- high abrasion resistance
- very good chemical resistance
- battery acid resistant
- small outer diameter
Additional information
Possible on request:
- random lengths or ready harnessed cable
- also available without copper braiding
Construction
| Conductor | silver-plated copper strands |
|---|---|
| Insulation | PFA |
| Colour code | with reference to DIN 47100 |
| Wrapping | foil |
| Screen | tinned copper braiding, optical coverage ≥ 85% |
| Sheath material | PFA |
| Sheath colour | black (RAL 9005) |
silver-plated copper strands
PFA
with reference to DIN 47100
foil
tinned copper braiding, optical coverage ≥ 85%
PFA
black (RAL 9005)
Technical data
| Peak operating voltage | max. 48 V |
|---|---|
| Testing voltage | core/core 600 V core/screen 600 V |
| Min. bending radius | fixed laying: 2 x d (one single bend) flexible application: 10 x d |
| Temperature range cable | fixed laying: -90/+250 °C flexible application: -55/+250 °C |
| Dielectric constant | approx. 2,1 |
| Fire performance | flame retardant and self-extinguishing acc. to IEC 60332-1-2 + VDE 0482-332-1-2 |
| Oil resistance | very good |
| Hydraulic oil resistance | very good |
| Fuel resistance | very good |
| Battery acid resistance | very good |
| UV-resistance | very good |
| Ozone resistance | very good |
| Saltwater resistance | very good |
| Absence of harmful substances | acc. to RoHS directive of the European Union |
max. 48 V
core/core 600 V
core/screen 600 V
fixed laying: 2 x d (one single bend)
flexible application: 10 x d
fixed laying: -90/+250 °C
flexible application: -55/+250 °C
approx. 2,1
flame retardant and self-extinguishing acc. to IEC 60332-1-2 + VDE 0482-332-1-2
very good
very good
very good
very good
very good
very good
very good
acc. to RoHS directive of the European Union
Dimensions
| item no. | Dimension | Copper figure | Cable weight ≈ | Outer-ø ± 5% | |
|---|---|---|---|---|---|
| L38390234 | 2 x AWG 34/7 | 5,7 kg/km | 8 kg/km | 1,8 mm | Send inquiry |
| L38390330 | 3 x AWG 30/7 | 8,7 kg/km | 11 kg/km | 2,1 mm | Send inquiry |
| L38390432 | 4 x AWG 32/7 | 8,1 kg/km | 11 kg/km | 2,1 mm | Send inquiry |
| L38390628 | 6 x AWG 28/7 | 16,0 kg/km | 20 kg/km | 2,7 mm | Send inquiry |
Other dimensions and colours are possible on request.
