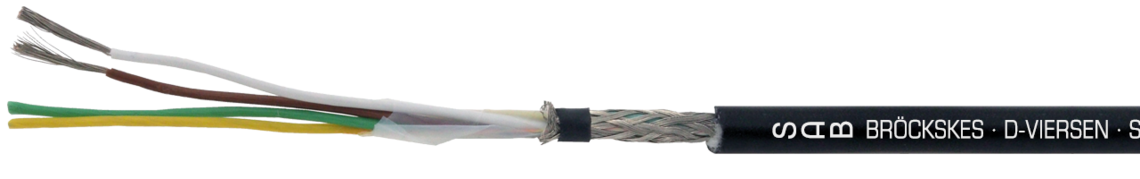

high temperature resistant FEP insulated sensor cable up to +150°C

tinned copper strands, silver-plated from AWG 32

FEP

with reference to DIN 47100

foil

tinned copper braiding, optical coverage ≥ 85%

PUR 490 with smooth surface

black (RAL 9005)

max. 48 V

core/core 600 V

core/screen 600 V

fixed laying: 2 x d (one single bend)

flexible application: 10 x d

fixed laying*: -50/+150 °C

flexible application*: -40/+150 °C

* +150 °C – up to 3000 hours

up to +180 °C (short time use up to +205 °C)

very good - TMPU acc. to EN 50363-10-2

good

acc. to RoHS directive of the European Union
