SD 86 C
Continuously flexible PVC data cable with coloured cores and overall copper screen

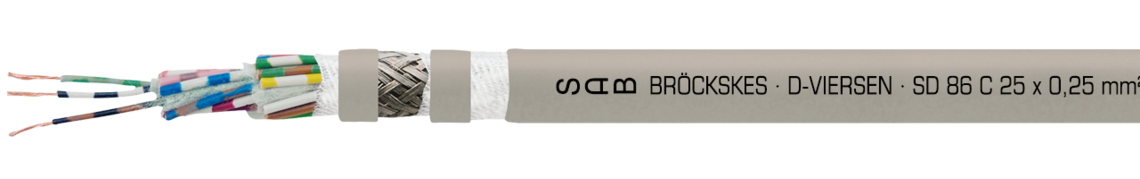

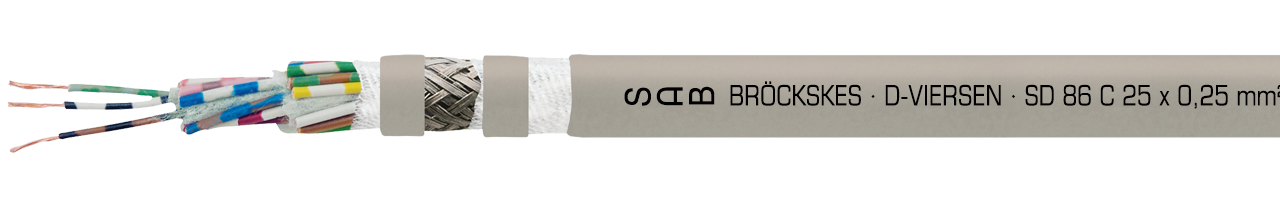

Marking for SD 86 C 37822502: SAB BRÖCKSKES · D-VIERSEN · SD 86 C 25 x 0,25 mm² CE
Application
SD 86 C is a shielded data cable with coloured cores and overall copper screen. This high flexible cable is recommended for use in wood working and packaging machines, assembly lines, and automation plants.
Outstanding features
- very good flexibility
- shielded, good EMC characteristics
- small bending radius
- reinforced outer sheath
Additional information
On request also available in dimensions 0,50 mm² and 0,75 mm²!
Construction
| Conductor | bare copper strands, extra fine wires |
|---|---|
| Insulation | PVC, TI2 acc. to EN 50363-3 + VDE 0207-363-3 |
| Colour code | with reference to DIN 47100 |
| Stranding | specially adjusted layering with non-woven tape over each layer |
| Wrapping | non-woven tape |
| Screen | tinned copper braiding |
| Wrapping | non-woven tape |
| Sheath material | PVC, TM2 acc. to EN 50363-3 + VDE 0207-363-3 |
| Sheath colour | grey (RAL 7032) |
bare copper strands, extra fine wires
PVC, TI2 acc. to EN 50363-3 + VDE 0207-363-3
with reference to DIN 47100
specially adjusted layering with non-woven tape over each layer
non-woven tape
tinned copper braiding
non-woven tape
PVC, TM2 acc. to EN 50363-3 + VDE 0207-363-3
grey (RAL 7032)
Technical data
| Peak operating voltage | max. 350 V acc. to VDE 0812 |
|---|---|
| Testing voltage | core/core 1500 V core/screen 1200 V |
| Min. bending radius | continuously flexible: 7,5 x d |
| Radiation resistance | 8 x 10⁷ cJ/kg |
| Temperature range | fixed laying: -30/+70°C flexible application: -5/+70°C |
| Fire performance | flame retardant and self-extinguishing acc. to IEC 60332-1-2 + VDE 0482-332-1-2 |
| Oil resistance | |
| Chem. resistance | see "Technical Data" - Chemical resistance |
| Flexibility | very good |
| Absence of harmful substances | acc. to RoHS directive of the European Union |
max. 350 V acc. to VDE 0812
core/core 1500 V
core/screen 1200 V
continuously flexible: 7,5 x d
8 x 10⁷ cJ/kg
fixed laying: -30/+70°C
flexible application: -5/+70°C
flame retardant and self-extinguishing acc. to IEC 60332-1-2 + VDE 0482-332-1-2
see "Technical Data" - Chemical resistance
very good
acc. to RoHS directive of the European Union
Dimensions
| item no. |
No. of cores x cross section |
Largest single wire-ø | Outer-ø ± 5% | Copper figure | Cable weight ≈ | |
|---|---|---|---|---|---|---|
| L37820201 | 2 x 0,14 mm² | 0,11 mm | 3,7 mm | 11,6 kg/km | 20 kg/km | Send inquiry |
| L37820301 | 3 x 0,14 mm² | 0,11 mm | 3,9 mm | 15,0 kg/km | 24 kg/km | Send inquiry |
| L37820401 | 4 x 0,14 mm² | 0,11 mm | 4,1 mm | 15,7 kg/km | 26 kg/km | Send inquiry |
| L37820501 | 5 x 0,14 mm² | 0,11 mm | 4,4 mm | 18,8 kg/km | 32 kg/km | Send inquiry |
| L37820701 | 7 x 0,14 mm² | 0,11 mm | 5,2 mm | 23,4 kg/km | 42 kg/km | Send inquiry |
| L37821201 | 12 x 0,14 mm² | 0,11 mm | 6,3 mm | 33,9 kg/km | 59 kg/km | Send inquiry |
| L37821801 | 18 x 0,14 mm² | 0,11 mm | 7,1 mm | 45,5 kg/km | 78 kg/km | Send inquiry |
| L37822501 | 25 x 0,14 mm² | 0,11 mm | 8,8 mm | 59,8 kg/km | 110 kg/km | Send inquiry |
| L37820202 | 2 x 0,25 mm² | 0,11 mm | 4 mm | 15,1 kg/km | 24 kg/km | Send inquiry |
| L37820302 | 3 x 0,25 mm² | 0,11 mm | 4,2 mm | 18,3 kg/km | 30 kg/km | Send inquiry |
| L37820402 | 4 x 0,25 mm² | 0,11 mm | 4,5 mm | 21,7 kg/km | 34 kg/km | Send inquiry |
| L37820502 | 5 x 0,25 mm² | 0,11 mm | 5 mm | 25,9 kg/km | 42 kg/km | Send inquiry |
| L37820702 | 7 x 0,25 mm² | 0,11 mm | 5,7 mm | 32,9 kg/km | 54 kg/km | Send inquiry |
| L37821202 | 12 x 0,25 mm² | 0,11 mm | 6,9 mm | 48,5 kg/km | 76 kg/km | Send inquiry |
| L37821802 | 18 x 0,25 mm² | 0,11 mm | 8,3 mm | 67 kg/km | 112 kg/km | Send inquiry |
| L37822502 | 25 x 0,25 mm² | 0,11 mm | 9,7 mm | 89,1 kg/km | 145 kg/km | Send inquiry |
| L37820203 | 2 x 0,34 mm² | 0,11 mm | 4,8 mm | 18,7 kg/km | 33 kg/km | Send inquiry |
| L37820303 | 3 x 0,34 mm² | 0,11 mm | 5 mm | 23,7 kg/km | 39 kg/km | Send inquiry |
| L37820403 | 4 x 0,34 mm² | 0,11 mm | 5,4 mm | 27,1 kg/km | 46 kg/km | Send inquiry |
| L37820503 | 5 x 0,34 mm² | 0,11 mm | 5,8 mm | 32,3 kg/km | 54 kg/km | Send inquiry |
| L37820703 | 7 x 0,34 mm² | 0,11 mm | 6,8 mm | 42,4 kg/km | 74 kg/km | Send inquiry |
| L37821203 | 12 x 0,34 mm² | 0,11 mm | 8,5 mm | 63 kg/km | 116 kg/km | Send inquiry |
| L37821803 | 18 x 0,34 mm² | 0,11 mm | 9,8 mm | 87,9 kg/km | 151 kg/km | Send inquiry |
| L37822503 | 25 x 0,34 mm² | 0,11 mm | 11,7 mm | 136 kg/km | 209 kg/km | Send inquiry |
cross section
wire-ø
Other dimensions and colours are possible on request.
