SABIX® S 710 FRNC C1
Continuously flexible halogen-free control cable with improved fire performance

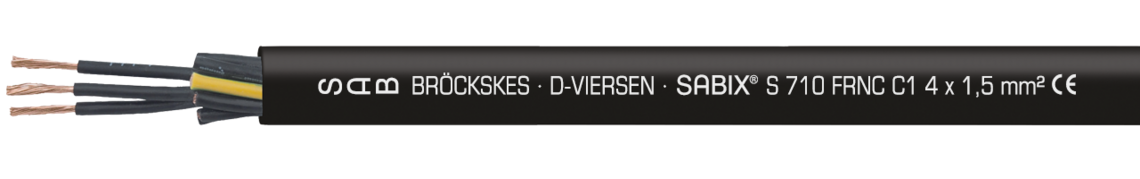

Marking example: SAB BRÖCKSKES · D-VIERSEN · SABIX® S 710 FRNC C1 4 x 1,5 mm² CE
Application
This oil and fuel resistant control cable is halogen free, flame retardant and self-extinguishing according to IEC 60332-1-2 + VDE 0482-332-1-2 + NF C32-070 C1. It is suitable for flexible use in railway applications.
Outstanding features
- halogen-free
- continuously flexible
- no flame propagation
- flame retardant and self-extinguishing
- oil and fuel resistant
- good acid and alkalines resistance
- NF C 32-070 C1
Additional information
For flexible applications in areas with highest fire protection requirements e.g. power plant technology, railway applications.
Construction
| Conductor | bare copper strands acc. to IEC 60228, VDE 0295, class 6 |
|---|---|
| Insulation | SABIX® |
| Colour code | black cores with consecutive numbers acc. to EN 50334 + VDE 0293-334, green-yellow earth wire from 3 cores |
| Stranding | in layers |
| Wrapping | non-woven tape |
| Sheath material | SABIX® |
| Sheath colour | black (RAL 9005) |
bare copper strands acc. to IEC 60228, VDE 0295, class 6
SABIX®
black cores with consecutive numbers acc. to EN 50334 + VDE 0293-334,
green-yellow earth wire from 3 cores
in layers
non-woven tape
SABIX®
black (RAL 9005)
Technical data
| Nominal voltage | Uo/U 0,6/1 kV |
|---|---|
| Testing voltage | core/core 4000 V |
| Min. bending radius | fixed laying: 4 x d flexible application: 6 x d continuously flexible: 15 x d |
| Radiation resistance | 1 x 10⁷ cJ/kg (100 kGy) |
| Temperature range | fixed laying: -40/+90°C flexible application: -30/+90 °C |
| Halogen-free | acc. to IEC 60754-1 + VDE 0482-754-1 |
| Flame propagation | no flame propagation |
| Fire performance | flame retardant and self-extinguishing acc. to IEC 60332-1-2 + VDE 0482-332-1-2 + NF C32-070 C1 |
| Corrosiveness of conflagration gases | in compliance with IEC 60754-2 + VDE 0482-754-2 - no development of corrosive conflagration gases |
| Smoke density | acc. to IEC 61034 + VDE 0482-1034 |
| Toxicity | acc. to EN 50305 |
| Oil and fuel resistance | acc. to EN 50264-1 + VDE 0260-264-1 |
| UV, ozone and weather resistance | good |
| Mycological resistance | good |
| Absence of harmful substances | acc. to RoHS directive of the European Union |
Uo/U 0,6/1 kV
core/core 4000 V
fixed laying: 4 x d
flexible application: 6 x d
continuously flexible: 15 x d
1 x 10⁷ cJ/kg (100 kGy)
fixed laying: -40/+90°C
flexible application: -30/+90 °C
acc. to IEC 60754-1 + VDE 0482-754-1
no flame propagation
acc. to IEC 60332-3-24 + VDE 0482-332-3-24
resp. IEC 60332-3-25 + VDE 0482-332-3-25 category C resp. D
flame retardant and self-extinguishing acc. to IEC 60332-1-2 + VDE 0482-332-1-2 + NF C32-070 C1
in compliance with IEC 60754-2 + VDE 0482-754-2 - no development of corrosive conflagration gases
acc. to IEC 61034 + VDE 0482-1034
acc. to EN 50305
acc. to EN 50264-1 + VDE 0260-264-1
good
good
acc. to RoHS directive of the European Union
Dimensions
| item no. |
No. of cores x cross section |
Largest single wire-ø | Outer-ø ± 10% | Copper figure | Cable weight ≈ | |
|---|---|---|---|---|---|---|
| L67100205 | 2 x 0,50 mm² | 0,16 mm | 6,4 mm | 9,6 kg/km | 62 kg/km | Send inquiry |
| L67100505 | 5 x 0,50 mm² | 0,16 mm | 8,2 mm | 24 kg/km | 97 kg/km | Send inquiry |
| L67100507 | 5 x 0,75 mm² | 0,16 mm | 9 mm | 36 kg/km | 121 kg/km | Send inquiry |
| L67100707 | 7 x 0,75 mm² | 0,16 mm | 10,7 mm | 50,4 kg/km | 170 kg/km | Send inquiry |
| L67100310 | 3 x 1,00 mm² | 0,16 mm | 7,9 mm | 28,8 kg/km | 92 kg/km | Send inquiry |
| L67100510 | 5 x 1,00 mm² | 0,16 mm | 9,3 mm | 48 kg/km | 137 kg/km | Send inquiry |
| L67100710 | 7 x 1,00 mm² | 0,16 mm | 11,1 mm | 67,2 kg/km | 193 kg/km | Send inquiry |
| L67101210 | 12 x 1,00 mm² | 0,16 mm | 13,6 mm | 115,2 kg/km | 284 kg/km | Send inquiry |
| L67101810 | 18 x 1,00 mm² | 0,16 mm | 16,1 mm | 172,8 kg/km | 406 kg/km | Send inquiry |
| L67100215 | 2 x 1,50 mm² | 0,16 mm | 8,6 mm | 28,8 kg/km | 112 kg/km | Send inquiry |
| L67100315 | 3 x 1,50 mm² | 0,16 mm | 9,2 mm | 43,2 kg/km | 127 kg/km | Send inquiry |
| L67100415 | 4 x 1,50 mm² | 0,16 mm | 9,7 mm | 57,6 kg/km | 151 kg/km | Send inquiry |
| L67100515 | 5 x 1,50 mm² | 0,16 mm | 10,9 mm | 72 kg/km | 189 kg/km | Send inquiry |
| L67100715 | 7 x 1,50 mm² | 0,16 mm | 13,1 mm | 100,8 kg/km | 276 kg/km | Send inquiry |
| L67101215 | 12 x 1,50 mm² | 0,16 mm | 15,8 mm | 172,8 kg/km | 390 kg/km | Send inquiry |
| L67101815 | 18 x 1,50 mm² | 0,16 mm | 18,7 mm | 259,2 kg/km | 562 kg/km | Send inquiry |
| L67102415 | 24 x 1,50 mm² | 0,16 mm | 21,8 mm | 345,6 kg/km | 721 kg/km | Send inquiry |
| L67102515 | 25 x 1,50 mm² | 0,16 mm | 22,1 mm | 360 kg/km | 735 kg/km | Send inquiry |
| L67100325 | 3 x 2,50 mm² | 0,16 mm | 10,8 mm | 72 kg/km | 183 kg/km | Send inquiry |
| L67100425 | 4 x 2,50 mm² | 0,16 mm | 12,1 mm | 69 kg/km | 240 kg/km | Send inquiry |
| L67100525 | 5 x 2,50 mm² | 0,16 mm | 13,5 mm | 120 kg/km | 294 kg/km | Send inquiry |
| L67100725 | 7 x 2,50 mm² | 0,16 mm | 15,8 mm | 168 kg/km | 408 kg/km | Send inquiry |
| L67101225 | 12 x 2,50 mm² | 0,16 mm | 19,2 mm | 288 kg/km | 584 kg/km | Send inquiry |
| L67100440 | 4 x 4,00 mm² | 0,16 mm | 13,5 mm | 153,6 kg/km | 321 kg/km | Send inquiry |
| L67100460 | 4 x 6,00 mm² | 0,21 mm | 15,4 mm | 230,4 kg/km | 427 kg/km | Send inquiry |
| L67100461 | 4 x 10,0 mm² | 0,21 mm | 19,2 mm | 384 kg/km | 769 kg/km | Send inquiry |
| L67100462 | 4 x 16,0 mm² | 0,21 mm | 22,1 mm | 614,4 kg/km | 1005 kg/km | Send inquiry |
| L67100465 | 4 x 50,0 mm² | 0,31 mm | 35,9 mm | 1920 kg/km | 2747 kg/km | Send inquiry |
cross section
wire-ø
Other dimensions and colours are possible on request.
