SABIX® R 638 FRNC

SABIX® Rail Control with numbered cores and overall copper screen tested acc. to EN 45545-2

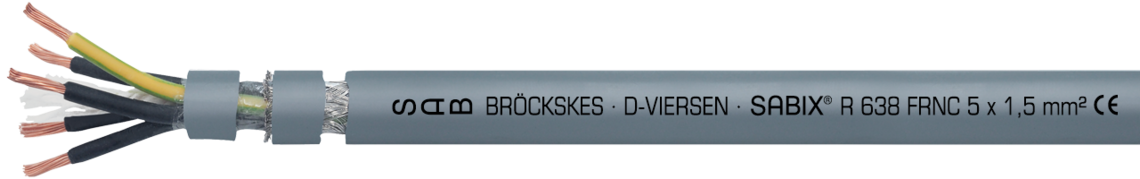

Marking for SABIX® R 638 FRNC 66380515: SAB BRÖCKSKES · D-VIERSEN · SABIX® R 638 FRNC 5 x 1,5 mm² CE

Download data sheet for SABIX® R 638 FRNC

Questions about our products?

Application

SABIX® R 638 FRNC is a SABIX® Rail Control cable with numbered cores and overall copper screen. Moreover, it fulfils fire protection requirements R 15 (EL1A) acc. to 45545-2 for hazard levels HL1-3. It is recommended for the internal wiring of rail vehicles acc. to EN 45545-2.

Outstanding features

halogen-free
screened, good EMC characteristics
no flame propagation
flame retardant and self-extinguishing
fulfils fire protection requirements R15 (EL1A) acc. to EN 45545-2 for hazard levels HL1-3
flame retardant acc. to UN/ECE R118

Additional information

Especially for use in rail vehicles

Construction

Conductor	bare copper strands acc. to IEC 60228, VDE 0295, class 5
Insulation	Special SABIX®
Colour code	black cores with consecutive numbers acc. to EN 50334 + VDE 0293-334, green-yellow earth wire from 3 cores
Stranding	in layers
Wrapping	foil
Screen	tinned copper braiding
Sheath material	Special SABIX®
Sheath colour	grey (RAL 7000)

Conductor

bare copper strands acc. to IEC 60228, VDE 0295, class 5

Insulation

Special SABIX®

Colour code

black cores with consecutive numbers acc. to EN 50334 + VDE 0293-334,

green-yellow earth wire from 3 cores

Stranding

in layers

Wrapping

foil

Screen

tinned copper braiding

Sheath material

Special SABIX®

Sheath colour

grey (RAL 7000)

Technical data

Nominal voltage	Uo/U 300/500 V
Testing voltage	core/core 3000 V core/screen 2000 V
Min. bending radius	fixed laying: 5 x d flexible application: 10 x d
Temperature range	fixed laying: -40/+90 °C flexible use: -30/+90 °C
Halogen-free	acc. to EN 50306-1 + EN 50264-1 are fulfilled. Development of HCl is < 0,5% acc. to IEC 60754-1. pH-value is > 4,3 acc. to IEC 60754-2. Conductivity is < 10,0 µS/mm acc. to IEC 60754-2. Fluoric content < 0,1% acc. to IEC 60684-2
Flame propagation	no flame propagation acc. to IEC 60332-3-24 + VDE 0482-332-3-24 resp. IEC 60332-3-25 + VDE 0482-332-3-25 and EN 50305 + VDE 0260-305 section 9.1.2.
Flame retardant	acc. to ISO 6722 (UN/ECE R118)
Fire performance	flame retardant and self-extinguishing acc. to IEC 60332-1-2 + VDE 0482-332-1-2
Toxicity	acc. to EN 50305 + VDE 0260-305
Smoke density	acc. to IEC 61034 + VDE 0482-1034
Flexibility	good
Absence of harmful substances	acc. to RoHS directive of the European Union

Nominal voltage

Uo/U 300/500 V

Testing voltage

core/core 3000 V

core/screen 2000 V

Min. bending radius

fixed laying: 5 x d

flexible application: 10 x d

Temperature range

fixed laying: -40/+90 °C

flexible use: -30/+90 °C

Halogen-free

acc. to EN 50306-1 + EN 50264-1 are fulfilled.

Development of HCl is < 0,5% acc. to IEC 60754-1.

pH-value is > 4,3 acc. to IEC 60754-2.

Conductivity is < 10,0 µS/mm acc. to IEC 60754-2.

Fluoric content < 0,1% acc. to IEC 60684-2

Flame propagation

no flame propagation
acc. to IEC 60332-3-24 + VDE 0482-332-3-24
resp. IEC 60332-3-25 + VDE 0482-332-3-25 and EN 50305 + VDE 0260-305 section 9.1.2.

Flame retardant

acc. to ISO 6722 (UN/ECE R118)

Fire performance

flame retardant and self-extinguishing acc. to IEC 60332-1-2 + VDE 0482-332-1-2

Toxicity

acc. to EN 50305 + VDE 0260-305

Smoke density

acc. to IEC 61034 + VDE 0482-1034

Flexibility

good

Absence of harmful substances

acc. to RoHS directive of the European Union

Dimensions

item no.	No. of cores x cross section	Largest single wire-ø	Outer-ø ± 5%	Copper figure	Cable weight ≈
L66380205	2 x 0,50 mm²	0,21 mm	5,3 mm	25,5 kg/km	38 kg/km	Send inquiry
L66380305	3 x 0,50 mm²	0,21 mm	5,6 mm	30,7 kg/km	45 kg/km	Send inquiry
L66380405	4 x 0,50 mm²	0,21 mm	6,2 mm	48 kg/km	61 kg/km	Send inquiry
L66380505	5 x 0,50 mm²	0,21 mm	6,7 mm	55,9 kg/km	70 kg/km	Send inquiry
L66380705	7 x 0,50 mm²	0,21 mm	7,2 mm	71,1 kg/km	81 kg/km	Send inquiry
L66381205	12 x 0,50 mm²	0,21 mm	9,6 mm	108,1 kg/km	150 kg/km	Send inquiry
L66381805	18 x 0,50 mm²	0,21 mm	11,4 mm	143,5 kg/km	206 kg/km	Send inquiry
L66382505	25 x 0,50 mm²	0,21 mm	13,8 mm	189,7 kg/km	272 kg/km	Send inquiry
L66380207	2 x 0,75 mm²	0,21 mm	6,1 mm	31,1 kg/km	50 kg/km	Send inquiry
L66380307	3 x 0,75 mm²	0,21 mm	6,4 mm	50,6 kg/km	61 kg/km	Send inquiry
L66380407	4 x 0,75 mm²	0,21 mm	6,9 mm	61,1 kg/km	73 kg/km	Send inquiry
L66380507	5 x 0,75 mm²	0,21 mm	7,7 mm	73,7 kg/km	96 kg/km	Send inquiry
L66380707	7 x 0,75 mm²	0,21 mm	8,3 mm	90,9 kg/km	121 kg/km	Send inquiry
L66381207	12 x 0,75 mm²	0,21 mm	11,2 mm	142,4 kg/km	193 kg/km	Send inquiry
L66381807	18 x 0,75 mm²	0,21 mm	13,3 mm	197,9 kg/km	280 kg/km	Send inquiry
L66382507	25 x 0,75 mm²	0,21 mm	16,2 mm	284,6 kg/km	395 kg/km	Send inquiry
L66380210	2 x 1,00 mm²	0,21 mm	6,3 mm	48 kg/km	56 kg/km	Send inquiry
L66380310	3 x 1,00 mm²	0,21 mm	6,6 mm	58,2 kg/km	68 kg/km	Send inquiry
L66380410	4 x 1,00 mm²	0,21 mm	7,1 mm	75,7 kg/km	94 kg/km	Send inquiry
L66380510	5 x 1,00 mm²	0,21 mm	8 mm	86,1 kg/km	110 kg/km	Send inquiry
L66380710	7 x 1,00 mm²	0,21 mm	8,6 mm	108,2 kg/km	138 kg/km	Send inquiry
L66381210	12 x 1,00 mm²	0,21 mm	11,8 mm	172,1 kg/km	226 kg/km	Send inquiry
L66381810	18 x 1,00 mm²	0,21 mm	13,8 mm	242,1 kg/km	315 kg/km	Send inquiry
L66382510	25 x 1,00 mm²	0,21 mm	16,8 mm	346,5 kg/km	454 kg/km	Send inquiry
L66380215	2 x 1,50 mm²	0,26 mm	6,9 mm	60,7 kg/km	63 kg/km	Send inquiry
L66380315	3 x 1,50 mm²	0,26 mm	7,2 mm	80,5 kg/km	90 kg/km	Send inquiry
L66380415	4 x 1,50 mm²	0,26 mm	8,1 mm	95,6 kg/km	110 kg/km	Send inquiry
L66380515	5 x 1,50 mm²	0,26 mm	9 mm	113,2 kg/km	135 kg/km	Send inquiry
L66380715	7 x 1,50 mm²	0,26 mm	9,7 mm	151,2 kg/km	178 kg/km	Send inquiry
L66381215	12 x 1,50 mm²	0,26 mm	13,9 mm	240,8 kg/km	300 kg/km	Send inquiry
L66381815	18 x 1,50 mm²	0,26 mm	15,7 mm	362,3 kg/km	454 kg/km	Send inquiry
L66382515	25 x 1,50 mm²	0,26 mm	19,1 mm	492,1 kg/km	613 kg/km	Send inquiry
L66380225	2 x 2,50 mm²	0,26 mm	8,3 mm	86,3 kg/km	100 kg/km	Send inquiry
L66380325	3 x 2,50 mm²	0,26 mm	9 mm	113 kg/km	128 kg/km	Send inquiry
L66380425	4 x 2,50 mm²	0,26 mm	9,7 mm	146,2 kg/km	163 kg/km	Send inquiry
L66380525	5 x 2,50 mm²	0,26 mm	11 mm	175 kg/km	215 kg/km	Send inquiry
L66380725	7 x 2,50 mm²	0,26 mm	12,1 mm	225,1 kg/km	276 kg/km	Send inquiry
L66381225	12 x 2,50 mm²	0,26 mm	16,4 mm	392 kg/km	466 kg/km	Send inquiry
L66381825	18 x 2,50 mm²	0,26 mm	19,3 mm	564,1 kg/km	666 kg/km	Send inquiry
L66382525	25 x 2,50 mm²	0,26 mm	23,4 mm	770,1 kg/km	931 kg/km	Send inquiry
L66380440	4 x 4,00 mm²	0,31 mm	11,5 mm	210,7 kg/km	250 kg/km	Send inquiry
L66380540	5 x 4,00 mm²	0,31 mm	12,8 mm	260 kg/km	309 kg/km	Send inquiry
L66380460	4 x 6,00 mm²	0,31 mm	13,6 mm	298,4 kg/km	353 kg/km	Send inquiry
L66380560	5 x 6,00 mm²	0,31 mm	15,1 mm	358,7 kg/km	420 kg/km	Send inquiry
L66380461	4 x 10,00 mm²	0,41 mm	17,8 mm	517,1 kg/km	616 kg/km	Send inquiry
L66380462	4 x 16,00 mm²	0,41 mm	21,9 mm	756 kg/km	917 kg/km	Send inquiry
