SABIX® BL 410 FRNC
Halogen-free flexible power cable 0,6/1 kV

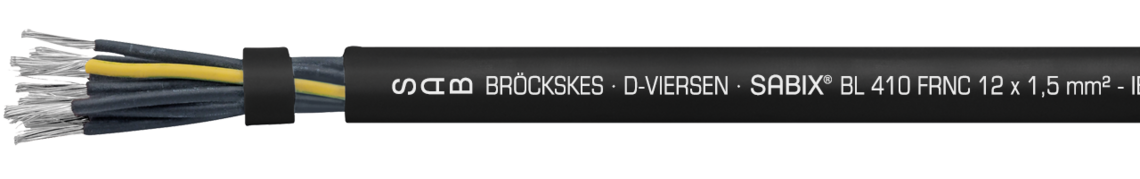

Marking for SABIX® BL 410 FRNC 64101215: SAB BRÖCKSKES · D-VIERSEN · SABIX® BL 410 FRNC 12 x 1,5mm² - IEC 60332-3-22 - 0,6/1kV DNV CE and current meter marking
Application
SABIX® BL 410 FRNC is a halogen-free flexible power cable with 0,6/1 kV. Furthermore, it does not cause flame propagation and is flame retardant and self-extinguishing. This cable is made for flexible application below and on deck of ships with protected laying without being in permanent contact with oils and fuels. The flexible construction and small diameter enables a comfortable laying even in narrow spaces.
Outstanding features
- halogen-free
- asbestos-free
- no flame propagation
- flame retardant and self-extinguishing
- flexible
- for applications acc. to Hong Kong Convention ingredients tested acc. to the requirements of the Hong Kong Convention (2009) of the IMO
- approvals: DNV
Additional information
Especially for use in shipbuilding industry !
Possible on request:
- bare copper strands
- alternative colour code and sheath colour
Construction
| Conductor | tinned copper strands acc. to IEC 60228, VDE 0295, class 5 |
|---|---|
| Insulation | special SABIX® |
| Colour code | black conductors with consecutive numbers acc. to EN 50334 + VDE 0293-334, green-yellow earth wire from 3 conductors |
| Stranding | in layers |
| Sheath material | special SABIX® SHF 1 compound acc. to IEC 60092-360 |
| Sheath colour | black (RAL 9005) |
tinned copper strands acc. to IEC 60228, VDE 0295, class 5
special SABIX®
black conductors with consecutive numbers acc. to EN 50334 + VDE 0293-334,
green-yellow earth wire from 3 conductors
in layers
special SABIX®
SHF 1 compound acc. to IEC 60092-360
black (RAL 9005)
Technical data
| Nominal voltage | Uo/U 0,6/1 kV |
|---|---|
| Testing voltage | core/core 4000 V |
| Min. bending radius | fixed laying: 4 x d flexible application: 6 x d |
| Temperature range | fixed laying: -40/+90 °C flexible application: -30/+90 °C |
| Halogen-free | acc. to IEC 60754-1 + VDE 0482-754-1 |
| Flame propagation | no flame propagation acc. to IEC 60332-3-22 + VDE 0482-332-3-22 category A |
| Fire performance | flame retardant and self-extinguishing acc. to IEC 60332-1-2 + VDE 0482-332-1-2 |
| Corrosiveness of conflagration gases | in compliance with IEC 60754-2 + VDE 0482-754-2 - no development of corrosive conflagration gases |
| Smoke density | acc. to IEC 61034 + VDE 0482-1034 |
| Flexibility | very good |
| Absence of harmful substances | acc. to RoHS directive of the European Union |
Uo/U 0,6/1 kV
core/core 4000 V
fixed laying: 4 x d
flexible application: 6 x d
fixed laying: -40/+90 °C
flexible application: -30/+90 °C
acc. to IEC 60754-1 + VDE 0482-754-1
no flame propagation acc. to IEC 60332-3-22 + VDE 0482-332-3-22 category A
flame retardant and self-extinguishing acc. to IEC 60332-1-2 + VDE 0482-332-1-2
in compliance with IEC 60754-2 + VDE 0482-754-2 - no development of corrosive conflagration gases
acc. to IEC 61034 + VDE 0482-1034
very good
acc. to RoHS directive of the European Union
Dimensions
| item no. |
No. of cores x cross section | Outer-ø ± 5% | Copper figure | Cable weight ≈ | |
|---|---|---|---|---|---|
| L64100215 | 2 x 1,50 mm² | 8,9 mm | 28,8 kg/km | 120 kg/km | Send inquiry |
| L64100315 | 3 x 1,50 mm² | 9,4 mm | 43,2 kg/km | 137 kg/km | Send inquiry |
| L64100415 | 4 x 1,50 mm² | 10,2 mm | 57,6 kg/km | 164 kg/km | Send inquiry |
| L64100515 | 5 x 1,50 mm² | 11,4 mm | 72 kg/km | 205 kg/km | Send inquiry |
| L64100715 | 7 x 1,50 mm² | 12,4 mm | 100,8 kg/km | 250 kg/km | Send inquiry |
| L64101015 | 10 x 1,50 mm² | 15,9 mm | 144 kg/km | 349 kg/km | Send inquiry |
| L64101215 | 12 x 1,50 mm² | 16,6 mm | 172,8 kg/km | 407 kg/km | Send inquiry |
| L64101415 | 14 x 1,50 mm² | 17,4 mm | 201,6 kg/km | 459 kg/km | Send inquiry |
| L64101815 | 18 x 1,50 mm² | 19,5 mm | 259,2 kg/km | 589 kg/km | Send inquiry |
| L64100225 | 2 x 2,50 mm² | 9,7 mm | 48 kg/km | 151 kg/km | Send inquiry |
| L64100325 | 3 x 2,50 mm² | 10,3 mm | 72 kg/km | 176 kg/km | Send inquiry |
| L64100425 | 4 x 2,50 mm² | 11,4 mm | 96 kg/km | 219 kg/km | Send inquiry |
| L64100525 | 5 x 2,50 mm² | 12,5 mm | 120 kg/km | 266 kg/km | Send inquiry |
| L64100725 | 7 x 2,50 mm² | 13,8 mm | 168 kg/km | 337 kg/km | Send inquiry |
| L64101025 | 10 x 2,50 mm² | 17,7 mm | 240 kg/km | 471 kg/km | Send inquiry |
| L64101225 | 12 x 2,50 mm² | 18,2 mm | 288 kg/km | 540 kg/km | Send inquiry |
| L64101425 | 14 x 2,50 mm² | 19,3 mm | 336 kg/km | 622 kg/km | Send inquiry |
| L64101825 | 18 x 2,50 mm² | 21,7 mm | 432 kg/km | 797 kg/km | Send inquiry |
| L64100240 | 2 x 4,00 mm² | 11,9 mm | 76,8 kg/km | 230 kg/km | Send inquiry |
| L64100340 | 3 x 4,00 mm² | 12,6 mm | 115,2 kg/km | 269 kg/km | Send inquiry |
| L64100440 | 4 x 4,00 mm² | 14 mm | 153,6 kg/km | 334 kg/km | Send inquiry |
| L64100540 | 5 x 4,00 mm² | 15,4 mm | 192 kg/km | 410 kg/km | Send inquiry |
| L64100740 | 7 x 4,00 mm² | 17 mm | 268,8 kg/km | 520 kg/km | Send inquiry |
| L64100260 | 2 x 6,00 mm² | 12,9 mm | 115,2 kg/km | 287 kg/km | Send inquiry |
| L64100360 | 3 x 6,00 mm² | 13,9 mm | 172,8 kg/km | 349 kg/km | Send inquiry |
| L64100460 | 4 x 6,00 mm² | 15,2 mm | 230,4 kg/km | 427 kg/km | Send inquiry |
| L64100560 | 5 x 6,00 mm² | 17 mm | 288 kg/km | 535 kg/km | Send inquiry |
| L64100760 | 7 x 6,00 mm² | 18,5 mm | 403,2 kg/km | 674 kg/km | Send inquiry |
| L64100361 | 3 x 10,0 mm² | 16,8 mm | 288 kg/km | 535 kg/km | Send inquiry |
| L64100461 | 4 x 10,0 mm² | 18,4 mm | 384 kg/km | 659 kg/km | Send inquiry |
| L64100561 | 5 x 10,0 mm² | 20,5 mm | 480 kg/km | 825 kg/km | Send inquiry |
| L64100362 | 3 x 16,0 mm² | 20 mm | 460,8 kg/km | 778 kg/km | Send inquiry |
| L64100462 | 4 x 16,0 mm² | 22,1 mm | 614,4 kg/km | 974 kg/km | Send inquiry |
| L64100562 | 5 x 16,0 mm² | 24,7 mm | 768 kg/km | 1218 kg/km | Send inquiry |
| L64100363 | 3 x 25,0 mm² | 24,1 mm | 720 kg/km | 1158 kg/km | Send inquiry |
| L64100463 | 4 x 25,0 mm² | 26,7 mm | 960 kg/km | 1453 kg/km | Send inquiry |
| L64100563 | 5 x 25,0 mm² | 29,9 mm | 1200 kg/km | 1828 kg/km | Send inquiry |
| L64100364 | 3 x 35,0 mm² | 27,5 mm | 1008 kg/km | 1567 kg/km | Send inquiry |
| L64100464 | 4 x 35,0 mm² | 30,4 mm | 1344 kg/km | 1968 kg/km | Send inquiry |
| L64100365 | 3 x 50,0 mm² | 31,1 mm | 1440 kg/km | 2171 kg/km | Send inquiry |
| L64100465 | 4 x 50,0 mm² | 34,3 mm | 1920 kg/km | 2738 kg/km | Send inquiry |
cross section
Other dimensions and colours are possible on request.
