SD 960

Continuously flexible PVC data cable with coloured cores

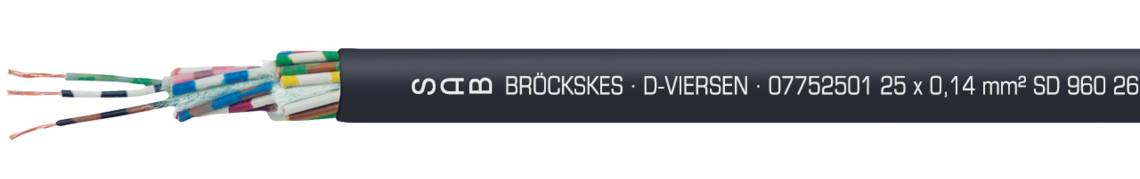

Marking for SD 960 07752501: SAB BRÖCKSKES · D-VIERSEN · 07752501 25 x 0,14 mm² SD 960 26 AWG/25c 07752625 UL AWM Style 21083 80°C 300V CE

Marking for SD 960 07752501: SAB BRÖCKSKES · D-VIERSEN · 07752501 25 x 0,14 mm² SD 960 26 AWG/25c 07752625 UL AWM Style 21083 80°C 300V CE

Application

High Flex Multi Conductor Cable - SD 960 is a continuously flexible PVC data cable with good flexibility and coloured cores. This multi-conductor cable is recommended for use in wood working and packaging machines, assembly lines, automation plants, and it is also suitable for the American market.

Outstanding features

  • very good flexibility
  • UL approval
  • small bending radius
  • reinforced outer sheath

Additional information

Possible on request!

  • in dimensions 0,50 mm² and 0,75 mm²
  • with grey outer sheath and coloured cores acc. to DIN 47100

Construction

Conductor

bare copper strands, extra fine wires

Insulation

PVC, TI2 acc. to EN 50363-3 + VDE 0207-363-3

Colour code

acc. to colour code US 2

Stranding

specially adjusted layering with non-woven tape over each layer

Sheath material

PVC, TM2 acc. to EN 50363-3 + VDE 0207-363-3

Sheath colour

black (RAL 9005)

Conductor

bare copper strands, extra fine wires

Insulation

PVC, TI2 acc. to EN 50363-3 + VDE 0207-363-3

Stranding

specially adjusted layering with non-woven tape over each layer

Sheath material

PVC, TM2 acc. to EN 50363-3 + VDE 0207-363-3

Sheath colour

black (RAL 9005)

Technical data

Peak operating voltage

max. 350 V

Voltage UL

300 V

Testing voltage

core/core 1500 V

Min. bending radius

continuously flexible: 7,5 x d

Radiation resistance

8 x 10⁷ cJ/kg

Temperature range

DIN VDE fixed laying: -30/+70°C

DIN VDE flexible application: -5/+70°C

UL: up to +80°C

Fire performance

flame retardant and self-extinguishing acc. to IEC 60332-1-2 + VDE 0482-332-1-2,
UL VW-1

Oil resistance

acc. to internal standard

Absence of harmful substances

acc. to RoHS directive of the European Union

Peak operating voltage

max. 350 V

Voltage UL

300 V

Testing voltage

core/core 1500 V

Min. bending radius

continuously flexible: 7,5 x d

Radiation resistance

8 x 10⁷ cJ/kg

Temperature range

DIN VDE fixed laying: -30/+70°C

DIN VDE flexible application: -5/+70°C

UL: up to +80°C

Fire performance

flame retardant and self-extinguishing acc. to IEC 60332-1-2 + VDE 0482-332-1-2,
UL VW-1

Absence of harmful substances

acc. to RoHS directive of the European Union

Dimensions

item no. No. of cores x
cross section
Largest single
wire-ø
Copper figure Cable weight ≈ Outer-ø ± 5%
L077502012 x 0,14 mm²0,11 mm2,7 kg/km17 kg/km3,9 mm Send inquiry
L077503013 x 0,14 mm²0,11 mm4 kg/km21 kg/km4,1 mm Send inquiry
L077504014 x 0,14 mm²0,11 mm5,4 kg/km24 kg/km4,5 mm Send inquiry
L077505015 x 0,14 mm²0,11 mm6,7 kg/km30 kg/km4,9 mm Send inquiry
L077507017 x 0,14 mm²0,11 mm9,4 kg/km41 kg/km5,7 mm Send inquiry
L0775100110 x 0,14 mm²0,11 mm13,4 kg/km49 kg/km6,7 mm Send inquiry
L0775140114 x 0,14 mm²0,11 mm18,8 kg/km63 kg/km7,2 mm Send inquiry
L0775180118 x 0,14 mm²0,11 mm24,2 kg/km84 kg/km8,2 mm Send inquiry
L0775250125 x 0,14 mm²0,11 mm33,6 kg/km116 kg/km10,1 mm Send inquiry
L077502022 x 0,25 mm²0,11 mm4,8 kg/km22 kg/km4,2 mm Send inquiry
L077503023 x 0,25 mm²0,11 mm7,2 kg/km26 kg/km4,5 mm Send inquiry
L077504024 x 0,25 mm²0,11 mm9,6 kg/km31 kg/km4,8 mm Send inquiry
L077505025 x 0,25 mm²0,11 mm12 kg/km38 kg/km5,3 mm Send inquiry
L077507027 x 0,25 mm²0,11 mm16,8 kg/km53 kg/km6,3 mm Send inquiry
L0775100210 x 0,25 mm²0,11 mm24 kg/km65 kg/km7,3 mm Send inquiry
L0775140214 x 0,25 mm²0,11 mm33,6 kg/km87 kg/km8,1 mm Send inquiry
L0775180218 x 0,25 mm²0,11 mm43,2 kg/km110 kg/km9 mm Send inquiry
L0775250225 x 0,25 mm²0,11 mm60 kg/km152 kg/km11 mm Send inquiry
L077502032 x 0,34 mm²0,11 mm6,5 kg/km25 kg/km4,4 mm Send inquiry
L077503033 x 0,34 mm²0,11 mm9,8 kg/km30 kg/km4,7 mm Send inquiry
L077504034 x 0,34 mm²0,11 mm13,1 kg/km36 kg/km5,1 mm Send inquiry
L077505035 x 0,34 mm²0,11 mm16,3 kg/km44 kg/km5,5 mm Send inquiry
L077507037 x 0,34 mm²0,11 mm22,8 kg/km61 kg/km6,6 mm Send inquiry
L0775100310 x 0,34 mm²0,11 mm32,6 kg/km79 kg/km7,9 mm Send inquiry
L0775140314 x 0,34 mm²0,11 mm45,7 kg/km102 kg/km8,5 mm Send inquiry
L0775180318 x 0,34 mm²0,11 mm58,8 kg/km130 kg/km9,5 mm Send inquiry
L0775250325 x 0,34 mm²0,11 mm81,6 kg/km179 kg/km11,7 mm Send inquiry
item no.
No. of cores x
cross section
Largest single
wire-ø
Copper figure
Cable weight ≈
Outer-ø ± 5%
L07750201
2 x 0,14 mm²
0,11 mm
2,7 kg/km
17 kg/km
3,9 mm
L07750301
3 x 0,14 mm²
0,11 mm
4 kg/km
21 kg/km
4,1 mm
L07750401
4 x 0,14 mm²
0,11 mm
5,4 kg/km
24 kg/km
4,5 mm
L07750501
5 x 0,14 mm²
0,11 mm
6,7 kg/km
30 kg/km
4,9 mm
L07750701
7 x 0,14 mm²
0,11 mm
9,4 kg/km
41 kg/km
5,7 mm
L07751001
10 x 0,14 mm²
0,11 mm
13,4 kg/km
49 kg/km
6,7 mm
L07751401
14 x 0,14 mm²
0,11 mm
18,8 kg/km
63 kg/km
7,2 mm
L07751801
18 x 0,14 mm²
0,11 mm
24,2 kg/km
84 kg/km
8,2 mm
L07752501
25 x 0,14 mm²
0,11 mm
33,6 kg/km
116 kg/km
10,1 mm
L07750202
2 x 0,25 mm²
0,11 mm
4,8 kg/km
22 kg/km
4,2 mm
L07750302
3 x 0,25 mm²
0,11 mm
7,2 kg/km
26 kg/km
4,5 mm
L07750402
4 x 0,25 mm²
0,11 mm
9,6 kg/km
31 kg/km
4,8 mm
L07750502
5 x 0,25 mm²
0,11 mm
12 kg/km
38 kg/km
5,3 mm
L07750702
7 x 0,25 mm²
0,11 mm
16,8 kg/km
53 kg/km
6,3 mm
L07751002
10 x 0,25 mm²
0,11 mm
24 kg/km
65 kg/km
7,3 mm
L07751402
14 x 0,25 mm²
0,11 mm
33,6 kg/km
87 kg/km
8,1 mm
L07751802
18 x 0,25 mm²
0,11 mm
43,2 kg/km
110 kg/km
9 mm
L07752502
25 x 0,25 mm²
0,11 mm
60 kg/km
152 kg/km
11 mm
L07750203
2 x 0,34 mm²
0,11 mm
6,5 kg/km
25 kg/km
4,4 mm
L07750303
3 x 0,34 mm²
0,11 mm
9,8 kg/km
30 kg/km
4,7 mm
L07750403
4 x 0,34 mm²
0,11 mm
13,1 kg/km
36 kg/km
5,1 mm
L07750503
5 x 0,34 mm²
0,11 mm
16,3 kg/km
44 kg/km
5,5 mm
L07750703
7 x 0,34 mm²
0,11 mm
22,8 kg/km
61 kg/km
6,6 mm
L07751003
10 x 0,34 mm²
0,11 mm
32,6 kg/km
79 kg/km
7,9 mm
L07751403
14 x 0,34 mm²
0,11 mm
45,7 kg/km
102 kg/km
8,5 mm
L07751803
18 x 0,34 mm²
0,11 mm
58,8 kg/km
130 kg/km
9,5 mm
L07752503
25 x 0,34 mm²
0,11 mm
81,6 kg/km
179 kg/km
11,7 mm

Other dimensions and colours are possible on request.
