SABorganic S 1000 Data

Extremely flexible SABIX®/PUR data cable with coloured cores and reduced carbon footprint for continuous movement

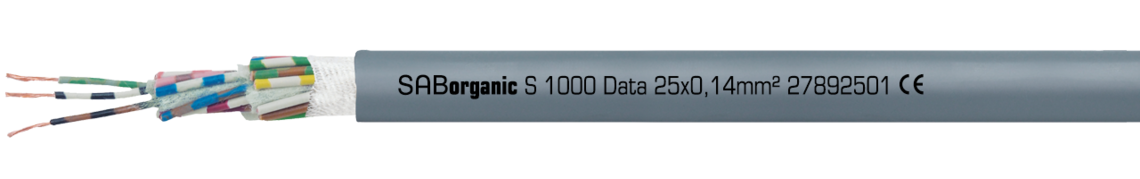

Marking for SABorganic S 1000 Data 27892501: SAB BRÖCKSKES · D-VIERSEN · SABorganic S 1000 Data 25x0,14mm² 27892501 CE

Download data sheet for SABorganic S 1000 Data

Application

The data cable SABorganic S 1000 Data is suitable for cable chains and equipped with an outer sheath made of bio-based PUR material that is mainly obtained of sustainable resources. This reduces the carbon footprint by a quarter compared to conventional types. The SABorganic S 1000 Data is particularly suitable for use in cable chains and moveable machine parts. The halogen-free and flame-retardant characteristics of the new sheath material reduce potential fire hazards. The SABorganic S 1000 Data is also resistant against mineral oil-based lubricants and many chemicals.

Outstanding features

reduced carbon footprint
low capacity construction
sustainable plastic materials
PWIS uncritical
(PWIS = paint-wetting impairment substances)
flexible at low temperatures
halogen-free
flame retardant and self-extinguishing
travel > 10 m is possible
high abrasion resistance
small bending radius
small outer diameter

Construction

Conductor	bare copper strands, extra fine wires
Insulation	SABIX®
Colour code	with reference to DIN 47100
Stranding	specially adjusted layering with non-woven tape over each layer
Wrapping	non-woven tape
Sheath material	PUR, TMPU acc. to EN 50363-10-2 + VDE 0207-363-10-2 with mat surface
Sheath colour	grey (RAL 7000)

Conductor

bare copper strands, extra fine wires

Insulation

SABIX®

Colour code

with reference to DIN 47100

Stranding

specially adjusted layering with non-woven tape over each layer

Wrapping

non-woven tape

Sheath material

PUR, TMPU acc. to EN 50363-10-2 + VDE 0207-363-10-2 with mat surface

Sheath colour

grey (RAL 7000)

Technical Data

Peak operating voltage	max. 350 V
Testing voltage	core/core 1500 V core/screen 1200 V
Torsion angle	± 60°/1 m
Min. bending radius	fixed laying: 3 x d flexible application: 7,5 x d
Temperature range	fixed laying: -50/+90 °C flexible application: -40/+90 °C limited time of use: +125 °C (up to 2000h)
Halogen-free	acc. to IEC 60754-1 + VDE 0482-754-1
Fire performance	flame retardant and self-extinguishing acc. to IEC 60332-1-2 + VDE 0482-332-1-2
Oil resistance	very good - TMPU acc. to EN 50363-10-2 + VDE 0207-363-10-2
Chem. resistance	good against acids, alkalines, solvents, hydraulic liquids etc.
Continuous flexibility	very good
Sunlight resistance	acc. to HD 605
Ozone resistance	acc. to DIN EN 50396
Salt water resistance	acc. to UL 1309
Absence of harmful substances	acc. to RoHS directive of the European Union

Peak operating voltage

max. 350 V

Testing voltage

core/core 1500 V

core/screen 1200 V

Torsion angle

± 60°/1 m

Min. bending radius

fixed laying: 3 x d

flexible application: 7,5 x d

Temperature range

fixed laying: -50/+90 °C

flexible application: -40/+90 °C

limited time of use: +125 °C (up to 2000h)

Halogen-free

acc. to IEC 60754-1 + VDE 0482-754-1

Fire performance

flame retardant and self-extinguishing acc. to IEC 60332-1-2 + VDE 0482-332-1-2

Oil resistance

very good - TMPU acc. to EN 50363-10-2 + VDE 0207-363-10-2

Chem. resistance

good against acids, alkalines, solvents, hydraulic liquids etc.

Continuous flexibility

very good

Sunlight resistance

acc. to HD 605

Ozone resistance

acc. to DIN EN 50396

Salt water resistance

acc. to UL 1309

Absence of harmful substances

acc. to RoHS directive of the European Union

Dimensions

item no.	Description	No. of cores x cross section	Largest single wire-ø	Outer-ø ± 0,5%	Copper figure	Cable weight ≈
L27740402	multi-core cable unscreened	4 x 0,25 mm²	0,11 mm	3,6 mm	9,6 kg/km	18 kg/km	Send inquiry
L27740702	multi-core cable unscreened	7 x 0,25 mm²	0,11 mm	4,6 mm	16,8 kg/km	31 kg/km	Send inquiry
L27740403	multi-core cable unscreened	4 x 0,34 mm²	0,11 mm	3,9 mm	13,2 kg/km	22 kg/km	Send inquiry
L27841201	multi-core cable screened	12 x 0,14 mm²	0,11 mm	5,4 mm	31,6 kg/km	43 kg/km	Send inquiry
L27840402	multi-core cable screened	4 x 0,25 mm²	0,11 mm	4,1 mm	20,0 kg/km	27 kg/km	Send inquiry
L27840502	multi-core cable screened	5 x 0,25 mm²	0,11 mm	4,5 mm	25,9 kg/km	34 kg/km	Send inquiry
L27841803	multi-core cable screened	18 x 0,34 mm²	0,11 mm	7,7 mm	83,1 kg/km	101 kg/km	Send inquiry
L27840550	multi-core cable screened	5 x 0,50 mm²	0,16 mm	5,5 mm	40,0 kg/km	51 kg/km	Send inquiry
L27840475	multi-core cable screened	4 x 0,75 mm²	0,16 mm	6,2 mm	46,4 kg/km	62 kg/km	Send inquiry
L27890314	multi-pair cable screened	3 x 2 x 0,14 mm²	0,11 mm	4,8 mm	21,8 kg/km	30 kg/km	Send inquiry
L27891014	multi-pair cable screened	10 x 2 x 0,14 mm²	0,11 mm	7,6 mm	49,7 kg/km	69 kg/km	Send inquiry
L27890225	multi-pair cable screened	2 x 2 x 0,25 mm²	0,11 mm	4,8 mm	23,6 kg/km	33 kg/km	Send inquiry
L27890525	multi-pair cable screened	5 x 2 x 0,25 mm²	0,11 mm	6,8 mm	43,7 kg/km	60 kg/km	Send inquiry
L27890625	multi-pair cable screened	6 x 2 x 0,25 mm²	0,11 mm	7,0 mm	50,1 kg/km	68 kg/km	Send inquiry
L27890434	multi-pair cable screened	4 x 2 x 0,34 mm²	0,11 mm	6,8 mm	46,1 kg/km	58 kg/km	Send inquiry
L27890250	multi-pair cable screened	2 x 2 x 0,50 mm²	0,16 mm	6,0 mm	36,9 kg/km	50 kg/km	Send inquiry
L27890350	multi-pair cable screened	3 x 2 x 0,50 mm²	0,16 mm	6,8 mm	48,5 kg/km	65 kg/km	Send inquiry

item no.

Description

No. of cores x
cross section

Largest single
wire-ø

Outer-ø ± 0,5%

Copper figure

Cable weight ≈

L27740402

multi-core cable unscreened

4 x 0,25 mm²

0,11 mm

3,6 mm

9,6 kg/km

18 kg/km
