LiYY TP

PVC data cable twisted pairs

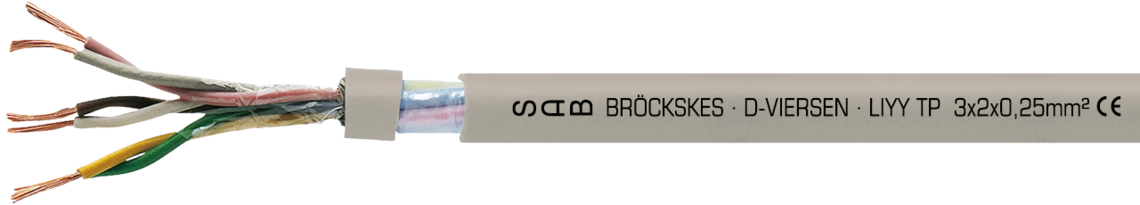

Marking for LiYY TP 03250325: SAB BRÖCKSKES · D-VIERSEN · LIYY TP 3x2x0,25mm² CE

Marking for LiYY TP 03250325: SAB BRÖCKSKES · D-VIERSEN · LIYY TP 3x2x0,25mm² CE

Download data sheet for LiYY TP
Questions about our products?

Application

LiYY TP is a PVC data cable with twisted pairs and a small bending radius. The cable is used in scales, construction of appliances and control panels, construction of low-voltage switchboard plants, communication technologies, and construction of appliances for electric installations.

Outstanding features

  • flexible
  • small outer diameter
  • small bending radius

Construction

Conductor

bare copper strands with reference to VDE 0812

Insulation

PVC, TI2

acc. to EN 50363-3 + VDE 0207-363-3

Colour code

with reference to DIN 47100

Stranding

cores twisted in pairs, pairs twisted in layers

Wrapping

PETP foil

Sheath material

PVC, TM2

acc. to EN 50363-4-1 + VDE 0207-363-4-1

Sheath colour

grey (RAL 7032)

Conductor

bare copper strands with reference to VDE 0812

Insulation

PVC, TI2

acc. to EN 50363-3 + VDE 0207-363-3

Colour code

with reference to DIN 47100

Stranding

cores twisted in pairs, pairs twisted in layers

Wrapping

PETP foil

Sheath material

PVC, TM2

acc. to EN 50363-4-1 + VDE 0207-363-4-1

Sheath colour

grey (RAL 7032)

Technical data

Peak operating voltage

< 0,25 mm² = max. 350 V

≥ 0,25 mm² = max. 500 V

Testing voltage

core/core 1500 V

Min. bending radius

fixed laying: 5 x d

flexible application: 10 x d

Capacitance

see "Technical Data" - Capacitance

Radiation resistance

8 x 10^7 cJ/kg

Temperature range

fixed laying: -30/+70 °C

flexible application: -5/+70 °C

Fire performance

flame retardant and self-extinguishing acc. to IEC 60332-1-2 + VDE 0482-332-1-2

Oil resistance

acc. to internal standard

Chem. resistance

see "Technical Data" - Chemical resistance

Absence of harmful substances

acc. to RoHS directive of the European Union

Peak operating voltage

< 0,25 mm² = max. 350 V

≥ 0,25 mm² = max. 500 V

Testing voltage

core/core 1500 V

Min. bending radius

fixed laying: 5 x d

flexible application: 10 x d

Capacitance

see "Technical Data" - Capacitance

Radiation resistance

8 x 10^7 cJ/kg

Temperature range

fixed laying: -30/+70 °C

flexible application: -5/+70 °C

Fire performance

flame retardant and self-extinguishing acc. to IEC 60332-1-2 + VDE 0482-332-1-2

Oil resistance

acc. to internal standard

Chem. resistance

see "Technical Data" - Chemical resistance

Absence of harmful substances

acc. to RoHS directive of the European Union

Dimensions

item no. No. of pairs x
cross section 		Outer-ø ± 10% Copper figure Cable weight ≈
L032503143 x 2 x 0,14 mm²4,9 mm8,1 kg/km27 kg/km Send inquiry
L032504144 x 2 x 0,14 mm²5,5 mm10,8 kg/km34 kg/km Send inquiry
L032505145 x 2 x 0,14 mm²6,2 mm13,4 kg/km43 kg/km Send inquiry
L032506146 x 2 x 0,14 mm²6,4 mm16,1 kg/km50 kg/km Send inquiry
L032508148 x 2 x 0,14 mm²7 mm21,5 kg/km59 kg/km Send inquiry
L0325101410 x 2 x 0,14 mm²7,7 mm26,9 kg/km71 kg/km Send inquiry
L0325121412 x 2 x 0,14 mm²8,9 mm32,3 kg/km87 kg/km Send inquiry
L0325141414 x 2 x 0,14 mm²9,4 mm37,6 kg/km98 kg/km Send inquiry
L0325161416 x 2 x 0,14 mm²9,7 mm43 kg/km110 kg/km Send inquiry
L0325181418 x 2 x 0,14 mm²10,1 mm48,4 kg/km120 kg/km Send inquiry
L0325201420 x 2 x 0,14 mm²10,1 mm53,8 kg/km125 kg/km Send inquiry
L0325241424 x 2 x 0,14 mm²11,4 mm64,5 kg/km148 kg/km Send inquiry
L0325251425 x 2 x 0,14 mm²11,4 mm67,2 kg/km153 kg/km Send inquiry
L0325261426 x 2 x 0,14 mm²11,7 mm69,9 kg/km170 kg/km Send inquiry
L0325281428 x 2 x 0,14 mm²11,7 mm75,3 kg/km167 kg/km Send inquiry
L0325301430 x 2 x 0,14 mm²12,8 mm80,6 kg/km189 kg/km Send inquiry
L0325321432 x 2 x 0,14 mm²13,1 mm86 kg/km202 kg/km Send inquiry
L0325361436 x 2 x 0,14 mm²13,6 mm96,8 kg/km223 kg/km Send inquiry
L0325401440 x 2 x 0,14 mm²13,9 mm107,5 kg/km244 kg/km Send inquiry
L0325501450 x 2 x 0,14 mm²15,8 mm134,4 kg/km303 kg/km Send inquiry
L0325521452 x 2 x 0,14 mm²15,8 mm139,8 kg/km312 kg/km Send inquiry
L032502252 x 2 x 0,25 mm²4,9 mm9,6 kg/km27 kg/km Send inquiry
L032503253 x 2 x 0,25 mm²5,4 mm14,4 kg/km36 kg/km Send inquiry
L032504254 x 2 x 0,25 mm²6,4 mm19,2 kg/km50 kg/km Send inquiry
L032505255 x 2 x 0,25 mm²6,9 mm24 kg/km57 kg/km Send inquiry
L032506256 x 2 x 0,25 mm²7,1 mm28,8 kg/km65 kg/km Send inquiry
L032507257 x 2 x 0,25 mm²7,3 mm33,6 kg/km71 kg/km Send inquiry
L032508258 x 2 x 0,25 mm²7,8 mm38,4 kg/km80 kg/km Send inquiry
L0325102510 x 2 x 0,25 mm²9 mm48 kg/km108 kg/km Send inquiry
L0325122512 x 2 x 0,25 mm²9,9 mm57,6 kg/km121 kg/km Send inquiry
L0325142514 x 2 x 0,25 mm²10,5 mm67,2 kg/km134 kg/km Send inquiry
L0325162516 x 2 x 0,25 mm²10,9 mm76,8 kg/km152 kg/km Send inquiry
L0325182518 x 2 x 0,25 mm²11,3 mm86,4 kg/km168 kg/km Send inquiry
L0325242524 x 2 x 0,25 mm²13,2 mm115,2 kg/km222 kg/km Send inquiry
L0325402540 x 2 x 0,25 mm²16 mm192 kg/km363 kg/km Send inquiry
L032502342 x 2 x 0,34 mm²5,8 mm13,1 kg/km37 kg/km Send inquiry
L032503343 x 2 x 0,34 mm²6,6 mm19,6 kg/km53 kg/km Send inquiry
L032504344 x 2 x 0,34 mm²7,6 mm26,1 kg/km70 kg/km Send inquiry
L032505345 x 2 x 0,34 mm²8,7 mm32,6 kg/km92 kg/km Send inquiry
L032506346 x 2 x 0,34 mm²8,9 mm39,2 kg/km104 kg/km Send inquiry
L032507347 x 2 x 0,34 mm²9,2 mm45,7 kg/km105 kg/km Send inquiry
L032508348 x 2 x 0,34 mm²9,8 mm52,2 kg/km118 kg/km Send inquiry
L0325103410 x 2 x 0,34 mm²10,8 mm65,3 kg/km142 kg/km Send inquiry
L0325123412 x 2 x 0,34 mm²12,4 mm78,3 kg/km178 kg/km Send inquiry
L0325143414 x 2 x 0,34 mm²13,1 mm91,4 kg/km201 kg/km Send inquiry
L0325183418 x 2 x 0,34 mm²14,1 mm117,5 kg/km253 kg/km Send inquiry
L0325243424 x 2 x 0,34 mm²16,4 mm156,7 kg/km331 kg/km Send inquiry
L032502502 x 2 x 0,50 mm²6,4 mm19,2 kg/km47 kg/km Send inquiry
L032503503 x 2 x 0,50 mm²7,1 mm28,8 kg/km64 kg/km Send inquiry
L032504504 x 2 x 0,50 mm²8,6 mm38,4 kg/km87 kg/km Send inquiry
L032505505 x 2 x 0,50 mm²9,4 mm48 kg/km105 kg/km Send inquiry
L032506506 x 2 x 0,50 mm²9,6 mm57,6 kg/km120 kg/km Send inquiry
L032507507 x 2 x 0,50 mm²9,9 mm67,2 kg/km128 kg/km Send inquiry
L032508508 x 2 x 0,50 mm²10,6 mm76,8 kg/km146 kg/km Send inquiry
L0325105010 x 2 x 0,50 mm²11,8 mm96 kg/km174 kg/km Send inquiry
L0325125012 x 2 x 0,50 mm²13,4 mm115,2 kg/km216 kg/km Send inquiry
L0325145014 x 2 x 0,50 mm²14,6 mm134,4 kg/km259 kg/km Send inquiry
L0325185018 x 2 x 0,50 mm²15,3 mm172,8 kg/km311 kg/km Send inquiry
L0325245024 x 2 x 0,50 mm²17,8 mm230,4 kg/km406 kg/km Send inquiry
L032502752 x 2 x 0,75 mm²7,3 mm28,8 kg/km63 kg/km Send inquiry
L032503753 x 2 x 0,75 mm²8,6 mm43,2 kg/km87 kg/km Send inquiry
L032504754 x 2 x 0,75 mm²9,9 mm57,6 kg/km118 kg/km Send inquiry
L032505755 x 2 x 0,75 mm²10,7 mm72 kg/km140 kg/km Send inquiry
L032506756 x 2 x 0,75 mm²11,1 mm86,4 kg/km164 kg/km Send inquiry
L032507757 x 2 x 0,75 mm²11,4 mm100,8 kg/km173 kg/km Send inquiry
L032508758 x 2 x 0,75 mm²12,7 mm115,2 kg/km207 kg/km Send inquiry
L0325107510 x 2 x 0,75 mm²14 mm144 kg/km251 kg/km Send inquiry
L0325127512 x 2 x 0,75 mm²15,9 mm172,8 kg/km309 kg/km Send inquiry
L0325147514 x 2 x 0,75 mm²16,8 mm201,6 kg/km351 kg/km Send inquiry
L0325187518 x 2 x 0,75 mm²18,1 mm259,2 kg/km443 kg/km Send inquiry
L0325247524 x 2 x 0,75 mm²20,6 mm345,6 kg/km559 kg/km Send inquiry
item no.
No. of pairs x
cross section
Outer-ø ± 10%
Copper figure
Cable weight ≈
L03250314
3 x 2 x 0,14 mm²
4,9 mm
8,1 kg/km
27 kg/km
L03250414
4 x 2 x 0,14 mm²
5,5 mm
10,8 kg/km
34 kg/km
L03250514
5 x 2 x 0,14 mm²
6,2 mm
13,4 kg/km
43 kg/km
L03250614
6 x 2 x 0,14 mm²
6,4 mm
16,1 kg/km
50 kg/km
L03250814
8 x 2 x 0,14 mm²
7 mm
21,5 kg/km
59 kg/km
L03251014
10 x 2 x 0,14 mm²
7,7 mm
26,9 kg/km
71 kg/km
L03251214
12 x 2 x 0,14 mm²
8,9 mm
32,3 kg/km
87 kg/km
L03251414
14 x 2 x 0,14 mm²
9,4 mm
37,6 kg/km
98 kg/km
L03251614
16 x 2 x 0,14 mm²
9,7 mm
43 kg/km
110 kg/km
L03251814
18 x 2 x 0,14 mm²
10,1 mm
48,4 kg/km
120 kg/km
L03252014
20 x 2 x 0,14 mm²
10,1 mm
53,8 kg/km
125 kg/km
L03252414
24 x 2 x 0,14 mm²
11,4 mm
64,5 kg/km
148 kg/km
L03252514
25 x 2 x 0,14 mm²
11,4 mm
67,2 kg/km
153 kg/km
L03252614
26 x 2 x 0,14 mm²
11,7 mm
69,9 kg/km
170 kg/km
L03252814
28 x 2 x 0,14 mm²
11,7 mm
75,3 kg/km
167 kg/km
L03253014
30 x 2 x 0,14 mm²
12,8 mm
80,6 kg/km
189 kg/km
L03253214
32 x 2 x 0,14 mm²
13,1 mm
86 kg/km
202 kg/km
L03253614
36 x 2 x 0,14 mm²
13,6 mm
96,8 kg/km
223 kg/km
L03254014
40 x 2 x 0,14 mm²
13,9 mm
107,5 kg/km
244 kg/km
L03255014
50 x 2 x 0,14 mm²
15,8 mm
134,4 kg/km
303 kg/km
L03255214
52 x 2 x 0,14 mm²
15,8 mm
139,8 kg/km
312 kg/km
L03250225
2 x 2 x 0,25 mm²
4,9 mm
9,6 kg/km
27 kg/km
L03250325
3 x 2 x 0,25 mm²
5,4 mm
14,4 kg/km
36 kg/km
L03250425
4 x 2 x 0,25 mm²
6,4 mm
19,2 kg/km
50 kg/km
L03250525
5 x 2 x 0,25 mm²
6,9 mm
24 kg/km
57 kg/km
L03250625
6 x 2 x 0,25 mm²
7,1 mm
28,8 kg/km
65 kg/km
L03250725
7 x 2 x 0,25 mm²
7,3 mm
33,6 kg/km
71 kg/km
L03250825
8 x 2 x 0,25 mm²
7,8 mm
38,4 kg/km
80 kg/km
L03251025
10 x 2 x 0,25 mm²
9 mm
48 kg/km
108 kg/km
L03251225
12 x 2 x 0,25 mm²
9,9 mm
57,6 kg/km
121 kg/km
L03251425
14 x 2 x 0,25 mm²
10,5 mm
67,2 kg/km
134 kg/km
L03251625
16 x 2 x 0,25 mm²
10,9 mm
76,8 kg/km
152 kg/km
L03251825
18 x 2 x 0,25 mm²
11,3 mm
86,4 kg/km
168 kg/km
L03252425
24 x 2 x 0,25 mm²
13,2 mm
115,2 kg/km
222 kg/km
L03254025
40 x 2 x 0,25 mm²
16 mm
192 kg/km
363 kg/km
L03250234
2 x 2 x 0,34 mm²
5,8 mm
13,1 kg/km
37 kg/km
L03250334
3 x 2 x 0,34 mm²
6,6 mm
19,6 kg/km
53 kg/km
L03250434
4 x 2 x 0,34 mm²
7,6 mm
26,1 kg/km
70 kg/km
L03250534
5 x 2 x 0,34 mm²
8,7 mm
32,6 kg/km
92 kg/km
L03250634
6 x 2 x 0,34 mm²
8,9 mm
39,2 kg/km
104 kg/km
L03250734
7 x 2 x 0,34 mm²
9,2 mm
45,7 kg/km
105 kg/km
L03250834
8 x 2 x 0,34 mm²
9,8 mm
52,2 kg/km
118 kg/km
L03251034
10 x 2 x 0,34 mm²
10,8 mm
65,3 kg/km
142 kg/km
L03251234
12 x 2 x 0,34 mm²
12,4 mm
78,3 kg/km
178 kg/km
L03251434
14 x 2 x 0,34 mm²
13,1 mm
91,4 kg/km
201 kg/km
L03251834
18 x 2 x 0,34 mm²
14,1 mm
117,5 kg/km
253 kg/km
L03252434
24 x 2 x 0,34 mm²
16,4 mm
156,7 kg/km
331 kg/km
L03250250
2 x 2 x 0,50 mm²
6,4 mm
19,2 kg/km
47 kg/km
L03250350
3 x 2 x 0,50 mm²
7,1 mm
28,8 kg/km
64 kg/km
L03250450
4 x 2 x 0,50 mm²
8,6 mm
38,4 kg/km
87 kg/km
L03250550
5 x 2 x 0,50 mm²
9,4 mm
48 kg/km
105 kg/km
L03250650
6 x 2 x 0,50 mm²
9,6 mm
57,6 kg/km
120 kg/km
L03250750
7 x 2 x 0,50 mm²
9,9 mm
67,2 kg/km
128 kg/km
L03250850
8 x 2 x 0,50 mm²
10,6 mm
76,8 kg/km
146 kg/km
L03251050
10 x 2 x 0,50 mm²
11,8 mm
96 kg/km
174 kg/km
L03251250
12 x 2 x 0,50 mm²
13,4 mm
115,2 kg/km
216 kg/km
L03251450
14 x 2 x 0,50 mm²
14,6 mm
134,4 kg/km
259 kg/km
L03251850
18 x 2 x 0,50 mm²
15,3 mm
172,8 kg/km
311 kg/km
L03252450
24 x 2 x 0,50 mm²
17,8 mm
230,4 kg/km
406 kg/km
L03250275
2 x 2 x 0,75 mm²
7,3 mm
28,8 kg/km
63 kg/km
L03250375
3 x 2 x 0,75 mm²
8,6 mm
43,2 kg/km
87 kg/km
L03250475
4 x 2 x 0,75 mm²
9,9 mm
57,6 kg/km
118 kg/km
L03250575
5 x 2 x 0,75 mm²
10,7 mm
72 kg/km
140 kg/km
L03250675
6 x 2 x 0,75 mm²
11,1 mm
86,4 kg/km
164 kg/km
L03250775
7 x 2 x 0,75 mm²
11,4 mm
100,8 kg/km
173 kg/km
L03250875
8 x 2 x 0,75 mm²
12,7 mm
115,2 kg/km
207 kg/km
L03251075
10 x 2 x 0,75 mm²
14 mm
144 kg/km
251 kg/km
L03251275
12 x 2 x 0,75 mm²
15,9 mm
172,8 kg/km
309 kg/km
L03251475
14 x 2 x 0,75 mm²
16,8 mm
201,6 kg/km
351 kg/km
L03251875
18 x 2 x 0,75 mm²
18,1 mm
259,2 kg/km
443 kg/km
L03252475
24 x 2 x 0,75 mm²
20,6 mm
345,6 kg/km
559 kg/km

Other dimensions and colours are possible on request.

More products in PVC data cables

Highly flexible cables according to your special requirements

Family business for construction and production since 1947

Please send us your inquiry
+49 (0)2162 898-0
Monday to Thursday, 7.30–16.30
Friday, 07.30–15.00
