DC 300 DS TP

Semi-rigid PVC data cable with double screen, twisted pairs

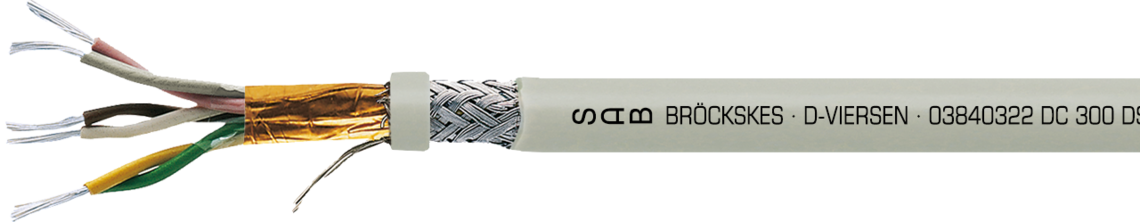

Marking for DC 300 DS TP 03840322:
SAB BRÖCKSKES · D-VIERSEN · 03840322 DC 300 DS TP 22 AWG/3pr 03842203 UL AWM Style 2464 80°C 300V  CSA AWM I/II A/B 80°C 300V FT1 FT2 CE

Marking for DC 300 DS TP 03840322: SAB BRÖCKSKES · D-VIERSEN · 03840322 DC 300 DS TP 22 AWG/3pr 03842203 UL AWM Style 2464 80°C 300V CSA AWM I/II A/B 80°C 300V FT1 FT2 CE

Application

The DC 300 DS TP is a double shielded signal and control cable with double screen and good EMC characteristics. Application is in measuring, control, and voice signals, e.g. in scales and low-voltage switchboard plant engineering, for interference-prone process controls, in control and measuring technologies, and in high-sensitive data-processing systems.

Outstanding features

  • very good EMV characteristic
  • small outer diameter
  • small bending radius

Construction

Conductor

tinned copper strands acc. to ASTM B 286

Insulation

semi-rigid PVC

Colour code

acc. to colour code US 3

Stranding

cores twisted to pairs, pairs twisted in layers

Screen

double screen, alu foil plus tinned copper braiding with tinned drain wire (0,22 mm²)

Sheath material

PVC

Sheath colour

grey (RAL 7032)

Conductor

tinned copper strands acc. to ASTM B 286

Insulation

semi-rigid PVC

Stranding

cores twisted to pairs, pairs twisted in layers

Screen

double screen, alu foil plus tinned copper braiding with tinned drain wire (0,22 mm²)

Sheath material

PVC

Sheath colour

grey (RAL 7032)

Technical data

Peak operating voltage

max. 350 V

Voltage

UL/CSA: 300 V

Testing voltage

core/core 2000 V

core/screen 2000 V

Min. bending radius

fixed laying: 5 x d

flexible application: 10 x d

Radiation resistance

8 x 10^7 cJ/kg

Temperature range

fixed laying: -30/+70 °C

flexible application: -5/+70 °C

UL/CSA fixed laying: up to +80°C

UL/CSA flexible application: up to +80°C

Fire performance

flame retardant and self-extinguishing acc. to IEC 60332-1-2 + VDE 0482-332-1-2,
UL VW-1, CSA FT1, FT2

Oil resistance

acc. to internal standard

Absence of harmful substances

acc. to RoHS directive of the European Union

Peak operating voltage

max. 350 V

Voltage

UL/CSA: 300 V

Testing voltage

core/core 2000 V

core/screen 2000 V

Min. bending radius

fixed laying: 5 x d

flexible application: 10 x d

Radiation resistance

8 x 10^7 cJ/kg

Temperature range

fixed laying: -30/+70 °C

flexible application: -5/+70 °C

UL/CSA fixed laying: up to +80°C

UL/CSA flexible application: up to +80°C

Fire performance

flame retardant and self-extinguishing acc. to IEC 60332-1-2 + VDE 0482-332-1-2,
UL VW-1, CSA FT1, FT2

Absence of harmful substances

acc. to RoHS directive of the European Union

Dimensions

item no. No. of pairs x
cross section
Outer-ø ± 10% Copper figure Cable weight ≈
L038402282 x 2 x 28 AWG5,1 mm13 kg/km29 kg/km Send inquiry
L038403283 x 2 x 28 AWG5,5 mm14,7 kg/km34 kg/km Send inquiry
L038404284 x 2 x 28 AWG6,1 mm18 kg/km40 kg/km Send inquiry
L038405285 x 2 x 28 AWG6,5 mm19,8 kg/km46 kg/km Send inquiry
L038407287 x 2 x 28 AWG6,9 mm24,9 kg/km53 kg/km Send inquiry
L0384102810 x 2 x 28 AWG7,9 mm31,9 kg/km67 kg/km Send inquiry
L0384142814 x 2 x 28 AWG9 mm40,7 kg/km85 kg/km Send inquiry
L0384182818 x 2 x 28 AWG9,6 mm49,5 kg/km104 kg/km Send inquiry
L0384252825 x 2 x 28 AWG10,8 mm63,8 kg/km130 kg/km Send inquiry
L038402262 x 2 x 26 AWG5,4 mm14,9 kg/km33 kg/km Send inquiry
L038403263 x 2 x 26 AWG5,9 mm19,2 kg/km40 kg/km Send inquiry
L038404264 x 2 x 26 AWG6,6 mm23,5 kg/km48 kg/km Send inquiry
L038405265 x 2 x 26 AWG7 mm26,2 kg/km56 kg/km Send inquiry
L038407267 x 2 x 26 AWG7,3 mm31,7 kg/km63 kg/km Send inquiry
L0384102610 x 2 x 26 AWG8,5 mm43,2 kg/km83 kg/km Send inquiry
L0384142614 x 2 x 26 AWG9,8 mm56,1 kg/km108 kg/km Send inquiry
L0384182618 x 2 x 26 AWG10,5 mm68,8 kg/km133 kg/km Send inquiry
L0384252625 x 2 x 26 AWG11,8 mm90,1 kg/km166 kg/km Send inquiry
L038402242 x 2 x 24 AWG5,8 mm19,9 kg/km39 kg/km Send inquiry
L038403243 x 2 x 24 AWG6,3 mm24,4 kg/km47 kg/km Send inquiry
L038404244 x 2 x 24 AWG7,1 mm30,5 kg/km58 kg/km Send inquiry
L038405245 x 2 x 24 AWG7,6 mm36,6 kg/km69 kg/km Send inquiry
L038407247 x 2 x 24 AWG7,9 mm45,5 kg/km80 kg/km Send inquiry
L0384102410 x 2 x 24 AWG9,2 mm62,4 kg/km106 kg/km Send inquiry
L0384142414 x 2 x 24 AWG10,7 mm82,4 kg/km140 kg/km Send inquiry
L0384182418 x 2 x 24 AWG11,5 mm102,2 kg/km173 kg/km Send inquiry
L0384252425 x 2 x 24 AWG12,9 mm137,1 kg/km220 kg/km Send inquiry
L038402222 x 2 x 22 AWG6,3 mm25 kg/km47 kg/km Send inquiry
L038403223 x 2 x 22 AWG6,8 mm33,5 kg/km59 kg/km Send inquiry
L038404224 x 2 x 22 AWG7,7 mm42,2 kg/km72 kg/km Send inquiry
L038405225 x 2 x 22 AWG8,3 mm50,8 kg/km87 kg/km Send inquiry
L038407227 x 2 x 22 AWG8,7 mm64,8 kg/km104 kg/km Send inquiry
L0384102210 x 2 x 22 AWG10,2 mm89,4 kg/km141 kg/km Send inquiry
L0384142214 x 2 x 22 AWG11,8 mm119,7 kg/km185 kg/km Send inquiry
L0384182218 x 2 x 22 AWG12,7 mm151 kg/km232 kg/km Send inquiry
L0384252225 x 2 x 22 AWG14,7 mm200,2 kg/km308 kg/km Send inquiry
item no.
No. of pairs x
cross section
Outer-ø ± 10%
Copper figure
Cable weight ≈
L03840228
2 x 2 x 28 AWG
5,1 mm
13 kg/km
29 kg/km
L03840328
3 x 2 x 28 AWG
5,5 mm
14,7 kg/km
34 kg/km
L03840428
4 x 2 x 28 AWG
6,1 mm
18 kg/km
40 kg/km
L03840528
5 x 2 x 28 AWG
6,5 mm
19,8 kg/km
46 kg/km
L03840728
7 x 2 x 28 AWG
6,9 mm
24,9 kg/km
53 kg/km
L03841028
10 x 2 x 28 AWG
7,9 mm
31,9 kg/km
67 kg/km
L03841428
14 x 2 x 28 AWG
9 mm
40,7 kg/km
85 kg/km
L03841828
18 x 2 x 28 AWG
9,6 mm
49,5 kg/km
104 kg/km
L03842528
25 x 2 x 28 AWG
10,8 mm
63,8 kg/km
130 kg/km
L03840226
2 x 2 x 26 AWG
5,4 mm
14,9 kg/km
33 kg/km
L03840326
3 x 2 x 26 AWG
5,9 mm
19,2 kg/km
40 kg/km
L03840426
4 x 2 x 26 AWG
6,6 mm
23,5 kg/km
48 kg/km
L03840526
5 x 2 x 26 AWG
7 mm
26,2 kg/km
56 kg/km
L03840726
7 x 2 x 26 AWG
7,3 mm
31,7 kg/km
63 kg/km
L03841026
10 x 2 x 26 AWG
8,5 mm
43,2 kg/km
83 kg/km
L03841426
14 x 2 x 26 AWG
9,8 mm
56,1 kg/km
108 kg/km
L03841826
18 x 2 x 26 AWG
10,5 mm
68,8 kg/km
133 kg/km
L03842526
25 x 2 x 26 AWG
11,8 mm
90,1 kg/km
166 kg/km
L03840224
2 x 2 x 24 AWG
5,8 mm
19,9 kg/km
39 kg/km
L03840324
3 x 2 x 24 AWG
6,3 mm
24,4 kg/km
47 kg/km
L03840424
4 x 2 x 24 AWG
7,1 mm
30,5 kg/km
58 kg/km
L03840524
5 x 2 x 24 AWG
7,6 mm
36,6 kg/km
69 kg/km
L03840724
7 x 2 x 24 AWG
7,9 mm
45,5 kg/km
80 kg/km
L03841024
10 x 2 x 24 AWG
9,2 mm
62,4 kg/km
106 kg/km
L03841424
14 x 2 x 24 AWG
10,7 mm
82,4 kg/km
140 kg/km
L03841824
18 x 2 x 24 AWG
11,5 mm
102,2 kg/km
173 kg/km
L03842524
25 x 2 x 24 AWG
12,9 mm
137,1 kg/km
220 kg/km
L03840222
2 x 2 x 22 AWG
6,3 mm
25 kg/km
47 kg/km
L03840322
3 x 2 x 22 AWG
6,8 mm
33,5 kg/km
59 kg/km
L03840422
4 x 2 x 22 AWG
7,7 mm
42,2 kg/km
72 kg/km
L03840522
5 x 2 x 22 AWG
8,3 mm
50,8 kg/km
87 kg/km
L03840722
7 x 2 x 22 AWG
8,7 mm
64,8 kg/km
104 kg/km
L03841022
10 x 2 x 22 AWG
10,2 mm
89,4 kg/km
141 kg/km
L03841422
14 x 2 x 22 AWG
11,8 mm
119,7 kg/km
185 kg/km
L03841822
18 x 2 x 22 AWG
12,7 mm
151 kg/km
232 kg/km
L03842522
25 x 2 x 22 AWG
14,7 mm
200,2 kg/km
308 kg/km

Other dimensions and colours are possible on request.
