SABIX® CC 625 FRNC M

Halogen-free UL/CSA control cable with numbered cores

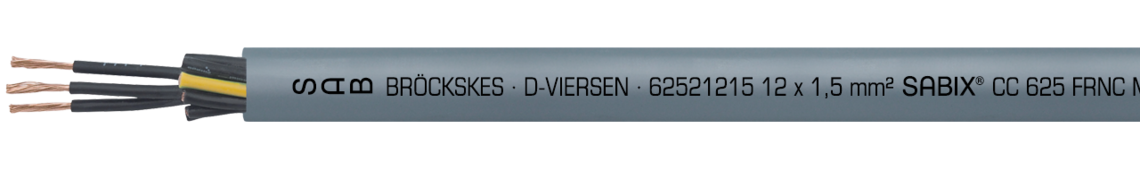

Marking for SABIX® CC 625 FRNC M 62521215: SAB BRÖCKSKES · D-VIERSEN · 62521215 12 x 1,5 mm² SABIX® CC 625 FRNC M 16 AWG/12c 62521612 UL AWM Style 21089 75°C 60OV CSA AWM I/II A/B 80°C 600V FT1 CE

Marking for SABIX® CC 625 FRNC M 62521215: SAB BRÖCKSKES · D-VIERSEN · 62521215 12 x 1,5 mm² SABIX® CC 625 FRNC M 16 AWG/12c 62521612 UL AWM Style 21089 75°C 60OV CSA AWM I/II A/B 80°C 600V FT1 CE

Download data sheet for SABIX® CC 625 FRNC M
Questions about our products?

Application

SABIX® CC 625 FRNC M is a halogen-free control cable with numbered cores and UL/CSA approval. It is recommended for use in automation technologies, car manufacturing industry, machine construction, and railway technologies.

Outstanding features

  • halogen-free
  • UL/CSA approved
  • no flame propagation
  • flame retardant and self-extinguishing
  • flexible

Construction

Conductor

bare copper strands acc. to IEC 60228, VDE 0295, class 5

Insulation

SABIX®

Colour code

black cores with consecutive numbers acc. to EN 50334 + VDE 0293-334,

green-yellow earth wire from 3 cores

Stranding

in layers

Sheath material

SABIX®

Sheath colour

grey (RAL 7000)

Conductor

bare copper strands acc. to IEC 60228, VDE 0295, class 5

Insulation

SABIX®

Colour code

black cores with consecutive numbers acc. to EN 50334 + VDE 0293-334,

green-yellow earth wire from 3 cores

Stranding

in layers

Sheath material

SABIX®

Sheath colour

grey (RAL 7000)

Technical data

Nominal voltage

Uo/U 300/500 V

Voltage UL/CSA

600 V

Testing voltage

core/core 3000 V

Min. bending radius

fixed laying: 4 x d

flexible application: 6 x d

Temperature range

DIN VDE fixed laying: -40/+90 °C

DIN VDE flexible application: -30/+90 °C

UL: up to +75°C

CSA: up to +80°C

Halogen-free

acc. to IEC 60754-1 + VDE 0482-754-1

Flame propagation

no flame propagation
acc. to IEC 60332-3-24 + VDE 0482-332-3-24
resp. IEC 60332-3-25 + VDE 0482-332-3-25 category C resp. D

Fire performance

Flame retardant and self-extinguishing acc. to IEC 60332-1-2 + VDE 0482-332-1-2, CSA FT1

Corrosiveness of conflagration gases

in compliance with IEC 60754-2 + VDE 0482-754-2 - no development of corrosive conflagration gases

Smoke density

acc. to IEC 61034 + VDE 0482-1034

Flexibility

good

Absence of harmful substances

acc. to RoHS directive of the European Union

Nominal voltage

Uo/U 300/500 V

Voltage UL/CSA

600 V

Testing voltage

core/core 3000 V

Min. bending radius

fixed laying: 4 x d

flexible application: 6 x d

Temperature range

DIN VDE fixed laying: -40/+90 °C

DIN VDE flexible application: -30/+90 °C

UL: up to +75°C

CSA: up to +80°C

Halogen-free

acc. to IEC 60754-1 + VDE 0482-754-1

Flame propagation

no flame propagation
acc. to IEC 60332-3-24 + VDE 0482-332-3-24
resp. IEC 60332-3-25 + VDE 0482-332-3-25 category C resp. D

Fire performance

Flame retardant and self-extinguishing acc. to IEC 60332-1-2 + VDE 0482-332-1-2, CSA FT1

Corrosiveness of conflagration gases

in compliance with IEC 60754-2 + VDE 0482-754-2 - no development of corrosive conflagration gases

Smoke density

acc. to IEC 61034 + VDE 0482-1034

Flexibility

good

Absence of harmful substances

acc. to RoHS directive of the European Union

Dimensions

item no. No. of cores x
cross section 		Largest single
wire-ø 		Outer-ø ± 5% Copper figure Cable weight ≈
L625202052 x 0,50 mm²0,21 mm5,2 mm10,3 kg/km40 kg/km Send inquiry
L625203053 x 0,50 mm²0,21 mm5,5 mm15,4 kg/km47 kg/km Send inquiry
L625204054 x 0,50 mm²0,21 mm5,9 mm20,5 kg/km56 kg/km Send inquiry
L625205055 x 0,50 mm²0,21 mm6,4 mm25,6 kg/km65 kg/km Send inquiry
L625207057 x 0,50 mm²0,21 mm7 mm35,9 kg/km83 kg/km Send inquiry
L625208058 x 0,50 mm²0,21 mm8,2 mm41 kg/km104 kg/km Send inquiry
L625209059 x 0,50 mm²0,21 mm8,9 mm46,1 kg/km118 kg/km Send inquiry
L6252100510 x 0,50 mm²0,21 mm9,1 mm51,3 kg/km120 kg/km Send inquiry
L6252120512 x 0,50 mm²0,21 mm9,3 mm61,5 kg/km136 kg/km Send inquiry
L6252140514 x 0,50 mm²0,21 mm9,8 mm71,8 kg/km154 kg/km Send inquiry
L6252160516 x 0,50 mm²0,21 mm10,5 mm82 kg/km177 kg/km Send inquiry
L6252180518 x 0,50 mm²0,21 mm11,1 mm92,3 kg/km196 kg/km Send inquiry
L6252250525 x 0,50 mm²0,21 mm13,5 mm128,2 kg/km270 kg/km Send inquiry
L6252300530 x 0,50 mm²0,21 mm13,9 mm153,8 kg/km310 kg/km Send inquiry
L6252340534 x 0,50 mm²0,21 mm15,2 mm174,3 kg/km355 kg/km Send inquiry
L6252400540 x 0,50 mm²0,21 mm16,5 mm205,1 kg/km421 kg/km Send inquiry
L6252410541 x 0,50 mm²0,21 mm16,5 mm210,2 kg/km428 kg/km Send inquiry
L6252610561 x 0,50 mm²0,21 mm19,3 mm312,8 kg/km608 kg/km Send inquiry
L625202072 x 0,75 mm²0,21 mm5,7 mm14,4 kg/km48 kg/km Send inquiry
L625203073 x 0,75 mm²0,21 mm6 mm21,6 kg/km57 kg/km Send inquiry
L625204074 x 0,75 mm²0,21 mm6,5 mm28,8 kg/km69 kg/km Send inquiry
L625205075 x 0,75 mm²0,21 mm7,1 mm36 kg/km81 kg/km Send inquiry
L625207077 x 0,75 mm²0,21 mm7,9 mm50,4 kg/km106 kg/km Send inquiry
L625208078 x 0,75 mm²0,21 mm9,3 mm57,6 kg/km132 kg/km Send inquiry
L625209079 x 0,75 mm²0,21 mm9,9 mm64,8 kg/km145 kg/km Send inquiry
L6252100710 x 0,75 mm²0,21 mm10,1 mm72 kg/km149 kg/km Send inquiry
L6252120712 x 0,75 mm²0,21 mm10,6 mm86,4 kg/km175 kg/km Send inquiry
L6252140714 x 0,75 mm²0,21 mm11,1 mm100,8 kg/km197 kg/km Send inquiry
L6252160716 x 0,75 mm²0,21 mm11,9 mm115,2 kg/km226 kg/km Send inquiry
L6252180718 x 0,75 mm²0,21 mm12,5 mm129,6 kg/km250 kg/km Send inquiry
L6252250725 x 0,75 mm²0,21 mm15,2 mm180 kg/km344 kg/km Send inquiry
L6252300730 x 0,75 mm²0,21 mm15,7 mm216 kg/km397 kg/km Send inquiry
L6252340734 x 0,75 mm²0,21 mm17,1 mm244,8 kg/km453 kg/km Send inquiry
L6252400740 x 0,75 mm²0,21 mm18,6 mm288 kg/km535 kg/km Send inquiry
L6252410741 x 0,75 mm²0,21 mm18,6 mm295,2 kg/km545 kg/km Send inquiry
L6252610761 x 0,75 mm²0,21 mm22 mm439,2 kg/km786 kg/km Send inquiry
L625202102 x 1,00 mm²0,21 mm5,9 mm19,2 kg/km54 kg/km Send inquiry
L625203103 x 1,00 mm²0,21 mm6,3 mm28,8 kg/km66 kg/km Send inquiry
L625204104 x 1,00 mm²0,21 mm6,8 mm38,4 kg/km80 kg/km Send inquiry
L625205105 x 1,00 mm²0,21 mm7,5 mm48 kg/km97 kg/km Send inquiry
L625207107 x 1,00 mm²0,21 mm8,2 mm67,2 kg/km124 kg/km Send inquiry
L625208108 x 1,00 mm²0,21 mm9,6 mm76,8 kg/km152 kg/km Send inquiry
L625209109 x 1,00 mm²0,21 mm10,5 mm86,4 kg/km173 kg/km Send inquiry
L6252101010 x 1,00 mm²0,21 mm10,7 mm96 kg/km179 kg/km Send inquiry
L6252121012 x 1,00 mm²0,21 mm11 mm115,2 kg/km204 kg/km Send inquiry
L6252141014 x 1,00 mm²0,21 mm11,5 mm134,4 kg/km231 kg/km Send inquiry
L6252181018 x 1,00 mm²0,21 mm13 mm172,8 kg/km294 kg/km Send inquiry
L6252251025 x 1,00 mm²0,21 mm15,8 mm240 kg/km404 kg/km Send inquiry
L6252301030 x 1,00 mm²0,21 mm16,6 mm288 kg/km477 kg/km Send inquiry
L6252341034 x 1,00 mm²0,21 mm18 mm326,4 kg/km543 kg/km Send inquiry
L6252401040 x 1,00 mm²0,21 mm19,5 mm384 kg/km639 kg/km Send inquiry
L6252411041 x 1,00 mm²0,21 mm19,5 mm393,6 kg/km675 kg/km Send inquiry
L6252611061 x 1,00 mm²0,21 mm22,9 mm585,6 kg/km931 kg/km Send inquiry
L625202152 x 1,50 mm²0,26 mm6,5 mm28,8 kg/km69 kg/km Send inquiry
L625203153 x 1,50 mm²0,26 mm6,9 mm43,2 kg/km85 kg/km Send inquiry
L625204154 x 1,50 mm²0,26 mm7,6 mm57,6 kg/km105 kg/km Send inquiry
L625205155 x 1,50 mm²0,26 mm8,3 mm72 kg/km129 kg/km Send inquiry
L625207157 x 1,50 mm²0,26 mm9,3 mm100,8 kg/km166 kg/km Send inquiry
L625208158 x 1,50 mm²0,26 mm10,9 mm115,2 kg/km202 kg/km Send inquiry
L625209159 x 1,50 mm²0,26 mm11,8 mm129,6 kg/km228 kg/km Send inquiry
L6252101510 x 1,50 mm²0,26 mm12,1 mm144 kg/km240 kg/km Send inquiry
L6252121512 x 1,50 mm²0,26 mm12,4 mm172,8 kg/km274 kg/km Send inquiry
L6252141514 x 1,50 mm²0,26 mm13 mm201,6 kg/km311 kg/km Send inquiry
L6252181518 x 1,50 mm²0,26 mm14,9 mm259,2 kg/km404 kg/km Send inquiry
L6252251525 x 1,50 mm²0,26 mm18,1 mm360 kg/km558 kg/km Send inquiry
L6252301530 x 1,50 mm²0,26 mm18,7 mm432 kg/km647 kg/km Send inquiry
L6252341534 x 1,50 mm²0,26 mm20,5 mm489,6 kg/km747 kg/km Send inquiry
L6252401540 x 1,50 mm²0,26 mm22,2 mm576 kg/km874 kg/km Send inquiry
L6252411541 x 1,50 mm²0,26 mm22,2 mm590,4 kg/km883 kg/km Send inquiry
L6252611561 x 1,50 mm²0,26 mm26 mm878,4 kg/km1281 kg/km Send inquiry
L625202252 x 2,50 mm²0,26 mm7,8 mm48 kg/km104 kg/km Send inquiry
L625203253 x 2,50 mm²0,26 mm8,3 mm72 kg/km128 kg/km Send inquiry
L625204254 x 2,50 mm²0,26 mm9,2 mm96 kg/km161 kg/km Send inquiry
L625205255 x 2,50 mm²0,26 mm10,1 mm120 kg/km195 kg/km Send inquiry
L625207257 x 2,50 mm²0,26 mm11,2 mm168 kg/km257 kg/km Send inquiry
L625208258 x 2,50 mm²0,26 mm13,4 mm192 kg/km316 kg/km Send inquiry
L625209259 x 2,50 mm²0,26 mm14,3 mm216 kg/km348 kg/km Send inquiry
L6252102510 x 2,50 mm²0,26 mm14,8 mm240 kg/km375 kg/km Send inquiry
L6252122512 x 2,50 mm²0,26 mm15,3 mm288 kg/km431 kg/km Send inquiry
L6252182518 x 2,50 mm²0,26 mm18,2 mm432 kg/km632 kg/km Send inquiry
L6252252525 x 2,50 mm²0,26 mm22,3 mm600 kg/km871 kg/km Send inquiry
L625203403 x 4,00 mm²0,31 mm9,7 mm115,2 kg/km188 kg/km Send inquiry
L625204404 x 4,00 mm²0,31 mm10,8 mm153,6 kg/km238 kg/km Send inquiry
L625205405 x 4,00 mm²0,31 mm12,1 mm192 kg/km295 kg/km Send inquiry
L625207407 x 4,00 mm²0,31 mm13,4 mm268,8 kg/km388 kg/km Send inquiry
L625203603 x 6,00 mm²0,31 mm11,4 mm172,8 kg/km271 kg/km Send inquiry
L625204604 x 6,00 mm²0,31 mm12,7 mm230,4 kg/km343 kg/km Send inquiry
L625205605 x 6,00 mm²0,31 mm14,2 mm288 kg/km425 kg/km Send inquiry
L625204614 x 10,00 mm²0,41 mm17,2 mm384 kg/km608 kg/km Send inquiry
L625205615 x 10,00 mm²0,41 mm19,3 mm480 kg/km756 kg/km Send inquiry
L625204624 x 16,00 mm²0,41 mm21,1 mm614,4 kg/km909 kg/km Send inquiry
L625204634 x 25,00 mm²0,41 mm26,5 mm960 kg/km1475 kg/km Send inquiry
L625204644 x 35,00 mm²0,41 mm30,2 mm1344 kg/km2004 kg/km Send inquiry
item no.
No. of cores x
cross section
Largest single
wire-ø
Outer-ø ± 5%
Copper figure
Cable weight ≈
L62520205
2 x 0,50 mm²
0,21 mm
5,2 mm
10,3 kg/km
40 kg/km
L62520305
3 x 0,50 mm²
0,21 mm
5,5 mm
15,4 kg/km
47 kg/km
L62520405
4 x 0,50 mm²
0,21 mm
5,9 mm
20,5 kg/km
56 kg/km
L62520505
5 x 0,50 mm²
0,21 mm
6,4 mm
25,6 kg/km
65 kg/km
L62520705
7 x 0,50 mm²
0,21 mm
7 mm
35,9 kg/km
83 kg/km
L62520805
8 x 0,50 mm²
0,21 mm
8,2 mm
41 kg/km
104 kg/km
L62520905
9 x 0,50 mm²
0,21 mm
8,9 mm
46,1 kg/km
118 kg/km
L62521005
10 x 0,50 mm²
0,21 mm
9,1 mm
51,3 kg/km
120 kg/km
L62521205
12 x 0,50 mm²
0,21 mm
9,3 mm
61,5 kg/km
136 kg/km
L62521405
14 x 0,50 mm²
0,21 mm
9,8 mm
71,8 kg/km
154 kg/km
L62521605
16 x 0,50 mm²
0,21 mm
10,5 mm
82 kg/km
177 kg/km
L62521805
18 x 0,50 mm²
0,21 mm
11,1 mm
92,3 kg/km
196 kg/km
L62522505
25 x 0,50 mm²
0,21 mm
13,5 mm
128,2 kg/km
270 kg/km
L62523005
30 x 0,50 mm²
0,21 mm
13,9 mm
153,8 kg/km
310 kg/km
L62523405
34 x 0,50 mm²
0,21 mm
15,2 mm
174,3 kg/km
355 kg/km
L62524005
40 x 0,50 mm²
0,21 mm
16,5 mm
205,1 kg/km
421 kg/km
L62524105
41 x 0,50 mm²
0,21 mm
16,5 mm
210,2 kg/km
428 kg/km
L62526105
61 x 0,50 mm²
0,21 mm
19,3 mm
312,8 kg/km
608 kg/km
L62520207
2 x 0,75 mm²
0,21 mm
5,7 mm
14,4 kg/km
48 kg/km
L62520307
3 x 0,75 mm²
0,21 mm
6 mm
21,6 kg/km
57 kg/km
L62520407
4 x 0,75 mm²
0,21 mm
6,5 mm
28,8 kg/km
69 kg/km
L62520507
5 x 0,75 mm²
0,21 mm
7,1 mm
36 kg/km
81 kg/km
L62520707
7 x 0,75 mm²
0,21 mm
7,9 mm
50,4 kg/km
106 kg/km
L62520807
8 x 0,75 mm²
0,21 mm
9,3 mm
57,6 kg/km
132 kg/km
L62520907
9 x 0,75 mm²
0,21 mm
9,9 mm
64,8 kg/km
145 kg/km
L62521007
10 x 0,75 mm²
0,21 mm
10,1 mm
72 kg/km
149 kg/km
L62521207
12 x 0,75 mm²
0,21 mm
10,6 mm
86,4 kg/km
175 kg/km
L62521407
14 x 0,75 mm²
0,21 mm
11,1 mm
100,8 kg/km
197 kg/km
L62521607
16 x 0,75 mm²
0,21 mm
11,9 mm
115,2 kg/km
226 kg/km
L62521807
18 x 0,75 mm²
0,21 mm
12,5 mm
129,6 kg/km
250 kg/km
L62522507
25 x 0,75 mm²
0,21 mm
15,2 mm
180 kg/km
344 kg/km
L62523007
30 x 0,75 mm²
0,21 mm
15,7 mm
216 kg/km
397 kg/km
L62523407
34 x 0,75 mm²
0,21 mm
17,1 mm
244,8 kg/km
453 kg/km
L62524007
40 x 0,75 mm²
0,21 mm
18,6 mm
288 kg/km
535 kg/km
L62524107
41 x 0,75 mm²
0,21 mm
18,6 mm
295,2 kg/km
545 kg/km
L62526107
61 x 0,75 mm²
0,21 mm
22 mm
439,2 kg/km
786 kg/km
L62520210
2 x 1,00 mm²
0,21 mm
5,9 mm
19,2 kg/km
54 kg/km
L62520310
3 x 1,00 mm²
0,21 mm
6,3 mm
28,8 kg/km
66 kg/km
L62520410
4 x 1,00 mm²
0,21 mm
6,8 mm
38,4 kg/km
80 kg/km
L62520510
5 x 1,00 mm²
0,21 mm
7,5 mm
48 kg/km
97 kg/km
L62520710
7 x 1,00 mm²
0,21 mm
8,2 mm
67,2 kg/km
124 kg/km
L62520810
8 x 1,00 mm²
0,21 mm
9,6 mm
76,8 kg/km
152 kg/km
L62520910
9 x 1,00 mm²
0,21 mm
10,5 mm
86,4 kg/km
173 kg/km
L62521010
10 x 1,00 mm²
0,21 mm
10,7 mm
96 kg/km
179 kg/km
L62521210
12 x 1,00 mm²
0,21 mm
11 mm
115,2 kg/km
204 kg/km
L62521410
14 x 1,00 mm²
0,21 mm
11,5 mm
134,4 kg/km
231 kg/km
L62521810
18 x 1,00 mm²
0,21 mm
13 mm
172,8 kg/km
294 kg/km
L62522510
25 x 1,00 mm²
0,21 mm
15,8 mm
240 kg/km
404 kg/km
L62523010
30 x 1,00 mm²
0,21 mm
16,6 mm
288 kg/km
477 kg/km
L62523410
34 x 1,00 mm²
0,21 mm
18 mm
326,4 kg/km
543 kg/km
L62524010
40 x 1,00 mm²
0,21 mm
19,5 mm
384 kg/km
639 kg/km
L62524110
41 x 1,00 mm²
0,21 mm
19,5 mm
393,6 kg/km
675 kg/km
L62526110
61 x 1,00 mm²
0,21 mm
22,9 mm
585,6 kg/km
931 kg/km
L62520215
2 x 1,50 mm²
0,26 mm
6,5 mm
28,8 kg/km
69 kg/km
L62520315
3 x 1,50 mm²
0,26 mm
6,9 mm
43,2 kg/km
85 kg/km
L62520415
4 x 1,50 mm²
0,26 mm
7,6 mm
57,6 kg/km
105 kg/km
L62520515
5 x 1,50 mm²
0,26 mm
8,3 mm
72 kg/km
129 kg/km
L62520715
7 x 1,50 mm²
0,26 mm
9,3 mm
100,8 kg/km
166 kg/km
L62520815
8 x 1,50 mm²
0,26 mm
10,9 mm
115,2 kg/km
202 kg/km
L62520915
9 x 1,50 mm²
0,26 mm
11,8 mm
129,6 kg/km
228 kg/km
L62521015
10 x 1,50 mm²
0,26 mm
12,1 mm
144 kg/km
240 kg/km
L62521215
12 x 1,50 mm²
0,26 mm
12,4 mm
172,8 kg/km
274 kg/km
L62521415
14 x 1,50 mm²
0,26 mm
13 mm
201,6 kg/km
311 kg/km
L62521815
18 x 1,50 mm²
0,26 mm
14,9 mm
259,2 kg/km
404 kg/km
L62522515
25 x 1,50 mm²
0,26 mm
18,1 mm
360 kg/km
558 kg/km
L62523015
30 x 1,50 mm²
0,26 mm
18,7 mm
432 kg/km
647 kg/km
L62523415
34 x 1,50 mm²
0,26 mm
20,5 mm
489,6 kg/km
747 kg/km
L62524015
40 x 1,50 mm²
0,26 mm
22,2 mm
576 kg/km
874 kg/km
L62524115
41 x 1,50 mm²
0,26 mm
22,2 mm
590,4 kg/km
883 kg/km
L62526115
61 x 1,50 mm²
0,26 mm
26 mm
878,4 kg/km
1281 kg/km
L62520225
2 x 2,50 mm²
0,26 mm
7,8 mm
48 kg/km
104 kg/km
L62520325
3 x 2,50 mm²
0,26 mm
8,3 mm
72 kg/km
128 kg/km
L62520425
4 x 2,50 mm²
0,26 mm
9,2 mm
96 kg/km
161 kg/km
L62520525
5 x 2,50 mm²
0,26 mm
10,1 mm
120 kg/km
195 kg/km
L62520725
7 x 2,50 mm²
0,26 mm
11,2 mm
168 kg/km
257 kg/km
L62520825
8 x 2,50 mm²
0,26 mm
13,4 mm
192 kg/km
316 kg/km
L62520925
9 x 2,50 mm²
0,26 mm
14,3 mm
216 kg/km
348 kg/km
L62521025
10 x 2,50 mm²
0,26 mm
14,8 mm
240 kg/km
375 kg/km
L62521225
12 x 2,50 mm²
0,26 mm
15,3 mm
288 kg/km
431 kg/km
L62521825
18 x 2,50 mm²
0,26 mm
18,2 mm
432 kg/km
632 kg/km
L62522525
25 x 2,50 mm²
0,26 mm
22,3 mm
600 kg/km
871 kg/km
L62520340
3 x 4,00 mm²
0,31 mm
9,7 mm
115,2 kg/km
188 kg/km
L62520440
4 x 4,00 mm²
0,31 mm
10,8 mm
153,6 kg/km
238 kg/km
L62520540
5 x 4,00 mm²
0,31 mm
12,1 mm
192 kg/km
295 kg/km
L62520740
7 x 4,00 mm²
0,31 mm
13,4 mm
268,8 kg/km
388 kg/km
L62520360
3 x 6,00 mm²
0,31 mm
11,4 mm
172,8 kg/km
271 kg/km
L62520460
4 x 6,00 mm²
0,31 mm
12,7 mm
230,4 kg/km
343 kg/km
L62520560
5 x 6,00 mm²
0,31 mm
14,2 mm
288 kg/km
425 kg/km
L62520461
4 x 10,00 mm²
0,41 mm
17,2 mm
384 kg/km
608 kg/km
L62520561
5 x 10,00 mm²
0,41 mm
19,3 mm
480 kg/km
756 kg/km
L62520462
4 x 16,00 mm²
0,41 mm
21,1 mm
614,4 kg/km
909 kg/km
L62520463
4 x 25,00 mm²
0,41 mm
26,5 mm
960 kg/km
1475 kg/km
L62520464
4 x 35,00 mm²
0,41 mm
30,2 mm
1344 kg/km
2004 kg/km

Other dimensions and colours are possible on request.

More products in Halogen-free cables

Highly flexible cables according to your special requirements

Family business for construction and production since 1947

Please send us your inquiry
+49 (0)2162 898-0
Monday to Thursday, 7.30–16.30
Friday, 07.30–15.00
