SABIX® IBS 610
Halogen-free Interbus-S cable

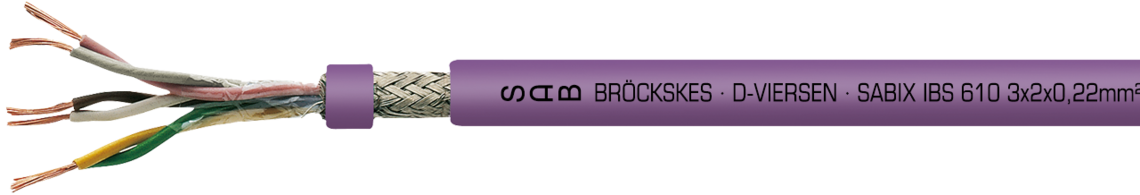

Marking for SABIX IBS 610 56103221: SAB BRÖCKSKES · D-VIERSEN · SABIX IBS 610 (Logo INTERBUS) 3 x 2 x 0,22 mm² CE
Application
The SABIX® IBS 610 is a halogen-free Interbus-S cable with a minimum bending radius of 7.5 x d and a peak operating voltage of max. 350 V. The application area of the oil-resistant bus cable is in manufacturing technology, process engineering, and transport and storage technology.
Outstanding features
- halogen-free
- very good oil resistance
- good weather resistance
Construction
| Conductor | bare copper strands with reference to VDE 0812 |
|---|---|
| Insulation | SABIX® |
| Colour code | with reference to DIN 47100 |
| Stranding | twisted to pairs and pairs together |
| Wrapping | PETP foil |
| Screen | tinned copper braiding |
| Sheath material | SABIX® |
| Sheath colour | redlilac (RAL 4001) |
bare copper strands with reference to VDE 0812
SABIX®
with reference to DIN 47100
twisted to pairs and pairs together
PETP foil
tinned copper braiding
SABIX®
redlilac (RAL 4001)
Technical data
| Peak operating voltage | max. 350 V |
|---|---|
| Testing voltage | core/core: 1000V core/screen: 1000V |
| Min. bending radius | 7,5 x d |
| Radiation resistance | 5 x 10^6 cJ/kg |
| Temperature range | fixed laying: -50/+90 °C flexible application: -40/+90 °C |
| Halogen-free | acc. to IEC 60754-1 + VDE 0482-754-1 |
| Corrosiveness of conflagration gases | in compliance with IEC 60754-2 + VDE 0482-754-2 - no development of corrosive conflagration gases |
| Oil resistance | very good acc. to EN 50363-4-1 |
| Characteristic impedance at 0.064 MHz | 120 Ω +/- 20% |
| Characteristic impedance at > 1 MHz | 100 Ω ± 15 Ω |
| Flexibility | very good |
| Application in cable tracks | not recommended |
| Weather resistance | good |
| Direct Burial | not suitable |
| Absence of harmful substances | acc. to RoHS directive of the European Union |
max. 350 V
core/core: 1000V
core/screen: 1000V
7,5 x d
5 x 10^6 cJ/kg
fixed laying: -50/+90 °C
flexible application: -40/+90 °C
acc. to IEC 60754-1 + VDE 0482-754-1
in compliance with IEC 60754-2 + VDE 0482-754-2 - no development of corrosive conflagration gases
very good acc. to EN 50363-4-1
120 Ω +/- 20%
100 Ω ± 15 Ω
very good
not recommended
good
not suitable
acc. to RoHS directive of the European Union
Dimensions
| item no. | Type | Dimension | Outer-ø ± 10% | Copper figure | Cable weight ≈ | |
|---|---|---|---|---|---|---|
| L56103221 | Remote bus cable | 3 x 2 x 0,22 mm² | 7 mm | 31,3 kg/km | 53 kg/km | Send inquiry |
| L56106221 | Installation remote bus cable | 3 x 2 x 0,22 mm² + 3 x 1,00 mm² | 7,9 mm | 62 kg/km | 84 kg/km | Send inquiry |
Other dimensions and colours are possible on request.
