DR CB 689 P Highflex
reeling CAN-Bus cable

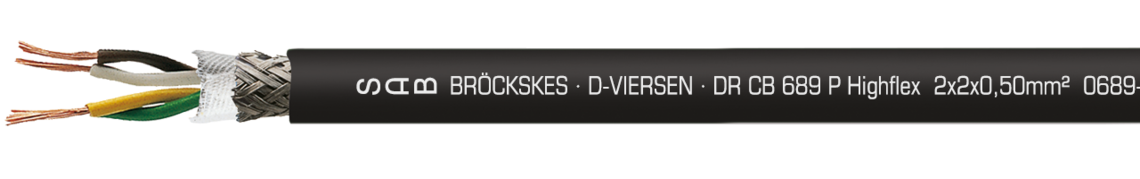

Marking for DR CB 689 P Highflex: SAB BRÖCKSKES · D-VIERSEN · DR CB 689 P Highflex 2 x 2 x 0,50 mm² CE
Application
Outstanding features
- halogen-free
- very good oil resistance
- reeling cable
Additional information
also possible as harnessed cable with M12 or RJ 45 plug
Construction
| Dimension | 2 x 2 x 0,50 mm² |
|---|---|
| Conductor | bare copper strands |
| Insulation | PE |
| Colour code | with reference to DIN 47100 |
| Stranding | twisted to pairs and pairs together |
| Wrapping | non-woven tape |
| Screen | tinned copper braiding |
| Sheath material | PUR / supporting braid / PUR |
| Sheath colour | black (similar RAL 9005) |
2 x 2 x 0,50 mm²
bare copper strands
PE
with reference to DIN 47100
twisted to pairs and pairs together
non-woven tape
tinned copper braiding
PUR / supporting braid / PUR
black (similar RAL 9005)
Technical data
| Peak operating voltage | max. 350 V |
|---|---|
| Testing voltage | core/core 1500 V core/screen 1200 V |
| Min. bending radius | for laying and installation (fixed laying): 5 x d for repeated winding action (flexible): 7,5 x d guided on pulleys (flexible): 10 x d |
| Temperature range | fixed laying: -40/+90°C flexible application: -40/+90°C |
| Halogen-free | acc. to IEC 60754-1 + VDE 0482-754-1 |
| Oil resistance | TMPU acc. to EN 50363-10-2 + VDE 0207-363-10-2 |
| Characteristic impedance | 120Ω (95 - 140Ω) |
| Absence of harmful substances | acc. to RoHS directive of the European Union |
max. 350 V
core/core 1500 V
core/screen 1200 V
for laying and installation (fixed laying): 5 x d
for repeated winding action (flexible): 7,5 x d
guided on pulleys (flexible): 10 x d
fixed laying: -40/+90°C
flexible application: -40/+90°C
acc. to IEC 60754-1 + VDE 0482-754-1
TMPU acc. to EN 50363-10-2 + VDE 0207-363-10-2
120Ω (95 - 140Ω)
acc. to RoHS directive of the European Union
Dimensions
| item no. | Dimension | Approx. outer-ø | Copper figure | Cable weight ≈ |
Ohmic resistance at 20°C acc. to VDE 0812 max. Ω/km |
Tensile strength max. | |
|---|---|---|---|---|---|---|---|
| L06899005 | 2 x 2 x 0,50 mm² | 12,8 mm | 48,8 mm | 175 kg/km | 39 Ω/km | 200 N | Send inquiry |
at 20°C acc. to VDE 0812
max. Ω/km
max.
Other dimensions and colours are possible on request.
