CATLine CAT 7A R flex
halogen-free, continuously flexible CAT 7A Industrial Ethernet Cables for Railway Technology

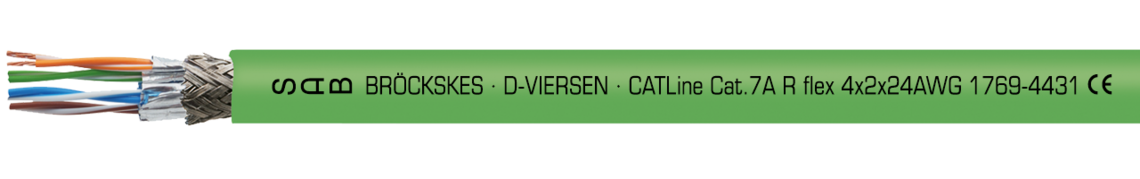

Marking for CATLine CAT 7 A R flex 17694431: SAB BRÖCKSKES · D-VIERSEN · CATLINE Cat.7 A R flex 4x2x24AWG 1769-4431 CE
Application
This flexible CAT 7A industrial ethernet cable is especially for use in rail vehicles and protected installation in the interior for door control or in protecting tubes for outdoor laying at the bogie. The category 7A cable is appropriate for light and medium mechanical stress.
Outstanding features
- continuously flexible
- halogen-free
- no flame propagation
- flame retardant and self-extinguishing
- good oil and fuel resistance
- good ozone, UV and weather resistance
- good acid and alkalines resistance
- good against aggressive chemicals
- suitable for outdoor installation
- fulfils fire protection requirements R15 (EL1A) and R16 (EL1B) acc. to EN 45545-2 for hazard levels HL1-3
- flame retardant acc. to UN/ECE R118
Additional information

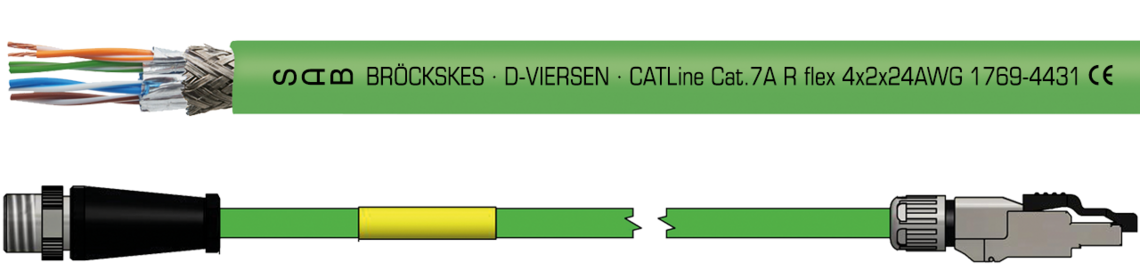

also possible as harnessed cable with M12 or RJ 45 plug
Construction
| Dimension | 4 x 2 x 24 AWG / 4 x 2 x 26 AWG |
|---|---|
| Conductor | bare copper strands, fine wires |
| Insulation | special SABIX® |
| Colour code | white-blue/blue, white-orange/orange, white-green/green, white-brown/brown |
| Stranding | twisted to pairs with alu foil, pairs together |
| Screen | tinned copper braiding |
| Sheath material | special SABIX® |
| Sheath colour | green (similar RAL 6018) |
4 x 2 x 24 AWG / 4 x 2 x 26 AWG
bare copper strands, fine wires
special SABIX®
white-blue/blue, white-orange/orange,
white-green/green, white-brown/brown
twisted to pairs with alu foil,
pairs together
tinned copper braiding
special SABIX®
green (similar RAL 6018)
Technical data
| Peak operating voltage | max. 90 V |
|---|---|
| Testing voltage | core/core 750 V core/screen 750 V |
| Min. bending radius | fixed laying: 5 x d flexible application: 12 x d continuously flexible: 15 x d |
| Temperature range VDE | fixed laying: -50°C / + 90°C flexible application: -40°C / + 90°C |
| Halogen-free | acc. to EN 50306-1 + EN 50264-1. Development of HCl is ≤ 0,5% acc. to IEC 60754-1. pH-value is ≥ 4,3 acc. to IEC 60754-2. Conductivity is ≤ 10,0 µS/mm acc. to IEC 60754-2. Fluoric content ≤ 0,1% acc. to IEC 60684-2 |
| Flame propagation | no flame propagation |
| Flame retardant | acc. to ISO 6722 (UN/ECE R118) |
| Fire performance | flame retardant and self-extinguishing acc. to IEC 60332-1-2 + VDE 0482-332-1-2 |
| Smoke density | acc. to IEC 61034 + VDE 0482-1034 |
| Toxicity | acc. to EN 50305 + VDE 0260-305 |
| Oil and fuel resistance | acc. to EN 50264-1 + VDE 0260-264-1 |
| Characteristic impedance | 100Ω ± 10Ω with reference to EN 50288-9-2 / CAT 7A |
| Flexibility | very good |
| Application | suitable for EtherCAT and EtherNET/IP applications |
| Absence of harmful substances | acc. to RoHS directive of the European Union |
max. 90 V
core/core 750 V
core/screen 750 V
fixed laying: 5 x d
flexible application: 12 x d
continuously flexible: 15 x d
fixed laying: -50°C / + 90°C
flexible application: -40°C / + 90°C
acc. to EN 50306-1 + EN 50264-1.
Development of HCl is ≤ 0,5% acc. to IEC 60754-1.
pH-value is ≥ 4,3 acc. to IEC 60754-2.
Conductivity is ≤ 10,0 µS/mm acc. to IEC 60754-2.
Fluoric content ≤ 0,1% acc. to IEC 60684-2
no flame propagation
acc. to IEC 60332-3-24 + VDE 0482-332-3-24
resp. IEC 60332-3-25 + VDE 0482-332-3-25 and EN 50305 + VDE 0260-305 section 9.1.2.
acc. to ISO 6722 (UN/ECE R118)
flame retardant and self-extinguishing acc. to IEC 60332-1-2 + VDE 0482-332-1-2
acc. to IEC 61034 + VDE 0482-1034
acc. to EN 50305 + VDE 0260-305
acc. to EN 50264-1 + VDE 0260-264-1
100Ω ± 10Ω with reference to EN 50288-9-2 / CAT 7A
very good
suitable for EtherCAT and EtherNET/IP applications
acc. to RoHS directive of the European Union
Dimensions
| item no. | Dimension | max. core-ø | Outer-ø | Copper figure | Cable weight ≈ | |
|---|---|---|---|---|---|---|
| L17694431 | 4 x 2 x 24 AWG | 1,71 mm | 9,7 mm | 46,6 kg/km | 109 kg/km | Send inquiry |
| L17694631 | 4 x 2 x 26 AWG | 1,45 mm | 8,6 mm | 35,8 kg/km | 92 kg/km | Send inquiry |
Other dimensions and colours are possible on request.
