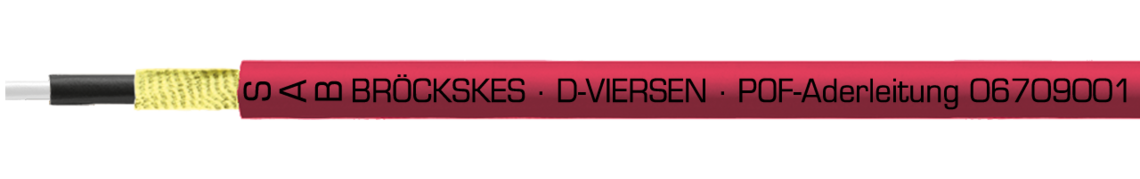

Optical waveguide
1 x POF
Optical waveguide
Application
Outstanding features
- insensitive against electromagnetic interferences
- flexible
- high abrasion resistance
- good reversed bending strength
- POF: polymer optical fibre
Construction
| Optical waveguide | POF |
|---|---|
| Colour code | black |
| Strain relief | aramid wrapping |
| Sheath material | PUR, TMPU acc. to EN 50363-10-2 + VDE 0207-363-10-2 with mat surface |
| Sheath colour | blazing red (RAL 3000) |
POF
black
aramid wrapping
PUR, TMPU acc. to EN 50363-10-2 + VDE 0207-363-10-2 with mat surface
blazing red (RAL 3000)
Technical data
| Bending radius | short time use: > 30 mm (with installation, not operating) continuously: > 80 mm continuously in cable track: > 100 mm |
|---|---|
| Strain relief | max. 1680 N |
| Temperature range | storage: -20/+70 °C operation: 0/+70 °C |
| Specific impedance | 0,2 dB/m at 650 n/m |
| Reversed bending strength | > 100.000 cycles ± 90°; r=100 mm; drawing force 2 N |
| Bending attenuation | additionally 0,2 dB/m for 10 windings with r=50 mm |
| Absence of harmful substances | acc. to RoHS directive of the European Union |
short time use: > 30 mm (with installation, not operating)
continuously: > 80 mm
continuously in cable track: > 100 mm
max. 1680 N
storage: -20/+70 °C
operation: 0/+70 °C
0,2 dB/m at 650 n/m
> 100.000 cycles ± 90°;
r=100 mm; drawing force 2 N
additionally 0,2 dB/m for 10 windings with r=50 mm
acc. to RoHS directive of the European Union
Dimensions
| item no. | Outer-ø | Cable weight ≈ | Outer-ø ± 5% | |
|---|---|---|---|---|
| L06709001 | 6,00 ± 0,20 mm | 30,0 kg/km | 6,00 ± 0,20 | Send inquiry |
Other dimensions and colours are possible on request.
