TR 600 red

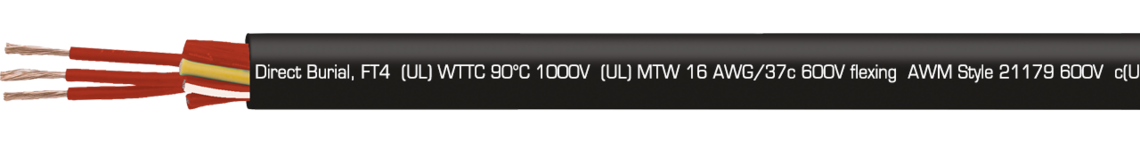

Type TC, MTW and WTTC, UV and oil resistant, flexible Tray Cable and Machine-Tool Cable with red cores

Marking for TR 600 red 02981637:
SAB BRÖCKSKES · D-VIERSEN · TR 600 red 16 AWG/12c 02981612 TFFN (UL) Type TC-ER 90°C 600V, Oil Resistant I, Sunlight Resistant,
Direct Burial, FT4 (UL) WTTC 90°C 1000V (UL) MTW 16 AWG/37c 600V flexing AWM Style 21179 600V c(UL) Type CIC 90°C dry 600V FT1 FT2 FT4 CE

Marking for TR 600 red 02981637: SAB BRÖCKSKES · D-VIERSEN · TR 600 red 16 AWG/12c 02981612 TFFN (UL) Type TC-ER 90°C 600V, Oil Resistant I, Sunlight Resistant, Direct Burial, FT4 (UL) WTTC 90°C 1000V (UL) MTW 16 AWG/37c 600V flexing AWM Style 21179 600V c(UL) Type CIC 90°C dry 600V FT1 FT2 FT4 CE

Application

The UV and sunlight resistant TR 600 red is an oil resistant and flexible Tray Cable and Machine-Tool Cable with red cores and NFPA 79 for industrial machinery. Recommended applications are machine tools, control systems assembly lines, CNC machining, grinding machines, bottling equipment, data processing equipment, and connection between control panels and machines.

Outstanding features

  • Flexible cable for cable tray use
  • Oil resistance
  • Sunlight resistance
  • NFPA 79 for industrial machinery
  • WTTC approval
  • WTTC: UL Subject 2277
  • TC: UL Standard 1277
  • (UL)/(cUL) listed

Construction

Conductor

bare copper strands with reference to IEC 60228, VDE 0295 class 5 + UL standard 758 table 5.1 + UL 1581 table 20.1

Insulation

special formulated PVC/Nylon

Colour code

red cores with numbers; white-blue ground wire and green-yellow earth wire from 3 cores

Stranding

in layers

Sheath material

special sunlight and oil resistant PVC

Sheath colour

black (RAL 9005)

Conductor

bare copper strands with reference to IEC 60228, VDE 0295 class 5 + UL standard 758 table 5.1 + UL 1581 table 20.1

Insulation

special formulated PVC/Nylon

Colour code

red cores with numbers; white-blue ground wire and green-yellow earth wire from 3 cores

Stranding

in layers

Sheath material

special sunlight and oil resistant PVC

Sheath colour

black (RAL 9005)

Technical data

Voltage

UL-AWM/(UL)/c(UL): 600 V

(UL) WTTC: 1000 V

Testing voltage

AWG 18-10 = 6000 V

AWG 8-2 = 7500 V

Min. bending radius

fixed laying:

< 12 mm = 3 x d

> 12 mm = 4 x d



flexible application:

< 12 mm = 5 x d

> 12 mm = 6 x d

Radiation resistance

8 x 10^7 cJ/kg

Temperature

UL-AWM: up to +105°C

UL-AWM fixed laying: -25°C

(UL)/c(UL): up to +90°C

Burning characteristics

(UL) FT4 and c(UL) FT1, FT2, FT4

Oil resistance I

yes

Sunlight resistance

yes

Exposed Runs

yes

Direct Burial

yes

Machinery Area

yes

Absence of harmful substances

acc. to RoHS directive of the European Union

Voltage

UL-AWM/(UL)/c(UL): 600 V

(UL) WTTC: 1000 V

Testing voltage

AWG 18-10 = 6000 V

AWG 8-2 = 7500 V

Min. bending radius

fixed laying:

< 12 mm = 3 x d

> 12 mm = 4 x d



flexible application:

< 12 mm = 5 x d

> 12 mm = 6 x d

Radiation resistance

8 x 10^7 cJ/kg

Temperature

UL-AWM: up to +105°C

UL-AWM fixed laying: -25°C

(UL)/c(UL): up to +90°C

Burning characteristics

(UL) FT4 and c(UL) FT1, FT2, FT4

Oil resistance I

yes

Sunlight resistance

yes

Exposed Runs

yes

Direct Burial

yes

Machinery Area

yes

Absence of harmful substances

acc. to RoHS directive of the European Union

Dimensions

item no. No. of cores x
cross section
Largest single
wire-ø
Copper figure Cable weight ≈ Outer-ø ± 5%
L029818033 x 18 AWG0,21 mm28,8 kg/km83 kg/km7,7 mm Send inquiry
L029818044 x 18 AWG0,21 mm38,4 kg/km99 kg/km8,3 mm Send inquiry
L029818055 x 18 AWG0,21 mm48 kg/km118 kg/km9 mm Send inquiry
L029818077 x 18 AWG0,21 mm67,2 kg/km146 kg/km9,8 mm Send inquiry
L029818099 x 18 AWG0,21 mm86,4 kg/km194 kg/km11,9 mm Send inquiry
L0298181212 x 18 AWG0,21 mm115,2 kg/km227 kg/km12,5 mm Send inquiry
L0298181616 x 18 AWG0,21 mm153,6 kg/km310 kg/km14,6 mm Send inquiry
L0298181818 x 18 AWG0,21 mm172,8 kg/km343 kg/km15,3 mm Send inquiry
L0298181919 x 18 AWG0,21 mm182,4 kg/km352 kg/km15,3 mm Send inquiry
L0298182525 x 18 AWG0,21 mm240 kg/km450 kg/km18,1 mm Send inquiry
L0298182727 x 18 AWG0,21 mm259,2 kg/km476 kg/km18,1 mm Send inquiry
L0298183737 x 18 AWG0,21 mm355,2 kg/km620 kg/km20,1 mm Send inquiry
L0298185050 x 18 AWG0,21 mm480 kg/km868 kg/km24,6 mm Send inquiry
L029816033 x 16 AWG0,26 mm43,2 kg/km103 kg/km8,3 mm Send inquiry
L029816044 x 16 AWG0,26 mm57,6 kg/km123 kg/km9 mm Send inquiry
L029816055 x 16 AWG0,26 mm72 kg/km148 kg/km9,8 mm Send inquiry
L029816077 x 16 AWG0,26 mm100,8 kg/km186 kg/km10,7 mm Send inquiry
L029816088 x 16 AWG0,26 mm115,2 Kg/km222 kg/km12,3 mm Send inquiry
L029816099 x 16 AWG0,26 mm129,6 kg/km248 kg/km13,1 mm Send inquiry
L0298161212 x 16 AWG0,26 mm172,8 kg/km313 kg/km14,5 mm Send inquiry
L0298161616 x 16 AWG0,26 mm230,4 kg/km397 kg/km16 mm Send inquiry
L0298161818 x 16 AWG0,26 mm259,2 kg/km439 kg/km16,8 mm Send inquiry
L0298161919 x 16 AWG0,26 mm273,6 kg/km453 kg/km16,8 mm Send inquiry
L0298162525 x 16 AWG0,26 mm360 kg/km581 kg/km19,9 mm Send inquiry
L0298162727 x 16 AWG0,26 mm388,8 kg/km616 kg/km19,9 mm Send inquiry
L0298163737 x 16 AWG0,26 mm532,8 kg/km862 kg/km23,3 mm Send inquiry
L0298164141 x 16 AWG0,26 mm590,4 kg/km957 kg/km25 mm Send inquiry
item no.
No. of cores x
cross section
Largest single
wire-ø
Copper figure
Cable weight ≈
Outer-ø ± 5%
L02981803
3 x 18 AWG
0,21 mm
28,8 kg/km
83 kg/km
7,7 mm
L02981804
4 x 18 AWG
0,21 mm
38,4 kg/km
99 kg/km
8,3 mm
L02981805
5 x 18 AWG
0,21 mm
48 kg/km
118 kg/km
9 mm
L02981807
7 x 18 AWG
0,21 mm
67,2 kg/km
146 kg/km
9,8 mm
L02981809
9 x 18 AWG
0,21 mm
86,4 kg/km
194 kg/km
11,9 mm
L02981812
12 x 18 AWG
0,21 mm
115,2 kg/km
227 kg/km
12,5 mm
L02981816
16 x 18 AWG
0,21 mm
153,6 kg/km
310 kg/km
14,6 mm
L02981818
18 x 18 AWG
0,21 mm
172,8 kg/km
343 kg/km
15,3 mm
L02981819
19 x 18 AWG
0,21 mm
182,4 kg/km
352 kg/km
15,3 mm
L02981825
25 x 18 AWG
0,21 mm
240 kg/km
450 kg/km
18,1 mm
L02981827
27 x 18 AWG
0,21 mm
259,2 kg/km
476 kg/km
18,1 mm
L02981837
37 x 18 AWG
0,21 mm
355,2 kg/km
620 kg/km
20,1 mm
L02981850
50 x 18 AWG
0,21 mm
480 kg/km
868 kg/km
24,6 mm
L02981603
3 x 16 AWG
0,26 mm
43,2 kg/km
103 kg/km
8,3 mm
L02981604
4 x 16 AWG
0,26 mm
57,6 kg/km
123 kg/km
9 mm
L02981605
5 x 16 AWG
0,26 mm
72 kg/km
148 kg/km
9,8 mm
L02981607
7 x 16 AWG
0,26 mm
100,8 kg/km
186 kg/km
10,7 mm
L02981608
8 x 16 AWG
0,26 mm
115,2 Kg/km
222 kg/km
12,3 mm
L02981609
9 x 16 AWG
0,26 mm
129,6 kg/km
248 kg/km
13,1 mm
L02981612
12 x 16 AWG
0,26 mm
172,8 kg/km
313 kg/km
14,5 mm
L02981616
16 x 16 AWG
0,26 mm
230,4 kg/km
397 kg/km
16 mm
L02981618
18 x 16 AWG
0,26 mm
259,2 kg/km
439 kg/km
16,8 mm
L02981619
19 x 16 AWG
0,26 mm
273,6 kg/km
453 kg/km
16,8 mm
L02981625
25 x 16 AWG
0,26 mm
360 kg/km
581 kg/km
19,9 mm
L02981627
27 x 16 AWG
0,26 mm
388,8 kg/km
616 kg/km
19,9 mm
L02981637
37 x 16 AWG
0,26 mm
532,8 kg/km
862 kg/km
23,3 mm
L02981641
41 x 16 AWG
0,26 mm
590,4 kg/km
957 kg/km
25 mm

Other dimensions and colours are possible on request.
