TR 600 HD

Type TC-ER, Heavy Duty Tray Cable

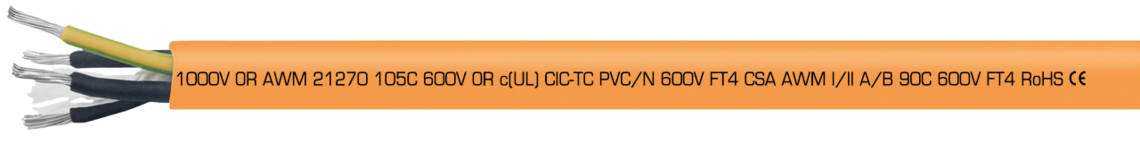

Marking for TR 600 HD 32301604:
SAB NORTH AMERICA TR 600 HD 16 AWG 4c P/N 32301604 (UL) TC-ER 90C DRY 75C WET 600V OIL RES I/II SUN RES DIR BUR OR WTTC
1000V OR AWM 21270 105C 600V OR c(UL) CIC-TC PVC/N 600V FT4 CSA AWM I/II A/B 90C 600V FT4 RoHS CE

Marking for TR 600 HD 32301604: SAB NORTH AMERICA TR 600 HD 16 AWG 4c P/N 32301604 (UL) TC-ER 90C DRY 75C WET 600V OIL RES I/II SUN RES DIR BUR OR WTTC 1000V OR AWM 21270 105C 600V OR c(UL) CIC-TC PVC/N 600V FT4 CSA AWM I/II A/B 90C 600V FT4 RoHS CE

Application

The heavy duty tray cable TR 600 HD Type WTTC is a control and instrumentation cable with extreme oil resistance. In hazardous (classified) areas it is class 1, Division 2 per NEC Article 501.4 (B), UL Type TC is in accordance with UL standard 1277 and NEC Article 336.

Recommended applications for this cable are machine tools, control systems, assembly lines, CNC machining, grinding machines, bottling equipment, data processing equipment, and connections between control panels and machines.

Outstanding features

  • Heavy Duty Tray Cable and Control and Instrumentation Cable
  • UL-AWM recognition for +105°C
  • Extreme oil resistant
  • WTTC approval
  • WTTC: UL Subject 2277
  • TC: UL Standard 1277
  • (UL)/(cUL) listed
  • CSA approval
  • NFPA 79 2012
  • c(UL) CIC-TC FT4

Additional information

Possible on request!

  • with grey or black outer sheath
  • as well as blue or red cores

Construction

Conductor

bare copper strands class K

Insulation

special formulated PVC/Nylon

Colour code

black cores with consecutive white numbers* and green-yellow earth wire

*alpha-numeric alternate and inverted, i.e. 1-ONE

Stranding

in layers

Sheath material

TPE

Sheath color

orange (RAL 2003)

also available in grey or black

Conductor

bare copper strands class K

Insulation

special formulated PVC/Nylon

Colour code

black cores with consecutive white numbers* and green-yellow earth wire

*alpha-numeric alternate and inverted, i.e. 1-ONE

Stranding

in layers

Sheath material

TPE

Sheath color

orange (RAL 2003)

also available in grey or black

Technical data

Voltage

UL-AWM/(UL)/c(UL): 600 V

(UL) WTTC: 1000 V

Testing voltage

2000 V

Min. bending radius

7,5 x d

Temperature

UL-AWM: up to +105°C

UL-AWM fixed laying: -40°C

(UL)/c(UL)/CSA-AWM: up to +90 °C

Cold Bend Test

-40°C

Burning characteristics

(UL) FT4 + c(UL) FT1, FT2, FT4

Oil resistance I & II

yes

Exposed Runs

yes

Absence of harmful substances

acc. to RoHS directive of the European Union

Voltage

UL-AWM/(UL)/c(UL): 600 V

(UL) WTTC: 1000 V

Testing voltage

2000 V

Min. bending radius

7,5 x d

Temperature

UL-AWM: up to +105°C

UL-AWM fixed laying: -40°C

(UL)/c(UL)/CSA-AWM: up to +90 °C

Cold Bend Test

-40°C

Burning characteristics

(UL) FT4 + c(UL) FT1, FT2, FT4

Oil resistance I & II

yes

Exposed Runs

yes

Absence of harmful substances

acc. to RoHS directive of the European Union

Dimensions

item no. Dimension Outer-ø ± 5% Cable weight ≈
L3230180318 AWG/3c7,6 mm82 kg/km Send inquiry
L3230180418 AWG/4c8,2 mm99 kg/km Send inquiry
L3230180518 AWG/5c8,9 mm118 kg/km Send inquiry
L3230180718 AWG/7c9,6 mm149 kg/km Send inquiry
L3230181218 AWG/12c12,2 mm234 kg/km Send inquiry
L3230181818 AWG/18c15,1 mm363 kg/km Send inquiry
L3230182518 AWG/25c17,4 mm474 kg/km Send inquiry
L3230160316 AWG/3c8,2 mm104 kg/km Send inquiry
L3230160416 AWG/4c8,8 mm120 kg/km Send inquiry
L3230160516 AWG/5c9,6 mm143 kg/km Send inquiry
L3230160716 AWG/7c10,5 mm247 kg/km Send inquiry
L3230161216 AWG/12c13,4 mm292 kg/km Send inquiry
L3230161816 AWG/18c16,4 mm446 kg/km Send inquiry
L3230162516 AWG/25c18,9 mm588 kg/km Send inquiry
L3230140314 AWG/3c9,2 mm131 kg/km Send inquiry
L3230140414 AWG/4c10,1 mm137 kg/km Send inquiry
L3230140714 AWG/7c12 mm251 kg/km Send inquiry
L3230120412 AWG/4c11,2 mm223 kg/km Send inquiry
L3230120512 AWG/5c12,2 mm271 kg/km Send inquiry
L3230100410 AWG/4c15 mm369 kg/km Send inquiry
L323008048 AWG/4c19,2 mm573 kg/km Send inquiry
L323006046 AWG/4c22,3 mm863 kg/km Send inquiry
L323004044 AWG/4c26,9 mm1257 kg/km Send inquiry
L323002042 AWG/4c31,4 mm1902 kg/km Send inquiry
L323001041 AWG/4c35,6 mm2388 kg/km Send inquiry
item no.
Dimension
Outer-ø ± 5%
Cable weight ≈
L32301803
18 AWG/3c
7,6 mm
82 kg/km
L32301804
18 AWG/4c
8,2 mm
99 kg/km
L32301805
18 AWG/5c
8,9 mm
118 kg/km
L32301807
18 AWG/7c
9,6 mm
149 kg/km
L32301812
18 AWG/12c
12,2 mm
234 kg/km
L32301818
18 AWG/18c
15,1 mm
363 kg/km
L32301825
18 AWG/25c
17,4 mm
474 kg/km
L32301603
16 AWG/3c
8,2 mm
104 kg/km
L32301604
16 AWG/4c
8,8 mm
120 kg/km
L32301605
16 AWG/5c
9,6 mm
143 kg/km
L32301607
16 AWG/7c
10,5 mm
247 kg/km
L32301612
16 AWG/12c
13,4 mm
292 kg/km
L32301618
16 AWG/18c
16,4 mm
446 kg/km
L32301625
16 AWG/25c
18,9 mm
588 kg/km
L32301403
14 AWG/3c
9,2 mm
131 kg/km
L32301404
14 AWG/4c
10,1 mm
137 kg/km
L32301407
14 AWG/7c
12 mm
251 kg/km
L32301204
12 AWG/4c
11,2 mm
223 kg/km
L32301205
12 AWG/5c
12,2 mm
271 kg/km
L32301004
10 AWG/4c
15 mm
369 kg/km
L32300804
8 AWG/4c
19,2 mm
573 kg/km
L32300604
6 AWG/4c
22,3 mm
863 kg/km
L32300404
4 AWG/4c
26,9 mm
1257 kg/km
L32300204
2 AWG/4c
31,4 mm
1902 kg/km
L32300104
1 AWG/4c
35,6 mm
2388 kg/km

Other dimensions and colours are possible on request.
