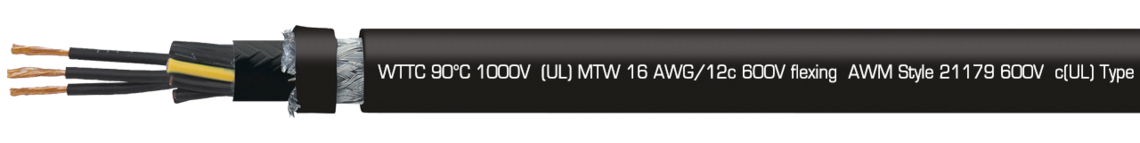

TR 600 CY Lean

Type TC, MTW and WTTC, UV and oil resistant, flexible Tray Cable and Machine-Tool Cable with black cores, overall copper screen and reduced outer diameter

Marking example: SAB BRÖCKSKES · D-VIERSEN · TR 600 CY Lean 16 AWG/12c 32241612 TFFN (UL) Type TC-ER 90°C 600V, Oil Resistant I, Sunlight Resistant, Direct Burial, FT4 (UL) WTTC 90°C 1000V (UL) MTW 16 AWG/12c 600V flexing AWM Style 21179 600V c(UL) Type CIC SHIELDED 90°C dry 600V FT1 FT2 FT4 CE

Download data sheet for TR 600 CY Lean

Questions about our products?

Application

The NFPA 79 certified and sunlight resistant TR 600 CY Lean is a screened Tray Cable and Machine-Tool Cable for industrial machinery. Its applications are in machine tools, control systems assembly lines, CNC machining, grinding machines, bottling equipment, data processing equipment, and connection between control panels and machines.

Outstanding features

Flexible cable for cable tray use
Oil resistance
Sunlight resistance
NFPA 79 for industrial machinery
WTTC approval
WTTC: UL Subject 2277
TC: UL Standard 1277
UL recognized, (UL)/c(UL) listed

Construction

Conductor	bare copper strands with reference to IEC 60228, VDE 0295 class 5 + UL standard 758 table 5.1 + UL 1581 table 20.1
Insulation	special formulated PVC/Nylon
Colour code	black cores with numbers, green-yellow earth wire from 3 cores
Stranding	in layers
Wrapping	PETP foil
Screen	tinned copper braiding
Sheath material	special sunlight and oil resistant PVC
Sheath colour	black (RAL 9005)

Conductor

bare copper strands with reference to IEC 60228, VDE 0295 class 5 + UL standard 758 table 5.1 + UL 1581 table 20.1

Insulation

special formulated PVC/Nylon

Colour code

black cores with numbers, green-yellow earth wire from 3 cores

Stranding

in layers

Wrapping

PETP foil

Screen

tinned copper braiding

Sheath material

special sunlight and oil resistant PVC

Sheath colour

black (RAL 9005)

Technical data

Voltage	UL-AWM/(UL)/c(UL): 600 V (UL) WTTC: 1000 V
Testing voltage	AWG 18-10 = 6000 V AWG 8-2 = 7500 V
Min. bending radius	fixed laying: 5 x d flexible application: 10 x d
Radiation resistance	8 x 10^7 cJ/kg
Temperature	UL-AWM: up to +105°C UL-AWM fixed laying: -25°C (UL)/c(UL): up to +90°C
Burning characteristics	(UL) FT4 and c(UL) FT1, FT2, FT4
Oil resistance I	yes
Sunlight resistance	yes
Exposed Runs	yes
Direct Burial	yes
Machinery Area	yes
Absence of harmful substances	acc. to RoHS directive of the European Union

Voltage

UL-AWM/(UL)/c(UL): 600 V

(UL) WTTC: 1000 V

Testing voltage

AWG 18-10 = 6000 V

AWG 8-2 = 7500 V

Min. bending radius

fixed laying: 5 x d

flexible application: 10 x d

Radiation resistance

8 x 10^7 cJ/kg

Temperature

UL-AWM: up to +105°C

UL-AWM fixed laying: -25°C

(UL)/c(UL): up to +90°C

Burning characteristics

(UL) FT4 and c(UL) FT1, FT2, FT4

Oil resistance I

yes

Sunlight resistance

yes

Exposed Runs

yes

Direct Burial

yes

Machinery Area

yes

Absence of harmful substances

acc. to RoHS directive of the European Union

Dimensions

item no.	No. of cores x cross section	Largest single wire-ø	Outer-ø ± 5%	Copper figure	Cable weight ≈
L32241603	3 x 16 AWG	0,26 mm	8,8 mm	66,9 kg/km	109 kg/km	Send inquiry
L32241604	4 x 16 AWG	0,26 mm	9,5 mm	83,8 kg/km	132 kg/km	Send inquiry
L32241605	5 x 16 AWG	0,26 mm	10,3 mm	101,1 kg/km	158 kg/km	Send inquiry
L32241607	7 x 16 AWG	0,26 mm	11,4 mm	148,6 kg/km	209 kg/km	Send inquiry
L32241612	12 x 16 AWG	0,26 mm	15,4 mm	269,7 kg/km	369 kg/km	Send inquiry
L32241618	18 x 16 AWG	0,26 mm	17,7 mm	369,6 kg/km	502 kg/km	Send inquiry
L32241625	25 x 16 AWG	0,26 mm	20,8 mm	486,2 kg/km	653 kg/km	Send inquiry
L32241403	3 x 14 AWG	0,26 mm	9,7 mm	98,3 kg/km	142 kg/km	Send inquiry
L32241404	4 x 14 AWG	0,26 mm	10,5 mm	125,2 kg/km	175 kg/km	Send inquiry
L32241405	5 x 14 AWG	0,26 mm	11,6 mm	173,9 kg/km	226 kg/km	Send inquiry
L32241407	7 x 14 AWG	0,26 mm	12,6 mm	222,6 kg/km	282 kg/km	Send inquiry
L32241412	12 x 14 AWG	0,26 mm	17 mm	386,6 kg/km	487 kg/km	Send inquiry
L32241418	18 x 14 AWG	0,26 mm	19,7 mm	556,5 kg/km	685 kg/km	Send inquiry
L32241425	25 x 14 AWG	0,26 mm	24,4 mm	766,2 kg/km	974 kg/km	Send inquiry
L32241204	4 x 12 AWG	0,31 mm	12,1 mm	207,8 kg/km	256 kg/km	Send inquiry
L32241205	5 x 12 AWG	0,31 mm	13,2 mm	251,7 kg/km	311 kg/km	Send inquiry
L32241207	7 x 12 AWG	0,31 mm	15,3 mm	354,8 kg/km	435 kg/km	Send inquiry
L32241004	4 x 10 AWG	0,31 mm	15,1 mm	316,3 kg/km	405 kg/km	Send inquiry
L32241005	5 x 10 AWG	0,31 mm	16,5 mm	386 kg/km	490 kg/km	Send inquiry
L32241007	7 x 10 AWG	0,31 mm	17,9 mm	513,9 kg/km	617 kg/km	Send inquiry
L32240804	4 x 8 AWG	0,41 mm	19 mm	461,3 kg/km	619 kg/km	Send inquiry
L32240604	4 x 6 AWG	0,41 mm	23,7 mm	682,5 kg/km	932 kg/km	Send inquiry
L32240404	4 x 4 AWG	0,41 mm	28,3 mm	1020,7 kg/km	1359 kg/km	Send inquiry
L32240204	4 x 2 AWG	0,41 mm	32,4 mm	1511,3 kg/km	1875 kg/km	Send inquiry
