TR 600 blue

Type TC, MTW and WTTC, UV and oil resistant, flexible Tray Cable and Machine-Tool Cable with blue cores

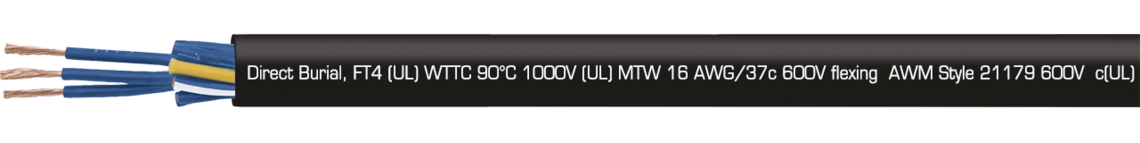

Marking for TR 600 blue 02861637:
SAB BRÖCKSKES · D-VIERSEN · TR 600 blue 16 AWG/12c 02861612 TFFN (UL) Type TC-ER 90°C 600V, Oil Resistant I, Sunlight Resistant,
Direct Burial, FT4 (UL) WTTC 90°C 1000V (UL) MTW 16 AWG/37c 600V flexing AWM Style 21179 600V c(UL) Type CIC 90°C dry 600V FT1 FT2 FT4 CE

Marking for TR 600 blue 02861637: SAB BRÖCKSKES · D-VIERSEN · TR 600 blue 16 AWG/12c 02861612 TFFN (UL) Type TC-ER 90°C 600V, Oil Resistant I, Sunlight Resistant, Direct Burial, FT4 (UL) WTTC 90°C 1000V (UL) MTW 16 AWG/37c 600V flexing AWM Style 21179 600V c(UL) Type CIC 90°C dry 600V FT1 FT2 FT4 CE

Application

The oil resistant TR 600 blue is a flexible Tray Cable and Machine-Tool Cable with blue cores and NFPA 79 for industrial machinery. This oil resistant wire is recommended for use in machine tools, control systems assembly lines, CNC machining, grinding machines, bottling equipment, data processing equipment, and connection between control panels and machines.

Outstanding features

  • Flexible cable for cable tray use
  • Oil resistance
  • Sunlight resistance
  • NFPA 79 for industrial machinery
  • WTTC approval
  • WTTC: UL Subject 2277
  • TC: UL Standard 1277
  • (UL)/(cUL) listed

Construction

Conductor

bare copper strands with reference to IEC 60228, VDE 0295 class 5 + UL standard 758 table 5.1 + UL 1581 table 20.1

Insulation

special formulated PVC/Nylon

Colour code

blue cores with numbers; white-blue ground wire and green-yellow earth wire from 3 cores

Stranding

in layers

Sheath material

special sunlight and oil resistant PVC

Sheath colour

black (RAL 9005)

Conductor

bare copper strands with reference to IEC 60228, VDE 0295 class 5 + UL standard 758 table 5.1 + UL 1581 table 20.1

Insulation

special formulated PVC/Nylon

Colour code

blue cores with numbers; white-blue ground wire and green-yellow earth wire from 3 cores

Stranding

in layers

Sheath material

special sunlight and oil resistant PVC

Sheath colour

black (RAL 9005)

Technical data

Voltage

UL-AWM/(UL)/c(UL): 600 V

(UL) WTTC: 1000 V

Testing voltage

AWG 18-10 = 6000 V

AWG 8-2 = 7500 V

Min. bending radius

fixed laying:

< 12 mm = 3 x d

> 12 mm = 4 x d



flexible application:

< 12 mm = 5 x d

> 12 mm = 6 x d

Radiation resistance

8 x 10^7 cJ/kg

Temperature

UL-AWM: up to +105°C

UL-AWM fixed laying: -25°C

(UL)/c(UL): up to +90°C

Burning characteristics

(UL) FT4 and c(UL) FT1, FT2, FT4

Oil resistance I

yes

Sunlight resistance

yes

Exposed Runs

yes

Direct Burial

yes

Machinery Area

yes

Absence of harmful substances

acc. to RoHS directive of the European Union

Voltage

UL-AWM/(UL)/c(UL): 600 V

(UL) WTTC: 1000 V

Testing voltage

AWG 18-10 = 6000 V

AWG 8-2 = 7500 V

Min. bending radius

fixed laying:

< 12 mm = 3 x d

> 12 mm = 4 x d



flexible application:

< 12 mm = 5 x d

> 12 mm = 6 x d

Radiation resistance

8 x 10^7 cJ/kg

Temperature

UL-AWM: up to +105°C

UL-AWM fixed laying: -25°C

(UL)/c(UL): up to +90°C

Burning characteristics

(UL) FT4 and c(UL) FT1, FT2, FT4

Oil resistance I

yes

Sunlight resistance

yes

Exposed Runs

yes

Direct Burial

yes

Machinery Area

yes

Absence of harmful substances

acc. to RoHS directive of the European Union

Dimensions

item no. No. of cores x
cross section
Largest single
wire-ø
Copper figure Cable weight ≈ Outer-ø ± 5%
L028618033 x 18 AWG0,21 mm28,8 kg/km83 kg/km7,7 mm Send inquiry
L028618044 x 18 AWG0,21 mm38,4 kg/km99 kg/km8,3 mm Send inquiry
L028618055 x 18 AWG0,21 mm48 kg/km118 kg/km9 mm Send inquiry
L028618077 x 18 AWG0,21 mm67,2 kg/km146 kg/km9,8 mm Send inquiry
L028618099 x 18 AWG0,21 mm86,4 kg/km194 kg/km11,9 mm Send inquiry
L0286181212 x 18 AWG0,21 mm115,2 kg/km227 kg/km12,5 mm Send inquiry
L0286181616 x 18 AWG0,21 mm153,6 kg/km310 kg/km14,6 mm Send inquiry
L0286181818 x 18 AWG0,21 mm172,8 kg/km343 kg/km15,3 mm Send inquiry
L0286181919 x 18 AWG0,21 mm182,4 kg/km352 kg/km15,3 mm Send inquiry
L0286182525 x 18 AWG0,21 mm240 kg/km450 kg/km18,1 mm Send inquiry
L0286182727 x 18 AWG0,21 mm259,2 kg/km476 kg/km18,1 mm Send inquiry
L0286183737 x 18 AWG0,21 mm355,2 kg/km620 kg/km20,1 mm Send inquiry
L0286185050 x 18 AWG0,21 mm480 kg/km868 kg/km24,6 mm Send inquiry
L028616033 x 16 AWG0,26 mm43,2 kg/km103 kg/km8,3 mm Send inquiry
L028616044 x 16 AWG0,26 mm57,6 kg/km123 kg/km9 mm Send inquiry
L028616055 x 16 AWG0,26 mm72 kg/km148 kg/km9,8 mmm Send inquiry
L028616077 x 16 AWG0,26 mm100,8 kg/km186 kg/km10,7 mm Send inquiry
L028616088 x 16 AWG0,26 mm115,2 kg/km222 kg/km12,3 mm Send inquiry
L028616099 x 16 AWG0,26 mm129,6 kg/km248 kg/km13,1 mm Send inquiry
L0286161212 x 16 AWG0,26 mm172,8 kg/km313 kg/km14,5 mm Send inquiry
L0286161616 x 16 AWG0,26 mm230,4 kg/km397 kg/km16 mm Send inquiry
L0286161818 x 16 AWG0,26 mm259,2 kg/km439 kg/km16,8 mm Send inquiry
L0286161919 x 16 AWG0,26 mm273,6 kg/km453 kg/km16,8 mm Send inquiry
L0286162525 x 16 AWG0,26 mm360 kg/km581 kg/km19,9 mm Send inquiry
L0286162727 x 16 AWG0,26 mm388,8 kg/km616 kg/km19,9 mm Send inquiry
L0286163737 x 16 AWG0,26 mm532,8 kg/km862 kg/km23,3 mm Send inquiry
L0286164141 x 16 AWG0,26 mm590,4 kg/km957 kg/km25 mm Send inquiry
L0286165050 x 16 AWG0,26 mm720 kg/km1126 kg/km27,1 mm Send inquiry
L0286166161 x 16 AWG0,26 mm878,4 kg/km1336 kg/km28,8 mm Send inquiry
L028614033 x 14 AWG0,26 mm72 kg/km138 kg/km9,2 mm Send inquiry
L028614044 x 14 AWG0,26 mm96 kg/km168 kg/km10 mm Send inquiry
L028614055 x 14 AWG0,26 mm120 kg/km202 kg/km10,9 mm Send inquiry
L028614077 x 14 AWG0,26 mm168 kg/km258 kg/km11,9 mm Send inquiry
L028614099 x 14 AWG0,26 mm216 kg/km362 kg/km15,4 mm Send inquiry
L0286141212 x 14 AWG0,26 mm288 kg/km434 kg/km16,1 mm Send inquiry
L0286141818 x 14 AWG0,26 mm432 kg/km613 kg/km18,8 mm Send inquiry
L0286142525 x 14 AWG0,26 mm600 kg/km878 kg/km23,5 mm Send inquiry
L028612033 x 12 AWG0,31 mm115,2 kg/km194 kg/km10,5 mm Send inquiry
L028612044 x 12 AWG0,31 mm153,6 kg/km238 kg/km11,4 mm Send inquiry
L028612055 x 12 AWG0,31 mm192 kg/km289 kg/km12,5 mm Send inquiry
L028612077 x 12 AWG0,31 mm268,8 kg/km394 kg/km14,4 mm Send inquiry
L028610033 x 10 AWG0,31 mm172,8 kg/km279 kg/km12,4 mm Send inquiry
L028610044 x 10 AWG0,31 mm230,4 kg/km366 kg/km14,2 mm Send inquiry
L028610055 x 10 AWG0,31 mm288 kg/km443 kg/km15,6 mm Send inquiry
L028610077 x 10 AWG0,31 mm403,2 kg/km573 kg/km17 mm Send inquiry
L028608044 x 8 AWG0,41 mm337,9 kg/km579 kg/km18,1 mm Send inquiry
L028608055 x 8 AWG0,41 mm422,4 kg/km716 kg/km19,9 mm Send inquiry
L028606044 x 6 AWG0,41 mm541,4 kg/km908 kg/km22,8 mm Send inquiry
L028606055 x 6 AWG0,41 mm676,8 kg/Km1099 kg/km25,1 mm Send inquiry
L028604044 x 4 AWG0,41 mm844,8 kg/km1361 kg/km27,4 mm Send inquiry
L028604055 x 4 AWG0,41 mm1056 kg/km1656 kg/km30,3 mm Send inquiry
L028602044 x 2 AWG0,41 mm1305,6 kg/km1928 kg/km31,5 mm Send inquiry
L028602050,41 mm1632 kg/km2344 kg/km34,9 mm Send inquiry
item no.
No. of cores x
cross section
Largest single
wire-ø
Copper figure
Cable weight ≈
Outer-ø ± 5%
L02861803
3 x 18 AWG
0,21 mm
28,8 kg/km
83 kg/km
7,7 mm
L02861804
4 x 18 AWG
0,21 mm
38,4 kg/km
99 kg/km
8,3 mm
L02861805
5 x 18 AWG
0,21 mm
48 kg/km
118 kg/km
9 mm
L02861807
7 x 18 AWG
0,21 mm
67,2 kg/km
146 kg/km
9,8 mm
L02861809
9 x 18 AWG
0,21 mm
86,4 kg/km
194 kg/km
11,9 mm
L02861812
12 x 18 AWG
0,21 mm
115,2 kg/km
227 kg/km
12,5 mm
L02861816
16 x 18 AWG
0,21 mm
153,6 kg/km
310 kg/km
14,6 mm
L02861818
18 x 18 AWG
0,21 mm
172,8 kg/km
343 kg/km
15,3 mm
L02861819
19 x 18 AWG
0,21 mm
182,4 kg/km
352 kg/km
15,3 mm
L02861825
25 x 18 AWG
0,21 mm
240 kg/km
450 kg/km
18,1 mm
L02861827
27 x 18 AWG
0,21 mm
259,2 kg/km
476 kg/km
18,1 mm
L02861837
37 x 18 AWG
0,21 mm
355,2 kg/km
620 kg/km
20,1 mm
L02861850
50 x 18 AWG
0,21 mm
480 kg/km
868 kg/km
24,6 mm
L02861603
3 x 16 AWG
0,26 mm
43,2 kg/km
103 kg/km
8,3 mm
L02861604
4 x 16 AWG
0,26 mm
57,6 kg/km
123 kg/km
9 mm
L02861605
5 x 16 AWG
0,26 mm
72 kg/km
148 kg/km
9,8 mmm
L02861607
7 x 16 AWG
0,26 mm
100,8 kg/km
186 kg/km
10,7 mm
L02861608
8 x 16 AWG
0,26 mm
115,2 kg/km
222 kg/km
12,3 mm
L02861609
9 x 16 AWG
0,26 mm
129,6 kg/km
248 kg/km
13,1 mm
L02861612
12 x 16 AWG
0,26 mm
172,8 kg/km
313 kg/km
14,5 mm
L02861616
16 x 16 AWG
0,26 mm
230,4 kg/km
397 kg/km
16 mm
L02861618
18 x 16 AWG
0,26 mm
259,2 kg/km
439 kg/km
16,8 mm
L02861619
19 x 16 AWG
0,26 mm
273,6 kg/km
453 kg/km
16,8 mm
L02861625
25 x 16 AWG
0,26 mm
360 kg/km
581 kg/km
19,9 mm
L02861627
27 x 16 AWG
0,26 mm
388,8 kg/km
616 kg/km
19,9 mm
L02861637
37 x 16 AWG
0,26 mm
532,8 kg/km
862 kg/km
23,3 mm
L02861641
41 x 16 AWG
0,26 mm
590,4 kg/km
957 kg/km
25 mm
L02861650
50 x 16 AWG
0,26 mm
720 kg/km
1126 kg/km
27,1 mm
L02861661
61 x 16 AWG
0,26 mm
878,4 kg/km
1336 kg/km
28,8 mm
L02861403
3 x 14 AWG
0,26 mm
72 kg/km
138 kg/km
9,2 mm
L02861404
4 x 14 AWG
0,26 mm
96 kg/km
168 kg/km
10 mm
L02861405
5 x 14 AWG
0,26 mm
120 kg/km
202 kg/km
10,9 mm
L02861407
7 x 14 AWG
0,26 mm
168 kg/km
258 kg/km
11,9 mm
L02861409
9 x 14 AWG
0,26 mm
216 kg/km
362 kg/km
15,4 mm
L02861412
12 x 14 AWG
0,26 mm
288 kg/km
434 kg/km
16,1 mm
L02861418
18 x 14 AWG
0,26 mm
432 kg/km
613 kg/km
18,8 mm
L02861425
25 x 14 AWG
0,26 mm
600 kg/km
878 kg/km
23,5 mm
L02861203
3 x 12 AWG
0,31 mm
115,2 kg/km
194 kg/km
10,5 mm
L02861204
4 x 12 AWG
0,31 mm
153,6 kg/km
238 kg/km
11,4 mm
L02861205
5 x 12 AWG
0,31 mm
192 kg/km
289 kg/km
12,5 mm
L02861207
7 x 12 AWG
0,31 mm
268,8 kg/km
394 kg/km
14,4 mm
L02861003
3 x 10 AWG
0,31 mm
172,8 kg/km
279 kg/km
12,4 mm
L02861004
4 x 10 AWG
0,31 mm
230,4 kg/km
366 kg/km
14,2 mm
L02861005
5 x 10 AWG
0,31 mm
288 kg/km
443 kg/km
15,6 mm
L02861007
7 x 10 AWG
0,31 mm
403,2 kg/km
573 kg/km
17 mm
L02860804
4 x 8 AWG
0,41 mm
337,9 kg/km
579 kg/km
18,1 mm
L02860805
5 x 8 AWG
0,41 mm
422,4 kg/km
716 kg/km
19,9 mm
L02860604
4 x 6 AWG
0,41 mm
541,4 kg/km
908 kg/km
22,8 mm
L02860605
5 x 6 AWG
0,41 mm
676,8 kg/Km
1099 kg/km
25,1 mm
L02860404
4 x 4 AWG
0,41 mm
844,8 kg/km
1361 kg/km
27,4 mm
L02860405
5 x 4 AWG
0,41 mm
1056 kg/km
1656 kg/km
30,3 mm
L02860204
4 x 2 AWG
0,41 mm
1305,6 kg/km
1928 kg/km
31,5 mm
L02860205
0,41 mm
1632 kg/km
2344 kg/km
34,9 mm

Other dimensions and colours are possible on request.
