TR 600 black

Type TC, MTW and WTTC, UV and oil resistant, flexible Tray Cable and Machine-Tool cable with black cores

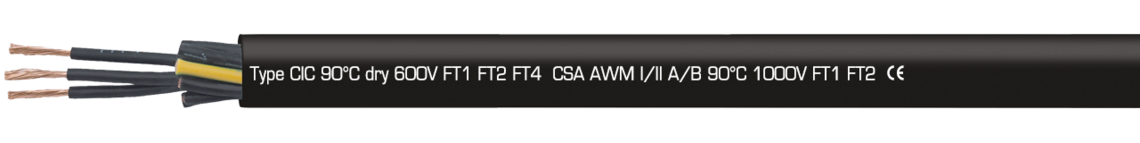

Marking example: SAB BRÖCKSKES · D-VIERSEN · TR 600 black 16 AWG/37c 02841612 TFFN (UL) Type TC-ER 90°C 600V, Oil Resistant I, Sunlight Resistant, Direct Burial, FT4 (UL) WTTC 90°C 1000V (UL) MTW 16 AWG/12c 600V flexing AWM Style 21179 600V c(UL) Type CIC 90°C dry 600V FT1 FT2 FT4 CSA AWM I/II A/B 90°C 1000V FT1 FT2 CE

Download data sheet for TR 600 black

Questions about our products?

Application

TR 600 black Type TC, MTW, and WTTC is a UV and oil resistant, flexible Tray Cable and Machine-Tool Cable with black cores. This cable with NFPA 79 for industrial machinery is recommended for use in machine tools, control systems assembly lines, CNC machining, grinding machines, bottling equipment, data processing equipment, and connection between control panels and machines.

Outstanding features

Flexible cable for cable tray use
Oil resistance
Sunlight resistance
NFPA 79 for industrial machinery
WTTC approval
WTTC: UL Subject 2277
TC: UL Standard 1277
UL recognized, CSA approval, (UL)/c(UL) listed

Construction

Conductor	bare copper strands with reference to IEC 60228, VDE 0295 class 5 + UL standard 758 table 5.1 + UL 1581 table 20.1
Insulation	special formulated PVC/Nylon
Colour code	black cores with consecutive white numbers, green-yellow earth wire from 3 cores
Stranding	in layers
Sheath material	special sunlight and oil resistant PVC
Sheath colour	black (RAL 9005)

Conductor

bare copper strands with reference to IEC 60228, VDE 0295 class 5 + UL standard 758 table 5.1 + UL 1581 table 20.1

Insulation

special formulated PVC/Nylon

Colour code

black cores with consecutive white numbers, green-yellow earth wire from 3 cores

Stranding

in layers

Sheath material

special sunlight and oil resistant PVC

Sheath colour

black (RAL 9005)

Technical data

Voltage	UL-AWM/(UL)/c(UL): 600 V (UL) WTTC/CSA-AWM: 1000 V
Testing voltage	AWG 18-10 = 6000 V AWG 8-2 = 7500 V
Min. bending radius	fixed laying: < 12 mm = 3 x d > 12 mm = 4 x d flexible application: < 12 mm = 5 x d > 12 mm = 6 x d
Radiation resistance	8 x 10^7 cJ/kg
Temperature	UL-AWM: up to +105°C UL-AWM fixed laying: -25°C (UL)/c(UL)/CSA-AWM: up to +90°C
Burning characteristics	(UL) FT4 + c(UL) FT1, FT2, FT4 + CSA FT1, FT2
Oil resistance I	yes
Sunlight resistance	yes
Exposed Runs	yes
Direct Burial	yes
Machinery Area	yes
Absence of harmful substances	acc. to RoHS directive of the European Union

Voltage

UL-AWM/(UL)/c(UL): 600 V

(UL) WTTC/CSA-AWM: 1000 V

Testing voltage

AWG 18-10 = 6000 V

AWG 8-2 = 7500 V

Min. bending radius

fixed laying:

< 12 mm = 3 x d

> 12 mm = 4 x d

flexible application:

< 12 mm = 5 x d

> 12 mm = 6 x d

Radiation resistance

8 x 10^7 cJ/kg

Temperature

UL-AWM: up to +105°C

UL-AWM fixed laying: -25°C

(UL)/c(UL)/CSA-AWM: up to +90°C

Burning characteristics

(UL) FT4 + c(UL) FT1, FT2, FT4 + CSA FT1, FT2

Oil resistance I

yes

Sunlight resistance

yes

Exposed Runs

yes

Direct Burial

yes

Machinery Area

yes

Absence of harmful substances

acc. to RoHS directive of the European Union

Dimensions

item no.	No. of cores x cross section	Largest single wire-ø	Copper figure	Cable weight ≈	Outer-ø ± 5%
L02841803	3 x 18 AWG	0,21 mm	28,8 kg/km	83 kg/km	7,7 mm	Send inquiry
L02841804	4 x 18 AWG	0,21 mm	38,4 kg/km	99 kg/km	8,3 mm	Send inquiry
L02841805	5 x 18 AWG	0,21 mm	48 kg/km	118 kg/km	9 mm	Send inquiry
L02841807	7 x 18 AWG	0,21 mm	67,2 kg/km	146 kg/km	9,8 mm	Send inquiry
L02841809	9 x 18 AWG	0,21 mm	86,4 kg/km	194 kg/km	11,9 mm	Send inquiry
L02841812	12 x 18 AWG	0,21 mm	115,2 kg/km	227 kg/km	12,5 mm	Send inquiry
L02841816	16 x 18 AWG	0,21 mm	153,6 kg/km	310 kg/km	14,6 mm	Send inquiry
L02841818	18 x 18 AWG	0,21 mm	172,8 kg/km	343 kg/km	15,3 mm	Send inquiry
L02841819	19 x 18 AWG	0,21 mm	182,4 kg/km	352 kg/km	15,3 mm	Send inquiry
L02841825	25 x 18 AWG	0,21 mm	240 kg/km	450 kg/km	18,1 mm	Send inquiry
L02841827	27 x 18 AWG	0,21 mm	259,2 kg/km	476 kg/km	18,1 mm	Send inquiry
L02841837	37 x 18 AWG	0,21 mm	355,2 kg/km	620 kg/km	20,1 mm	Send inquiry
L28041850	50 x 18 AWG	0,21 mm	480 kg/km	868 kg/km	24,6 mm	Send inquiry
L02841603	3 x 16 AWG	0,26 mm	43,2 kg/km	103 kg/km	8,3 mm	Send inquiry
L02841604	4 x 16 AWG	0,26 mm	57,6 kg/km	123 kg/km	9 mm	Send inquiry
L02841605	5 x 16 AWG	0,26 mm	72 kg/km	148 kg/km	9,8 mm	Send inquiry
L02841607	7 x 16 AWG	0,26 mm	100,8 kg/km	186 kg/km	10,7 mm	Send inquiry
L02841608	8 x 16 AWG	0,26 mm	115,2 kg/km	222 kg/km	12,3 mm	Send inquiry
L02841609	9 x 16 AWG	0,26 mm	129,6 kg/km	248 kg/km	13,1 mm	Send inquiry
L02841612	12 x 16 AWG	0,26 mm	172,8 kg/km	313 kg/km	14,5 mm	Send inquiry
L02841616	16 x 16 AWG	0,26 mm	230,4 kg/km	397 kg/km	16 mm	Send inquiry
L02841618	18 x 16 AWG	0,26 mm	259,2 kg/km	439 kg/km	16,8 mm	Send inquiry
L02841619	19 x 16 AWG	0,26 mm	273,6 kg/km	453 kg/km	16,8 mm	Send inquiry
L02841625	25 x 16 AWG	0,26 mm	360 kg/km	581 kg/km	19,9 mm	Send inquiry
L02841627	27 x 16 AWG	0,26 mm	388,8 kg/km	616 kg/km	19,9 mm	Send inquiry
L02841637	37 x 16 AWG	0,26 mm	532,8 kg/km	862 kg/km	23,3 mm	Send inquiry
L02841641	41 x 16 AWG	0,26 mm	590,4 kg/km	957 kg/km	25 mm	Send inquiry
L02841650	50 x 16 AWG	0,26 mm	720 kg/km	1126 kg/km	27,1 mm	Send inquiry
L02841661	61 x 16 AWG	0,26 mm	878,4 kg/km	1336 kg/km	28,8 mm	Send inquiry
L02841403	3 x 14 AWG	0,26 mm	72 kg/km	138 kg/km	9,2 mm	Send inquiry
L02841404	4 x 14 AWG	0,26 mm	96 kg/km	168 kg/km	10 mm	Send inquiry
L02841405	5 x 14 AWG	0,26 mm	120 kg/km	202 kg/km	10,9 mm	Send inquiry
L02841407	7 x 14 AWG	0,26 mm	168 kg/km	258 kg/km	11,9 mm	Send inquiry
L02841409	9 x 14 AWG	0,26 mm	216 kg/km	362 kg/km	15,4 mm	Send inquiry
L02841412	12 x 14 AWG	0,26 mm	288 kg/km	434 kg/km	16,1 mm	Send inquiry
L02841418	18 x 14 AWG	0,26 mm	432 kg/km	613 kg/km	18,8 mm	Send inquiry
L02841425	25 x 14 AWG	0,26 mm	600 kg/km	878 kg/km	23,5 mm	Send inquiry
L02841203	3 x 12 AWG	0,31 mm	115,2 kg/km	194 kg/km	10,5 mm	Send inquiry
L02841204	4 x 12 AWG	0,31 mm	153,6 kg/km	238 kg/km	11,4 mm	Send inquiry
L02841205	5 x 12 AWG	0,31 mm	192 kg/km	289 kg/km	12,5 mm	Send inquiry
L02841207	7 x 12 AWG	0,31 mm	268,8 kg/km	394 kg/km	14,4 mm	Send inquiry
L02841003	3 x 10 AWG	0,31 mm	172,8 kg/km	279 kg/km	12,4 mm	Send inquiry
L02841004	4 x 10 AWG	0,31 mm	230,4 kg/km	366 kg/km	14,2 mm	Send inquiry
L02841005	5 x 10 AWG	0,31 mm	288 kg/km	443 kg/km	15,6 mm	Send inquiry
L02841007	7 x 10 AWG	0,31 mm	403,2 kg/km	573 kg/km	17 mm	Send inquiry
L02840804	4 x 8 AWG	0,41 mm	337,9 kg/km	579 kg/km	18,1 mm	Send inquiry
L02840805	5 x 8 AWG	0,41 mm	422,4 kg/km	716 kg/km	19,9mm	Send inquiry
L02840604	4 x 6 AWG	0,41 mm	541,4 kg/km	908 kg/km	22,8 mm	Send inquiry
L02840605	5 x 6 AWG	0,41 mm	676,8 kg/km	1099 kg/km	25,1 mm	Send inquiry
L02840404	4 x 4 AWG	0,41 mm	844,8 kg/km	1361 kg/km	27,4 mm	Send inquiry
L02840405	5 x 4 AWG	0,41 mm	1056 kg/km	1656 kg/km	30,3 mm	Send inquiry
L02840204	4 x 2 AWG	0,41 mm	1305,6 kg/km	1928 kg/km	31,5 mm	Send inquiry
L02840205	5 x 2 AWG	0,41 mm	1632 kg/km	2344 kg/km	34,9 mm	Send inquiry
