TR 600 Auto red

Type TC, MTW and WTTC, UV and oil resistant, flexible Tray Cable and Machine-Tool Cable with red cores for cable tracks

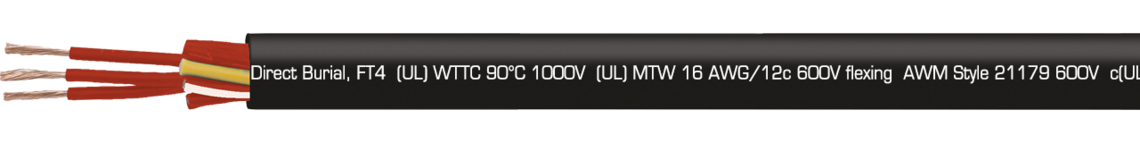

Marking for TR 600 Auto red 32111625: SAB BRÖCKSKES · D-VIERSEN · TR 600 Auto red 16 AWG/12c 32111625 TFFN (UL) Type TC-ER 90°C 600V, Oil Resistant I, Sunlight Resistant, Direct Burial, FT4 (UL) WTTC 90°C 1000V (UL) MTW 16 AWG/12c 600V flexing AWM Style 21179 600V c(UL) Type CIC 90°C dry 600V FT1 FT2 FT4 CE

Download data sheet for TR 600 Auto red

Questions about our products?

Application

The sunlight resistant and high-flex TR 600 Auto red is an oil resistant Tray Cable and Machine-Tool Cable with red cores for cable tracks. Recommended applications are in machine tools, control systems assembly lines, CNC machining, grinding machines, bottling equipment, data processing equipment, and connection between control panels and machines.

Outstanding features

Flexible cable for cable tray use
Oil resistance
Sunlight resistance
NFPA 79 for industrial machinery
WTTC approval
WTTC: UL Subject 2277
TC: UL Standard 1277
(UL)/(cUL) listed

Construction

Conductor	bare copper strands with reference to IEC 60228, VDE 0295 class 6
Insulation	special formulated PVC/Nylon
Colour code	red cores with numbers, white ground wire and green-yellow earth wire from 3 cores
Stranding	in layers
Sheath material	special sunlight and oil resistant PVC
Sheath colour	black (RAL 9005)

Conductor

bare copper strands with reference to IEC 60228, VDE 0295 class 6

Insulation

special formulated PVC/Nylon

Colour code

red cores with numbers, white ground wire and green-yellow earth wire from 3 cores

Stranding

in layers

Sheath material

special sunlight and oil resistant PVC

Sheath colour

black (RAL 9005)

Technical data

Voltage	UL-AWM/(UL)/c(UL): 600 V (UL) WTTC: 1000 V
Testing voltage	AWG 18-10 = 6000 V AWG 8-2 = 7500 V
Min. bending radius	fixed laying: < 12 mm = 3 x d > 12 mm = 4 x d flexible application: < 12 mm = 5 x d > 12 mm = 6 x d continuously flexible: 10 x d
Radiation resistance	8 x 10^7 cJ/kg
Temperature	UL-AWM: up to +105°C UL-AWM fixed laying: -25°C (UL)/c(UL): up to +90°C
Burning characteristics	(UL) FT4 and c(UL) FT1, FT2, FT4
Oil resistance I	yes
Sunlight resistance	yes
Exposed Runs	yes
Direct Burial	yes
Machinery Area	yes
Absence of harmful substances	acc. to RoHS directive of the European Union

Voltage

UL-AWM/(UL)/c(UL): 600 V

(UL) WTTC: 1000 V

Testing voltage

AWG 18-10 = 6000 V

AWG 8-2 = 7500 V

Min. bending radius

fixed laying:

< 12 mm = 3 x d

> 12 mm = 4 x d

flexible application:

< 12 mm = 5 x d

> 12 mm = 6 x d

continuously flexible: 10 x d

Radiation resistance

8 x 10^7 cJ/kg

Temperature

UL-AWM: up to +105°C

UL-AWM fixed laying: -25°C

(UL)/c(UL): up to +90°C

Burning characteristics

(UL) FT4 and c(UL) FT1, FT2, FT4

Oil resistance I

yes

Sunlight resistance

yes

Exposed Runs

yes

Direct Burial

yes

Machinery Area

yes

Absence of harmful substances

acc. to RoHS directive of the European Union

Dimensions

item no.	No. of cores x cross section	Largest single wire-ø	Copper figure	Cable weight ≈	Outer-ø ± 5%
L32111803	3 x 18 AWG	0,16 mm	28,8 kg/km	84 kg/km	7,7 mm	Send inquiry
L32111804	4 x 18 AWG	0,16 mm	38,4 kg/km	100 kg/km	8,3 mm	Send inquiry
L32111805	5 x 18 AWG	0,16 mm	48 kg/km	125 kg/km	9 mm	Send inquiry
L32111807	7 x 18 AWG	0,16 mm	67,2 kg/km	165 kg/km	10,5 mm	Send inquiry
L32111809	9 x 18 AWG	0,16 mm	86,4 kg/km	210 kg/km	11,9 mm	Send inquiry
L32111812	12 x 18 AWG	0,16 mm	115,2 kg/km	232 kg/km	12,5 mm	Send inquiry
L32111816	16 x 18 AWG	0,16 mm	153,6 kg/km	316 kg/km	14,6 mm	Send inquiry
L32111818	18 x 18 AWG	0,16 mm	172,8 kg/km	350 kg/km	15,3 mm	Send inquiry
L32111819	19 x 18 AWG	0,16 mm	182,4 kg/km	376 kg/km	16 mm	Send inquiry
L32111825	25 x 18 AWG	0,16 mm	240 kg/km	460 kg/km	18,1 mm	Send inquiry
L32111603	3 x 16 AWG	0,16 mm	43,2 kg/km	105 kg/km	8,3 mm	Send inquiry
L32111604	4 x 16 AWG	0,16 mm	57,6 kg/km	129 kg/km	9 mm	Send inquiry
L32111605	5 x 16 AWG	0,16 mm	72 kg/km	150 kg/km	9,8 mm	Send inquiry
L32111607	7 x 16 AWG	0,16 mm	100,8 kg/km	211 kg/km	11,5 mm	Send inquiry
L32111608	8 x 16 AWG	0,16 mm	115,2 kg/km	243 kg/km	12,3 mm	Send inquiry
L32111609	9 x 16 AWG	0,16 mm	129,6 kg/km	270 kg/km	13,1 mm	Send inquiry
L32111612	12 x 16 AWG	0,16 mm	172,8 kg/km	324 kg/km	14,5 mm	Send inquiry
L32111616	16 x 16 AWG	0,16 mm	230,4 kg/km	410 kg/km	16 mm	Send inquiry
L32111618	18 x 16 AWG	0,16 mm	259,2 kg/km	453 kg/km	16,8 mm	Send inquiry
L32111619	19 x 16 AWG	0,16 mm	273,6 kg/km	490 kg/km	17,6 mm	Send inquiry
L32111625	25 x 16 AWG	0,16 mm	360 kg/km	604 kg/km	19,9 mm	Send inquiry
L32111403	3 x 14 AWG	0,16 mm	72 kg/km	153 kg/km	9,9 mm	Send inquiry
L32111404	4 x 14 AWG	0,16 mm	96 kg/km	184 kg/km	10,7 mm	Send inquiry
L32111405	5 x 14 AWG	0,16 mm	120 kg/km	230 kg/km	11,7 mm	Send inquiry
L32111407	7 x 14 AWG	0,16 mm	168 kg/km	334 kg/km	14,5 mm	Send inquiry
L32111409	9 x 14 AWG	0,16 mm	216 kg/km	431 kg/km	16,5 mm	Send inquiry
L32111412	12 x 14 AWG	0,16 mm	288 kg/km	479 kg/km	17,4 mm	Send inquiry
L32111418	18 x 14 AWG	0,16 mm	432 kg/km	690 kg/km	20,3 mm	Send inquiry
L32111425	25 x 14 AWG	0,16 mm	600 kg/km	966 kg/km	25,3 mm	Send inquiry
L32111007	7 x 10 AWG	0,21 mm	369,6 kg/km	583 kg/km	18,7 mm	Send inquiry
