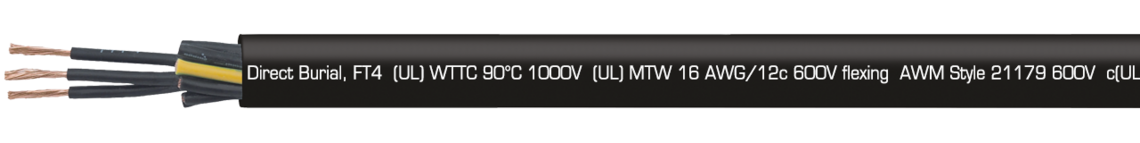

TR 600 Auto black

Type TC, MTW and WTTC, UV and oil resistant, flexible Tray Cable and Machine-Tool Cable with black cores for cable tracks

Marking for TR 600 Auto black 32121625:
SAB BRÖCKSKES · D-VIERSEN · TR 600 Auto black 16 AWG/12c 32121625 TFFN (UL) Type TC-ER 90°C 600V, Oil Resistant I, Sunlight Resistant,
Direct Burial, FT4 (UL) WTTC 90°C 1000V (UL) MTW 16 AWG/12c 600V flexing AWM Style 21179 600V c(UL) Type CIC 90°C dry 600V FT1 FT2 FT4 CE

Marking for TR 600 Auto black 32121625: SAB BRÖCKSKES · D-VIERSEN · TR 600 Auto black 16 AWG/12c 32121625 TFFN (UL) Type TC-ER 90°C 600V, Oil Resistant I, Sunlight Resistant, Direct Burial, FT4 (UL) WTTC 90°C 1000V (UL) MTW 16 AWG/12c 600V flexing AWM Style 21179 600V c(UL) Type CIC 90°C dry 600V FT1 FT2 FT4 CE

Application

The high-flex TR 600 Auto black is an UV and oil resistant Tray Cable and Machine-Tool Cable with black cores for cable tracks. Its applications are in machine tools, control systems assembly lines, CNC machining, grinding machines, bottling equipment, data processing equipment, and connection between control panels and machines.

Outstanding features

  • Flexible cable for cable tray use
  • Oil resistance
  • Sunlight resistance
  • NFPA 79 for industrial machinery
  • WTTC approval
  • WTTC: UL Subject 2277
  • TC: UL Standard 1277
  • (UL)/(cUL) listed

Construction

Conductor

bare copper strands with reference to IEC 60228, VDE 0295 class 6

Insulation

special formulated PVC/Nylon

Colour code

black cores with consecutive white numbers, green-yellow earth wire from 3 cores

Stranding

in layers

Sheath material

special sunlight and oil resistant PVC

Sheath colour

black (RAL 9005)

Conductor

bare copper strands with reference to IEC 60228, VDE 0295 class 6

Insulation

special formulated PVC/Nylon

Colour code

black cores with consecutive white numbers, green-yellow earth wire from 3 cores

Stranding

in layers

Sheath material

special sunlight and oil resistant PVC

Sheath colour

black (RAL 9005)

Technical data

Voltage

UL-AWM/(UL)/c(UL): 600 V

(UL) WTTC: 1000 V

Testing voltage

AWG 18-10 = 6000 V

AWG 8-2 = 7500 V

Min. bending radius

fixed laying:

< 12 mm = 3 x d

> 12 mm = 4 x d



flexible application:

< 12 mm = 5 x d

> 12 mm = 6 x d



continuously flexible: 10 x d

Radiation resistance

8 x 10^7 cJ/kg

Temperature

UL-AWM: up to +105°C

UL-AWM fixed laying: -25°C

(UL)/c(UL): up to +90°C

Burning characteristics

(UL) FT4 and c(UL) FT1, FT2, FT4

Oil resistance I

yes

Sunlight resistance

yes

Exposed Runs

yes

Direct Burial

yes

Machinery Area

yes

Absence of harmful substances

acc. to RoHS directive of the European Union

Voltage

UL-AWM/(UL)/c(UL): 600 V

(UL) WTTC: 1000 V

Testing voltage

AWG 18-10 = 6000 V

AWG 8-2 = 7500 V

Min. bending radius

fixed laying:

< 12 mm = 3 x d

> 12 mm = 4 x d



flexible application:

< 12 mm = 5 x d

> 12 mm = 6 x d



continuously flexible: 10 x d

Radiation resistance

8 x 10^7 cJ/kg

Temperature

UL-AWM: up to +105°C

UL-AWM fixed laying: -25°C

(UL)/c(UL): up to +90°C

Burning characteristics

(UL) FT4 and c(UL) FT1, FT2, FT4

Oil resistance I

yes

Sunlight resistance

yes

Exposed Runs

yes

Direct Burial

yes

Machinery Area

yes

Absence of harmful substances

acc. to RoHS directive of the European Union

Dimensions

item no. No. of cores x
cross section
Largest single
wire-ø
Copper figure Cable weight ≈ Outer-ø ± 5%
L321218033 x 18 AWG0,16 mm28,8 kg/km84 kg/km7,7 mm Send inquiry
L321218044 x 18 AWG0,16 mm38,4 kg/km100 kg/km8,3 mm Send inquiry
L321218055 x 18 AWG0,16 mm48 kg/km125 kg/km9 mm Send inquiry
L321218077 x 18 AWG0,16 mm67,2 kg/km165 kg/km10,5 mm Send inquiry
L321218099 x 18 AWG0,16 mm86,4 kg/km210 kg/km11,9 mm Send inquiry
L3212181212 x 18 AWG0,16 mm115,2 kg/km232 kg/km12,5 mm Send inquiry
L3212181616 x 18 AWG0,16 mm153,6 kg/km316 kg/km14,6 mm Send inquiry
L3212181818 x 18 AWG0,16 mm172,8 kg/km350 kg/km15,3 mm Send inquiry
L3212181919 x 18 AWG0,16 mm182,4 kg/km376 kg/km16 mm Send inquiry
L3212182525 x 18 AWG0,16 mm240 kg/km460 kg/km18,1 mm Send inquiry
L321216033 x 16 AWG0,16 mm43,2 kg/km105 kg/km8,3 mm Send inquiry
L321216044 x 16 AWG0,16 mm57,6 kg/km129 kg/km9 mm Send inquiry
L321216055 x 16 AWG0,16 mm72 kg/km150 kg/km9,8 mm Send inquiry
L321216077 x 16 AWG0,16 mm100,8 kg/km211 kg/km11,5 mm Send inquiry
L321216088 x 16 AWG0,16 mm115,2 kg/km243 kg/km12,3 mm Send inquiry
L321216099 x 16 AWG0,16 mm129,6 kg/km270 kg/km13,1 mm Send inquiry
L3212161212 x 16 AWG0,16 mm172,8 kg/km324 kg/km14,5 mm Send inquiry
L3212161616 x 16 AWG0,16 mm230,4 kg/km410 kg/km16 mm Send inquiry
L3212161818 x 16 AWG0,16 mm259,2 kg/km453 kg/km16,8 mm Send inquiry
L3212161919 x 16 AWG0,16 mm273,6 kg/km490 kg/km17,6 mm Send inquiry
L3212162525 x 16 AWG0,16 mm360 kg/km604 kg/km19,9 mm Send inquiry
L321214033 x 14 AWG0,16 mm72 kg/km153 kg/km9,9 mm Send inquiry
L321214044 x 14 AWG0,16 mm96 kg/km184 kg/km10,7 mm Send inquiry
L321214055 x 14 AWG0,16 mm120 kg/km230 kg/km11,7 mm Send inquiry
L321214077 x 14 AWG0,16 mm168 kg/km334 kg/km14,5 mm Send inquiry
L321214099 x 14 AWG0,16 mm216 kg/km431 kg/km16,5 mm Send inquiry
L3212141212 x 14 AWG0,16 mm288 kg/km479 kg/km17,4 mm Send inquiry
L3212141818 x 14 AWG0,16 mm432 kg/km690 kg/km20,3 mm Send inquiry
L3212142525 x 14 AWG0,16 mm600 kg/km966 kg/km25,3 mm Send inquiry
L321210077 x 10 AWG0,21 mm369,6 kg/km583 kg/km18,7 mm Send inquiry
item no.
No. of cores x
cross section
Largest single
wire-ø
Copper figure
Cable weight ≈
Outer-ø ± 5%
L32121803
3 x 18 AWG
0,16 mm
28,8 kg/km
84 kg/km
7,7 mm
L32121804
4 x 18 AWG
0,16 mm
38,4 kg/km
100 kg/km
8,3 mm
L32121805
5 x 18 AWG
0,16 mm
48 kg/km
125 kg/km
9 mm
L32121807
7 x 18 AWG
0,16 mm
67,2 kg/km
165 kg/km
10,5 mm
L32121809
9 x 18 AWG
0,16 mm
86,4 kg/km
210 kg/km
11,9 mm
L32121812
12 x 18 AWG
0,16 mm
115,2 kg/km
232 kg/km
12,5 mm
L32121816
16 x 18 AWG
0,16 mm
153,6 kg/km
316 kg/km
14,6 mm
L32121818
18 x 18 AWG
0,16 mm
172,8 kg/km
350 kg/km
15,3 mm
L32121819
19 x 18 AWG
0,16 mm
182,4 kg/km
376 kg/km
16 mm
L32121825
25 x 18 AWG
0,16 mm
240 kg/km
460 kg/km
18,1 mm
L32121603
3 x 16 AWG
0,16 mm
43,2 kg/km
105 kg/km
8,3 mm
L32121604
4 x 16 AWG
0,16 mm
57,6 kg/km
129 kg/km
9 mm
L32121605
5 x 16 AWG
0,16 mm
72 kg/km
150 kg/km
9,8 mm
L32121607
7 x 16 AWG
0,16 mm
100,8 kg/km
211 kg/km
11,5 mm
L32121608
8 x 16 AWG
0,16 mm
115,2 kg/km
243 kg/km
12,3 mm
L32121609
9 x 16 AWG
0,16 mm
129,6 kg/km
270 kg/km
13,1 mm
L32121612
12 x 16 AWG
0,16 mm
172,8 kg/km
324 kg/km
14,5 mm
L32121616
16 x 16 AWG
0,16 mm
230,4 kg/km
410 kg/km
16 mm
L32121618
18 x 16 AWG
0,16 mm
259,2 kg/km
453 kg/km
16,8 mm
L32121619
19 x 16 AWG
0,16 mm
273,6 kg/km
490 kg/km
17,6 mm
L32121625
25 x 16 AWG
0,16 mm
360 kg/km
604 kg/km
19,9 mm
L32121403
3 x 14 AWG
0,16 mm
72 kg/km
153 kg/km
9,9 mm
L32121404
4 x 14 AWG
0,16 mm
96 kg/km
184 kg/km
10,7 mm
L32121405
5 x 14 AWG
0,16 mm
120 kg/km
230 kg/km
11,7 mm
L32121407
7 x 14 AWG
0,16 mm
168 kg/km
334 kg/km
14,5 mm
L32121409
9 x 14 AWG
0,16 mm
216 kg/km
431 kg/km
16,5 mm
L32121412
12 x 14 AWG
0,16 mm
288 kg/km
479 kg/km
17,4 mm
L32121418
18 x 14 AWG
0,16 mm
432 kg/km
690 kg/km
20,3 mm
L32121425
25 x 14 AWG
0,16 mm
600 kg/km
966 kg/km
25,3 mm
L32121007
7 x 10 AWG
0,21 mm
369,6 kg/km
583 kg/km
18,7 mm

Other dimensions and colours are possible on request.
