Screw-in nipples for temperature sensor
Application
Our threaded bayonet nipples (screw-in nipples), also referred to as bayonet adapters, are the ideal connection elements for bayonet resistance thermometers and bayonet thermocouples. They ensure a secure, precise, and reproducible installation of your sensors in industrial applications.

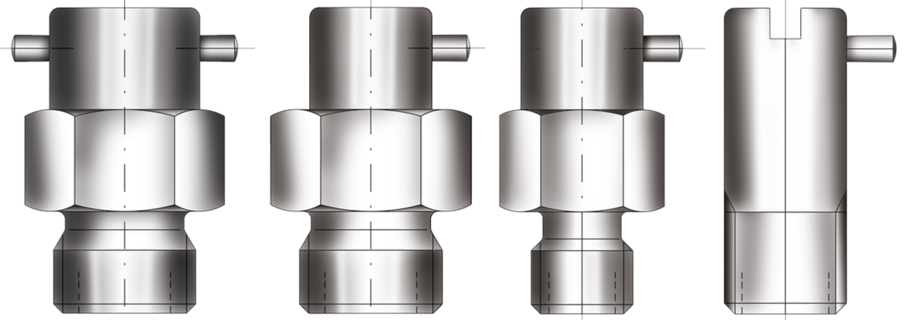

The nipples are available in different forms A, B, and C and for various sensor diameters (Ø 6–8 mm) and thread sizes (e.g., M10, M12, M14, G1/4, G3/8). The hexagon shape allows for easy and reliable screwing into place.
These threaded bayonet nipples (screw-in nipples) are perfect for integration into pipelines, machines, and systems, ensuring optimal mounting of bayonet sensors and thermocouples.
Additional information
For custom solutions or further information, please feel free to contact us by phone, email, or via our contact form.
Construction
| form A · probe-Ø max. 8 mm | Thread Ø d item no. M14 x1.5 9 T056-000-770 M14x1 9 T056-008-478 M12 8.7 T056-008-477 G3/8A 9 T056-000-772 G1/4A 9 T056-000-771 |
|---|---|
| form B · probe-Ø max. 8 mm | Thread SW item no. M14 x1.5 17 T056-000-767 M12x1 14 T056-008-479 G3/8A 17 T056-000-769 G1/4A 14 T056-000-768 |
| form C · probe-Ø max. 6 mm | Thread item no. M10 T056-008-481 |
| form C · probe-Ø max. 8 mm | Thread item no. M12 T056-008-480 M12x1 T056-000-773 M12x1.5 T056-008-482 |
Thread Ø d item no.
M14 x1.5 9 T056-000-770
M14x1 9 T056-008-478
M12 8.7 T056-008-477
G3/8A 9 T056-000-772
G1/4A 9 T056-000-771
Thread SW item no.
M14 x1.5 17 T056-000-767
M12x1 14 T056-008-479
G3/8A 17 T056-000-769
G1/4A 14 T056-000-768
Thread item no.
M10 T056-008-481
Thread item no.
M12 T056-008-480
M12x1 T056-000-773
M12x1.5 T056-008-482
