MTC 305

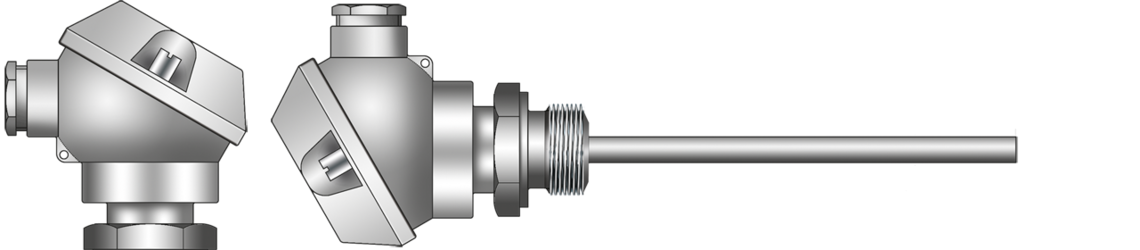

Mineral insulated thermocouple with connection head and thread
Mineral insulated thermocouple with connection head and thread
Application
This mineral insulated thermocouple e.g. Nicr-Ni - (Type K) with connection head and thread is available in the design of the measuring tip as class 1 form B or class 1 form A. The nominal length can be freely chosen. The thermocouple can be constructed with further types (type J, type L, type S etc.) on request.
Construction
| Thermocouple | The following thermocouple types can be selected depending on the application: - 1 x type L - 2 x type L - 1 x type J - 2 x type J - 1 x type K - 2 x type K - other thermocouples - acc. to customer’s request type L acc. to DIN 43710 type J and K acc. to DIN EN 60584 |
|---|---|
| Sheath diameter | - 1,5 mm - 2,0 mm - 3,0 mm - 4,5 mm - 6,0 mm - other sheath diameter - acc. to customer’s request |
| Sheath material | - 1.4541 - 2.4816 - other sheath materials - acc. to customer’s request |
| Connection head | - form MA / G 1/2 A - form B / G 1/2 A - form MA / G 3/8 A - form B / G 3/8 A - form MA / G 1/4 A - form B / G 1/4 A - form DAN-S / G 1/2 A - other connection heads - acc. to customer’s request |
| Accessories (fix) | - without - with accessories - acc. to customer’s request |
| Type of measuring tip | - class 1, form B - class 1, form A |
| Nominal length | According to customer requests. Please specify in mm. |
The following thermocouple types can be selected depending on the application:
- 1 x type L
- 2 x type L
- 1 x type J
- 2 x type J
- 1 x type K
- 2 x type K
- other thermocouples - acc. to customer’s request
type L acc. to DIN 43710
type J and K acc. to DIN EN 60584
- 1,5 mm
- 2,0 mm
- 3,0 mm
- 4,5 mm
- 6,0 mm
- other sheath diameter - acc. to customer’s request
- 1.4541
- 2.4816
- other sheath materials - acc. to customer’s request
- form MA / G 1/2 A - form B / G 1/2 A
- form MA / G 3/8 A - form B / G 3/8 A
- form MA / G 1/4 A - form B / G 1/4 A
- form DAN-S / G 1/2 A
- other connection heads - acc. to customer’s request
- without
- with accessories - acc. to customer’s request
- class 1, form B
- class 1, form A
According to customer requests. Please specify in mm.
