MTC 302

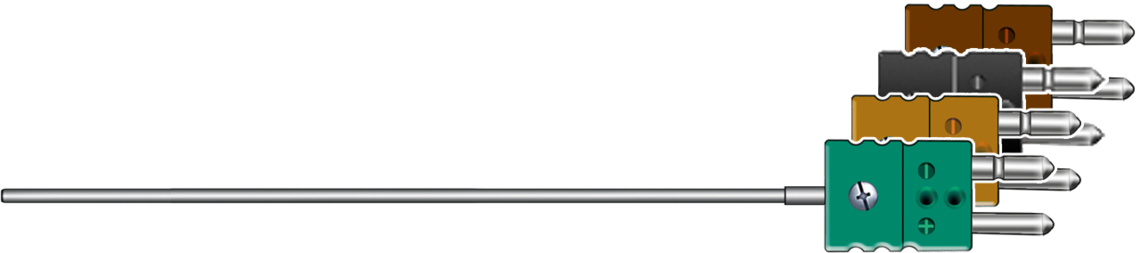

Mineral insulated thermocouple with thermo plug

Mantel-Thermoelement mit Thermostecker

Application

Mineral insulated thermocouple with connector - Select a thermocouple with one of the following plug types: Standard plug, miniature plug, high temperature plug, appliance box, Tuchel plug, or custom designed.

Construction

Thermocouple

The following thermocouple types can be selected depending on the application:

- 1 x type L

- 2 x type L

- 1 x type J

- 2 x type J

- 1 x type K

- 2 x type K

- other thermocouples - acc. to customer’s request

type L acc. to DIN 43710

type J and K acc. to DIN EN 60584

Sheath diameter

- 0,64 mm

- 1,0 mm

- 1,5 mm

- 2,0 mm

- 3,0 mm

- 4,5 mm

- 6,0 mm

- 8,0 mm

- other sheath diameter - acc. to customer’s request

Sheath material

- 1.4541

- 2.4816

- other sheath materials - acc. to customer’s request

Connection Element

- without plug

- standard plug

- miniature plug

- high temp. socket

- high temp. plug

- appliance box

- standard socket

- miniature socket

- Tuchel plug

- special colour - acc. to customer’s request

Accessories (fix)

- without

- with accessories - acc. to customer’s request

Type of measuring tip

- class 1, form A

- class 1, form B

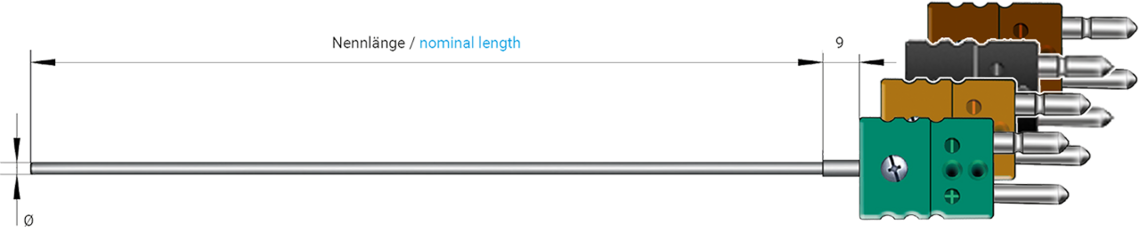

Nominal length

According to customer requests. Please specify in mm.

Thermocouple

The following thermocouple types can be selected depending on the application:

- 1 x type L

- 2 x type L

- 1 x type J

- 2 x type J

- 1 x type K

- 2 x type K

- other thermocouples - acc. to customer’s request

type L acc. to DIN 43710

type J and K acc. to DIN EN 60584

Sheath diameter

- 0,64 mm

- 1,0 mm

- 1,5 mm

- 2,0 mm

- 3,0 mm

- 4,5 mm

- 6,0 mm

- 8,0 mm

- other sheath diameter - acc. to customer’s request

Sheath material

- 1.4541

- 2.4816

- other sheath materials - acc. to customer’s request

Connection Element

- without plug

- standard plug

- miniature plug

- high temp. socket

- high temp. plug

- appliance box

- standard socket

- miniature socket

- Tuchel plug

- special colour - acc. to customer’s request

Accessories (fix)

- without

- with accessories - acc. to customer’s request

Type of measuring tip

- class 1, form A

- class 1, form B

Nominal length

According to customer requests. Please specify in mm.
