Outdoor temperature sensor
Application

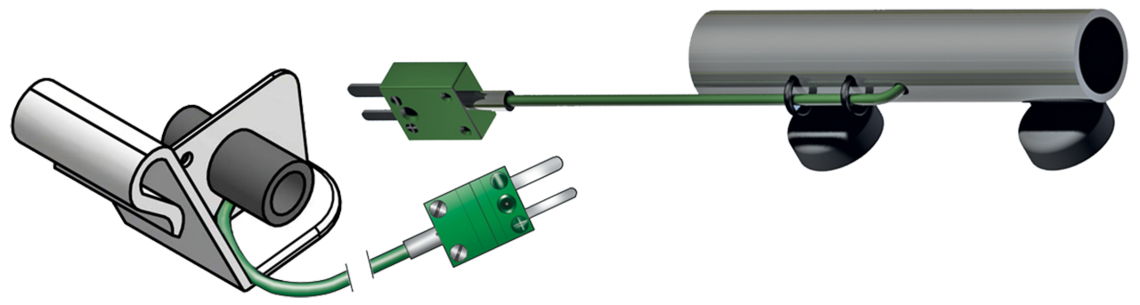

The outdoor temperature sensor is placed on the side window pane and is fixed by closing the window. Due to the plastic construction a damage of the window pane and the gasket is avoided. A version with two magnetic feet can be mounted at any place on the steel vehicle body.
Technical data
| Connection ends | - miniature thermoplug - miniature socket - standard plug - standard socket - free ends specify in mm - acc. to customer’s request - other connection ends |
|---|---|
| Connection cable | - Thermocouple extension cable 2 x 0,22 mm² (FEP / C / FEP) - Thermocouple extension cable 2 x 0,22 mm² (FEP / FEP) - other connection cables - on request (see technical data) |
| Connection cable length | - 0,5 m - 1,0 m - 1,5 m - 2,0 m - 3,0 m - 5,0 m - 10,0 m - other length - acc. to customer’s request |
- miniature thermoplug
- miniature socket
- standard plug
- standard socket
- free ends specify in mm - acc. to customer’s request
- other connection ends
- Thermocouple extension cable 2 x 0,22 mm² (FEP / C / FEP)
- Thermocouple extension cable 2 x 0,22 mm² (FEP / FEP)
- other connection cables - on request (see technical data)
- 0,5 m
- 1,0 m
- 1,5 m
- 2,0 m
- 3,0 m
- 5,0 m
- 10,0 m
- other length - acc. to customer’s request
Configuration examples
| item no. | Note | Thermocouple | Cable | Cable length | Connection ends | Dimension | |
|---|---|---|---|---|---|---|---|
| T999-054-584 | outdoor temperature sensor with magnetic feet | type K | 2 x 0,22 mm² FEP/C/FEP | 2500 mm | miniature thermoplug | Ø 25 x 100 mm | Send inquiry |
| T999-053-055 | outdoor temperature sensor for the window pane | type K | 2 x 0,22 mm² FEP/FEP | 2000 mm | miniature thermoplug | --- | Send inquiry |
Other configurations are possible on request.
