Fuel thermocouple
Fuel thermocouple
Application

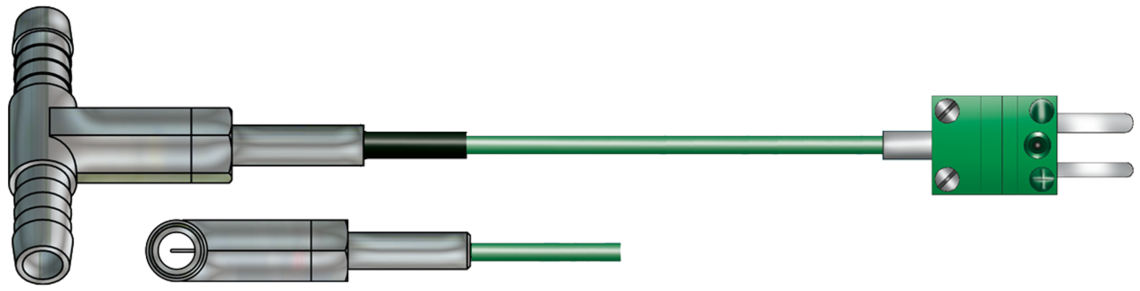

Especially appropriate to measure the temperature in the fuel line. The small diameter of the thermocouple situated in the middle of the T-tube connector, guarantees a quick response time. Another advantage offers the small diameter of the mineral insulated thermocouple so that neither the flow velocity nor the flow quantity are affected. The screening of the cable offers at the same time mechanical protection as well as protection against electromagnetic interference.
Additional information
Also available as combined element with connection for pressure sensors!
Especially appropriate for temperature measurement in engine oil!
Construction
| Thermocouple | The following thermocouple types can be selected depending on the application: - 1 x type J - 1 x type K - other thermocouples - acc. to customer’s request |
|---|---|
| Sheath diameter | - 0,5 mm (1.4404) - other sheath-Ø - acc. to customer’s request |
| Inner tube diameter | - 4 - 5 mm (tube connector NW 3) - 5 - 6 mm (tube connector NW 4) - 7 - 8 mm (tube connector NW 6) - 9 - 10 mm (tube connector NW 8) - 11 - 12 mm (tube connector NW 10) - 13 - 14 mm (tube connector NW 12) - other inner tube-Ø - acc. to customer’s request |
| Connection cable | - Thermocouple extension cable 2 x 0,22 mm² (FEP / C / FEP) - Thermocouple extension cable 2 x 0,22 mm² (FEP / FEP) - other connection cables - on request (see technical data) |
| Connection cable length | - 0,5 m - 1,0 m - 1,5 m - 2,0 m - 3,0 m - 5,0 m - 10,0 m - other length - acc. to customer’s request |
| Connection ends | - miniature thermoplug - miniature socket - standard plug - standard socket - free ends specify in mm - acc. to customer’s request - other connection ends |
| Possible on request | with batch certificate and identification |
| Pressure sensor | thread - acc. to customer’s request |
The following thermocouple types can be selected depending on the application:
- 1 x type J
- 1 x type K
- other thermocouples - acc. to customer’s request
- 0,5 mm (1.4404)
- other sheath-Ø - acc. to customer’s request
- 4 - 5 mm (tube connector NW 3)
- 5 - 6 mm (tube connector NW 4)
- 7 - 8 mm (tube connector NW 6)
- 9 - 10 mm (tube connector NW 8)
- 11 - 12 mm (tube connector NW 10)
- 13 - 14 mm (tube connector NW 12)
- other inner tube-Ø - acc. to customer’s request
- Thermocouple extension cable 2 x 0,22 mm² (FEP / C / FEP)
- Thermocouple extension cable 2 x 0,22 mm² (FEP / FEP)
- other connection cables - on request (see technical data)
- 0,5 m
- 1,0 m
- 1,5 m
- 2,0 m
- 3,0 m
- 5,0 m
- 10,0 m
- other length - acc. to customer’s request
- miniature thermoplug
- miniature socket
- standard plug
- standard socket
- free ends specify in mm - acc. to customer’s request
- other connection ends
with batch certificate and identification
thread - acc. to customer’s request
Configuration examples
| item no. | Type | tube NW | Additional connection pressure sensor | Cable | Cable length | Connection ends | |
|---|---|---|---|---|---|---|---|
| T850-058-533 | K | 4 | no | 2 x 0,22 mm² FEP/C/FEP | 7000 mm | miniature thermoplug | Send inquiry |
| T850-056-956 | K | 6 | no | 2 x 0,22 mm² FEP/C/FEP | 3000 mm | miniature thermoplug | Send inquiry |
| T850-050-374 | K | 8 | no | 2 x 0,22 mm² FEP/C/FEP | 500 mm | miniature thermoplug | Send inquiry |
| T850-058-418 | K | 2,5 | yes | 2 x 0,22 mm² FEP/C/FEP | 3000 mm | miniature thermoplug | Send inquiry |
| T850-058-509 | K | 4 | yes | 2 x 0,22 mm² FEP/C/FEP | 3000 mm | miniature thermoplug | Send inquiry |
| T850-058-426 | K | 6 | yes | 2 x 0,22 mm² FEP/C/FEP | 3000 mm | miniature thermoplug | Send inquiry |
| T850-057-580 | K | 8 | yes | 2 x 0,22 mm² FEP/C/FEP | 3000 mm | miniature thermoplug | Send inquiry |
| T850-057-251 | K | 10 | yes | 2 x 0,22 mm² FEP/C/FEP | 3000 mm | miniature thermoplug | Send inquiry |
| T850-059-012 | K | 12 | yes | 2 x 0,22 mm² FEP/C/FEP | 10000 mm | miniature thermoplug | Send inquiry |
Other configurations are possible on request.
