Dip-stick resistance thermometer
Dip stick resistance thermometer
Application

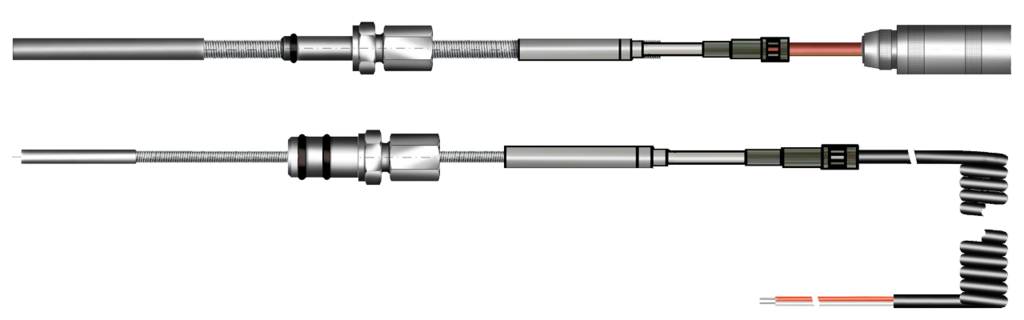

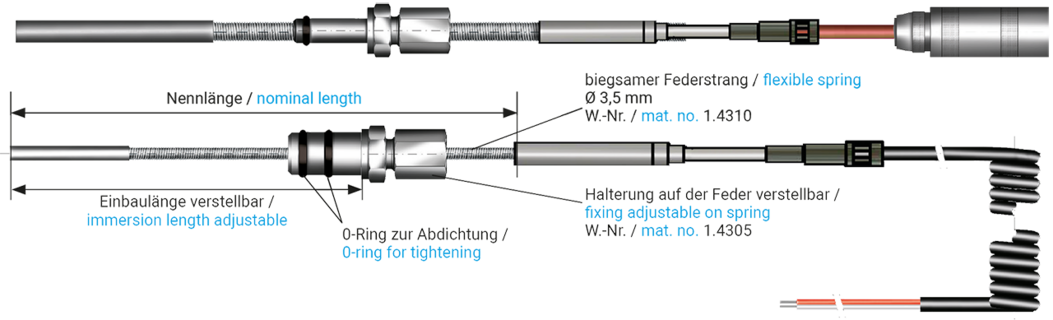

This Pt100 temperature sensor is especially appropriate to collect the temperature in engine oil. The dipstick can easily be inserted instead of the normal oil dipstick. The adjustable fixing tightens the opening so that during operation the oil cannot penetrate. With the help of the fixing, the immersion length of the dipstick can be modified. An additional advantage of the spiral cable is that the element can be put into the required position in case of use and afterwards the cable contracts again like a spring.
Outstanding features
▶ due to the adjustable immersion depth, it can be applied for the most different engine types!
▶ different tightening-Ø possible on request!
Additional information
With a 2-wire circuit only one class accuracy class B accuracy can be confirmed.
Construction
| RTD | - 1 x PT100 - 2 x PT100 |
|---|---|
| Limiting deviation | - class A - -30°C / +300°C - -100°C / +450°C - class B - -50°C / +500°C - -196°C / +600°C |
| Connection types of inner wire | - 2-wire circuit - 3-wire circuit - 4-wire circuit |
| Nominal length | According to customer requests. Please specify in mm. |
| Fixing adjustable | - for tightening-Ø 8 mm - for tightening-Ø __ mm - acc. to customer’s request |
| Connection ends | - bare ends - cable lugs M4 - other cable ends - acc. to customer’s request |
| Possible on request | with batch certificate and identification |
| Connection cable | - RTD cable (FEP / FEP) - other connection cables - on request (see technical data) |
- 1 x PT100
- 2 x PT100
- class A - -30°C / +300°C - -100°C / +450°C
- class B - -50°C / +500°C - -196°C / +600°C
- 2-wire circuit
- 3-wire circuit
- 4-wire circuit
According to customer requests. Please specify in mm.
- for tightening-Ø 8 mm
- for tightening-Ø __ mm - acc. to customer’s request
- bare ends
- cable lugs M4
- other cable ends - acc. to customer’s request
with batch certificate and identification
- RTD cable (FEP / FEP)
- other connection cables - on request (see technical data)
Configuration example
| item no. | RTD | Connection type | fixing dimension | |
|---|---|---|---|---|
| T861-049-392 | 1 x PT100 | 4-wire circuit | Ø 8 mm | Send inquiry |
Other configurations are possible on request.
