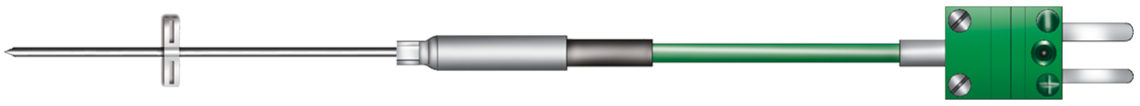

Cooling water tube thermocouple
Cooling water tube thermocouple
Application
This cooling water thermocouple is especially appropriate to measure the temperature of the cooling liquid in the cooling tubes at the engine. If temperature collection is no longer required, the sheath can be simply cut behind the high temperature cable tie. Considerable advantage is the achieved time saving, as it is no longer necessary to let off the cooling liquid. The system of cooling tubes remains tight.
Additional information
limit deviation: class 1
Please note that the temperature stability of the sensor is determined by the weakest parameters.
In order to reuse the cooling water tube sensor, the opening can be closed permanently by the blind plug.
▶ item no.: T061-041-908

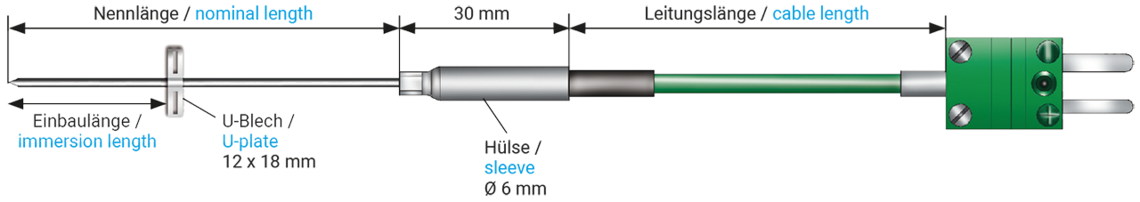

Construction
| Thermocouple | The following thermocouple types can be selected depending on the application: - 1 x type J - 1 x type K - other thermocouples - acc. to customer’s request |
|---|---|
| Type of measuring tip | - class 1, form A, insulated measuring tip - class 1, form B, welded measuring tip |
| Sheath diameter | 1,5 mm |
| Plunge-in tip | - straight - bent |
| Sheath material | - 1.4541 - other sheath materials - acc. to customer’s request |
| Nominal length | According to customer requests. Please specify in mm. |
| Immersion length | According to customer requests. Please specify in mm. |
| Connection cable | - Thermocouple extension cable 2 x 0,22 mm² (FEP / C / FEP) - Thermocouple extension cable 2 x 0,22 mm² (FEP / FEP) - other connection cables - on request (see technical data) |
| Connection cable length | - 0,5 m - 1,0 m - 1,5 m - 2,0 m - 3,0 m - 5,0 m - 10,0 m - other length - acc. to customer’s request |
| Connection ends | - miniature thermoplug - miniature socket - standard plug - standard socket - free ends specify in mm - acc. to customer’s request - other connection ends |
| Possible on request | with batch certificate and identification |
The following thermocouple types can be selected depending on the application:
- 1 x type J
- 1 x type K
- other thermocouples - acc. to customer’s request
- class 1, form A, insulated measuring tip
- class 1, form B, welded measuring tip
1,5 mm
- straight
- bent
- 1.4541
- other sheath materials - acc. to customer’s request
According to customer requests. Please specify in mm.
According to customer requests. Please specify in mm.
- Thermocouple extension cable 2 x 0,22 mm² (FEP / C / FEP)
- Thermocouple extension cable 2 x 0,22 mm² (FEP / FEP)
- other connection cables - on request (see technical data)
- 0,5 m
- 1,0 m
- 1,5 m
- 2,0 m
- 3,0 m
- 5,0 m
- 10,0 m
- other length - acc. to customer’s request
- miniature thermoplug
- miniature socket
- standard plug
- standard socket
- free ends specify in mm - acc. to customer’s request
- other connection ends
with batch certificate and identification
Configuration examples
| item no. | Type | Nominal length | Immersion length | Plunge-in tip | Cable | Cable length | Connection ends | |
|---|---|---|---|---|---|---|---|---|
| T844-041-357 | K | 70 mm | 20 mm | straight | 2 x 0,22 mm² FEP/C/FEP | 1500 mm | miniature thermoplug | Send inquiry |
| T844-056-135 | K | 80 mm | 10 mm | straight | 2 x 0,22 mm² FEP/C/FEP | 2000 mm | miniature thermoplug | Send inquiry |
| T844-057-278 | K | 40 mm | 20 mm | straight | 2 x 0,22 mm² FEP/C/FEP | 2000 mm | miniature thermoplug | Send inquiry |
| T844-059-310 | K | 80 mm | 14 mm | straight | 2 x 0,22 mm² FEP/C/FEP | 2000 mm | miniature thermoplug | Send inquiry |
Other configurations are possible on request.
