Battery thermocouple
Battery thermocouple
Application

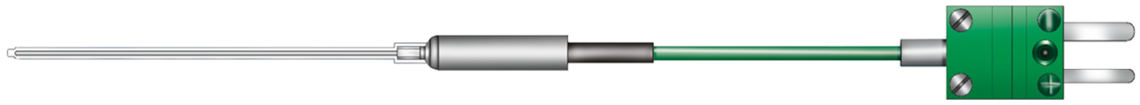

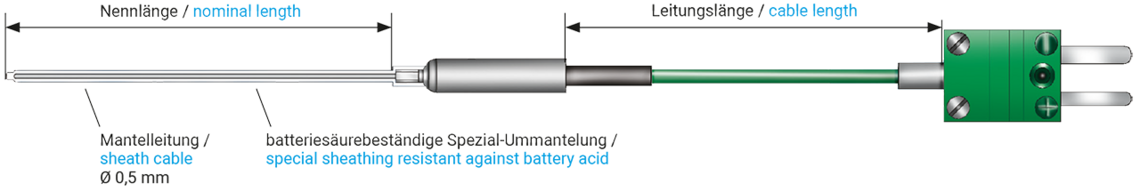

This thermocouple is used, for example in automobile industry. The special thermocouple is especially appropriate to measure temperatures in batteries. Considerable advantage is the special sheathing resistant against battery acids that enables a temperature measurement directly in the acid without any harm to the thermocouple itself.
Additional information
Temperature range up to +205°C
Construction
| Thermocouple | The following thermocouple types can be selected depending on the application: - 1 x type J - 2 x type J - 1 x type K - 2 x type K - other thermocouples - acc. to customer’s request |
|---|---|
| Connection cable | - Thermocouple extension cable 2 x 0,22 mm² (FEP / C / FEP) - Thermocouple extension cable 2 x 0,22 mm² (FEP / FEP) - other connection cables - on request (see technical data) |
| Connection cable length | - 0,5 m - 1,0 m - 1,5 m - 2,0 m - 3,0 m - 5,0 m - 10,0 m - other length - acc. to customer’s request |
| Sheath material | - 1.4541 - 2.4816 - other sheath materials - acc. to customer’s request |
| Connection ends | - miniature thermoplug - miniature socket - standard plug - standard socket - free ends specify in mm - acc. to customer’s request - other connection ends |
| Type of measuring tip | - class 1, form A, insulated measuring tip - class 1, form B, welded measuring tip |
| Nominal length | According to customer requests. Please specify in mm. |
| Type | - with kink protection - without kink protection |
| Possible on request | - with batch certificate and identification - Dakks calibration on request - accessories (fix) - acc. to customer’s request |
The following thermocouple types can be selected depending on the application:
- 1 x type J
- 2 x type J
- 1 x type K
- 2 x type K
- other thermocouples - acc. to customer’s request
- Thermocouple extension cable 2 x 0,22 mm² (FEP / C / FEP)
- Thermocouple extension cable 2 x 0,22 mm² (FEP / FEP)
- other connection cables - on request (see technical data)
- 0,5 m
- 1,0 m
- 1,5 m
- 2,0 m
- 3,0 m
- 5,0 m
- 10,0 m
- other length - acc. to customer’s request
- 1.4541
- 2.4816
- other sheath materials - acc. to customer’s request
- miniature thermoplug
- miniature socket
- standard plug
- standard socket
- free ends specify in mm - acc. to customer’s request
- other connection ends
- class 1, form A, insulated measuring tip
- class 1, form B, welded measuring tip
According to customer requests. Please specify in mm.
- with kink protection
- without kink protection
- with batch certificate and identification
- Dakks calibration on request
- accessories (fix) - acc. to customer’s request
Configuration examples
| item no. | Type | ø | Nominal length | Material | Cable | Cable length | Connection ends | |
|---|---|---|---|---|---|---|---|---|
| T841-041-336 | K | 0,50 mm | 200 mm | 2.4816 | 2 x 0,22 mm² FEP/C/FEP | 500 mm | end sleeves | Send inquiry |
| T841-049-891 | K | 0,50 mm | 100 mm | 2.4816 | 2 x 0,22 mm² FEP/C/FEP | 300 mm | miniature thermoplug | Send inquiry |
Other configurations are possible on request.
