Airflow resistance thermometer
Airflow resistance thermometer
Application
For temperature measurement, for example at engine test benches. Especially appropriate to collect the temperature of the airflow, for example in the turbocharger. The small diameter of the measuring tip guarantees a quick response time. The screening of the cable offers at the same time mechanical protection as well as protection against electromagnetic interference. Usually fixing can be done by clamping screw connections.
Outstanding features
Small measuring tip Ø garantees quick response times!
Additional information
With a 2-wire circuit only one class accuracy class B accuracy can be confirmed.
material 1.4541: +800°C
Please note that the temperature stability of the sensor is determined by the weakest parameters.
Class AA on request!

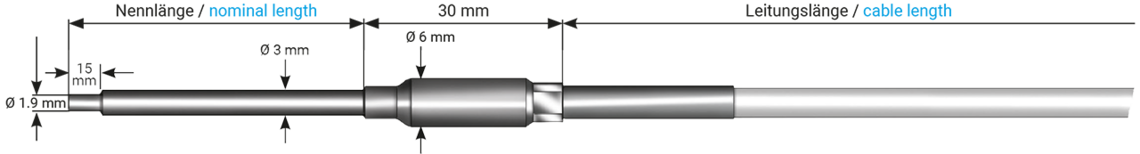

Construction
| RTD | - 1 x PT100 - 2 x PT100 |
|---|---|
| Limiting deviation | - class A - -30°C / +300°C - -100°C / +450°C - class B - -50°C / +500°C - -196°C / +600°C |
| Connection types of inner wire | - 2-wire circuit - 3-wire circuit - 4-wire circuit |
| Nominal Length | According to customer requests. Please specify in mm. |
| Type | - with kink protection - without kink protection |
| Connection cable | - RTD cable (FEP / FEP) - other connection cables - on request (see technical data) |
| Connection cable length | - 0,5 m - 1,0 m - 1,5 m - 2,0 m - 3,0 m - 5,0 m - 10,0 m - other length - acc. to customer’s request |
| Connection ends | - bare ends - endsleeves - cable lugs M4 - tinned - other cable ends - acc. to customer’s request |
| Possible on request | with batch certificate and identification |
- 1 x PT100
- 2 x PT100
- class A - -30°C / +300°C - -100°C / +450°C
- class B - -50°C / +500°C - -196°C / +600°C
- 2-wire circuit
- 3-wire circuit
- 4-wire circuit
According to customer requests. Please specify in mm.
- with kink protection
- without kink protection
- RTD cable (FEP / FEP)
- other connection cables - on request (see technical data)
- 0,5 m
- 1,0 m
- 1,5 m
- 2,0 m
- 3,0 m
- 5,0 m
- 10,0 m
- other length - acc. to customer’s request
- bare ends
- endsleeves
- cable lugs M4
- tinned
- other cable ends - acc. to customer’s request
with batch certificate and identification
Configuration example
| item no. | RTD | Connection type | Ø min.t/c | Ø protecting tube | Nominal length | Cable | Cable length | Connection ends | |
|---|---|---|---|---|---|---|---|---|---|
| T870-058-439 | 1 x PT100 | 3-wire circuit | 1,9 mm x 15 mm | 3 mm | 70 mm | FEP/FEP | 1000 mm | bare ends | Send inquiry |
Other configurations are possible on request.
