HV 1000 C - MC

robust, flexible high-voltage multi-core cable with overall copper screen

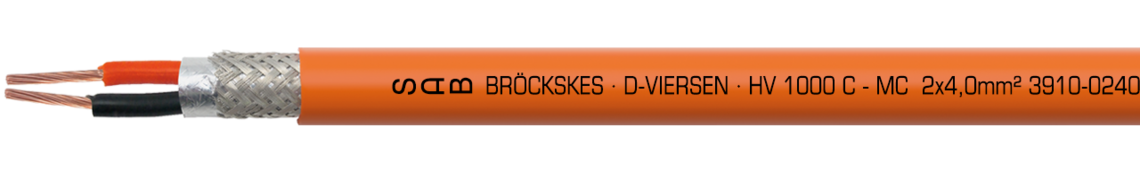

Marking for HV 1000 C MC 39100240: SAB BRÖCKSKES · D-VIERSEN · HV 1000 C - MC  2x4,0mm² 3910-0240  CE

Marking for HV 1000 C MC 39100240: SAB BRÖCKSKES · D-VIERSEN · HV 1000 C - MC 2x4,0mm² 3910-0240 CE

Application

These high-voltage cables can be used in high-voltage applications e.g. in the fields of agricultural vehicles, construction vehicles and special vehicles. The HV 1000 C - MC is used as a connection cable e.g. for cabin heating, the electric compressor, the high-voltage heat pump in electric and hybrid vehicles.

Outstanding features

  • extremely high mechanical strength
  • high protection against environmental influences
  • 100% oil resistance acc. to standard
  • application range from -50°C to +125°C

Additional information

Construction, materials and tests with reference to:
●  DIN EN 60228
●  DIN EN 50525
●  DIN EN 50290-2-30
●  DIN EN 50620
●  DIN EN 60811
In individual cases, the specific application must be agreed with SAB Bröckskes.

Construction

Conductor

bare copper strands acc. to IEC 60228, VDE 0295, class 5

Insulation

TPFP

Colour code

red, black,

from 3 cores acc. to HD 308

or acc. to customer request

Stranding

together

Inner sheath

Besilen®

Screen

alu foil and tinned copper braiding

Wrapping

non-woven tape

Sheath material

TPE-U

Sheath colour

orange (RAL 2003)

Conductor

bare copper strands acc. to IEC 60228, VDE 0295, class 5

Insulation

TPFP

Colour code

red, black,

from 3 cores acc. to HD 308

or acc. to customer request

Stranding

together

Inner sheath

Besilen®

Screen

alu foil and tinned copper braiding

Wrapping

non-woven tape

Sheath material

TPE-U

Sheath colour

orange (RAL 2003)

Technical Data

Nominal voltage

Uo/U max. 0,6/1 kV AC/DC

Testing voltage

core/core 5000 V

core/screen 5000 V

Min. bending radius

fixed laying: 5 x d

flexible application: 10 x d

Temperature range

fixed laying: -50/+90 °C

flexible application: -40/+90 °C

limited time of use: +125 °C (2000 h)

Low temperature resistance

-50°C acc. to DIN EN 60811-506

Fire performance

flame retardant and self-extinguishing acc. to IEC 60332-1-2 + VDE 0482-332-1-2

Oil resistance

very good - TMPU acc. to EN 50363-10-2 + VDE 0207-363-10-2

MUD resistance

very good - acc. to IEC 60092-360, IEC 61892-4, NEK TS 606

UV resistance

acc. to HD 605

Ozone resistance

acc. to EN 50396

Saltwater resistance

acc. to UL 1309

Mechanical characteristics

the main mechanical characteristics accomplished by the outer sheath are:

- high tensile strength

- high tear strength

- high abrasion resistance

- high notch resistance

- high shear strength

Absence of harmful substances

acc. to RoHS directive of the European Union

Nominal voltage

Uo/U max. 0,6/1 kV AC/DC

Testing voltage

core/core 5000 V

core/screen 5000 V

Min. bending radius

fixed laying: 5 x d

flexible application: 10 x d

Temperature range

fixed laying: -50/+90 °C

flexible application: -40/+90 °C

limited time of use: +125 °C (2000 h)

Low temperature resistance

-50°C acc. to DIN EN 60811-506

Fire performance

flame retardant and self-extinguishing acc. to IEC 60332-1-2 + VDE 0482-332-1-2

MUD resistance

very good - acc. to IEC 60092-360, IEC 61892-4, NEK TS 606

UV resistance

acc. to HD 605

Ozone resistance

acc. to EN 50396

Saltwater resistance

acc. to UL 1309

Mechanical characteristics

the main mechanical characteristics accomplished by the outer sheath are:

- high tensile strength

- high tear strength

- high abrasion resistance

- high notch resistance

- high shear strength

Absence of harmful substances

acc. to RoHS directive of the European Union

Dimensions

item no. No. of cores x
cross section
Largest single
wire-ø
max. outer-ø Copper figure Cable weight ≈ Ohmic resistance
max. Ω/km
L391002252 x 2,50 mm²0,26 mm9,9 mm93,4 kg/km147 kg/km7,98 Ω/km Send inquiry
L391003253 x 2,50 mm²0,26 mm10,4 mm117,3 kg/km181 kg/km7,98 Ω/km Send inquiry
L391002402 x 4,00 mm²0,31 mm11,3 mm133,7 kg/km206 kg/km4,95 Ω/km Send inquiry
L391003403 x 4,00 mm²0,31 mm12,1 mm171,5 kg/km252 kg/km4,95 Ω/km Send inquiry
L391002602 x 6,00 mm²0,31 mm12,8 mm175,8 kg/km266 kg/km3,10 Ω/km Send inquiry
L391003603 x 6,00 mm²0,31 mm14,1 mm261,3 kg/km366 kg/km3,10 Ω/km Send inquiry
L391004604 x 6,00 mm²0,31 mm15,1 mm325,3 kg/km433 kg/km3,10 Ω/km Send inquiry
L391005605 x 6,00 mm²0,31 mm16,3 mm393,5 kg/km515 kg/km3,10 Ω/km Send inquiry
item no.
No. of cores x
cross section
Largest single
wire-ø
max. outer-ø
Copper figure
Cable weight ≈
Ohmic resistance
max. Ω/km
L39100225
2 x 2,50 mm²
0,26 mm
9,9 mm
93,4 kg/km
147 kg/km
7,98 Ω/km
L39100325
3 x 2,50 mm²
0,26 mm
10,4 mm
117,3 kg/km
181 kg/km
7,98 Ω/km
L39100240
2 x 4,00 mm²
0,31 mm
11,3 mm
133,7 kg/km
206 kg/km
4,95 Ω/km
L39100340
3 x 4,00 mm²
0,31 mm
12,1 mm
171,5 kg/km
252 kg/km
4,95 Ω/km
L39100260
2 x 6,00 mm²
0,31 mm
12,8 mm
175,8 kg/km
266 kg/km
3,10 Ω/km
L39100360
3 x 6,00 mm²
0,31 mm
14,1 mm
261,3 kg/km
366 kg/km
3,10 Ω/km
L39100460
4 x 6,00 mm²
0,31 mm
15,1 mm
325,3 kg/km
433 kg/km
3,10 Ω/km
L39100560
5 x 6,00 mm²
0,31 mm
16,3 mm
393,5 kg/km
515 kg/km
3,10 Ω/km

Other dimensions and colours are possible on request.
