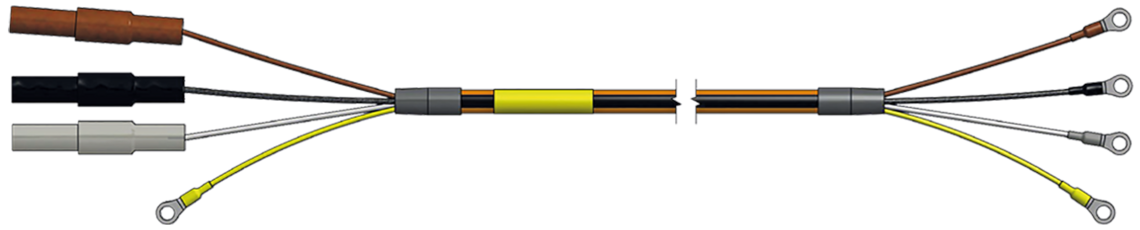

HV measuring cable for AC voltage measurement (cable harness)
Application
Safe HV measurement of AC voltages
Additional information
SAB identification: item number, batch number
Cable data
| Connection cable | HV measuring cable |
|---|---|
| Core insulation | FEP – brown, black and grey |
| Stranding | together with tinned copper drain wire, AWG 24 |
| Screen | 100% screen with alu foil and braiding |
| Inner sheath | PUR – blue acc. to RAL 5024 |
| Outer sheath | PUR |
| Sheath colour | orange with black vertical stripes |
| Outer diameter | 3 x 0,34 mm²: 7,0 mm 3 x 0,50 mm²: 7,4 mm 3 x 1,00 mm²: 8,1 mm 3 x 1,50 mm²: 8,8 mm |
| Scoop-proof | 1000 V DC over blue inner sheath |
| Operating voltage | 1800 V DC |
| Temperature range | fixed laying: -50°C / +125°C flexible application: -40°C / +125°C short time use: +150°C (up to 3000 h) |
HV measuring cable
FEP – brown, black and grey
together
with tinned copper drain wire, AWG 24
100% screen with alu foil and braiding
PUR – blue acc. to RAL 5024
PUR
orange with black vertical stripes
3 x 0,34 mm²: 7,0 mm
3 x 0,50 mm²: 7,4 mm
3 x 1,00 mm²: 8,1 mm
3 x 1,50 mm²: 8,8 mm
1000 V DC over blue inner sheath
1800 V DC
fixed laying: -50°C / +125°C
flexible application: -40°C / +125°C
short time use: +150°C (up to 3000 h)
Connection end
| Stripping length | 250 mm |
|---|---|
| Screen | led out with filler and insulated with shrinkable sleeve |
| Temperature range of single core | -55°C / +180°C |
250 mm
led out with filler and insulated with shrinkable sleeve
-55°C / +180°C
Connectors
| Safety lab plugs | 1000 V, CAT III, brown, grey and black, 4 mm cable lug M4 |
|---|
1000 V, CAT III, brown, grey and black, 4 mm cable lug M4

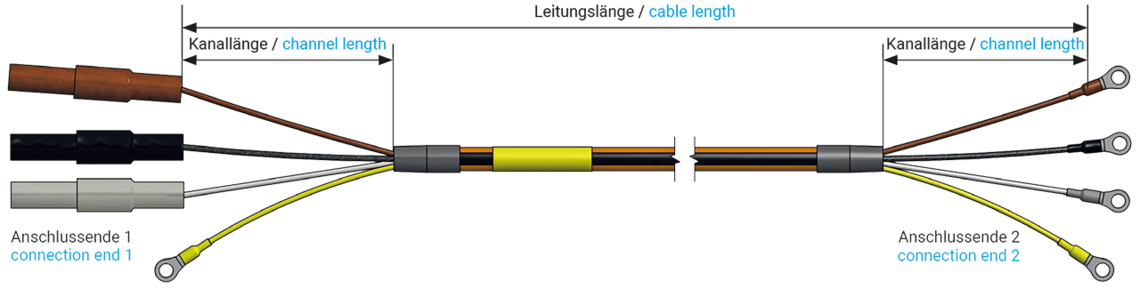

Configuration example
| item no. | Length channel 1 | Length channel 2 | |
|---|---|---|---|
| T645-062-913 | 250 mm | 250 mm | Send inquiry |
Total cable and channel lengths can be realised on customer’s request.
