DR 720 P Highflex

Reeling cable, 0,6/1 kV for higher mechanical stress

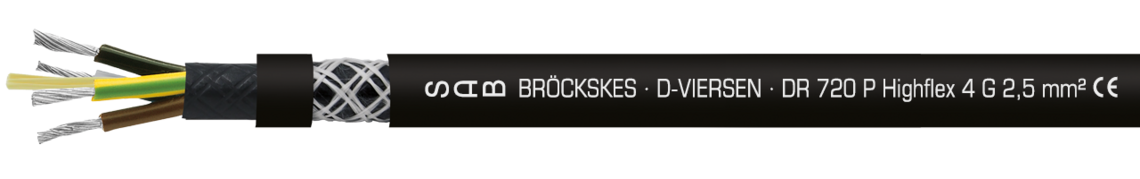

Marking for DR 720 P Highflex 07201215: SAB BRÖCKSKES · D-VIERSEN · DR 720 P Highflex 12 G 1,5 mm² CE

Marking for DR 720 P Highflex 07201215: SAB BRÖCKSKES · D-VIERSEN · DR 720 P Highflex 12 G 1,5 mm² CE

Application

The High Flex Cable is used for heavy appliances as, for example, motor cable reels hoists, transport systems, movable motors, and farm vehicles with high mechanical stress.

Outstanding features

  • path feed rate up to 120m/min.
  • extrem highly winding and unwinding strength
  • small outer diameter
  • small cable weight
  • corresponds to low voltage guideline 73/23/EWG CE

Construction

Conductor

bare copper strands acc. to IEC 60228, VDE 0295, class 5

Insulation

special polymer

Colour code

coloured acc. to HD 308 (VDE 0293-308), from 6 cores black cores with consecutive numbers acc. to EN 50334 + VDE 0293-334, from 3 cores a green-yellow earth wire

Stranding

specially adjusted layering around central suspension unit

Inner sheath

PUR, TMPU acc. to EN 50363-10-2 + VDE 0207-363-10-2

Supporting screen

high-tech yarn

Sheath material

PUR, TMPU acc. to EN 50363-10-2 + VDE 0207-363-10-2

Sheath colour

black (RAL 9005)

Conductor

bare copper strands acc. to IEC 60228, VDE 0295, class 5

Insulation

special polymer

Colour code

coloured acc. to HD 308 (VDE 0293-308), from 6 cores black cores with consecutive numbers acc. to EN 50334 + VDE 0293-334, from 3 cores a green-yellow earth wire

Stranding

specially adjusted layering around central suspension unit

Inner sheath

PUR, TMPU acc. to EN 50363-10-2 + VDE 0207-363-10-2

Supporting screen

high-tech yarn

Sheath material

PUR, TMPU acc. to EN 50363-10-2 + VDE 0207-363-10-2

Sheath colour

black (RAL 9005)

Technical data

Nominal voltage

Uo/U 0,6/1 kV

Testing voltage

core/core: 4000 V

Current-carrying capacity

acc. to VDE 0298-4, see chapter N „Technical Data“

Min. bending radius

for laying and installation (fixed laying):



≤ 12 mm 3 x d/ > 12 mm 4 x d



for repeated winding action (flexible): 6 x d



guided on pulleys (flexible): 7,5 x d

Temperature range

fixed laying: -50/+90°C

flexible application: -40/+90°C

Halogen-free

acc. to IEC 60754-1 + VDE 0482-754-1

Fire performance

flame retardant and self-extinguishing acc. to IEC 60332-1-2 + VDE 0482-332-1-2

Oil resistance

very good - TMPU acc. to EN 50363-10-2 + VDE 0207-363-10-2

Chem. resistance

good against acids, alkalines, solvents, hydraulic liquids, etc.

Weather resistance

very good

Sunlight resistance

very good - enhanced due to black sheath colour

Tensile strength

acc. to VDE 0298-3 section 7.1

Mechanical characteristics

the main mechanical characteristics fulfils by the PUR outer sheath are:

-high tensile strength

-high tear strength

-high abrasion resistance

-high notch resistance

Absence of harmful substances

acc. to RoHS directive of the European Union

Nominal voltage

Uo/U 0,6/1 kV

Testing voltage

core/core: 4000 V

Current-carrying capacity

acc. to VDE 0298-4, see chapter N „Technical Data“

Min. bending radius

for laying and installation (fixed laying):



≤ 12 mm 3 x d/ > 12 mm 4 x d



for repeated winding action (flexible): 6 x d



guided on pulleys (flexible): 7,5 x d

Temperature range

fixed laying: -50/+90°C

flexible application: -40/+90°C

Halogen-free

acc. to IEC 60754-1 + VDE 0482-754-1

Fire performance

flame retardant and self-extinguishing acc. to IEC 60332-1-2 + VDE 0482-332-1-2

Chem. resistance

good against acids, alkalines, solvents, hydraulic liquids, etc.

Weather resistance

very good

Sunlight resistance

very good - enhanced due to black sheath colour

Tensile strength

acc. to VDE 0298-3 section 7.1

Mechanical characteristics

the main mechanical characteristics fulfils by the PUR outer sheath are:

-high tensile strength

-high tear strength

-high abrasion resistance

-high notch resistance

Absence of harmful substances

acc. to RoHS directive of the European Union

Dimensions

item no. No. of cores x
cross section
Copper figure Cable weight ≈ min. breaking load
of suspension unit
Outer-ø ± 5%
L072004154 G 1,50 mm²57,6 kg/km119 kg/km1340 N9 mm Send inquiry
L072005155 G 1,50 mm²72 kg/km142 Kg/km1690 N9,8 mm Send inquiry
L072007157 G 1,50 mm²100,8 kg/km204 kg/km2150 N11,8 mm Send inquiry
L0720121512 G 1,50 mm²172,8 kg/km359 kg/km2600 N16,6 mm Send inquiry
L0720181518 G 1,50 mm²259,2 kg/km430 kg/km2600 N16,4 mm Send inquiry
L072004254 G 2,50 mm²96 kg/km170 kg/km1345 N10,4 mm Send inquiry
L072005255 G 2,50 mm²120 kg/km213 kg/km2100 N11,6 mm Send inquiry
L072007257 G 2,50 mm²168 kg/km299 kg/km2500 N13,8 mm Send inquiry
L0720122512 G 2,50 mm²288 kg/km531 kg/km2900 N19,6 mm Send inquiry
L0720182518 G 2,50 mm²432 kg/km641 kg/km3450 N19,7 mm Send inquiry
L0720242524 G 2,50 mm²576 kg/km879 kg/km2700 N23,8 mm Send inquiry
L0720302530 G 2,50 mm²720 kg/km1099 kg/km4200 N26,6 mm Send inquiry
L0720362536 G 2,50 mm²864 kg/km1208 kg/km4750 N26,7 mm Send inquiry
L0720502550 G 2,50 mm²1200 kg/km1739 kg/km6750 N32,4 mm Send inquiry
L072004404 G 4,00 mm²153,6 kg/km255 kg/km1690 N12,4 mm Send inquiry
L0720124012 G 4,00 mm²460,8 kg/km835 kg/km5000 N24 mm Send inquiry
L072004604 G 6,00 mm²230,4 kg/km369 kg/km1860 N14,8 mm Send inquiry
L072004704 G 10,0 mm²384 kg/km592 kg/km2300 N18,2 mm Send inquiry
L072004804 G 16,0 mm²614,4 kg/km915 kg/km2800 N22,7 mm Send inquiry
L072003903 x 25,0 + 3 G 6,00 mm²892,8 kg/km1188 kg/km3300 N24,3 mm Send inquiry
L072004904 G 25,0 mm²960 kg/km1351 kg/km3300 N26,9 mm Send inquiry
L072003953 x 35,0 + 3 G 6,00 mm²1180,8 kg/km1577 kg/km3300 N28,1 mm Send inquiry
L072004954 G 35,0 mm²1344 kg/km1893 kg/km3300 N31,5 mm Send inquiry
L072003963 x 50,0 + 3 G 10,0 mm²1728 kg/km2264 kg/km3800 N31,9 mm Send inquiry
L0720241524 G 1,50 mm²345,6 kg/km575 kg/km2700 N19,5 mm Send inquiry
item no.
No. of cores x
cross section
Copper figure
Cable weight ≈
min. breaking load
of suspension unit
Outer-ø ± 5%
L07200415
4 G 1,50 mm²
57,6 kg/km
119 kg/km
1340 N
9 mm
L07200515
5 G 1,50 mm²
72 kg/km
142 Kg/km
1690 N
9,8 mm
L07200715
7 G 1,50 mm²
100,8 kg/km
204 kg/km
2150 N
11,8 mm
L07201215
12 G 1,50 mm²
172,8 kg/km
359 kg/km
2600 N
16,6 mm
L07201815
18 G 1,50 mm²
259,2 kg/km
430 kg/km
2600 N
16,4 mm
L07200425
4 G 2,50 mm²
96 kg/km
170 kg/km
1345 N
10,4 mm
L07200525
5 G 2,50 mm²
120 kg/km
213 kg/km
2100 N
11,6 mm
L07200725
7 G 2,50 mm²
168 kg/km
299 kg/km
2500 N
13,8 mm
L07201225
12 G 2,50 mm²
288 kg/km
531 kg/km
2900 N
19,6 mm
L07201825
18 G 2,50 mm²
432 kg/km
641 kg/km
3450 N
19,7 mm
L07202425
24 G 2,50 mm²
576 kg/km
879 kg/km
2700 N
23,8 mm
L07203025
30 G 2,50 mm²
720 kg/km
1099 kg/km
4200 N
26,6 mm
L07203625
36 G 2,50 mm²
864 kg/km
1208 kg/km
4750 N
26,7 mm
L07205025
50 G 2,50 mm²
1200 kg/km
1739 kg/km
6750 N
32,4 mm
L07200440
4 G 4,00 mm²
153,6 kg/km
255 kg/km
1690 N
12,4 mm
L07201240
12 G 4,00 mm²
460,8 kg/km
835 kg/km
5000 N
24 mm
L07200460
4 G 6,00 mm²
230,4 kg/km
369 kg/km
1860 N
14,8 mm
L07200470
4 G 10,0 mm²
384 kg/km
592 kg/km
2300 N
18,2 mm
L07200480
4 G 16,0 mm²
614,4 kg/km
915 kg/km
2800 N
22,7 mm
L07200390
3 x 25,0 + 3 G 6,00 mm²
892,8 kg/km
1188 kg/km
3300 N
24,3 mm
L07200490
4 G 25,0 mm²
960 kg/km
1351 kg/km
3300 N
26,9 mm
L07200395
3 x 35,0 + 3 G 6,00 mm²
1180,8 kg/km
1577 kg/km
3300 N
28,1 mm
L07200495
4 G 35,0 mm²
1344 kg/km
1893 kg/km
3300 N
31,5 mm
L07200396
3 x 50,0 + 3 G 10,0 mm²
1728 kg/km
2264 kg/km
3800 N
31,9 mm
L07202415
24 G 1,50 mm²
345,6 kg/km
575 kg/km
2700 N
19,5 mm

Please mention the required winding length when placing the order. ─ Other dimensions and colours are possible on request.
