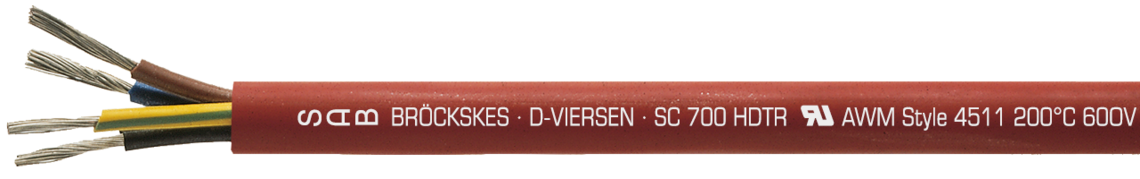

SC 700 HDTR

Besilen® insulated strands with Besilen® outer sheath, UL/cUL recognized

Marking for SC 700 HDTR 01250410: SAB BRÖCKSKES · D-VIERSEN · SC 700 HDTR UL AWM Style 4511 200°C 60OV cUL AWM I/II A/B 200°C 600V FT1 FT2 CE

Marking for SC 700 HDTR 01250410: SAB BRÖCKSKES · D-VIERSEN · SC 700 HDTR UL AWM Style 4511 200°C 60OV cUL AWM I/II A/B 200°C 600V FT1 FT2 CE

Download data sheet for SC 700 HDTR
Questions about our products?

Application

UL/cUL recognized cable for a Temperature range up to +200°C.

Outstanding features

  • halogen-free
  • flexible at low temperatures
  • heat resistant
  • UL/cUL recognized

Construction

Conductor

< 10 mm2: nickel-plated copper strands

≥ 10 mm2: tinned copper strands

acc. to IEC 60228, VDE 0295, class 5

Insulation

Besilen®

Colour code

coloured acc. to (VDE 0293-308), from 3 cores a green-yellow earth wire, from 6 cores black cores with consecutive numbers acc. to EN 50334 + VDE 0293-334 and a green-yellow earth wire

Stranding

in layers

Sheath material

Besilen® EM9 acc. to EN 50363-2-1 + VDE 0207-363-2-1

Sheath colour

reddish brown (similar RAL 3016)

Conductor

< 10 mm2: nickel-plated copper strands

≥ 10 mm2: tinned copper strands

acc. to IEC 60228, VDE 0295, class 5

Insulation

Besilen®

Colour code

coloured acc. to (VDE 0293-308), from 3 cores a green-yellow earth wire, from 6 cores black cores with consecutive numbers acc. to EN 50334 + VDE 0293-334 and a green-yellow earth wire

Stranding

in layers

Sheath material

Besilen® EM9 acc. to EN 50363-2-1 + VDE 0207-363-2-1

Sheath colour

reddish brown (similar RAL 3016)

Technical data

Nominal voltage

Uo/U 300/500 V

Voltage UL/cUL

600 V

Testing voltage

core/core 2000 V

Min. bending radius

fixed laying 4 x d

flexible application 6 x d

Radiation resistance

2 x 10⁷ cJ/kg

Temperature range

UL/cUL: up to +200 °C

fixed laying: DIN VDE: -40/+180 °C

flexible application: -25/+180 °C

short-time use: -25/+250 °C

Halogen-free

acc. to IEC 60754-1 + VDE 0482-754-1

Fire performance

flame retardant and self-extinguishing acc. to IEC 60332-1-2 + VDE 0482-332-1-2, cUL FT1, FT2

Corrosiveness of conflagration gases

IEC 60754-2 + VDE 0482-754-2 no development of corrosive conflagration gases

Absence of harmful substances

acc. to RoHS directive of the European Union

Nominal voltage

Uo/U 300/500 V

Voltage UL/cUL

600 V

Testing voltage

core/core 2000 V

Min. bending radius

fixed laying 4 x d

flexible application 6 x d

Radiation resistance

2 x 10⁷ cJ/kg

Temperature range

UL/cUL: up to +200 °C

fixed laying: DIN VDE: -40/+180 °C

flexible application: -25/+180 °C

short-time use: -25/+250 °C

Halogen-free

acc. to IEC 60754-1 + VDE 0482-754-1

Fire performance

flame retardant and self-extinguishing acc. to IEC 60332-1-2 + VDE 0482-332-1-2, cUL FT1, FT2

Corrosiveness of conflagration gases

IEC 60754-2 + VDE 0482-754-2 no development of corrosive conflagration gases

Absence of harmful substances

acc. to RoHS directive of the European Union

Dimensions

item no. No. of cores x
cross section 		Largest single
wire-ø 		Copper figure Cable weight ≈ Outer-ø ± 5%
L012502052 x 0,50 mm²0,21 mm10,3 kg/km38 kg/km5,6 mm Send inquiry
L012503053 x 0,50 mm²0,21 mm15,4 kg/km46 kg/km5,9 mm Send inquiry
L012504054 x 0,50 mm²0,21 mm20,5 kg/km54 kg/km6,3 mm Send inquiry
L012505055 x 0,50 mm²0,21 mm25,6 kg/km66 kg/km6,9 mm Send inquiry
L012507057 x 0,50 mm²0,21 mm35,9 kg/km81 kg/km7,5 mm Send inquiry
L012508058 x 0,50 mm²0,21 mm41 kg/km102 kg/km8,6 mm Send inquiry
L0125100510 x 0,50 mm²0,21 mm51,3 kg/km110 kg/km9,3 mm Send inquiry
L0125120512 x 0,50 mm²0,21 mm61,5 kg/km126 kg/km9,6 mm Send inquiry
L0125160516 x 0,50 mm²0,21 mm82 kg/km162 kg/km10,6 mm Send inquiry
L0125180518 x 0,50 mm²0,21 mm92,3 kg/km181 kg/km11,2 mm Send inquiry
L0125240524 x 0,50 mm²0,21 mm123,1 kg/km231 kg/km13,1 mm Send inquiry
L012502072 x 0,75 mm²0,21 mm14,4 kg/km46 kg/km5,9 mm Send inquiry
L012503073 x 0,75 mm²0,21 mm21,6 kg/km55 kg/km6,4 mm Send inquiry
L012504074 x 0,75 mm²0,21 mm28,8 kg/km66 kg/km6,9 mm Send inquiry
L012505075 x 0,75 mm²0,21 mm36 kg/km82 kg/km7,6 mm Send inquiry
L012507077 x 0,75 mm²0,21 mm50,4 kg/km100 kg/km8,2 mm Send inquiry
L012508078 x 0,75 mm²0,21 mm57,6 kg/km127 kg/km9,5 mm Send inquiry
L0125100710 x 0,75 mm²0,21 mm72 kg/km137 kg/km10,3 mm Send inquiry
L0125120712 x 0,75 mm²0,21 mm86,4 kg/km157 kg/km10,6 mm Send inquiry
L0125160716 x 0,75 mm²0,21 mm115,2 kg/km203 kg/km11,8 mm Send inquiry
L0125180718 x 0,75 mm²0,21 mm129,6 kg/km230 kg/km12,5 mm Send inquiry
L0125240724 x 0,75 mm²0,21 mm172,8 kg/km296 kg/km14,8 mm Send inquiry
L012502102 x 1,00 mm²0,21 mm19,2 kg/km52 kg/km6,3 mm Send inquiry
L012503103 x 1,00 mm²0,21 mm28,8 kg/km63 kg/km6,6 mm Send inquiry
L012504104 x 1,00 mm²0,21 mm38,4 kg/km77 kg/km7,2 mm Send inquiry
L012505105 x 1,00 mm²0,21 mm48 kg/km94 kg/km7,8 mm Send inquiry
L012507107 x 1,00 mm²0,21 mm67,2 kg/km117 kg/km8,5 mm Send inquiry
L012508108 x 1,00 mm²0,21 mm76,8 kg/km146 kg/km9,8 mm Send inquiry
L0125101010 x 1,00 mm²0,21 mm96 kg/km161 kg/km10,7 mm Send inquiry
L0125121012 x 1,00 mm²0,21 mm115,2 kg/km185 kg/km11 mm Send inquiry
L0125161016 x 1,00 mm²0,21 mm153,6 kg/km240 kg/km12,2 mm Send inquiry
L0125181018 x 1,00 mm²0,21 mm172,8 kg/km271 kg/km13 mm Send inquiry
L0125241024 x 1,00 mm²0,21 mm230,4 kg/km370 kg/km15,9 mm Send inquiry
L012502152 x 1,50 mm²0,26 mm28,8 kg/km69 kg/km7,1 mm Send inquiry
L012503153 x 1,50 mm²0,26 mm43,2 kg/km84 kg/km7,5 mm Send inquiry
L012504154 x 1,50 mm²0,26 mm57,6 kg/km101 kg/km8 mm Send inquiry
L012505155 x 1,50 mm²0,26 mm72 kg/km126 kg/km8,9 mm Send inquiry
L012507157 x 1,50 mm²0,26 mm100,8 kg/km159 kg/km9,7 mm Send inquiry
L012508158 x 1,50 mm²0,26 mm115,2 kg/km200 kg/km11,4 mm Send inquiry
L0125101510 x 1,50 mm²0,26 mm144 kg/km226 kg/km12,6 mm Send inquiry
L0125121512 x 1,50 mm²0,26 mm172,8 kg/km262 kg/km13 mm Send inquiry
L0125161516 x 1,50 mm²0,26 mm230,4 kg/km350 kg/km14,8 mm Send inquiry
L0125181518 x 1,50 mm²0,26 mm259,2 kg/km392 kg/km15,6 mm Send inquiry
L0125241524 x 1,50 mm²0,26 mm345,6 kg/km511 kg/km18,4 mm Send inquiry
L012502252 x 2,50 mm²0,26 mm48 kg/km102 kg/km8,5 mm Send inquiry
L012503253 x 2,50 mm²0,26 mm72 kg/km127 kg/km9 mm Send inquiry
L012504254 x 2,50 mm²0,26 mm96 kg/km160 kg/km9,8 mm Send inquiry
L012505255 x 2,50 mm²0,26 mm120 kg/km200 kg/km11,1 mm Send inquiry
L012507257 x 2,50 mm²0,26 mm168 kg/km254 kg/km12,1 mm Send inquiry
L012508258 x 2,50 mm²0,26 mm192 kg/km327 kg/km14,3 mm Send inquiry
L0125102510 x 2,50 mm²0,26 mm240 kg/km364 kg/km15,8 mm Send inquiry
L0125122512 x 2,50 mm²0,26 mm288 kg/km421 kg/km16,3 mm Send inquiry
L0125162516 x 2,50 mm²0,26 mm384 kg/km553 kg/km18,3 mm Send inquiry
L0125182518 x 2,50 mm²0,26 mm432 kg/km621 kg/km19,3 mm Send inquiry
L0125242524 x 2,50 mm²0,26 mm576 kg/km819 kg/km23,2 mm Send inquiry
L012502402 x 4,00 mm²0,31 mm76,8 kg/km137 kg/km9,7 mm Send inquiry
L012503403 x 4,00 mm²0,31 mm115,2 kg/km187 kg/km10,6 mm Send inquiry
L012504404 x 4,00 mm²0,31 mm153,6 kg/km232 kg/km11,6 mm Send inquiry
L012505405 x 4,00 mm²0,31 mm192 kg/km292 kg/km12,9 mm Send inquiry
L012507407 x 4,00 mm²0,31 mm268,8 kg/km373 kg/km14,1 mm Send inquiry
L012502602 x 6,00 mm²0,31 mm115,2 kg/km201 kg/km11,6 mm Send inquiry
L012503603 x 6,00 mm²0,31 mm172,8 kg/km240 kg/km112,3 mm Send inquiry
L012504604 x 6,00 mm²0,31 mm230,4 kg/km323 kg/km13,4 mm Send inquiry
L012505605 x 6,00 mm²0,31 mm288 kg/km408 kg/km15,2 mm Send inquiry
L012507607 x 6,00 mm²0,31 mm403,2 kg/km523 kg/km16,6 mm Send inquiry
L012502612 x 10,00 mm²0,41 mm192 kg/km342 kg/km14,6 mm Send inquiry
L012503613 x 10,00 mm²0,41 mm288 kg/km436 kg/km15,5 mm Send inquiry
L012504614 x 10,00 mm²0,41 mm384 kg/km546 kg/km17 mm Send inquiry
L012505615 x 10,00 mm²0,41 mm480 kg/km681 kg/km18,9 mm Send inquiry
L012507617 x 10,00 mm²0,41 mm672 kg/km885 kg/km21,1 mm Send inquiry
L012502622 x 16,00 mm²0,41 mm307,2 kg/km508 kg/km17 mm Send inquiry
L012503623 x 16,00 mm²0,41 mm460,8 kg/km652 kg/km18,7 mm Send inquiry
L012504624 x 16,00 mm²0,41 mm614,4 kg/km857 kg/km20,5 mm Send inquiry
L012505625 x 16,00 mm²0,41 mm768 kg/km1016 kg/km20,9 mm Send inquiry
L012507627 x 16,00 mm²0,41 mm1075,2 kg/km1363 kg/km25,7 mm Send inquiry
L012502632 x 25,00 mm²0,41 mm480 kg/km776 kg/km21,6 mm Send inquiry
L012503633 x 25,00 mm²0,41 mm720 kg/km999 kg/km23 mm Send inquiry
L012504634 x 25,00 mm²0,41 mm960 kg/km1276 kg/km25,6 mm Send inquiry
L012502642 x 35,00 mm²0,41 mm672 kg/km1059 kg/km24,8 mm Send inquiry
L012503643 x 35,00 mm²0,41 mm1008 kg/km1372 kg/km26,4 mm Send inquiry
L012504644 x 35,00 mm²0,41 mm1344 kg/km1730 kg/km29 mm Send inquiry
