SC 600 HDTR

Besilen® insulated strands with Silicone (Besilen®) outer sheath, UL recognized, CSA approved

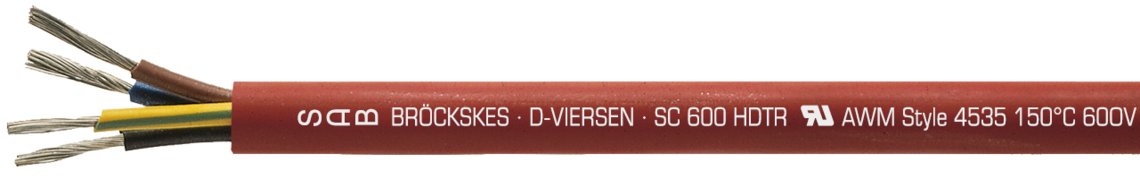

Marking for SC 600 HDTR 01270410: SAB BRÖCKSKES · D-VIERSEN · SC 600 HDTR UL AWM Style 4535 150°C 60OV CSA AWM I/II A 150°C 600V FT1 FT2 CE

Marking for SC 600 HDTR 01270410: SAB BRÖCKSKES · D-VIERSEN · SC 600 HDTR UL AWM Style 4535 150°C 60OV CSA AWM I/II A 150°C 600V FT1 FT2 CE

Download data sheet for SC 600 HDTR
Questions about our products?

Application

SC 600 HDTR has a Besilen® 722 insulation and consists of insulated strands with silicone outer sheath. It finds its application in plastics processing, packaging machine construction, smelteries, steelworks, and hot-rolling mills, safety technology, measuring and control technologies, cement, glass, and ceramic industries, refrigeration, heat and air conditioning technologies, power plants, and sauna construction.

Outstanding features

  • halogen-free
  • flexible at low temperatures
  • heat resistant
  • UL recognized, CSA approved

Construction

Conductor

tinned copper strands acc. to IEC 60228, VDE 0295, class 5

Insulation

Besilen®

Colour code

coloured acc. to HD 308 (VDE 0293-308),

from 6 cores black cores

with consecutive numbers

acc. to EN 50334 + VDE 0293-334,

from 3 cores a green-yellow earth wire

Stranding

in layers

Sheath material

Besilen® better than EM9

acc. to EN 50363-2-1 + VDE 0207-363-2-1

Sheath colour

reddish brown (similar RAL 3016)

Conductor

tinned copper strands acc. to IEC 60228, VDE 0295, class 5

Insulation

Besilen®

Colour code

coloured acc. to HD 308 (VDE 0293-308),

from 6 cores black cores

with consecutive numbers

acc. to EN 50334 + VDE 0293-334,

from 3 cores a green-yellow earth wire

Stranding

in layers

Sheath material

Besilen® better than EM9

acc. to EN 50363-2-1 + VDE 0207-363-2-1

Sheath colour

reddish brown (similar RAL 3016)

Technical data

Nominal voltage

Uo/U 300/500 V

Voltage

UL + CSA: 600V

Testing voltage

core/core 2000 V

Min. bending radius

fixed laying: 4 x d

flexible application: 6 x d

Radiation resistance

2 x 10^7 cJ/kg

Temperature range

UL/CSA: up to +150 °C Style 4535



DIN VDE:

fixed laying: -40/+180 °C / +200 °C (2000 h)

flexible application: -25/+180°C

short-time use: +250°C

Halogen-free

acc. to IEC 60754-1 + VDE 0482-754-1

Fire performance

flame retardant and self-extinguishing acc. to IEC 60332-1-2 + VDE 0482-332-1-2,
​​​​​​​CSA FT1, FT2

Corrosiveness of conflagration gases

IEC 60754-2 + VDE 0482-754-2 - no development of corrosive conflagration gases

Absence of harmful substances

acc. to RoHS directive of the European Union

Nominal voltage

Uo/U 300/500 V

Voltage

UL + CSA: 600V

Testing voltage

core/core 2000 V

Min. bending radius

fixed laying: 4 x d

flexible application: 6 x d

Radiation resistance

2 x 10^7 cJ/kg

Temperature range

UL/CSA: up to +150 °C Style 4535



DIN VDE:

fixed laying: -40/+180 °C / +200 °C (2000 h)

flexible application: -25/+180°C

short-time use: +250°C

Halogen-free

acc. to IEC 60754-1 + VDE 0482-754-1

Fire performance

flame retardant and self-extinguishing acc. to IEC 60332-1-2 + VDE 0482-332-1-2,
​​​​​​​CSA FT1, FT2

Corrosiveness of conflagration gases

IEC 60754-2 + VDE 0482-754-2 - no development of corrosive conflagration gases

Absence of harmful substances

acc. to RoHS directive of the European Union

Dimensions

item no. No. of cores x
cross section 		Largest single
wire-ø 		Copper figure Cable weight ≈ Outer-ø ± 5%
L012702052 x 0,50 mm²0,21 mm10,3 kg/km38 kg/km5,6 mm Send inquiry
L012703053 x 0,50 mm²0,21 mm15,4 kg/km45 kg/km5,9 mm Send inquiry
L012704054 x 0,50 mm²0,21 mm20,5 kg/km53 kg/km6,3 mm Send inquiry
L012705055 x 0,50 mm²0,21 mm25,6 kg/km63 kg/km6,9 mm Send inquiry
L012707057 x 0,50 mm²0,21 mm35,9 kg/km79 kg/km7,5 mm Send inquiry
L012708058 x 0,50 mm²0,21 mm41 kg/km91 kg/km8,6 mm Send inquiry
L0127100510 x 0,50 mm²0,21 mm51,3 kg/km108 kg/km9,3 mm Send inquiry
L0127120512 x 0,50 mm²0,21 mm61,5 kg/km124 kg/km9,6 mm Send inquiry
L0127160516 x 0,50 mm²0,21 mm82 kg/km157 kg/km10,6 mm Send inquiry
L0127180518 x 0,50 mm²0,21 mm92,3 kg/km174 kg/km11,2 mm Send inquiry
L0127240524 x 0,50 mm²0,21 mm123,1 kg/km240 kg/km13,1 mm Send inquiry
L012702072 x 0,75 mm²0,21 mm14,4 kg/km46 kg/km5,9 mm Send inquiry
L012703073 x 0,75 mm²0,21 mm21,6 kg/km54 kg/km6,4 mm Send inquiry
L012704074 x 0,75 mm²0,21 mm28,8 kg/km65 kg/km6,9 mm Send inquiry
L012705075 x 0,75 mm²0,21 mm36 kg/km77 kg/km7,6 mm Send inquiry
L012707077 x 0,75 mm²0,21 mm50,4 kg/km98 kg/km8,2 mm Send inquiry
L012708078 x 0,75 mm²0,21 mm57,6 kg/km113 kg/km9,5 mm Send inquiry
L0127100710 x 0,75 mm²0,21 mm72 kg/km135 kg/km10,3 mm Send inquiry
L0127120712 x 0,75 mm²0,21 mm86,4 kg/km155 kg/km10,6 mm Send inquiry
L0127160716 x 0,75 mm²0,21 mm115,2 kg/km197 kg/km11,8 mm Send inquiry
L0127180718 x 0,75 mm²0,21 mm129,6 kg/km221 kg/km12,5 mm Send inquiry
L0127240724 x 0,75 mm²0,21 mm172,8 kg/km307 kg/km14,8 mm Send inquiry
L012702102 x 1,00 mm²0,21 mm19,2 kg/km51 kg/km6,3 mm Send inquiry
L012703103 x 1,00 mm²0,21 mm28,8 kg/km62 kg/km6,6 mm Send inquiry
L012704104 x 1,00 mm²0,21 mm38,4 kg/km75 kg/km7,2 mm Send inquiry
L012705105 x 1,00 mm²0,21 mm48 kg/km89 kg/km7,8 mm Send inquiry
L012707107 x 1,00 mm²0,21 mm67,2 kg/km115 kg/km8,5 mm Send inquiry
L012708108 x 1,00 mm²0,21 mm76,8 kg/km132 kg/km9,8 mm Send inquiry
L0127101010 x 1,00 mm²0,21 mm96 kg/km158 kg/km10,7 mm Send inquiry
L0127121012 x 1,00 mm²0,21 mm115,2 kg/km182 kg/km11 mm Send inquiry
L0127161016 x 1,00 mm²0,21 mm153,6 kg/km234 kg/km12,2 mm Send inquiry
L0127181018 x 1,00 mm²0,21 mm172,8 kg/km262 kg/km13 mm Send inquiry
L0127241024 x 1,00 mm²0,21 mm230,4 kg/km379 kg/km15,9 mm Send inquiry
L012702152 x 1,50 mm²0,26 mm28,8 kg/km68 kg/km7,1 mm Send inquiry
L012703153 x 1,50 mm²0,26 mm43,2 kg/km83 kg/km7,5 mm Send inquiry
L012704154 x 1,50 mm²0,26 mm57,6 kg/km99 kg/km8 mm Send inquiry
L012705155 x 1,50 mm²0,26 mm72 kg/km120 kg/km8,9 mm Send inquiry
L012707157 x 1,50 mm²0,26 mm100,8 kg/km156 kg/km9,7 mm Send inquiry
L012708158 x 1,50 mm²0,26 mm115,2 kg/km182 kg/km11,4 mm Send inquiry
L0127101510 x 1,50 mm²0,26 mm144 kg/km223 kg/km12,6 mm Send inquiry
L0127121512 x 1,50 mm²0,26 mm172,8 kg/km258 kg/km13 mm Send inquiry
L0127161516 x 1,50 mm²0,26 mm230,4 kg/km341 kg/km14,8 mm Send inquiry
L0127181518 x 1,50 mm²0,26 mm259,2 kg/km379 kg/km15,6 mm Send inquiry
L0127241524 x 1,50 mm²0,26 mm345,6 kg/km504 kg/km18,4 mm Send inquiry
L012702252 x 2,50 mm²0,26 mm48 kg/km101 kg/km8,5 mm Send inquiry
L012703253 x 2,50 mm²0,26 mm72 kg/km126 kg/km9 mm Send inquiry
L012704254 x 2,50 mm²0,26 mm96 kg/km155 kg/km9,8 mm Send inquiry
L012705255 x 2,50 mm²0,26 mm120 kg/km192 kg/km11,1 mm Send inquiry
L012707257 x 2,50 mm²0,26 mm168 kg/km250 kg/km12,1 mm Send inquiry
L012708258 x 2,50 mm²0,26 mm192 kg/km293 kg/km14,3 mm Send inquiry
L0127102510 x 2,50 mm²0,26 mm240 kg/km358 kg/km15,8 mm Send inquiry
L0127122512 x 2,50 mm²0,26 mm288 kg/km415 kg/km16,3 mm Send inquiry
L0127162516 x 2,50 mm²0,26 mm384 kg/km540 kg/km18,3 mm Send inquiry
L0127182518 x 2,50 mm²0,26 mm432 kg/km600 kg/km19,3 mm Send inquiry
L0127242524 x 2,50 mm²0,26 mm576 kg/km889 kg/km23,2 mm Send inquiry
L012702402 x 4,00 mm²0,31 mm76,8 kg/km136 kg/km9,7 mm Send inquiry
L012703403 x 4,00 mm²0,31 mm115,2 kg/km185 kg/km10,6 mm Send inquiry
L012704404 x 4,00 mm²0,31 mm153,6 kg/km230 kg/km11,6 mm Send inquiry
L012705405 x 4,00 mm²0,31 mm192 kg/km281 kg/km12,9 mm Send inquiry
L012707407 x 4,00 mm²0,31 mm268,8 kg/km369 kg/km14,1 mm Send inquiry
L012702602 x 6,00 mm²0,31 mm115,2 kg/km199 kg/km11,2 mm Send inquiry
L012703603 x 6,00 mm²0,31 mm172,8 kg/km249 kg/km11,7 mm Send inquiry
L012704604 x 6,00 mm²0,31 mm230,4 kg/km316 kg/km13 mm Send inquiry
L012705605 x 6,00 mm²0,31 mm288 kg/km381 kg/km14,3 mm Send inquiry
L012707607 x 6,00 mm²0,31 mm403,2 kg/km518 kg/km16 mm Send inquiry
L012702612 x 10,00 mm²0,41 mm192 kg/km340 kg/km14,6 mm Send inquiry
L012703613 x 10,00 mm²0,41 mm288 kg/km433 kg/km15,5 mm Send inquiry
L012704614 x 10,00 mm²0,41 mm384 kg/km541 kg/km17 mm Send inquiry
L012705615 x 10,00 mm²0,41 mm480 kg/km659 kg/km18,9 mm Send inquiry
L012707617 x 10,00 mm²0,41 mm672 kg/km894 kg/km21,1 mm Send inquiry
L012702622 x 16,00 mm²0,41 mm307,2 kg/km489 kg/km17 mm Send inquiry
L012703623 x 16,00 mm²0,41 mm460,8 kg/km638 kg/km18,7 mm Send inquiry
L012704624 x 16,00 mm²0,41 mm614,4 kg/km799 kg/km20,5 mm Send inquiry
L012705625 x 16,00 mm²0,41 mm768 kg/km968 kg/km20,9 mm Send inquiry
L012707627 x 16,00 mm²0,41 mm1075,2 kg/km1329 kg/km25,7 mm Send inquiry
L012702632 x 25,00 mm²0,41 mm480 kg/km771 kg/km21,6 mm Send inquiry
L012703633 x 25,00 mm²0,41 mm720 kg/km990 kg/km23 mm Send inquiry
L012704634 x 25,00 mm²0,41 mm960 kg/km1263 kg/km25,6 mm Send inquiry
L012702642 x 35,00 mm²0,41 mm672 kg/km1074 kg/km24,8 mm Send inquiry
L012703643 x 35,00 mm²0,41 mm1008 kg/km1392 kg/km26,4 mm Send inquiry
L012704644 x 35,00 mm²0,41 mm1344 kg/km1757 kg/km29 mm Send inquiry
