SC 600 C HDTR

Besilen® insulated strands with overall copper screen and Silicone (Besilen®) outer sheath, UL recognized, CSA approved

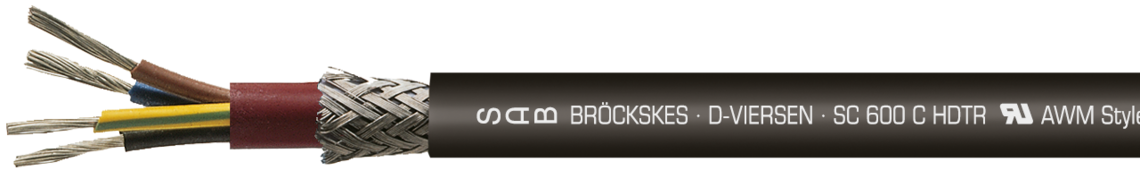

Marking for SC 600 C HDTR 01240410: SAB BRÖCKSKES · D-VIERSEN · SC 600 C HDTR UL AWM Style 4535 150°C 60OV CSA AWM I/II A 150°C 600V FT1 FT2 CE

Download data sheet for SC 600 C HDTR

Questions about our products?

Application

The heat resistant wire is used in packaging and textile machine construction, refrigeration, heat and air conditioning, plastics processing, smelteries, steelworks, and hot-rolling mills, cement, glass, and ceramic industries, and plastic processing machine construction.

Outstanding features

screened, good EMV characteristics
halogen-free
flexible at low temperatures
heat resistant
UL recognized, CSA approved

Construction

Conductor	tinned copper strands acc. to IEC 60228, VDE 0295, class 5
Insulation	Besilen®
Colour code	coloured acc. to HD 308 (VDE 0293-308), from 6 cores black cores with consecutive numbers acc. to EN 50334 + VDE 0293-334, from 3 cores a green-yellow earth wire
Stranding	in layers
Inner sheath	Besilen® EM9 acc. to EN 50363-2-1 + VDE 0207-363-2-1
Screen	tinned copper braiding
Sheath material	Besilen® better than EM9 acc. to DIN EN 50363-2-1
Sheath colour	black (similar RAL 9011)

Conductor

tinned copper strands acc. to IEC 60228, VDE 0295, class 5

Insulation

Besilen®

Colour code

coloured acc. to HD 308 (VDE 0293-308),

from 6 cores black cores

with consecutive numbers

acc. to EN 50334 + VDE 0293-334,

from 3 cores a green-yellow earth wire

Stranding

in layers

Inner sheath

Besilen® EM9 acc. to EN 50363-2-1 + VDE 0207-363-2-1

Screen

tinned copper braiding

Sheath material

Besilen® better than EM9 acc. to DIN EN 50363-2-1

Sheath colour

black (similar RAL 9011)

Technical data

Nominal voltage	Uo/U: 300/500 V
Voltage	UL + CSA: 600 V
Testing voltage	core/core 2000 V core/screen 2000 V
Min. bending radius	fixed laying: 5 x d flexible application: 10 x d
Radiation resistance	2 x 10^7 cJ/kg
Temperature range	UL/CSA: up to +150 °C Style 4535 DIN VDE: fixed laying: -40/+180 °C / +200 °C (2000 h) flexible application: -25/+180°C short-time use: +250°C
Halogen-free	acc. to IEC 60754-1 + VDE 0482-754-1
Fire performance	flame retardant and self-extinguishing acc. to IEC 60332-1-2 + VDE 0482-332-1-2, CSA FT1, FT2
Corrosiveness of conflagration gases	IEC 60754-2 + VDE 0482-754-2 - no development of corrosive conflagration gases
Absence of harmful substances	acc. to RoHS directive of the European Union

Nominal voltage

Uo/U: 300/500 V

Voltage

UL + CSA: 600 V

Testing voltage

core/core 2000 V

core/screen 2000 V

Min. bending radius

fixed laying: 5 x d

flexible application: 10 x d

Radiation resistance

2 x 10^7 cJ/kg

Temperature range

UL/CSA: up to +150 °C Style 4535

DIN VDE:

fixed laying: -40/+180 °C / +200 °C (2000 h)

flexible application: -25/+180°C

short-time use: +250°C

Halogen-free

acc. to IEC 60754-1 + VDE 0482-754-1

Fire performance

flame retardant and self-extinguishing acc. to IEC 60332-1-2 + VDE 0482-332-1-2,
CSA FT1, FT2

Corrosiveness of conflagration gases

IEC 60754-2 + VDE 0482-754-2 - no development of corrosive conflagration gases

Absence of harmful substances

acc. to RoHS directive of the European Union

Dimensions

item no.	No. of cores x cross section	Largest single wire-ø	Copper figure	Cable weight ≈	Outer-ø ± 5%
L01240207	2 x 0,75 mm²	0,21 mm	37 kg/km	93 kg/km	8,2 mm	Send inquiry
L01240307	3 x 0,75 mm²	0,21 mm	44,4 kg/km	101 kg/km	8,5 mm	Send inquiry
L01240407	4 x 0,75 mm²	0,21 mm	55 kg/km	123 kg/km	9 mm	Send inquiry
L01240507	5 x 0,75 mm²	0,21 mm	62,9 kg/km	139 kg/km	9,7 mm	Send inquiry
L01240210	2 x 1,00 mm²	0,21 mm	42 kg/km	101 kg/km	8,4 mm	Send inquiry
L01240310	3 x 1,00 mm²	0,21 mm	54,7 kg/km	120 kg/km	8,7 mm	Send inquiry
L01240410	4 x 1,00 mm²	0,21 mm	64,8 kg/km	136 kg/km	9,3 mm	Send inquiry
L01240510	5 x 1,00 mm²	0,21 mm	93,8 kg/km	167 kg/km	10,1 mm	Send inquiry
L01240710	7 x 1,00 mm²	0,21 mm	114,3 kg/km	202 kg/km	11 mm	Send inquiry
L01240215	2 x 1,50 mm²	0,26 mm	55,3 kg/km	129 kg/km	9,4 mm	Send inquiry
L01240315	3 x 1,50 mm²	0,26 mm	88,8 kg/km	164 kg/km	10 mm	Send inquiry
L01240415	4 x 1,50 mm²	0,26 mm	104,4 kg/km	192 kg/km	10,8 mm	Send inquiry
L01240515	5 x 1,50 mm²	0,26 mm	125,5 kg/km	235 kg/km	11,6 mm	Send inquiry
L01240715	7 x 1,50 mm²	0,26 mm	161 kg/km	277 kg/km	12,8 mm	Send inquiry
L01240225	2 x 2,50 mm²	0,26 mm	99,8 kg/km	210 kg/km	11,2 mm	Send inquiry
L01240325	3 x 2,50 mm²	0,26 mm	124,5 kg/km	233 kg/km	11,7 mm	Send inquiry
L01240425	4 x 2,50 mm²	0,26 mm	156,3 kg/km	282 kg/km	12,9 mm	Send inquiry
L01240525	5 x 2,50 mm²	0,26 mm	187 kg/km	336 kg/km	14,3 mm	Send inquiry
L01240340	3 x 4,00 mm²	0,31 mm	177,1 kg/km	329 kg/km	13,8 mm	Send inquiry
L01240440	4 x 4,00 mm²	0,31 mm	221,5 kg/km	384 kg/km	14,8 mm	Send inquiry
L01240540	5 x 4,00 mm²	0,31 mm	292,3 kg/km	481 kg/km	16,7 mm	Send inquiry
L01240360	3 x 6,00 mm²	0,31 mm	241,2 kg/km	396 kg/km	15,1 mm	Send inquiry
L01240460	4 x 6,00 mm²	0,31 mm	330,9 kg/km	524 kg/km	16,8 mm	Send inquiry
L01240560	5 x 6,00 mm²	0,31 mm	400,8 kg/km	581 kg/km	18,1 mm	Send inquiry

item no.

No. of cores x
cross section

Largest single
wire-ø

Copper figure

Cable weight ≈

Outer-ø ± 5%

L01240207

2 x 0,75 mm²

0,21 mm

37 kg/km

93 kg/km

8,2 mm
