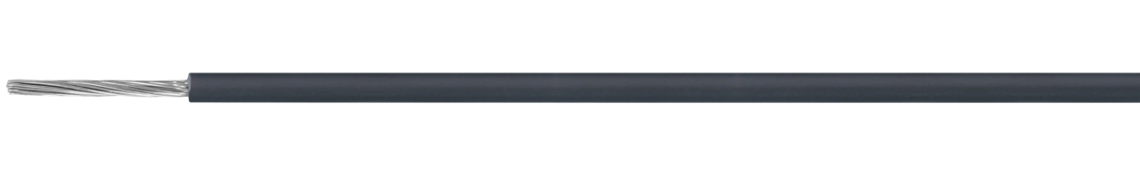

N2GFAF/2GFAF
Silicone (Besilen®) insulated strands
Application
N2GFAF/2GFAF is a flexible silicone insulated wire acc. to DIN VDE 0250. Additionally, it is heat resistant and 0,75 mm² DIn VDE standardized. Moreover, they are made for highly flexible applications for internal wiring of lamps, heating appliances, switchboard plants and distributors in industries such as smelteries, steelworks, and hot-rolling mills, industrial oven and textile machine construction, lamp, illumination, and electric industries as well as electric drive technology.
Outstanding features
- halogen-free
- 0,75 mm² DIN VDE standardized
- flexible at low temperatures
- heat resistant
- flexible
Additional information
Colour code for single conductors:
0 = green-yellow 4 = grey
1 = blue 5 = white
2 = black 6 = reddish brown
3 = brown 7 = red
9 = nature
** N2GFA 0,75 mm² according to DIN VDE 0250 part 502. Other cross sections with reference to DIN VDE 0250 part 502.
Construction
| Conductor | tinned copper strands acc. to IEC 60228, EN 60228, VDE 0295, class 5 |
|---|---|
| Insulation | Besilen® EI2 acc. to DIN EN 50363-1 |
tinned copper strands acc. to IEC 60228, EN 60228, VDE 0295, class 5
Besilen® EI2 acc. to DIN EN 50363-1
Technical data
| Nominal voltage | Uo/U 300/300 V |
|---|---|
| Testing voltage | 2000 V |
| Min. bending radius | 7,5 x d |
| Radiation resistance | 2 x 10^7 cJ/kg |
| Temperature range | fixed laying: -40/+180°C flexible application: -25/+180°C short-time use: +250°C |
| Halogen-free | acc. to DIN VDE 0472 part 815 and IEC 60754-1 |
| Fire performance | flame retardant and self-extinguishing acc. to IEC 60332-1-2 + VDE 0482-332-1-2 |
| Corrosiveness of conflagration gases | IEC 60754-2 + EN 50267-2-2 + VDE 0482 part 267-2-2 - no development of corrosive conflagration gases |
| Chem. resistance | see "Technical Data" - Chemical resistance |
| Weather resistance | very good |
| Absence of harmful substances | acc. to RoHS directive of the European Union |
Uo/U 300/300 V
2000 V
7,5 x d
2 x 10^7 cJ/kg
fixed laying: -40/+180°C
flexible application: -25/+180°C
short-time use: +250°C
acc. to DIN VDE 0472 part 815 and IEC 60754-1
flame retardant and self-extinguishing acc. to IEC 60332-1-2 + VDE 0482-332-1-2
IEC 60754-2 + EN 50267-2-2 + VDE 0482 part 267-2-2 - no development of corrosive conflagration gases
see "Technical Data" - Chemical resistance
very good
acc. to RoHS directive of the European Union
Dimensions
| item no. |
Nominal cross section |
Largest single wire-ø | Copper figure | Cable weight ≈ | Outer-ø ± 5% | |
|---|---|---|---|---|---|---|
| L0158002…* | 0,25 mm² | 0,16 mm | 2,4 kg/km | 6 kg/km | 1,9 mm | Send inquiry |
| L0158003…* | 0,34 mm² | 0,26 mm | 3,3 kg/km | 7 kg/km | 2 mm | Send inquiry |
| L0158005…* | 0,5 mm² | 0,21 mm | 4,8 kg/km | 9 kg/km | 2,1 mm | Send inquiry |
| L0152007…* | 0,75** mm² | 0,21 mm | 7,2 kg/km | 12 kg/km | 2,4 mm | Send inquiry |
| L0158010…* | 1 mm² | 0,21 mm | 9,6 kg/km | 14 kg/km | 2,5 mm | Send inquiry |
| L0158015…* | 1,5 mm² | 0,26 mm | 14,4 kg/km | 20 kg/km | 3 mm | Send inquiry |
| L0158025…* | 2,5 mm² | 0,26 mm | 24 kg/km | 31 kg/km | 3,6 mm | Send inquiry |
section
wire-ø
Other dimensions and colours are possible on request.
