BiHF/Cu/Bi(K)-J

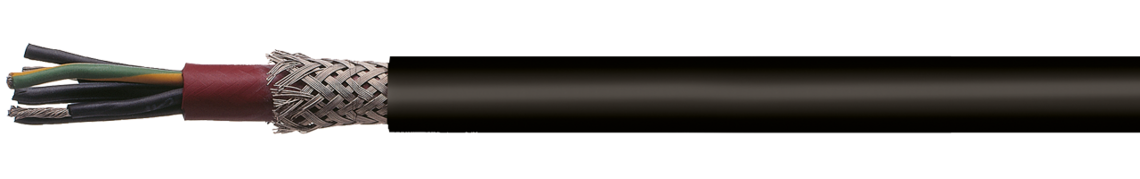

Silicone (Besilen®) insulated strands with Silicone (Besilen®) inner sheath, overall copper screen and extremely notch resistant Silicone (Besilen®) outer sheath

Application

BiHF/Cu/Bi(K)-J is silicone insulated strands with copper screen and extremely notch resistant silicone outer sheath. Moreover, it has an improved tear resistance and good sunlight resistance. It is used in packaging and textile machine construction, refrigeration, heat and air conditioning, plastics processing, smelteries, steelworks, and hot-rolling mills, cement, glass, and ceramic industries, and plastic processing machine construction.

Outstanding features

improved initial tear resistance
improved tear resistance
extremely notch resistant
good sunlight resistance
good EMV characteristics
halogen-free
flexible at low temperatures
heat resistant
increased mechanical protection

Additional information

Possible on request without inner sheath!

Construction

Conductor	tinned copper strands acc. to IEC 60228, VDE 0295, class 5
Insulation	Besilen® EI2 acc. to EN 50363-1 + VDE 0207-363-1
Colour code	coloured acc. to HD 308 (VDE 0293-308), from 6 cores black cores with consecutive numbers acc. to EN 50334 + VDE 0293-334, from 3 cores a green-yellow earth wire
Stranding	in layers
Inner sheath	Besilen® EM9 acc. to EN 50363-2-1 + VDE 0207-363-2-1
Screen	tinned copper braiding
Sheath material	Besilen® notch resistant
Sheath colour	black (similar RAL 9011)

Conductor

tinned copper strands acc. to IEC 60228, VDE 0295, class 5

Insulation

Besilen® EI2 acc. to EN 50363-1 + VDE 0207-363-1

Colour code

coloured acc. to HD 308 (VDE 0293-308),

from 6 cores black cores

with consecutive numbers

acc. to EN 50334 + VDE 0293-334,

from 3 cores a green-yellow earth wire

Stranding

in layers

Inner sheath

Besilen® EM9 acc. to EN 50363-2-1 + VDE 0207-363-2-1

Screen

tinned copper braiding

Sheath material

Besilen® notch resistant

Sheath colour

black (similar RAL 9011)

Technical data

Nominal voltage	Uo/U 300/500 V
Testing voltage	core/core 2000 V core/screen 2000 V
Min. bending radius	fixed laying: 5 x d flexible application: 10 x d
Radiation resistance	2 x 10^7 cJ/kg
Temperature range	fixed laying: -40/+180°C flexible application: -25/+180°C short-time use: +250°C
Halogen-free	acc. to IEC 60754-1 + VDE 0482-754-1
Fire performance	flame retardant and self-extinguishing acc. to IEC 60332-1-2 + VDE 0482-332-1-2
Corrosiveness of conflagration gases	IEC 60754-2 + VDE 0482-754-2 - no development of corrosive conflagration gases
Chem. resistance	see "Technical Data" - Chemical resistance
Weather resistance	very good
Absence of harmful substances	acc. to RoHS directive of the European Union

Nominal voltage

Uo/U 300/500 V

Testing voltage

core/core 2000 V

core/screen 2000 V

Min. bending radius

fixed laying: 5 x d

flexible application: 10 x d

Radiation resistance

2 x 10^7 cJ/kg

Temperature range

fixed laying: -40/+180°C

flexible application: -25/+180°C

short-time use: +250°C

Halogen-free

acc. to IEC 60754-1 + VDE 0482-754-1

Fire performance

flame retardant and self-extinguishing acc. to IEC 60332-1-2 + VDE 0482-332-1-2

Corrosiveness of conflagration gases

IEC 60754-2 + VDE 0482-754-2 - no development of corrosive conflagration gases

Chem. resistance

see "Technical Data" - Chemical resistance

Weather resistance

very good

Absence of harmful substances

acc. to RoHS directive of the European Union

Dimensions

item no.	No. of cores x cross section	Largest single wire-ø	Copper figure	Cable weight ≈	Outer-ø ± 5%
L01950207	2 x 0,75 mm²	0,21 mm	37 kg/km	100 kg/km	8,2 mm	Send inquiry
L01950307	3 x 0,75 mm²	0,21 mm	44,4 kg/km	109 kg/km	8,5 mm	Send inquiry
L01950407	4 x 0,75 mm²	0,21 mm	55 kg/km	124 kg/km	9 mm	Send inquiry
L01950507	5 x 0,75 mm²	0,21 mm	62,9 kg/km	140 kg/km	9,7 mm	Send inquiry
L01950707	7 x 0,75 mm²	0,21 mm	97,1 kg/km	184 kg/km	10,7 mm	Send inquiry
L01951207	12 x 0,75 mm²	0,21 mm	148,1 kg/km	285 kg/km	13,7 mm	Send inquiry
L01950210	2 x 1,00 mm²	0,21 mm	42 kg/km	108 kg/km	8,4 mm	Send inquiry
L01950310	3 x 1,00 mm²	0,21 mm	54,7 kg/km	120 kg/km	8,7 mm	Send inquiry
L01950410	4 x 1,00 mm²	0,21 mm	64,8 kg/km	137 kg/km	9,3 mm	Send inquiry
L01950510	5 x 1,00 mm²	0,21 mm	93,8 kg/km	159 kg/km	10,1 mm	Send inquiry
L01950710	7 x 1,00 mm²	0,21 mm	114,3 kg/km	203 kg/km	11 mm	Send inquiry
L01951210	12 x 1,00 mm²	0,21 mm	177,6 kg/km	314 kg/km	14,1 mm	Send inquiry
L01950215	2 x 1,50 mm²	0,26 mm	55,3 kg/km	138 kg/km	9,4 mm	Send inquiry
L01950315	3 x 1,50 mm²	0,26 mm	88,8 kg/km	166 kg/km	10 mm	Send inquiry
L01950415	4 x 1,50 mm²	0,26 mm	104,4 kg/km	193 kg/km	10,8 mm	Send inquiry
L01950515	5 x 1,50 mm²	0,26 mm	124,3 kg/km	221 kg/km	11,6 mm	Send inquiry
L01950715	7 x 1,50 mm²	0,26 mm	154,3 kg/km	274 kg/km	12,8 mm	Send inquiry
L01951215	12 x 1,50 mm²	0,26 mm	273,3 kg/km	452 kg/km	16,8 mm	Send inquiry
L01951815	18 x 1,50 mm²	0,26 mm	375,5 kg/km	610 kg/km	19,4 mm	Send inquiry
L01952415	24 x 1,50 mm²	0,26 mm	483,2 kg/km	786 kg/km	22,4 mm	Send inquiry
L01952515	25 x 1,50 mm²	0,26 mm	512,9 kg/km	818 kg/km	22,8 mm	Send inquiry
L01950225	2 x 2,50 mm²	0,26 mm	95,1 kg/km	201 kg/km	11 mm	Send inquiry
L01950325	3 x 2,50 mm²	0,26 mm	124,2 kg/km	227 kg/km	11,5 mm	Send inquiry
L01950425	4 x 2,50 mm²	0,26 mm	156 kg/km	276 kg/km	12,7 mm	Send inquiry
L01950525	5 x 2,50 mm²	0,26 mm	181,9 kg/km	320 kg/km	13,8 mm	Send inquiry
L01950625	6 x 2,50 mm²	0,26 mm	212,2 kg/km	370 kg/km	15 mm	Send inquiry
L01950725	7 x 2,50 mm²	0,26 mm	236,2 kg/km	397 kg/km	15 mm	Send inquiry
L01950340	3 x 4,00 mm²	0,31 mm	176,8 kg/km	302 kg/km	13,6 mm	Send inquiry
L01950440	4 x 4,00 mm²	0,31 mm	221 kg/km	377 kg/km	14,5 mm	Send inquiry
L01950540	5 x 4,00 mm²	0,31 mm	291,2 kg/km	454 kg/km	15,9 mm	Send inquiry
L01950740	7 x 4,00 mm²	0,31 mm	379,7 kg/km	573 kg/km	17,4 mm	Send inquiry
L01950360	3 x 6,00 mm²	0,31 mm	241,5 kg/km	447 kg/km	15,7 mm	Send inquiry
L01950460	4 x 6,00 mm²	0,31 mm	329,1 kg/km	542 kg/km	17 mm	Send inquiry
L01950560	5 x 6,00 mm²	0,31 mm	402,1 kg/km	643 kg/km	18,6 mm	Send inquiry
