BiAF/YW
Low-voltage connection cable for halogen lamps

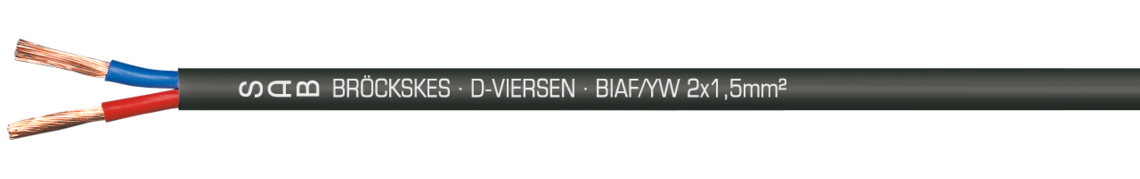

Marking for BiAF/YW 01352151: SAB BRÖCKSKES · D-VIERSEN · BIAF/YW 2x1,5mm²
Application
BiAF/YW is a low-voltage connection cable for halogen lamps. Due to its silicone core insulation, it is suitable for temperatures up to 180°C at conductors. Additionally, it is space saving due to its flat construction. Moreover, it is applied as connection cable for low-voltage lamps and connection between transformer and halogen lamp.
Outstanding features
- due to silicone core insulation suitable for temperatures up to 180°C at conductors
- heat resistant PVC outer sheath for ambient temperatures up to 105°C for short-time use
- due to flat construction space-saving
- simplified connecting possibilities
- no wiring with single conductors
Construction
| Conductor | bare copper strands acc. to IEC 60228, VDE 0295, class 5 |
|---|---|
| Insulation | Besilen® EI2 acc. to EN 50363-1 + VDE 0207-363-1 |
| Colour code | blue, red |
| Stranding | 2 cores parallel |
| Sheath material | PVC, TM4 acc. to EN 50363-4-1 + VDE 0207-363-4-1 |
| Sheath colour | black (similar RAL 9005) |
| Shape | flat |
bare copper strands acc. to IEC 60228, VDE 0295, class 5
Besilen® EI2 acc. to EN 50363-1 + VDE 0207-363-1
blue, red
2 cores parallel
PVC, TM4 acc. to EN 50363-4-1 + VDE 0207-363-4-1
black (similar RAL 9005)
flat
Technical data
| Nominal voltage | 24 V |
|---|---|
| Testing voltage | core/core 600 V |
| Min. bending radius | 7,5 x d |
| Radiation resistance | 8 x 10^7 cJ/kg |
| Temperature range | fixed laying: -40/+90 °C flexible application: +5/+90°C short-time use: +105°C at the conductor: +180°C |
| Fire performance | flame retardant and self-extinguishing acc. to IEC 60332-1-2 + VDE 0482-332-1-2 |
| Chem. resistance | see "Technical Data" - Chemical resistance |
| Absence of harmful substances | acc. to RoHS directive of the European Union |
24 V
core/core 600 V
7,5 x d
8 x 10^7 cJ/kg
fixed laying: -40/+90 °C
flexible application: +5/+90°C
short-time use: +105°C
at the conductor: +180°C
flame retardant and self-extinguishing acc. to IEC 60332-1-2 + VDE 0482-332-1-2
see "Technical Data" - Chemical resistance
acc. to RoHS directive of the European Union
Dimensions
| item no. |
No. of cores x cross section |
Largest single wire-ø | Dimension | Copper figure | Cable weight ≈ | |
|---|---|---|---|---|---|---|
| L01352151 | 2 x 1,50 mm² | 0,26 mm | 5,8 mm x 3,5 mm | 28,8 kg/km | 44 kg/km | Send inquiry |
| L01352251 | 2 x 2,50 mm² | 0,26 mm | 6,8 mm x 4,0 mm | 48 kg/km | 66 kg/km | Send inquiry |
| L01352401 | 2 x 4,00 mm² | 0,31 mm | 7,8 mm x 4,4 mm | 76,8 kg/km | 96 kg/km | Send inquiry |
cross section
wire-ø
Other dimensions and colours are possible on request.
