B 107

Highly flexible Besilen® insulated HV single core, cULus recognized

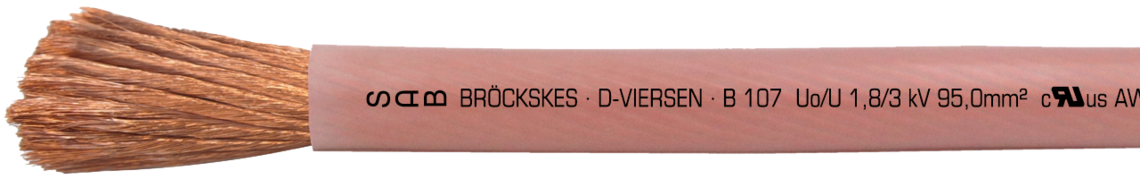

Marking for B 107 01071000: SAB BRÖCKSKES · D-VIERSEN · B 107  Uo/U 1,8/3 kV 95,0mm²  cULus AWM Style 30122 AWM I A/B 150°C 3000V FT2

Marking for B 107 01071000: SAB BRÖCKSKES · D-VIERSEN · B 107 Uo/U 1,8/3 kV 95,0mm² cULus AWM Style 30122 AWM I A/B 150°C 3000V FT2

Application

Highly flexible single core for switchboard wiring and the use in energy storage systems, test benches or power wiring.

Outstanding features

  • extremely flexible
  • halogen-free
  • heat resistant
  • flexible at low temperatures
  • flame retardant and self-extinguishing
  • weather resistant
  • cULus recognized

Additional information

Colour code for single conductors:

1 = green-yellow    5 = green
2 = blue                  6 = white
3 = black                7 = orange
4 = brown               8 = red

Construction

Conductor

bare copper strands, extra fine wires

Insulation

Besilen® EI2 acc. to EN 50363-1 + VDE 0207-363-1

Colour

translucent

Conductor

bare copper strands, extra fine wires

Insulation

Besilen® EI2 acc. to EN 50363-1 + VDE 0207-363-1

Colour

translucent

Technical data

Nominal voltage

Uo/U 1,8/3,0 kV AC

Uo/U 2,7/5,4 kV DC

Voltage cULus

3000 V

Testing voltage

6500 V

Current-carrying capacity

acc. to VDE 0298-4

Min. bending radius

5 x d

Temperature range

fixed laying: -40/+180°C

flexible application: -25/+180°C

short-time use: +250°C

cULus: up to +150 °C

Halogen-free

acc. to IEC 60754-1 + VDE 0482-754-1

Fire performance

flame retardant and self-extinguishing acc. to IEC 60332-1-2 + VDE 0482-332-1-2, cULus FT2

Corrosiveness of conflagration gases

IEC 60754-2 + VDE 0482-754-2 - no development of corrosive conflagration gases

Weather resistance

very good

Absence of harmful substances

acc. to RoHS directive of the European Union

Nominal voltage

Uo/U 1,8/3,0 kV AC

Uo/U 2,7/5,4 kV DC

Voltage cULus

3000 V

Testing voltage

6500 V

Current-carrying capacity

acc. to VDE 0298-4

Min. bending radius

5 x d

Temperature range

fixed laying: -40/+180°C

flexible application: -25/+180°C

short-time use: +250°C

cULus: up to +150 °C

Halogen-free

acc. to IEC 60754-1 + VDE 0482-754-1

Fire performance

flame retardant and self-extinguishing acc. to IEC 60332-1-2 + VDE 0482-332-1-2, cULus FT2

Corrosiveness of conflagration gases

IEC 60754-2 + VDE 0482-754-2 - no development of corrosive conflagration gases

Weather resistance

very good

Absence of harmful substances

acc. to RoHS directive of the European Union

Dimensions

item no. Nominal cross
section
Largest single
wire-ø
Outer-ø ± 5% Copper figure Cable weight ≈
L010704004,00 mm²0,07 mm5,9 mm38,4 kg/km60 kg/km Send inquiry
L010706006,00 mm²0,07 mm6,3 mm57,6 kg/km80 kg/km Send inquiry
L0107100010,00 mm²0,07 mm9,0 mm96,0 kg/km146 kg/km Send inquiry
L0107160016,00 mm²0,07 mm9,3 mm153,6 kg/km196 kg/km Send inquiry
L0107250025,00 mm²0,10 mm12,0 mm240,0 kg/km314 kg/km Send inquiry
L0107350035,00 mm²0,10 mm13,8 mm336,0 kg/km426 kg/km Send inquiry
L0107500050,00 mm²0,10 mm15,7 mm480,0 kg/km581 kg/km Send inquiry
L0107700070,00 mm²0,10 mm17,7 mm672,0 kg/km792 kg/km Send inquiry
L0107950095,00 mm²0,10 mm18,8 mm912,0 kg/km1012 kg/km Send inquiry
L01071200120,00 mm²0,10 mm20,5 mm1152,0 kg/km1280 kg/km Send inquiry
L01071500150,00 mm²0,10 mm23,7 mm1440,0 kg/km1551 kg/km Send inquiry
L01071850185,00 mm²0,15 mm25,3 mm1776,0 kg/km1893 kg/km Send inquiry
L010701001,00 mm²0,07 mm4,3 mm9,6 kg/km25 kg/km Send inquiry
L010701501,50 mm²0,07 mm4,7 mm14,4 kg/km31 kg/km Send inquiry
L010702502,50 mm²0,07 mm5,2 mm24,0 kg/km43 kg/km Send inquiry
L01072400240,00 mm²0,15 mm27,9 mm2304,0 kg/km2508 kg/km Send inquiry
L01073000300,00 mm²0,15 mm30,8 mm2880,0 kg/km3003 kg/km Send inquiry
item no.
Nominal cross
section
Largest single
wire-ø
Outer-ø ± 5%
Copper figure
Cable weight ≈
L01070400
4,00 mm²
0,07 mm
5,9 mm
38,4 kg/km
60 kg/km
L01070600
6,00 mm²
0,07 mm
6,3 mm
57,6 kg/km
80 kg/km
L01071000
10,00 mm²
0,07 mm
9,0 mm
96,0 kg/km
146 kg/km
L01071600
16,00 mm²
0,07 mm
9,3 mm
153,6 kg/km
196 kg/km
L01072500
25,00 mm²
0,10 mm
12,0 mm
240,0 kg/km
314 kg/km
L01073500
35,00 mm²
0,10 mm
13,8 mm
336,0 kg/km
426 kg/km
L01075000
50,00 mm²
0,10 mm
15,7 mm
480,0 kg/km
581 kg/km
L01077000
70,00 mm²
0,10 mm
17,7 mm
672,0 kg/km
792 kg/km
L01079500
95,00 mm²
0,10 mm
18,8 mm
912,0 kg/km
1012 kg/km
L01071200
120,00 mm²
0,10 mm
20,5 mm
1152,0 kg/km
1280 kg/km
L01071500
150,00 mm²
0,10 mm
23,7 mm
1440,0 kg/km
1551 kg/km
L01071850
185,00 mm²
0,15 mm
25,3 mm
1776,0 kg/km
1893 kg/km
L01070100
1,00 mm²
0,07 mm
4,3 mm
9,6 kg/km
25 kg/km
L01070150
1,50 mm²
0,07 mm
4,7 mm
14,4 kg/km
31 kg/km
L01070250
2,50 mm²
0,07 mm
5,2 mm
24,0 kg/km
43 kg/km
L01072400
240,00 mm²
0,15 mm
27,9 mm
2304,0 kg/km
2508 kg/km
L01073000
300,00 mm²
0,15 mm
30,8 mm
2880,0 kg/km
3003 kg/km

Other dimensions and colours are possible on request.
