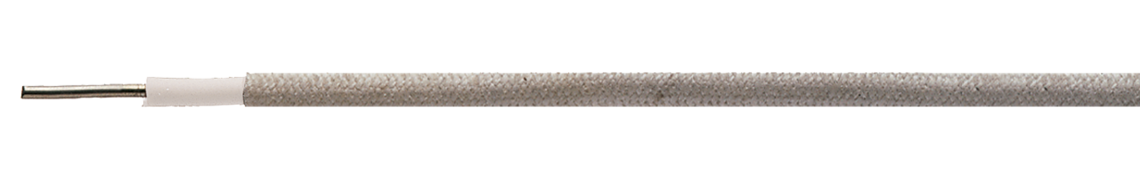

05SJ-U
Silicone (Besilen®) insulated wire with fibre-glass braiding
Application
05SJ-U is a silicone insulated wire with fibre-glass braiding with reference to DIN EN 50525-2-41. Moreover, it is used for applications at ambient temperatures higher than +55°C, for internal wiring of e.g. lamps and illuminations, heating appliances, household, kitchen, and laboratory appliances, electric machines, switchboard plants and distributors, and medical appliances.
Outstanding features
- halogen-free
- flexible at low temperatures
- heat resistant
Construction
| Conductor | tinned copper strands acc. to IEC 60228, VDE 0295, class 1 |
|---|---|
| Insulation | Besilen® EI2 acc. to EN 50363-1 + VDE 0207-363-1 |
| Standard colour | nature |
| Braiding | fibre-glass |
| Impregnation | impregnating lacquer |
tinned copper strands acc. to IEC 60228, VDE 0295, class 1
Besilen® EI2 acc. to EN 50363-1 + VDE 0207-363-1
nature
fibre-glass
impregnating lacquer
Technical data
| Nominal voltage | Uo/U 300/500 V |
|---|---|
| Testing voltage | 2000 V |
| Min. bending radius | 7,5 x d |
| Radiation resistance | 2 x 10^7 cJ/kg |
| Temperature range | fixed laying: -40/+180°C flexible application: -25/+180°C short-time use: +250°C |
| Halogen-free | acc. to IEC 60754-1 + VDE 0482-754-1 |
| Fire performance | flame retardant and self-extinguishing acc. to IEC 60332-1-2 + VDE 0482-332-1-2 |
| Corrosiveness of conflagration gases | IEC 60754-2 + VDE 0482-754-2 - no development of corrosive conflagration gases |
| Absence of harmful substances | acc. to RoHS directive of the European Union |
Uo/U 300/500 V
2000 V
7,5 x d
2 x 10^7 cJ/kg
fixed laying: -40/+180°C
flexible application: -25/+180°C
short-time use: +250°C
acc. to IEC 60754-1 + VDE 0482-754-1
flame retardant and self-extinguishing acc. to IEC 60332-1-2 + VDE 0482-332-1-2
IEC 60754-2 + VDE 0482-754-2 - no development of corrosive conflagration gases
acc. to RoHS directive of the European Union
Dimensions
| item no. |
Nominal cross section | nominal wire-ø | Copper figure | Cable weight ≈ | Outer-ø ± 5% | |
|---|---|---|---|---|---|---|
| L01540109 | 1 mm² | 1,13 mm | 9,6 kg/km | 19 kg/km | 3 mm | Send inquiry |
| L01540159 | 1,5 mm² | 1,38 mm | 14,4 kg/km | 26 kg/km | 3,4 mm | Send inquiry |
| L01540259 | 2,5 mm² | 1,78 mm | 24 kg/km | 38 kg/km | 4 mm | Send inquiry |
| L01540409 | 4 mm² | 2,26 mm | 38,4 kg/km | 55 kg/km | 4,5 mm | Send inquiry |
| L01540609 | 6 mm² | 2,76 mm | 57,6 kg/km | 75 kg/km | 5 mm | Send inquiry |
| L01541009 | 10 mm² | 3,57 mm | 96 kg/km | 125 kg/km | 6,2 mm | Send inquiry |
section
Other dimensions and colours are possible on request.
