RTD 505

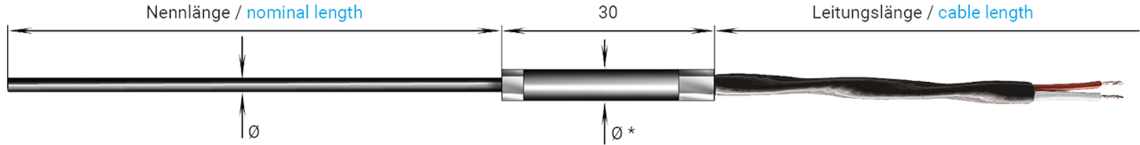

Mineral insulated resistance thermometer with PFA connection cable TTL
Mineral insulated resistance thermometer with PFA connection cable TTL
Application
As a manufacturer of mineral insulated resistance thermometers we produce all types of RTDs on request. The variety of combinations offers you the possibility of an individual composition of a temperature probe, suitable for your application.
On request we will be pleased to construct your mineral insulated resistance thermometer with connecting cable, especially according to your individual specifications.
Additional information
Sheath-Ø: 1,5 mm on request!
Construction
| RTD | - 1 x Pt 100 class A - 2 x Pt 100 class A - 1 x Pt 100 class B - 2 x Pt 100 class B |
|---|---|
| Circuit of inner wires | - 2-wire circuit - 3-wire circuit - 4-wire circuit |
| Sheath diameter | - 1,5 mm - 3,0 mm - 4,5 mm - 6,0 mm - other sheath diameter - acc. to customer’s request |
| Type of cable ends | - bare ends - cable lugs M4 - end sleeves - tinned - other cable ends - acc. to customer’s request |
| Connection cable | - 1,0 m - 1,5 m - 2,0 m - 2,5 m - 3,0 m - 4,0 m - 5,0 m - 10,0 m - other lengths - acc. to customer’s request |
| Measuring range | ▪ -50 up to +400°C with kink protection ▪ -50 up to +600°C with kink protection ▪ -50 up to +400°C without kink protection ▪ -50 up to +600°C without kink protection |
| Nominal length | According to customer requests. Please specify in mm. |
| Connection cable | PFA connection cable TTL |
