RTD 504

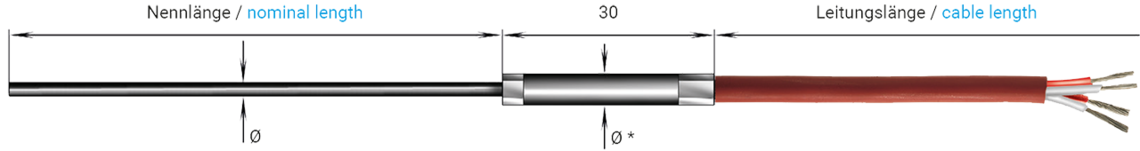

Mineral insulated resistance thermometer with Besilen (silicone) connection cable BiHF
Mineral insulated resistance thermometer with Besilen (silicone) connection cable BiHF
Application
Mineral insulated resistance thermometer can also be supplied as 2 x Pt100. You can construct your individual mineral insulated resistance thermometer using the parameters below or get direct advice from our temperature measurement experts. Please do not hesitate to contact us.
Additional information
Sheath-Ø: 1,5 mm on request!
Construction
| RTD | - 1 x Pt 100 class A - 2 x Pt 100 class A - 1 x Pt 100 class B - 2 x Pt 100 class B |
|---|---|
| Circuit of inner wires | - 2-wire circuit - 3-wire circuit - 4-wire circuit |
| Sheath diameter | - 1,5 mm - 3,0 mm - 4,5 mm - 6,0 mm - other sheath diameter - acc. to customer’s request |
| Type of cable ends | - bare ends - cable lugs M4 - end sleeves - tinned - other cable ends - acc. to customer’s request |
| Connection cable | - 1,0 m - 1,5 m - 2,0 m - 2,5 m - 3,0 m - 4,0 m - 5,0 m - 10,0 m - other lengths - acc. to customer’s request |
| Measuring range | - -50 up to +400°C with kink protection - -50 up to +600°C with kink protection - -50 up to +400°C without kink protection - -50 up to +600°C without kink protection |
| Nominal length | According to customer requests. Please specify in mm. |
| Connection cable | Besilen (silicone) connection cable BiHF |
